Selectable features

The INFO, RESET and SETUP
buttons, located on the steering
wheel, control the message center
functions.

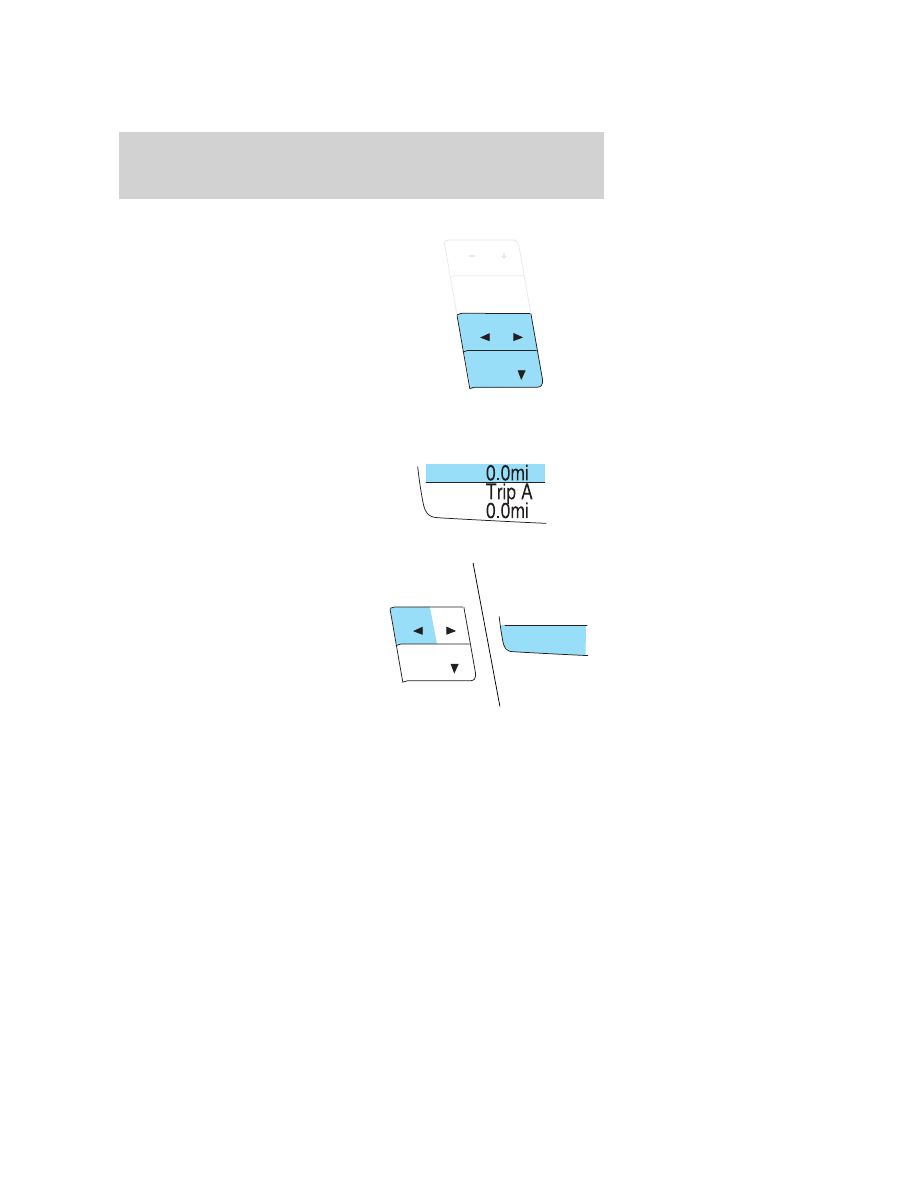

Info menu

The top line of the display is the
odometer which is always present.

Repeatedly pressing the INFO
button cycles the display through
the following options which display
on the lower line:

• Trip Odometer A or B

• Elapsed Drive Time 1 or 2

• Average Fuel Economy

• Blank

SET

RSM

RESET

INFO

SETUP

OFF

0.0mi

37.0

Avg MPG

RESET

INFO

SETUP

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Trip Odometer A or B

Refer to Gauges in the Instrument cluster chapter.

Elapsed Drive Time 1 or 2

Select this function from the INFO menu to display a timer.

To operate this feature, do the following:

1. Press and release RESET in order to start the timer.

2. Press and release RESET to pause the timer.

3. Press and hold RESET for two seconds in order to reset the timer.

Average fuel economy

Press INFO to display your average
fuel economy in miles/gallon or
liters/100 km.

If you calculate your average fuel
economy by dividing miles traveled
by gallons of fuel used (liters of fuel
used by 100 kilometers traveled),
your figure may be different than displayed for the following reasons:
• Your vehicle was not perfectly level during fill-up
• Differences in the automatic shut-off points on the fuel pumps at

service stations

• Variations in top-off procedure from one fill-up to another
• Rounding of the displayed values to the nearest 0.1 gallon (liter)
To determine your average highway fuel economy, do the following:

1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press RESET in order to reset the function after
setting the speed control to get accurate highway fuel economy readings.

For more information refer to Essentials of good fuel economy in the
Maintenance and Specifications chapter.

Blank display

Press INFO to select this function from the INFO menu to turn the
display area off.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

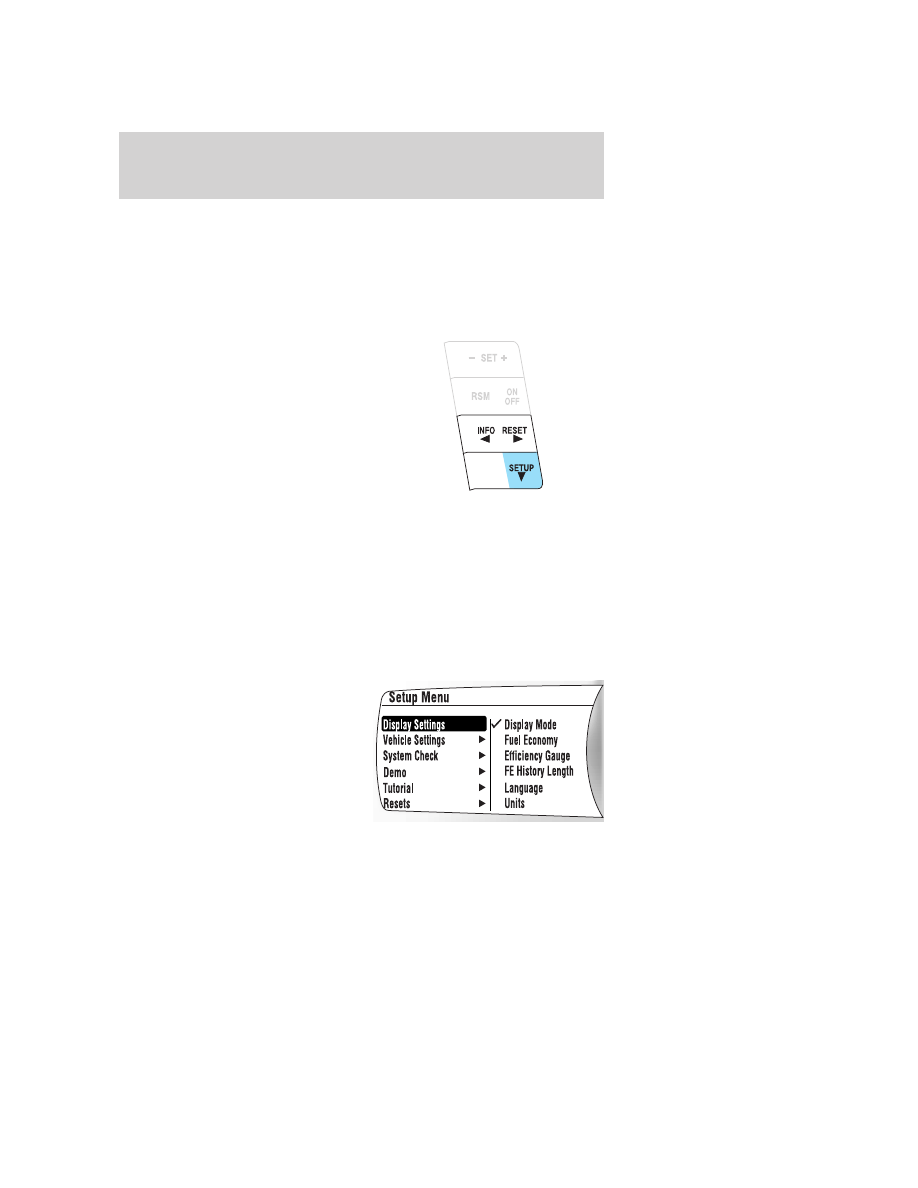

Setup menu

The setup menu can fully display on both the right and left sides of your
instrument cluster. The left side contains the menu function while the
right side contains help information that changes based on the current
menu selection. The right side is intended to be visible only when the
vehicle is stopped. The menu on the left side can be accessed at any
time by pressing the SETUP button.

The setup menu operates by use of
the INFO, SETUP, and RESET
buttons:
• SETUP: Press to enter the setup

menu. Press SETUP to scroll
through the list in the active
window. The list wraps back to
the first item when the end of the
list is reached. An arrow at the
top or bottom (or both) of the list
indicates that additional entries
are available.

• RESET: Selects the currently highlighted list item and moves the

selection to the right. The currently selected options are indicated by
a check mark. Press SETUP to scroll through the list of options and
then press RESET to select that item. A check mark will appear next
to the selected item.

• INFO: Used to move left in the menu and to exit out.

Display Settings

Press SETUP to reach Display
Settings.

While Display Settings is
highlighted, press RESET to select
it and move right to display the
following:

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

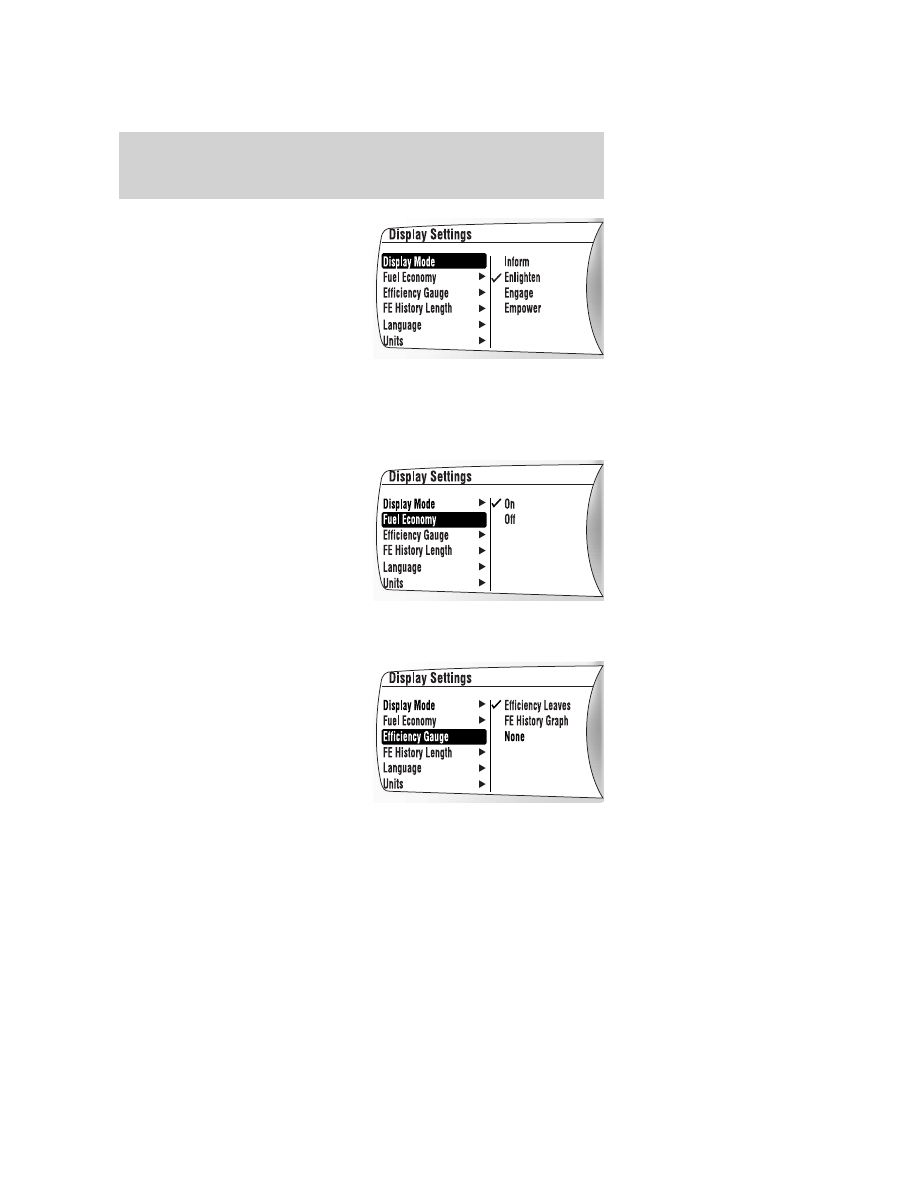

Display Mode

Choosing display mode allows you to
select which instrument cluster level
you would like displayed. While
Display Mode is highlighted, press
RESET to select it and move right
to display to the following:
• Inform
• Enlighten (default level)
• Engage
• Empower
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

Fuel Economy

Use this to turn the instantaneous
fuel economy gauge on or off. While
Fuel Economy is highlighted, press
RESET to select it and move right
to highlight the following choices:
• On
• Off
Press SETUP to scroll through the
list and highlight one of the choices.
Press RESET to pick the highlighted item.

Efficiency Gauge

Use this to choose the type of
efficiency gauge display you would
like. While Efficiency Gauge is
highlighted, press RESET to select
it and move right to display to the
following:
• Efficiency Leaves
• History Graph
• None
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

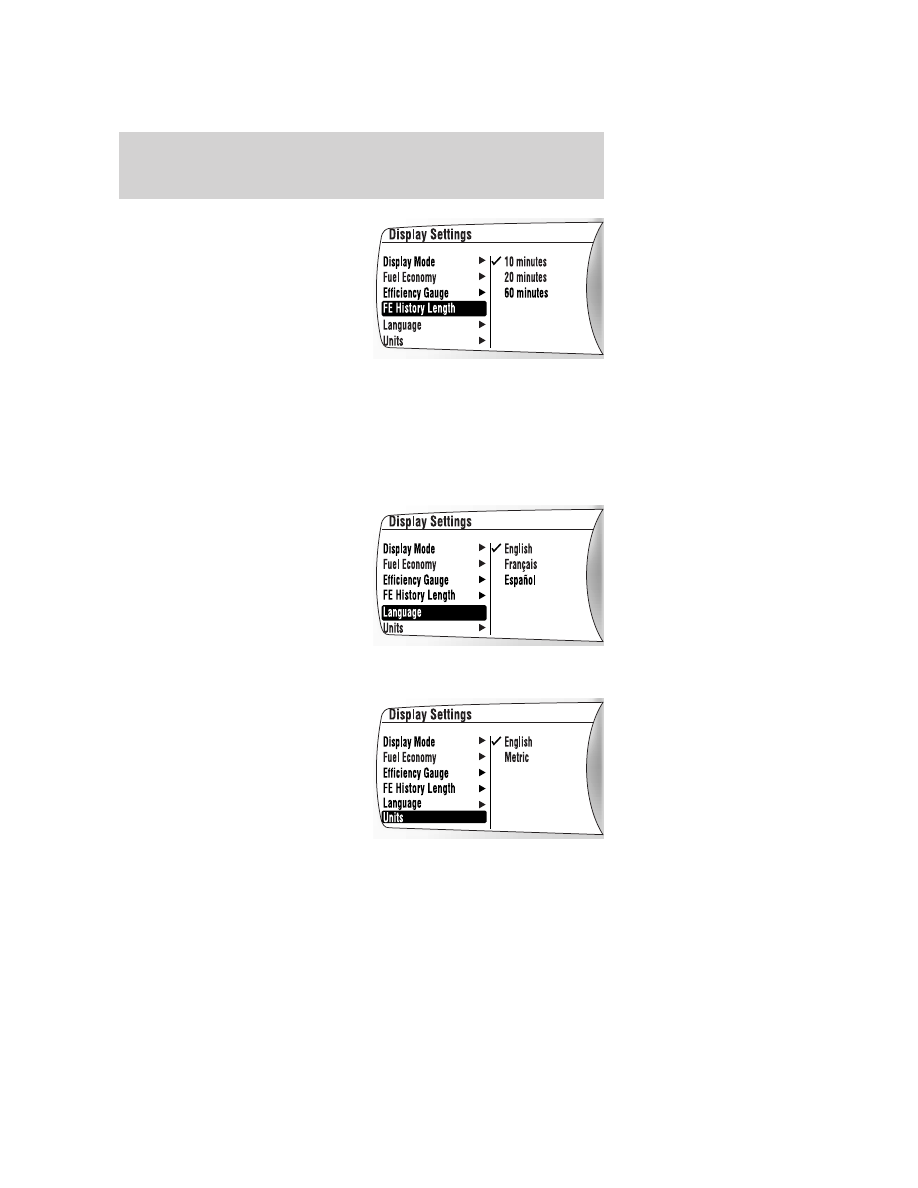

FE History Length

Use this to set the fuel efficiency
history length for the history graph.
While FE History Length is
highlighted, press RESET to select
it and move right to display to the
following:
• 10
• 20
• 60
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

These indicate average fuel economy in 10, 20, or 60 minute intervals.
The graph is updated each minute with the fuel economy that was
achieved during the prior 1, 2, or 6 minutes of driving, respectively.

Language

While Language is highlighted, press
RESET to select it and move right
to display the following:
• English
• Francais
• Español
Press SETUP to scroll through the
list and highlight one of the choices.
Press RESET to pick the highlighted item.

Units

While Units is highlighted, press
RESET to select it and move right
to display the following:
• English
• Metric
Press SETUP to scroll through the
list and highlight one of the choices.
Press RESET to pick the highlighted
item.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Vehicle Settings

Press SETUP to reach Vehicle
Settings.

While Vehicle Settings is highlighted,
press RESET to select it and move
right to display the following:

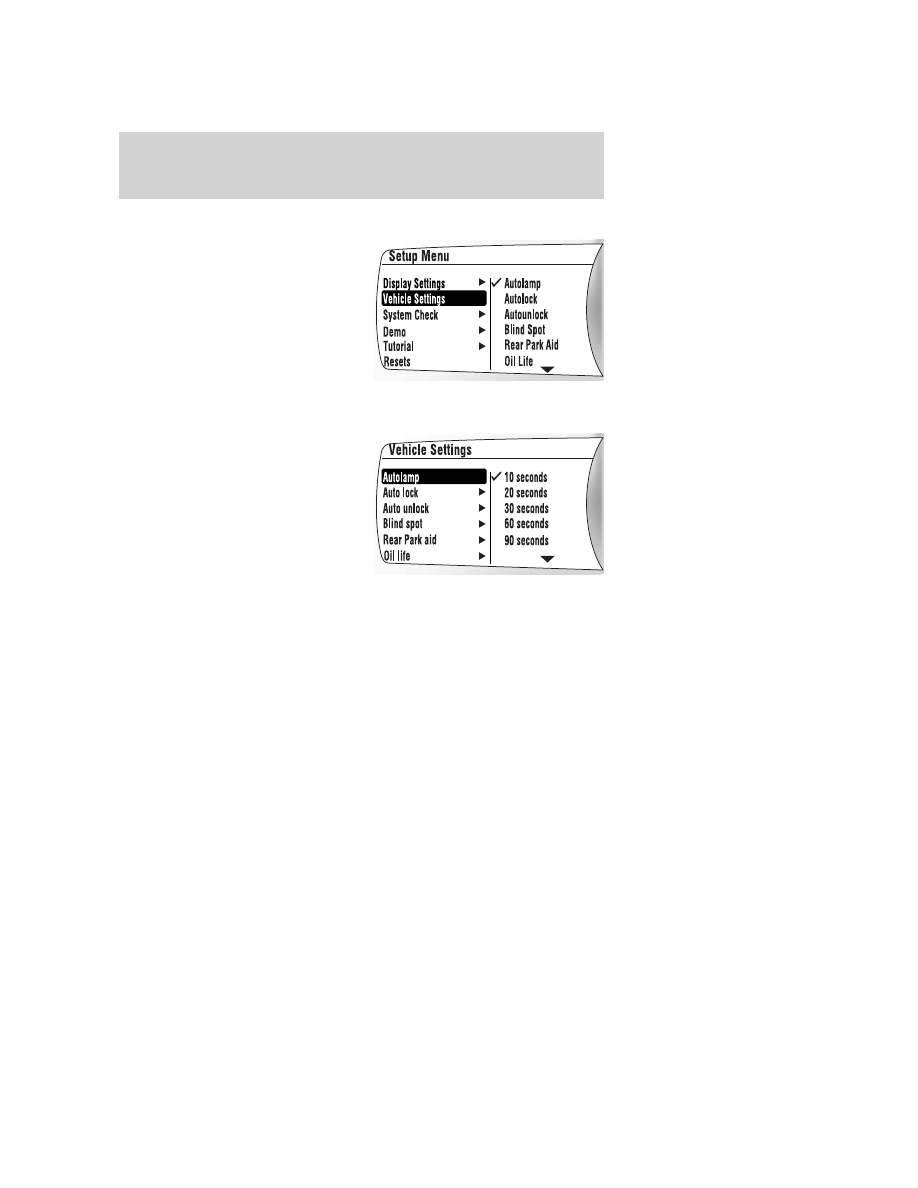

Autolamp

This feature keeps your headlights
on for up to three minutes after the
ignition is switched off.

While Autolamp is highlighted, press RESET to select it and move right
to display the following autolamp delay values (in seconds):

• 0

• 10

• 20

• 30

• 60

• 90

• 120

• 180

Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

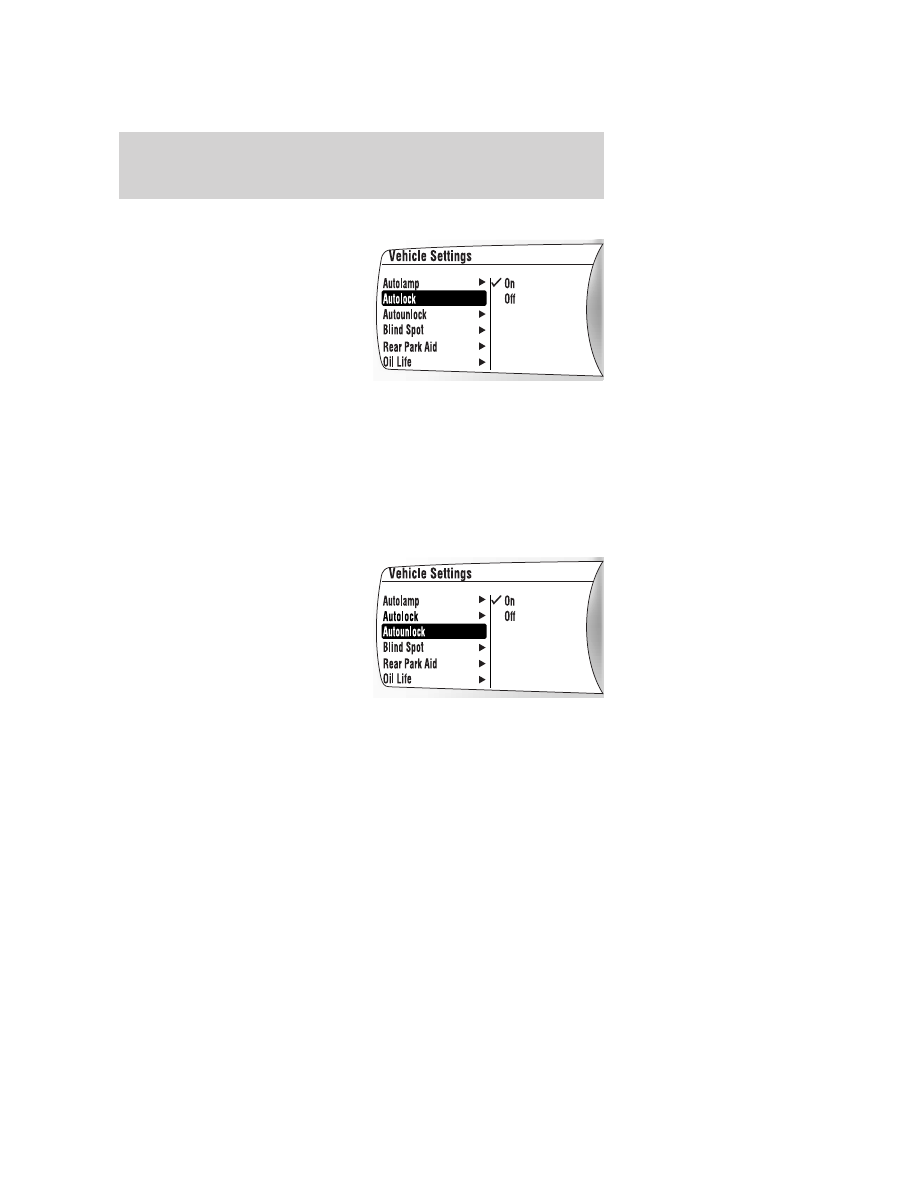

Autolock

This feature automatically locks all
vehicle doors when the vehicle is
shifted into any gear, putting the
vehicle in motion.

While Autolock is highlighted, press RESET to select it and move right to
display the following:
• On
• Off
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

Autounlock

This feature automatically unlocks
all vehicle doors when the driver’s
door is opened within 10 minutes of
the ignition being turned off.

While Autounlock is highlighted, press RESET to select it and move right
to display the following:
• On
• Off
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

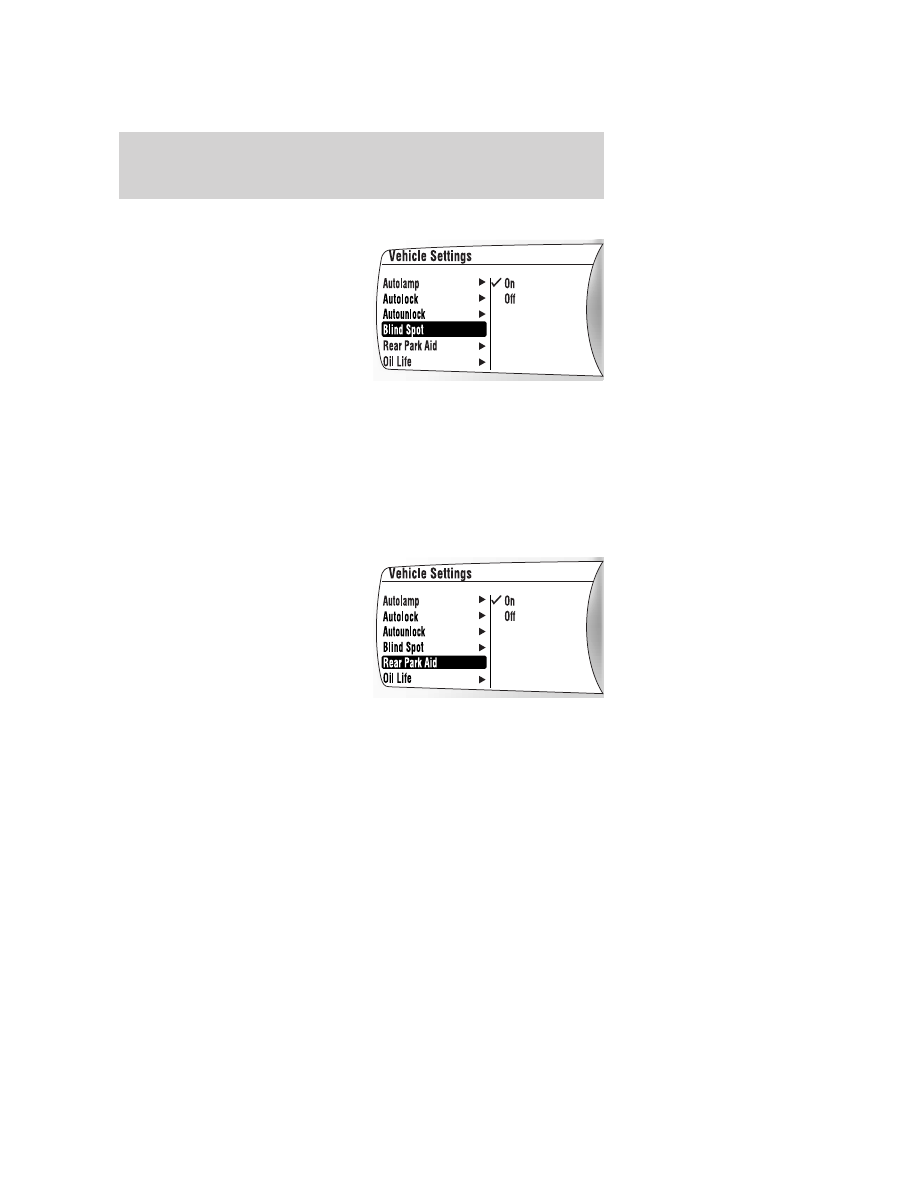

Blind Spot (if equipped)

The blind spot information system is
designed to assist the driver by
monitoring the side areas on both
sides of the vehicle and to the rear.

While Blind Spot is highlighted, press RESET to select it and move right
to display the following:
• On
• Off
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

Rear Park Aid (if equipped)

This feature sounds a warning tone
to warn the driver of obstacles near
the rear bumper, and functions only
when R (Reverse) gear is selected.

While Rear Park Aid is highlighted, press RESET to select it and move
right to display the following:
• On
• Off
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

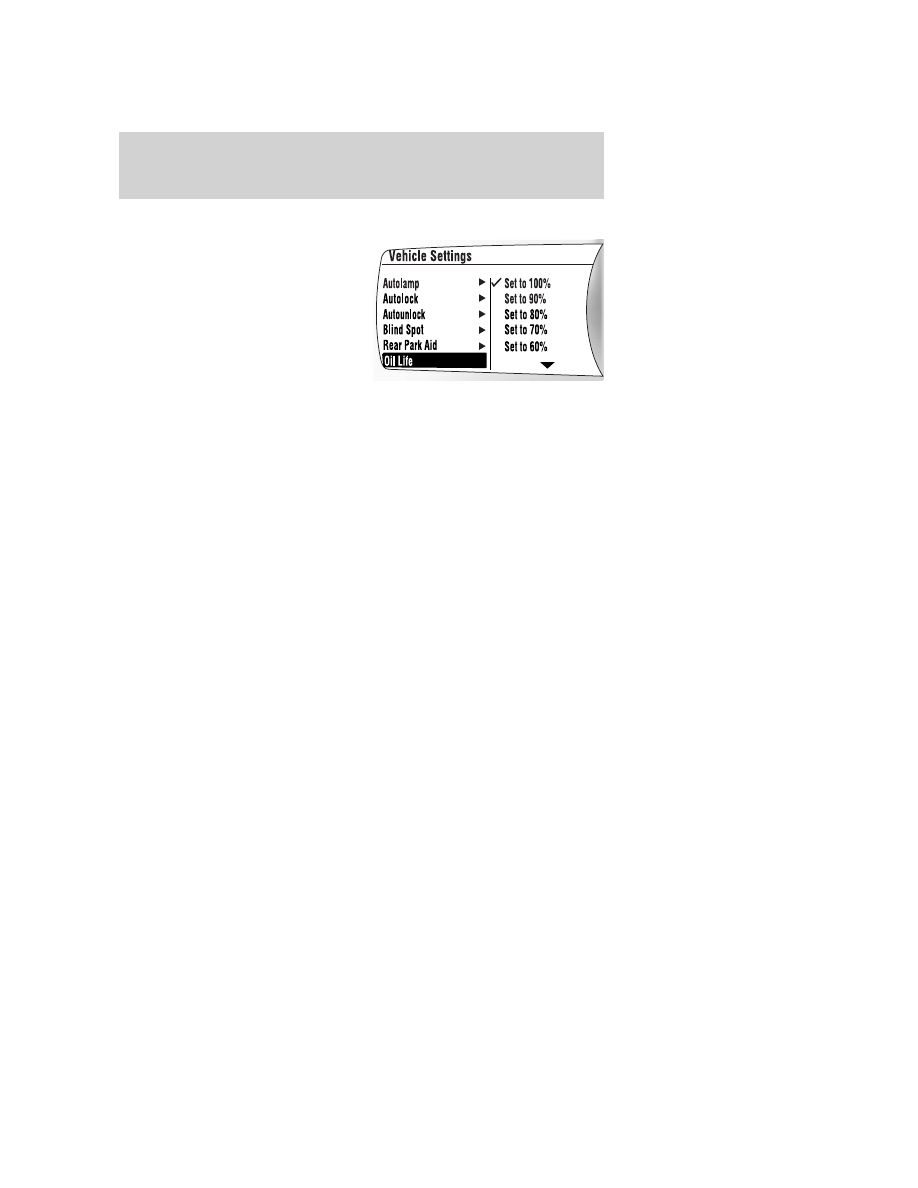

Oil Life

An oil change is required whenever
indicated by the message center.

To reset the oil monitoring system to 100% (or another value) after each
oil change perform the following:

While Oil Life is highlighted, press RESET to select it and move right to
display the following:

• Set to 100%

• Set to 90%

• Set to 80%

• Set to 70%

• Set to 60%

• Set to 50%

• Set to 40%

• Set to 30%

• Set to 20%

• Set to 10%

Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.

Note: Oil life of 100% equals 10,000 miles (12,000 km) or 12 months.
For example, setting oil life to 60% sets the oil life value to 6,000 miles
(10,000 km) and 219 days.

See the Maintenance and specifications chapter regarding engine oil
and change intervals.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

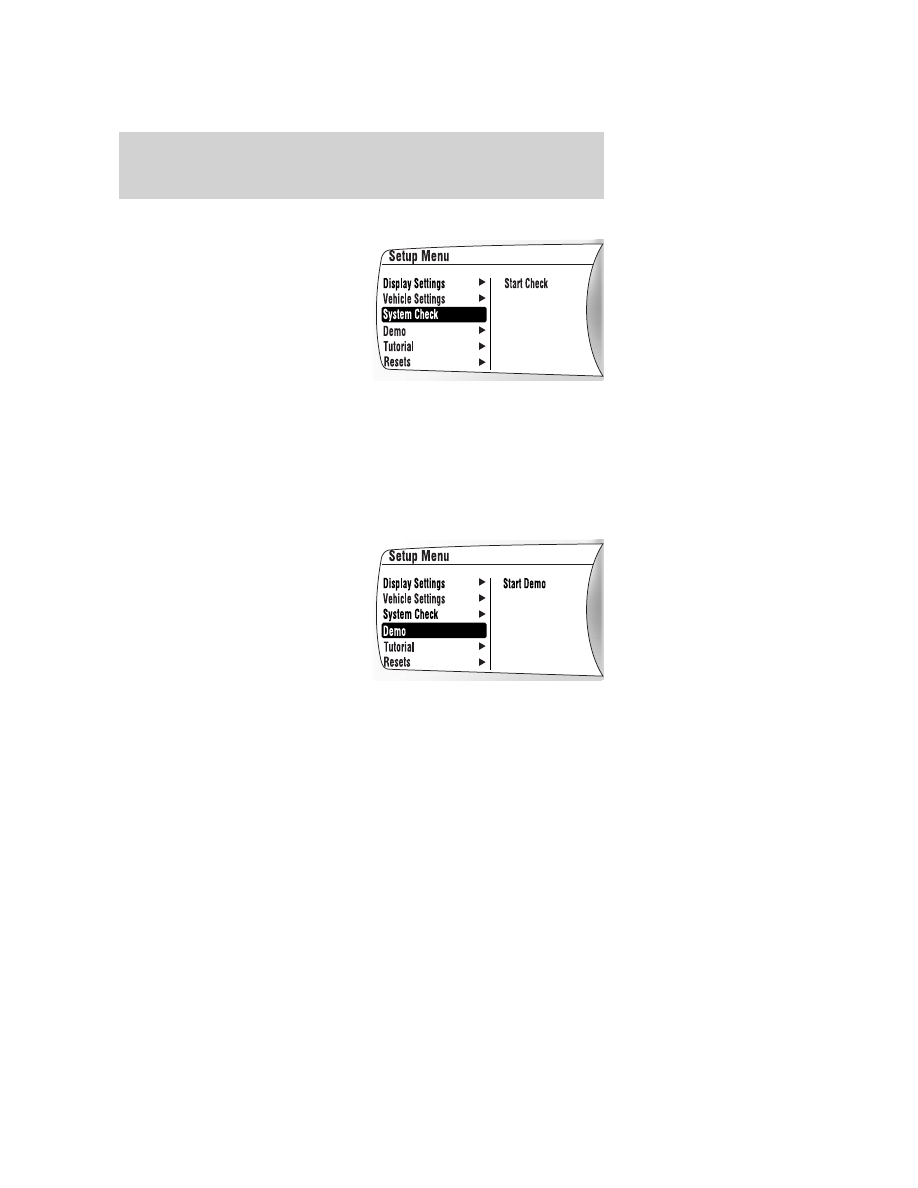

System Check

Press SETUP to reach System
Check.

While System Check is highlighted,
press RESET to cycle the message
center through each of the systems
being monitored:

1. OIL LIFE

2. ELECTRIC DRIVE

3. CHARGING SYSTEM

4. DOORS CLOSED

5. TRUNK CLOSED

6. BLINDSPOT (if equipped)

7. BRAKE SYSTEM

8. FUEL LEVEL XXX mi (km)

9. CROSS TRAFFIC (if equipped)

Demo

The demo briefly displays each of
the gauge displays available.

Press SETUP to reach Demo.

While Demo is highlighted, press
RESET to start the demo. Pressing
INFO, SETUP or RESET will exit
the demo.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

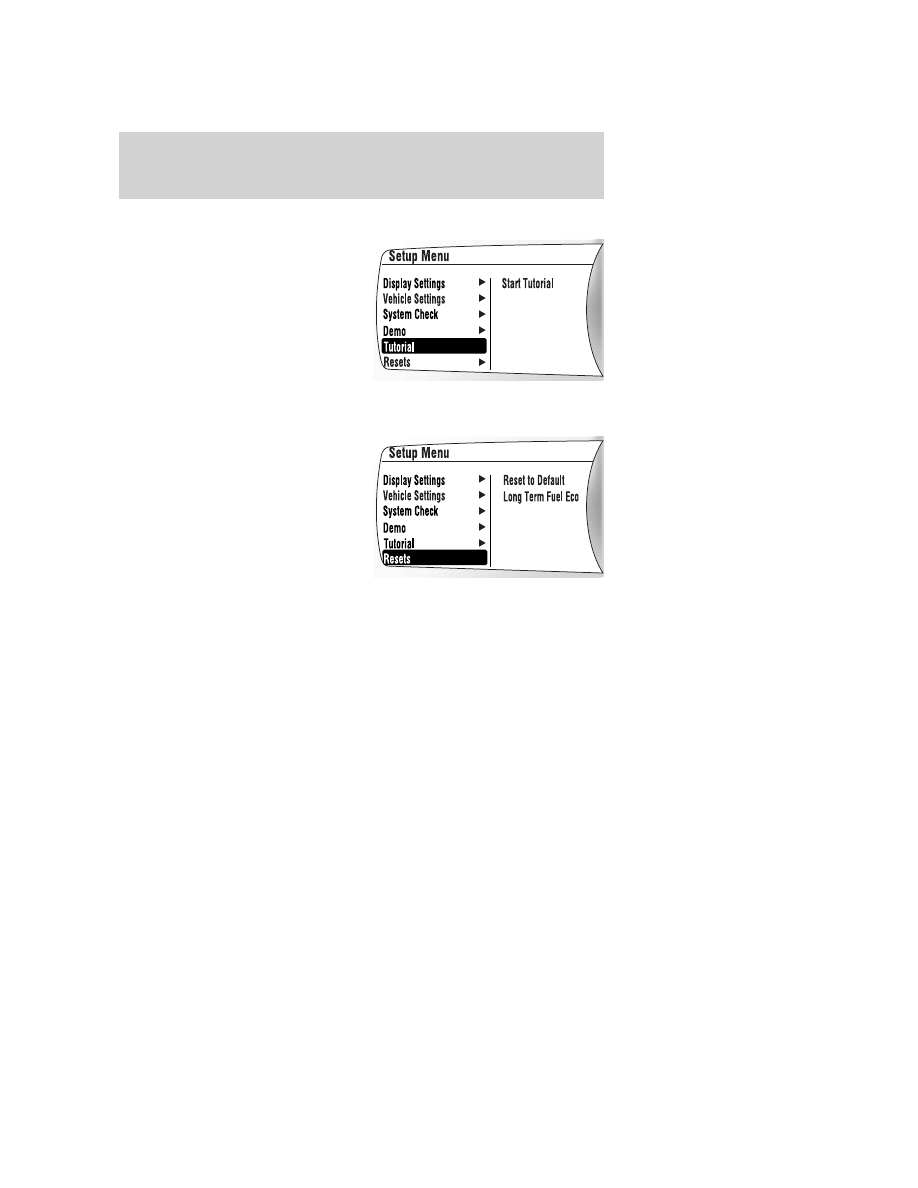

Tutorial

The tutorial is a self-paced guide
that provides a brief overview of
instrument cluster features.

Press SETUP to reach Tutorial.

While Tutorial is highlighted, press
RESET to start the tutorial. Use the
INFO, SETUP and RESET buttons
to navigate through the tutorial.

Resets

Press SETUP to reach Resets.

While Resets is highlighted, press
RESET to select it and move right
to display to the following:
• Reset to Default: Resets the

instrument cluster display options
to their factory defaults setting.

• Long Term Fuel Eco: Resets the

long term fuel economy value
displayed on the shutdown trip
summary screen to 0.

Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to reset the highlighted item.

System warnings

System warnings and important information about vehicle status will be
displayed at the left side of your vehicle’s instrument cluster. System
warnings alert you to possible problems or malfunctions in your vehicle’s
operating systems. Warnings will be displayed in large format on the left
side of the instrument cluster and then will shrink to a small format if
cleared by pressing the RESET button. The warning will remain on the
far left until the condition causing the warning is corrected.

The message center will display the temperature gauge and PRNDL
indicator if there are no more warning messages. This allows you to use
the full functionality of the message center after you acknowledge the
warning by pressing RESET and clearing the warning message.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Warning messages that have been reset are divided into two categories:
• They will reappear on the display ten minutes from the reset.
• They will not reappear until an ignition on/off cycle has been

completed if the fault condition still exists. This acts as a reminder
that these warning conditions still exist within the vehicle.

Warnings that return after 10 minutes:

PARK BRAKE ENGAGED — Displayed when the park brake is
engaged. If the warning stays on after the park brake is off, contact your
authorized dealer as soon as possible.

CHECK BRAKE SYSTEM — Displayed when the brake system needs
servicing. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.

Warnings that return after the ignition key is turned from off to
on:

STOP SAFELY NOW — Displayed when the stop safety hazard warning
lamp is illuminated. This indicates a hybrid component fault/failure that
will cause the vehicle to shut down, fail to start or enter into limited
operating mode.

Note: If the vehicle is still running, it may soon shut down without
further warning and should be stopped safely. Contact your authorized
dealer as soon as possible.

HIGH ENGINE TEMPERATURE — Displayed when the engine
coolant is overheating. Engine coolant temperature warning lamp will
illuminate indicating coolant temperature is high. Stop the vehicle as
soon as safely possible, turn off the engine and let it cool. Check the
coolant level. Refer to Engine coolant in the Maintenance and
Specifications chapter. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.

WARNING: When the engine and radiator are hot, scalding
coolant and steam may shoot out under pressure and cause

serious injury. Do not remove the cooling system cap when the engine
and radiator are hot.

HIGH MOTOR TEMPERATURE — Displayed when the motor
electronics are overheating. Stop the vehicle as soon as safely possible,
turn off the engine and let it cool. Refer to Engine coolant and
motor/electronics coolant in the Maintenance and Specifications
chapter. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

POWER STEERING ASSIST FAULT — The power steering system
has disabled power steering assist due to a system error, service is
required.

SERVICE POWER STEERING — The power steering system has
detected a condition that requires service.

SERVICE POWER STEERING NOW — The power steering system
has detected a condition within the power steering system that requires
service immediately.

SERVICE ADVANCETRAC — Displayed when the AdvanceTrac

威

system has detected a condition that requires service.

DRIVER DOOR AJAR — Displayed when the driver’s door is not
completely closed.

PASSENGER DOOR AJAR — Displayed when the passenger side door
is not completely closed.

REAR LEFT DOOR AJAR — Displayed when the rear left door is not
completely closed.

REAR RIGHT DOOR AJAR — Displayed when the rear right door is
not completely closed.

CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may
not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in
the Maintenance and Specifications chapter.

FUEL LEVEL LOW — Displayed as an early reminder of a low fuel
condition.

BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer to Brake
fluid in the Maintenance and Specifications chapter.

CHECK PARK AID (if equipped) — Displayed when the transmission
is in R (Reverse) and the Reverse Sensing System (Park Aid) is disabled.
Refer to Reverse Sensing System (Park Aid) in this section to enable.

LOW TIRE PRESSURE — Displayed when one or more tires on your
vehicle have low tire pressure. Refer to Inflating your tires in the Tires,
Wheels and Loading chapter.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

TIRE PRESSURE MONITOR FAULT — Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.

TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and
Loading chapter. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.

TRUNK AJAR — Displayed when the trunk is not completely closed.

REMOVE OBJECTS NEAR PASS SEAT — Displayed when objects
are by the passenger seat. After the objects are moved away from the
seat, if the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.

OIL LIFE CHANGE SOON — Displayed when the engine oil life
remaining is 10% or less. When oil life left is between 10% and 0%, the
XX% OIL LIFE CHANGE SOON message will be displayed.

OIL CHANGE REQUIRED — Displayed when the oil life left reaches
0%, the OIL CHANGE REQUIRED message will be displayed.

BLIND SPOT SYSTEM FAULT (if equipped) — Displayed when a
fault with the blind spot information system has a fault. Contact your
authorized dealer as soon as possible.

CROSS TRAFFIC SYSTEM FAULT (if equipped) — Displayed when
a fault with the cross traffic alert system has a fault. Contact your
authorized dealer as soon as possible.

BLIND SPOT NOT AVAILABLE (if equipped) — Displayed when
blind spot information system is not available. See Blind spot
information system in the Driver controls chapter.

CROSS TRAFFIC NOT AVAILABLE (if equipped) — Displayed
when cross traffic alert is not available. See Blind spot information
system in the Driver controls chapter.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

SENSOR BLOCKED SEE MANUAL (if equipped) — Displayed when
the blind spot information system/cross traffic alert system sensors are
blocked. See Blind spot information system in the Driver controls
chapter.

VEHICLE COMING FROM LEFT (if equipped) — Displayed when
the blind spot information system with cross traffic alert (CTA) system is
operating and senses a vehicle. See Blind spot information system in
the Driver controls chapter.

VEHICLE COMING FROM RIGHT (if equipped) — Displayed when
the blind spot information system with cross traffic alert (CTA) system is
operating and senses a vehicle. See Blind spot information system in
the Driver controls chapter.

TO STOP ALARM START VEHICLE — Displayed when the perimeter
alarm system is armed and the vehicle is entered using the key on the
driver’s side door. In order to prevent the perimeter alarm system from
triggering, the ignition must be turned to Start before the 12 second
chime expires. See Perimeter alarm system in the Locks and security
chapter.

Temporary messages:

INTKEY COULD NOT PROGRAM — Displayed when an attempt is
made to program an invalid key or more than the maximum number of
integrated keys allowed. For more information on integrated key, refer to
the Locks and Security chapter.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

AUDIO SYSTEMS

AM/FM/single CD or in-dash CD6/MP3 satellite compatible sound
system

WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that

drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.

Accessory delay: Your vehicle is equipped with accessory delay. With
this feature, the radio and other electrical accessories may be used for
up to ten minutes after the ignition is turned off or until either front
door is opened.

Note: Your vehicle is equipped with
a unique audio system. If your
display shows six small circles in the
display, your audio system is a CD6
system. If not, your system is a
Single CD system.

Setting the clock

To set the time, press CLOCK#. The display will read SET TIME. Use the
memory preset numbers (0–9) to enter in the desired time–hours and
minutes. The clock will then begin from that time.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

Content .. 1 2 3 4 ..
