emission control system during normal driving. If the vehicle needs
I/M testing, refer to the Readiness for Inspection/Maintenance (I/M)
testing section in the Maintenance and Specifications.

• Illuminates with engine running: The light stays on after the

engine is started. It indicates that the On Board Diagnostics System
has detected a problem with the engine, transmission or an
emission-related component or system. Contact your authorized dealer
as soon as possible. The vehicle will usually be drivable and will not
require towing. Refer to On Board Diagnostics (OBD-II) in the owner
guide for information on temporary malfunctions that may not require
vehicle service.

• Blinks with engine running: The light stays on after the engine is

started and sometimes blinks. It indicates that the On Board
Diagnostics System has detected an engine misfire problem with the
engine. While the light is blinking, engine misfire is occurring which
could damage your catalytic converter. Drive in a moderate fashion
(avoid heavy acceleration and deceleration) and contact your
authorized dealer as soon as possible.

WARNING: Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel

system, interior floor coverings or other vehicle components, possibly
causing a fire.

Brake system warning: To confirm
the brake system warning light is
functional, it will momentarily
illuminate when the ignition is
turned to the on position (when the
engine is not running), or in a position between on and start, or by
applying the parking brake when the ignition is turned to the on
position. If the brake system warning light does not illuminate at this
time, contact your authorized dealer as soon as possible. Illumination
after releasing the parking brake indicates low brake fluid level. Contact
your authorized dealer as soon as possible.

BRAKE

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

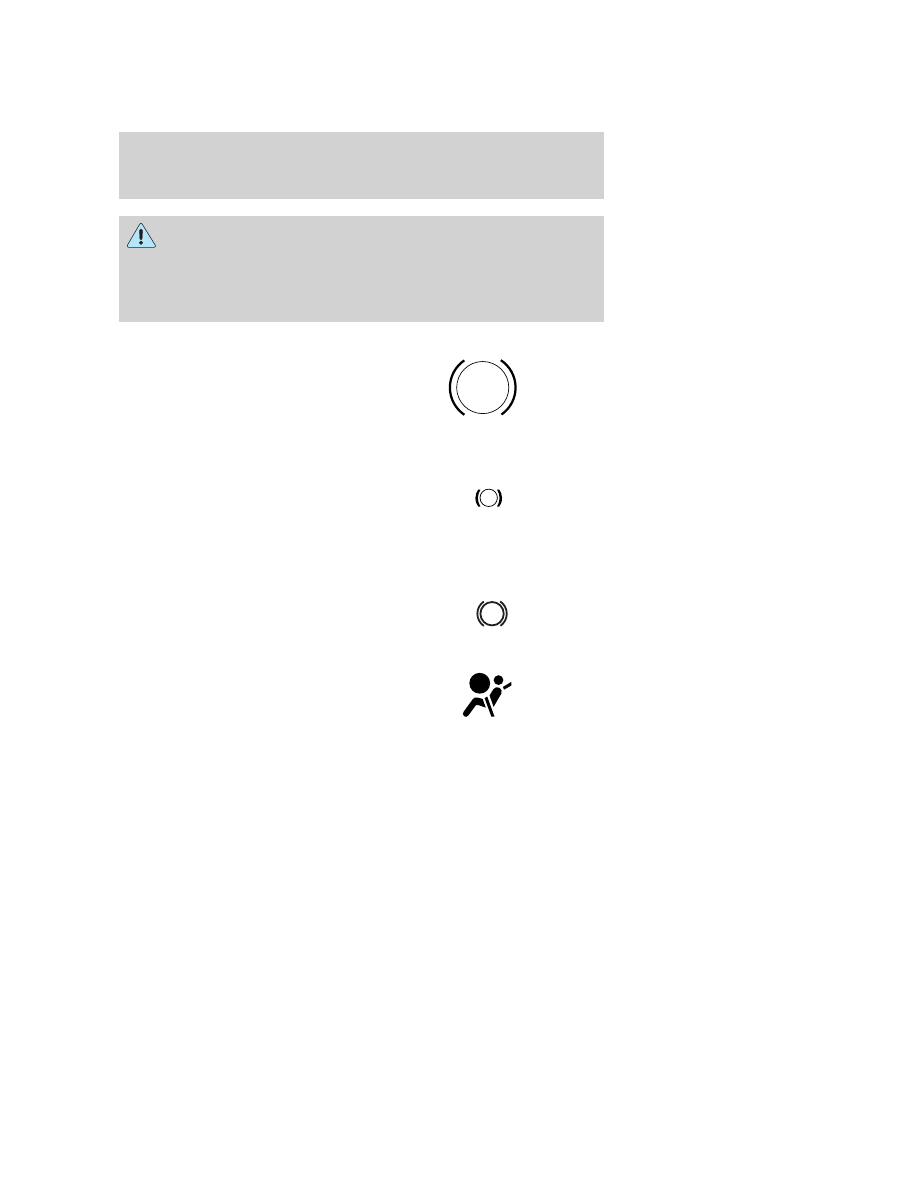

WARNING: Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking

performance may occur. It will take you longer to stop the vehicle.
Contact your authorized dealer as soon as possible. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.

Anti-lock brake system: If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected. Contact your
authorized dealer as soon as
possible. Normal braking is still functional unless the brake warning light
also is illuminated.

Check brake system/Brake fluid
level low (RTT): Indicates the
braking system is not operating
properly or that the brake fluid level
is low. A message may also display
in the message center. Contact your authorized dealer as soon as
possible.

Parking brake engaged (RTT):
Displays when the parking brake is
engaged. A message may also
display in the message center.

Airbag readiness: The warning
light illuminates momentarily when
the ignition is turned to the on
position. The supplementary
restraint system includes the airbags and seat belt buckle pretensioners.
If this light fails to illuminate when the ignition is turned on, continues to
flash or remains on, contact your authorized dealer as soon as possible.
A chime will sound if there is a malfunction in the indicator light.

ABS

BRAKE

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

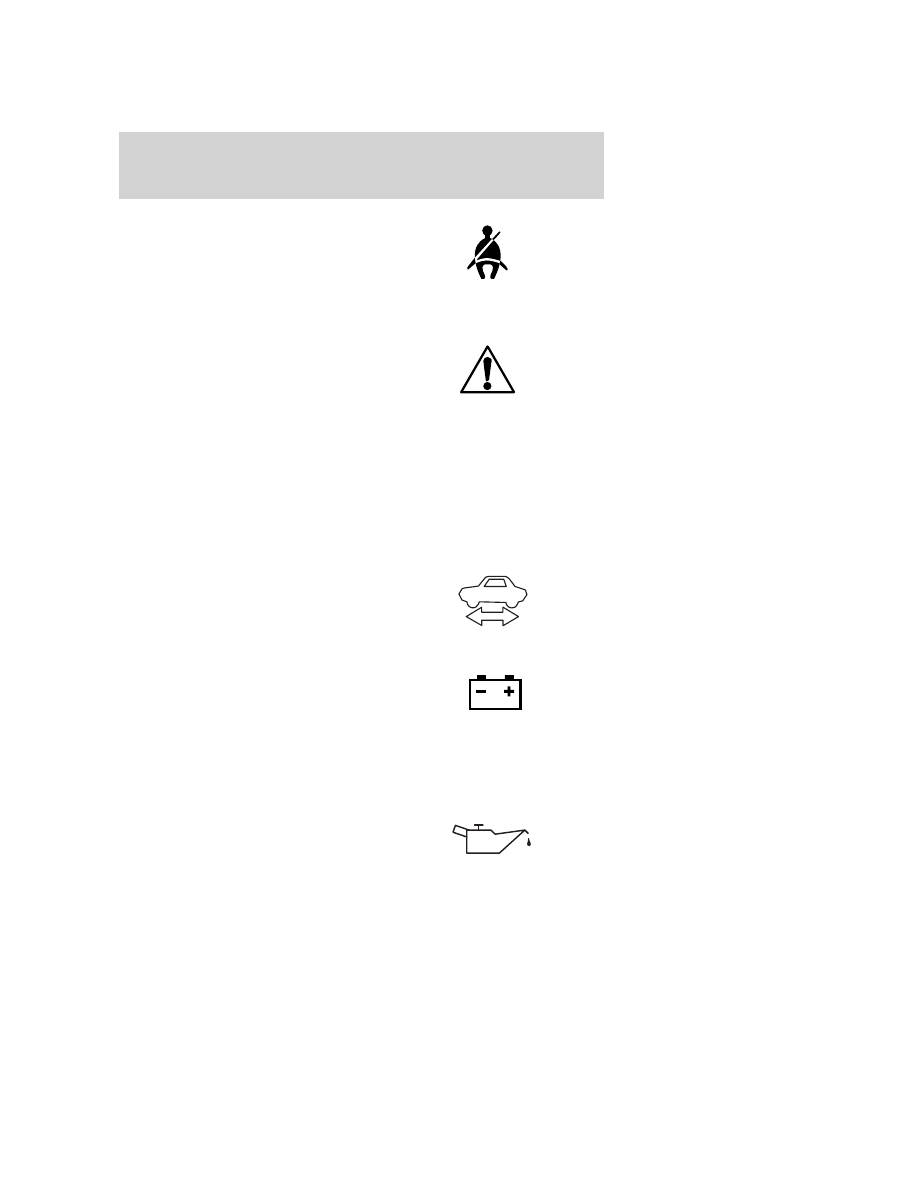

Safety belt: The warning light
illuminates momentarily when the
ignition is turned to the on position.
Illuminates to remind you to fasten
your safety belt. A Belt-Minder

威

chime will also sound to remind you to fasten your safety belt. Refer to
the Seating and Safety Restraints chapter to activate/deactivate the
Belt-Minder

威 chime feature.

Stop safely hazard warning
(RTT): Indicates Hybrid component
fault/failure that will cause the
vehicle to shutdown, fail to start or
enter into a limited operating mode. A message may also display in the
message center.

Note: If the vehicle is still running, the vehicle may soon
shutdown without further warning and should be stopped safely.

If this lamp is lit, stop the vehicle, shift to P (Park), turn the key to the
off position, and attempt to restart the vehicle. If the fault remains, the
vehicle may require refueling, jump starting or service. For information
regarding the low-voltage (12–volt) battery only, please refer to the
Roadside Emergencies chapter.

Ready to drive: Illuminates once
the vehicle has successfully started
and will remain lit throughout the
drive. Indicates the vehicle is ready
to drive even when you don’t hear
the gasoline engine running.

Charging system (RTT):
Illuminates when the low-voltage
(12-volt) battery is not charging
properly. The message center
displays CHECK CHARGING SYSTEM. If it stays on while the vehicle is
running (Ready to drive indicator is illuminated), there may be a
malfunction with the charging system. Contact your authorized dealer as
soon as possible. This indicates a problem with the electrical system or a
related component.

Engine oil pressure (RTT):
Illuminates when the oil pressure
falls below the normal range. The
message center displays LOW OIL

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

PRESSURE when the engine oil level is low. Check the oil level and add
oil if needed. If the warning light or message stays on, even though the
oil level is correct, do not start the engine and contact your authorized
dealer as soon as possible. This indicates a problem with the engine or a
related component. Refer to Engine oil in the Maintenance and
Specifications chapter.

High engine or high motor
electronic coolant temperature
(RTT): Illuminates when the engine
coolant or motor electronics coolant temperature is high. The message
center displays HIGH ENGINE TEMPERATURE / HIGH MOTOR
TEMPERATURE when the engine coolant or motor electronics are
overheating. Stop the vehicle as soon as safely possible, turn off the
engine, and let it cool. Check the coolant and coolant level. If the light
and message stays on or continues to turn on after the vehicle warms
up, contact your authorized dealer as soon as possible. Continuing to
drive with an overheated engine can cause serious engine damage. This
indicates a problem with the engine or a related component. Refer to
Engine coolant and motor/electronics coolant in the Maintenance
and Specifications chapter.

WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.

AdvanceTrac

威/Traction

Control™: Illuminates when the
AdvanceTrac

威/Traction Control™ is

active. If the light remains on,
contact your authorized dealer as
soon as possible. Refer to the Driving chapter for more information.

AdvanceTrac

威/Traction

Control™ off: Illuminates when
the AdvanceTrac

威/Traction

Control™ has been disabled by the
driver. Refer to the Driving chapter
for more information.

OFF

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

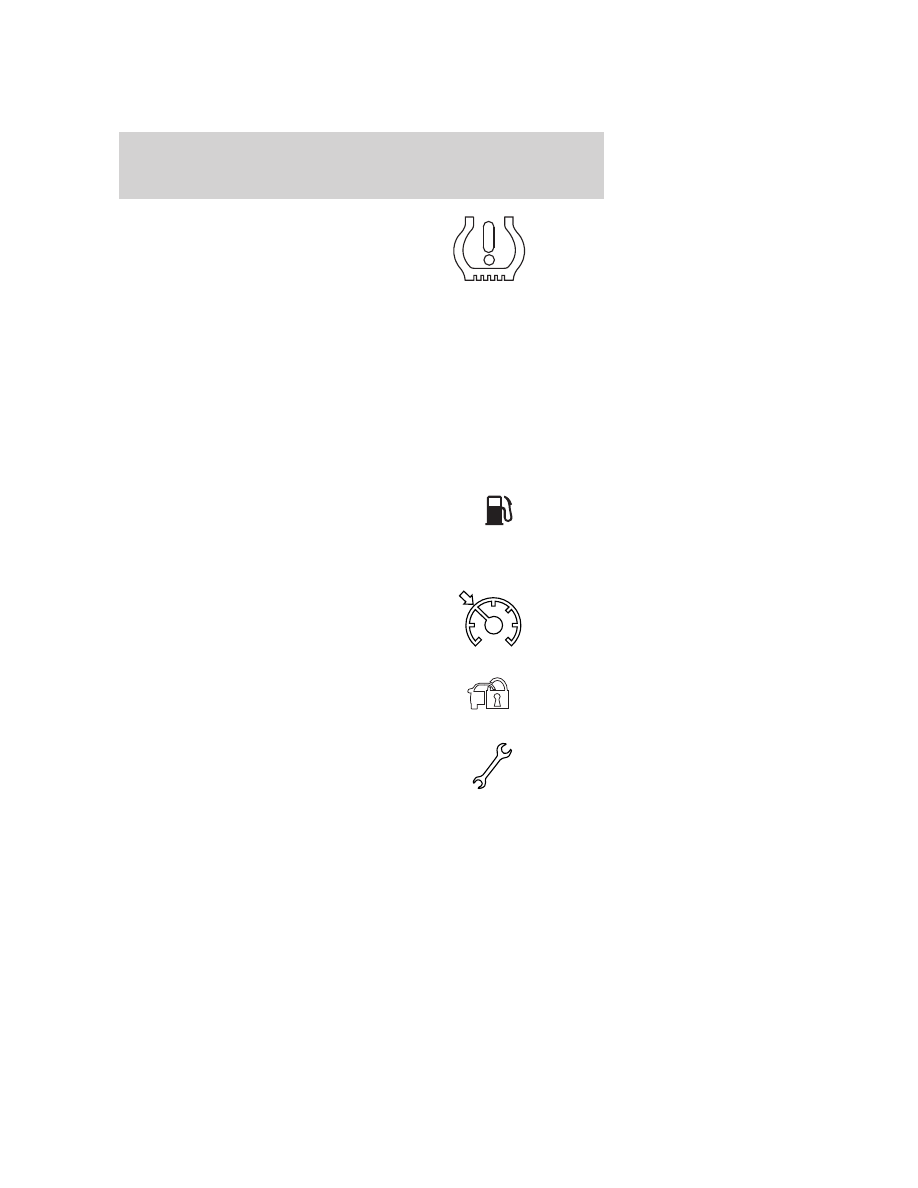

Low tire pressure warning:
Illuminates to warn you when your
tire pressure is low. If the telltale
remains on solid at start up or while
driving, the tire pressure should be
checked. The message center will also display LOW TIRE PRESSURE
when one or more tires on your vehicle have low tire pressure.

The telltale can also warn you when the system is malfunctioning. If the
telltale begins to flash, when the ignition is first turned on or while
driving, contact your authorized dealer as soon as possible. The message
center will also display TIRE PRESSURE SENSOR FAULT or TIRE
PRESSURE MONITOR FAULT when the system is malfunctioning.

Please note that if your spare tire is in use, the damaged road tire must
be re-installed on your vehicle to restore system functionality. For more
information on this system, refer to Tire pressure monitoring system
(TPMS) in the Tires, Wheels and Loading chapter.

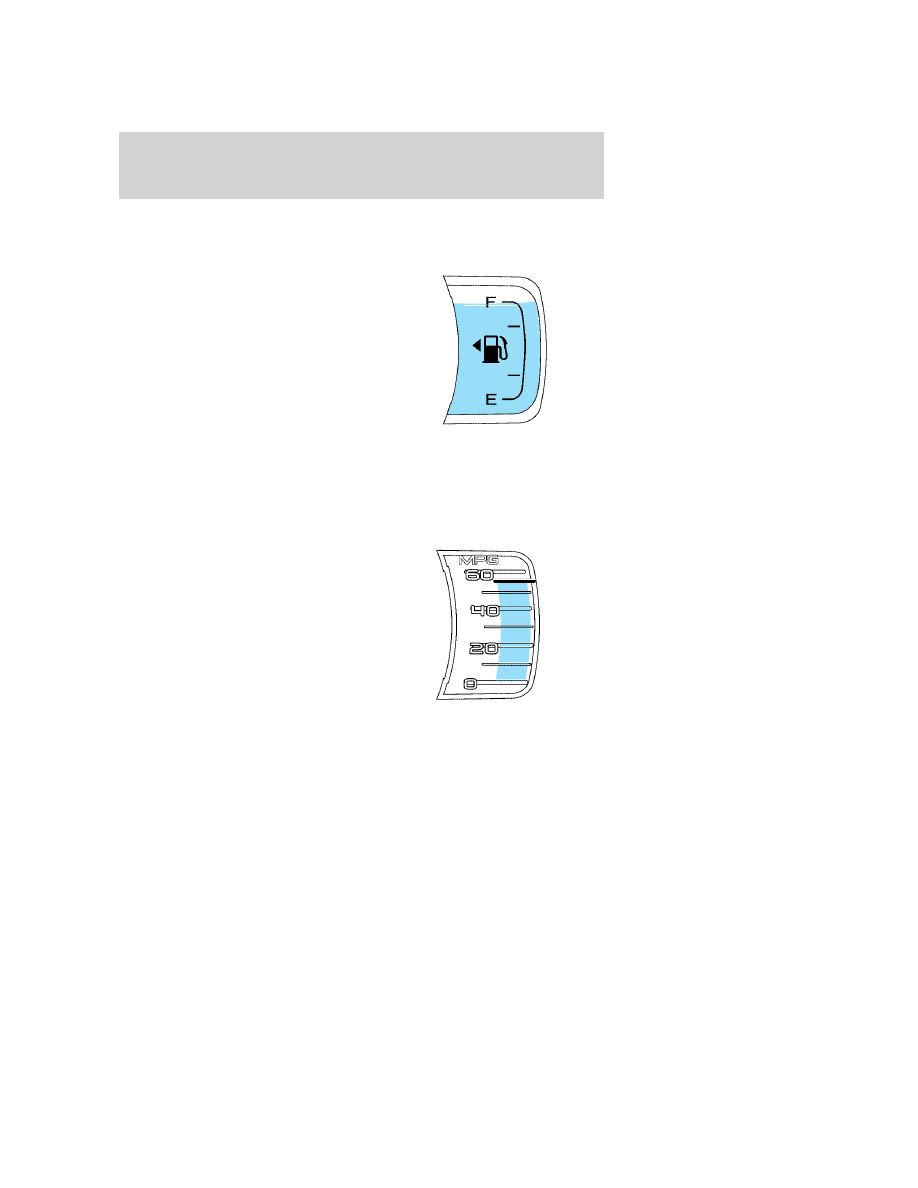

Low fuel (RTT): Displays when
the fuel level in the fuel tank is at
or near empty. The fuel gage will
turn yellow and then red depending
on fuel level. A message may also display in the message center. Refer to
Fuel gauge in this chapter.

Speed control: Illuminates when
the speed control is engaged. Turns
off when the speed control system
is disengaged.

Anti-theft system: Flashes when
the SecuriLock™ Passive Anti-theft
System has been activated.

Throttle Control/Powertrain
malfunction (RTT): Illuminates
when a powertrain fault has been
detected. If the indicator stays on or
continues to come on, contact your
authorized dealer as soon as possible.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Door ajar (RTT): Displays when
the ignition is in the on position and
any door is open. A message may
also display in the message center.

Turn signal: Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.

High beams: Illuminates when the
high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the off, lock or accessory position and the driver’s door is
opened.

Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.

Parking brake on warning chime: Sounds when the parking brake is
left on and the vehicle is driven. If the warning stays on after the park
brake is off, contact your authorized dealer as soon as possible.

Turn signal on warning chime: Sounds when the turn signal has been
left on for an extended period of time.

HEV Engine off reminder chime: Sounds for 10 seconds when the
PRNDL is in the P (Park) position and the Driver’s door is ajar (open)
while ignition is on. Always turn your ignition key to off and remove key
before leaving your vehicle. (The engine may be off when the vehicle is
stopped, yet the key is on, and the engine can turn on at any time)

Message center activation chime: Sounds when some messages
appear in the message center display for the first time.

Perimeter alarm warning chime: Sounds when using a key to unlock
the driver’s doors and the perimeter alarm is armed.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

GAUGES

Your vehicle is equipped with an LCD (Liquid Crystal Display),
reconfigurable instrument cluster. You can choose from four information
levels, and also customize certain options within each level. The
instrument cluster also comes with a demo mode and tutorial feature to
demonstrate the four instrument cluster levels. Refer to Message Center
in the this chapter to choose the display level you’d like and to use the
demo and tutorial modes.

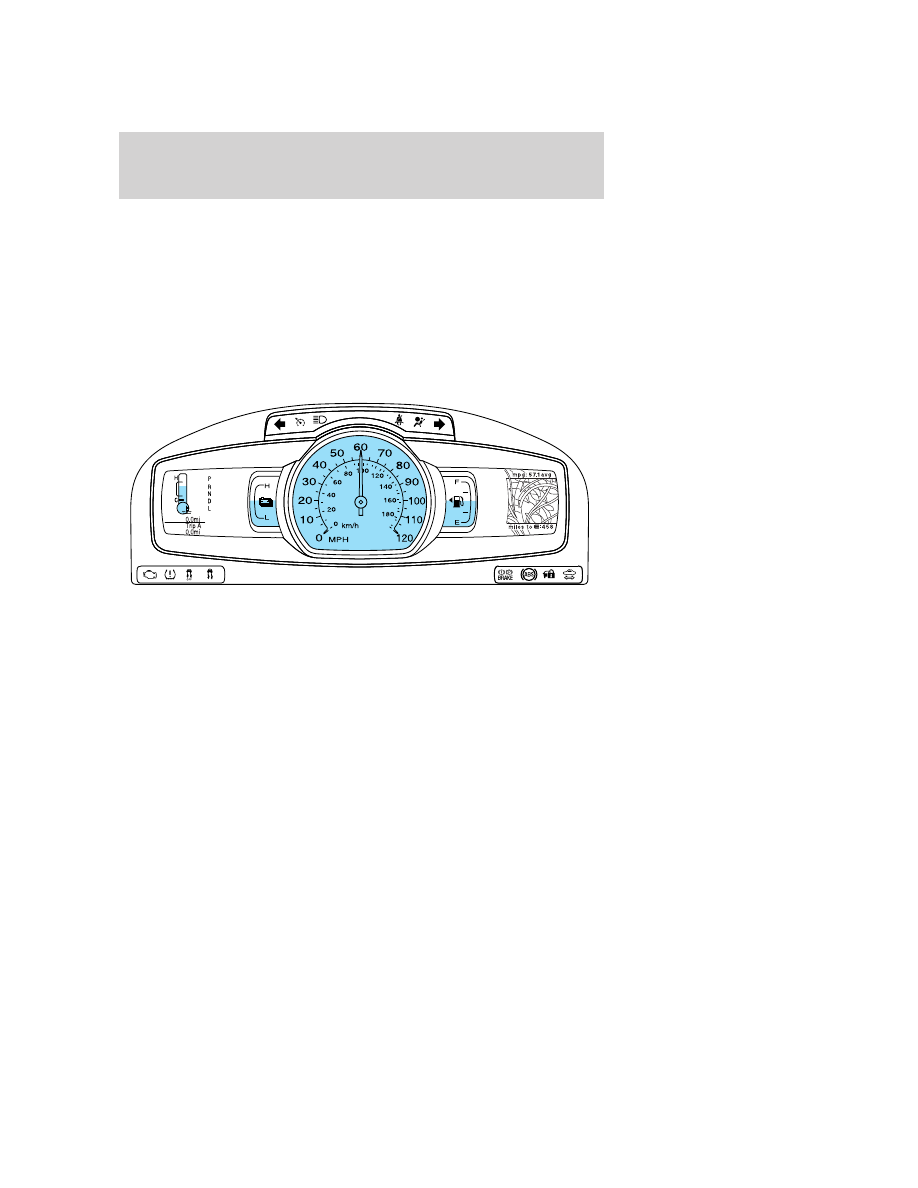

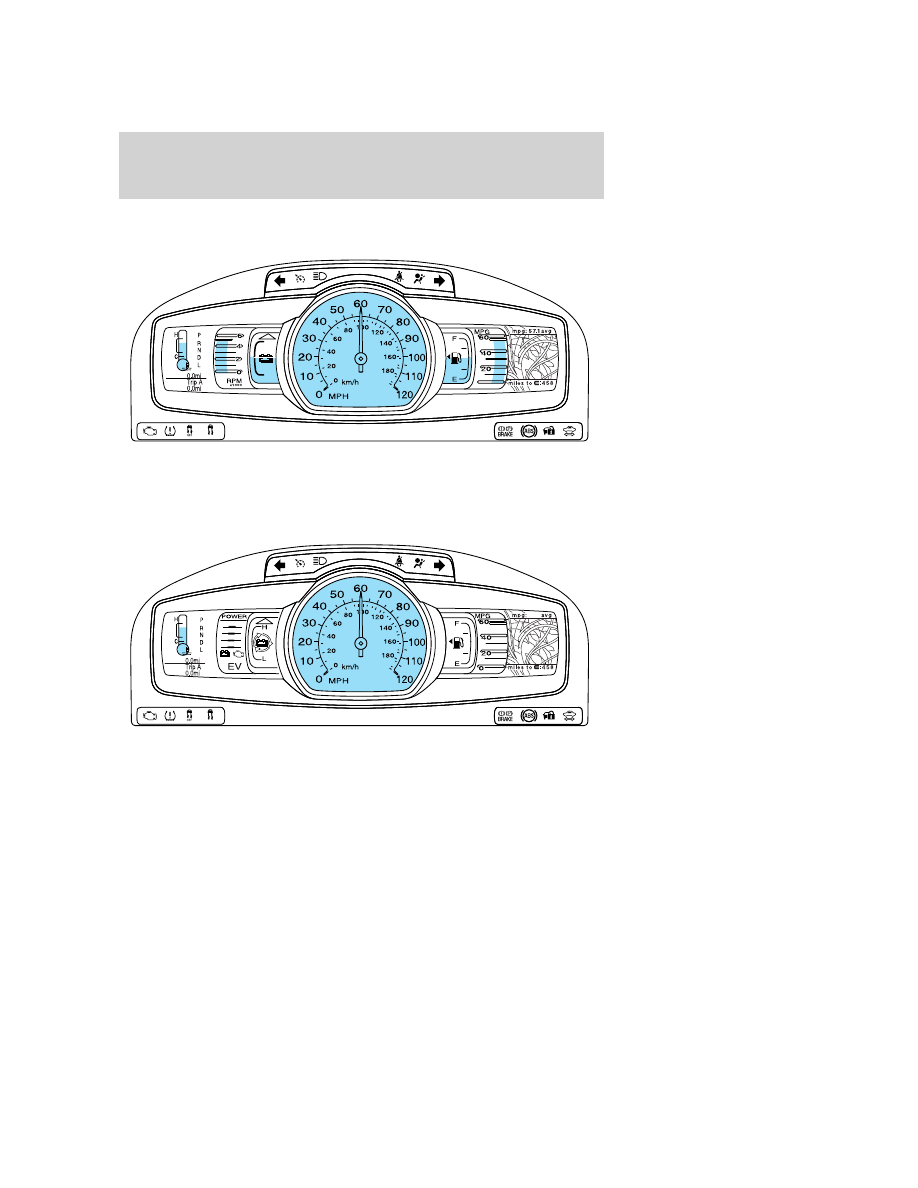

Inform instrument cluster

The simplest of cluster displays.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Enlighten instrument cluster

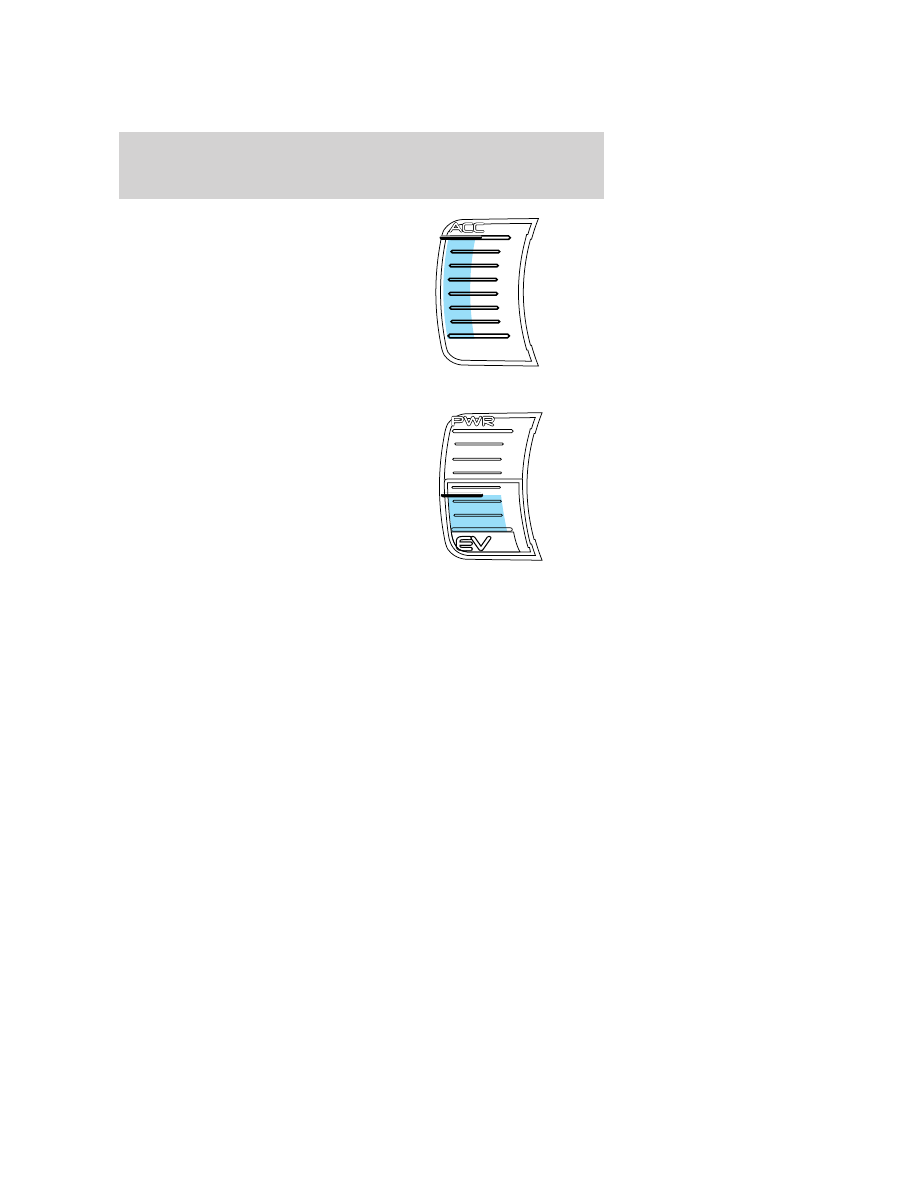

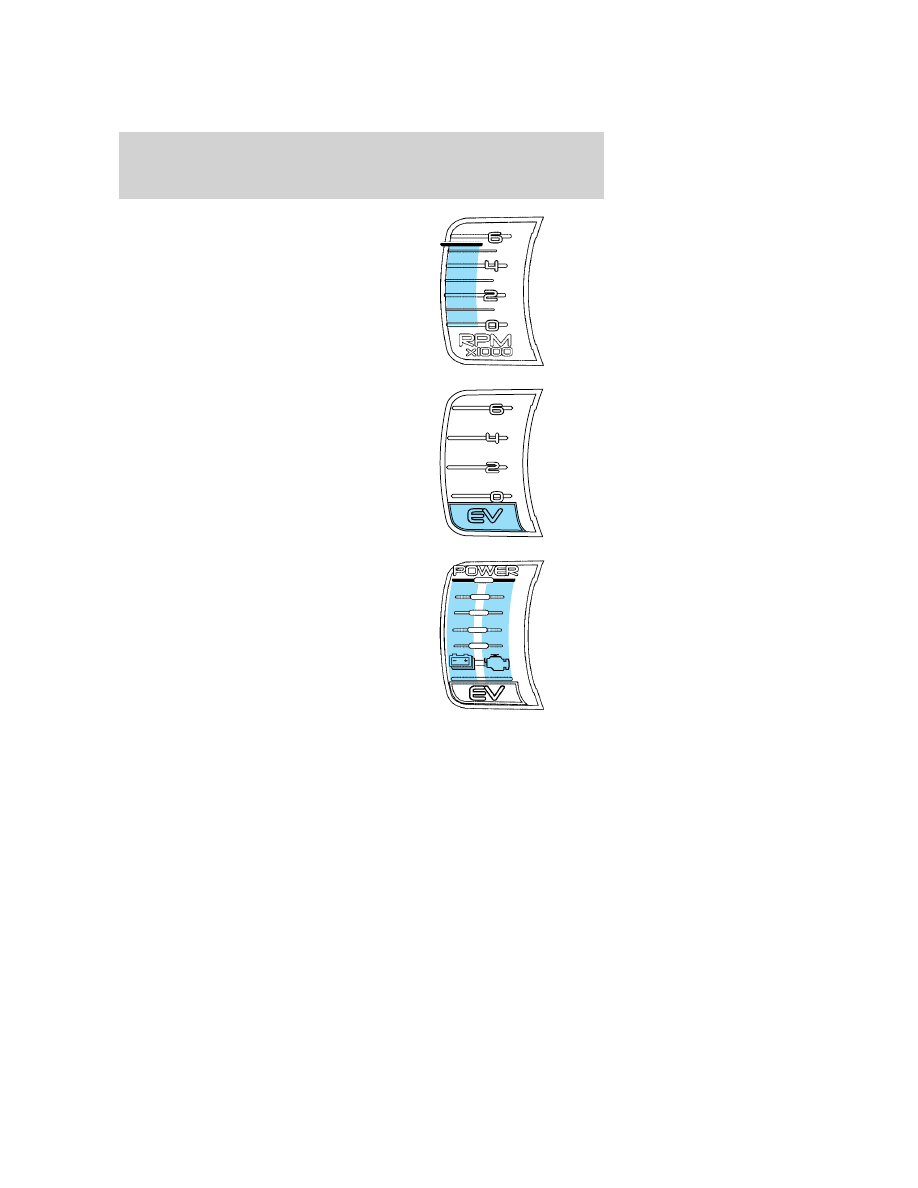

Displays unique hybrid vehicle gauges, along with many of the familiar
gauges from a conventional gasoline vehicle.

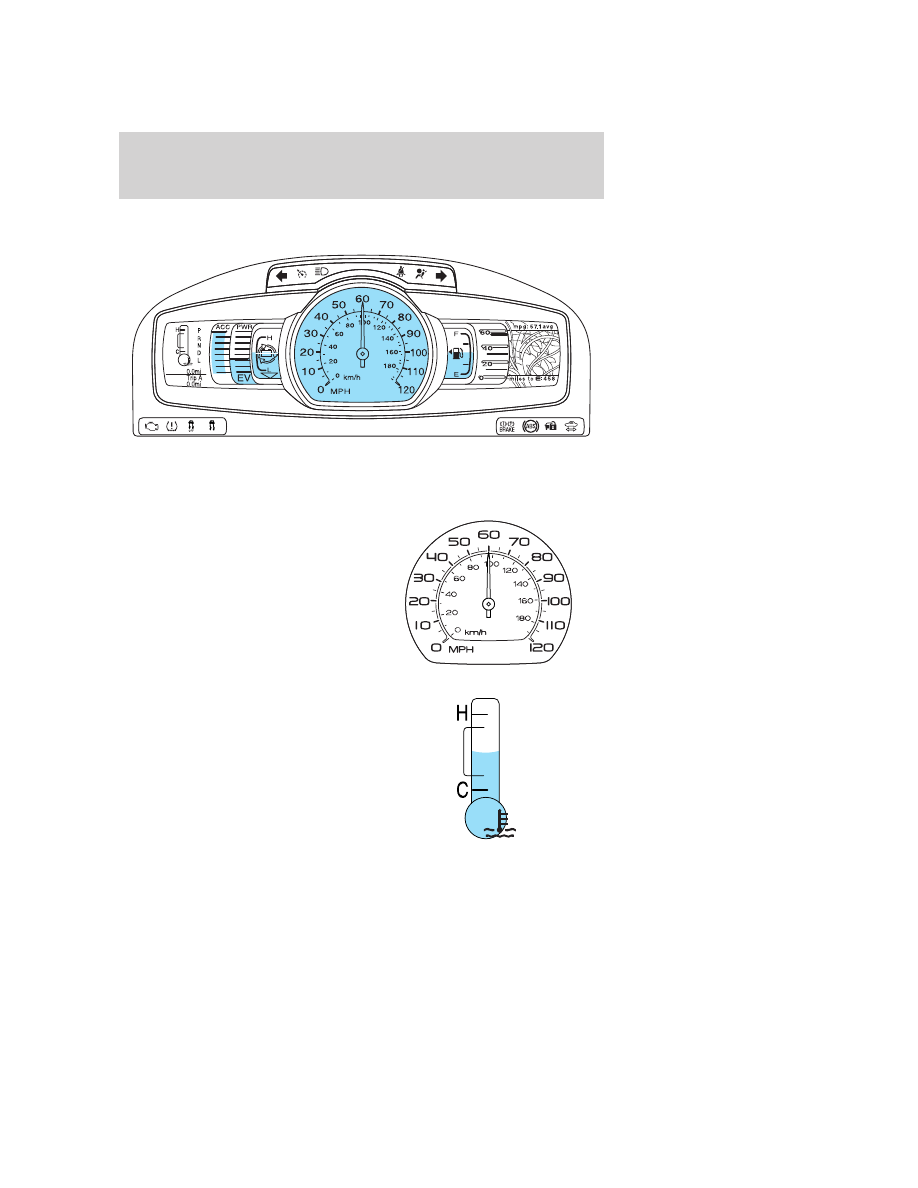

Engage instrument cluster

The next step in hybrid vehicle information, including innovative
information displays intended to educate the driver about the hybrid
system.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Empower instrument cluster

The most information-rich display, with gauges designed to allow drivers
to decide for themselves what driving behavior is most efficient at any
given moment.

Speedometer: Indicates the
current vehicle speed.

Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the level indicator will
be blue and will be in the normal
range (between “H” and “C”). If the
engine coolant temperature exceeds
the normal range, the level indicator
will change to red to indicate that
the engine is overheating. Stop the
vehicle as soon as safely possible,
switch off the engine and let the engine cool.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Empower instrument cluster level only: The

indicator next to the

gauge will illuminate in green or white to indicate the following:
•

Indicator white: This indicates that the hybrid system is not

warm enough to allow operation in electric vehicle mode only. The
gasoline engine will run continuously when the indicator is white.

Note: During silent key start mode, the

indicator will be white,

but the gasoline engine will not run. This is a result of the vehicle
computer allowing the engine to be cooler during the silent key start
period. This is normal operation and does not indicate a problem with
your vehicle. After the first engine start, the

indicator will turn

green when the gasoline engine is warm enough to turn off.

•

Indicator green: This indicates that the hybrid system is warm

enough to allow operation in electric vehicle mode.

If the vehicle operates in electric mode long enough, it is possible that
the gasoline engine may need to run to keep the system warm. In this
case, the

indicator will revert back to white.

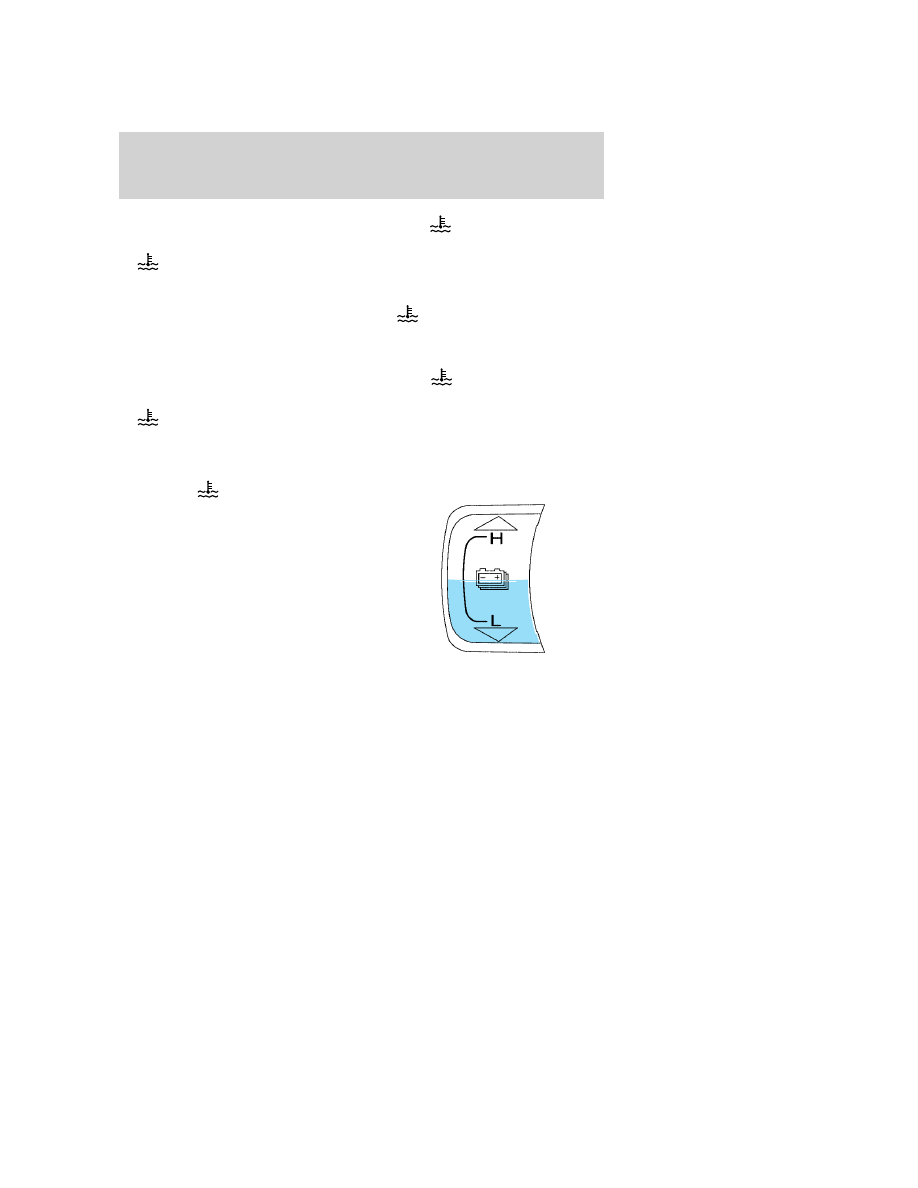

High-voltage battery information
gauge: The fill level indicates the
amount of energy stored in the
high-voltage battery as a percent of
total energy capacity. The level will
increase and decrease as the battery
charges and discharges during
normal operation, but the hybrid
system will attempt to control the
level to approximately the middle of
the gauge under most driving
conditions.

Enlighten, Engage and Empower instrument cluster levels only: The
up and down arrows provide information about the energy (both stored
and used) associated with the high voltage battery. The up arrow
indicates battery charging, such as when extra energy is stored in the
battery when coasting or braking. The down arrow indicates battery
discharging such as when the battery provides extra power to boost the
vehicle’s acceleration.

Engage and Empower instrument cluster levels only: A circular
symbol appears in the center of the gauge when energy is being
recaptured through the regenerative braking system. This indicates that
your hybrid vehicle is capturing and using energy that would have been

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

lost in a conventional vehicle. The regenerative braking system can be
activated by braking or coasting (i.e. even when you’re not pressing the
brake pedal).

Fuel gauge: With the ignition on,
this gauge indicates approximately
how much fuel is left in the fuel
tank. The fuel gauge may vary
slightly when the vehicle is in
motion or on a grade. When fuel
level becomes low (50 miles [80km]
to empty), the level indicator will
change to yellow. When fuel level
becomes critically low (0 miles
[0 km] to empty), the level indicator
will change to red.

The fuel icon with the arrow points to the side of the vehicle that the
fuel filler door is on.

Refer to Filling the tank in the Maintenance and Specifications
chapter for more information.

Instantaneous fuel economy
gauge: The instantaneous fuel
economy is displayed in miles per
gallon (or liters per 100 kilometers)
from 0 to 60 mpg (or 0 to
30 L/100km). Your vehicle must be
moving to calculate instantaneous
fuel economy. If your instantaneous
fuel economy is greater than
60 mpg, a “+” sign will be displayed
next to the 60, indicating that the
current value is above the maximum that the graph can display.
Instantaneous fuel economy cannot be reset. You may turn this gauge on
or off at any information level. Refer to Message center in this chapter
for more information.

Efficiency information gauge: You have three choices for displaying
efficiency information: Efficiency Leaves, History Graph, or No Efficiency
Information. You may make this selection at any information level. Refer
to Message center in this chapter for more information on choosing the
efficiency displays.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

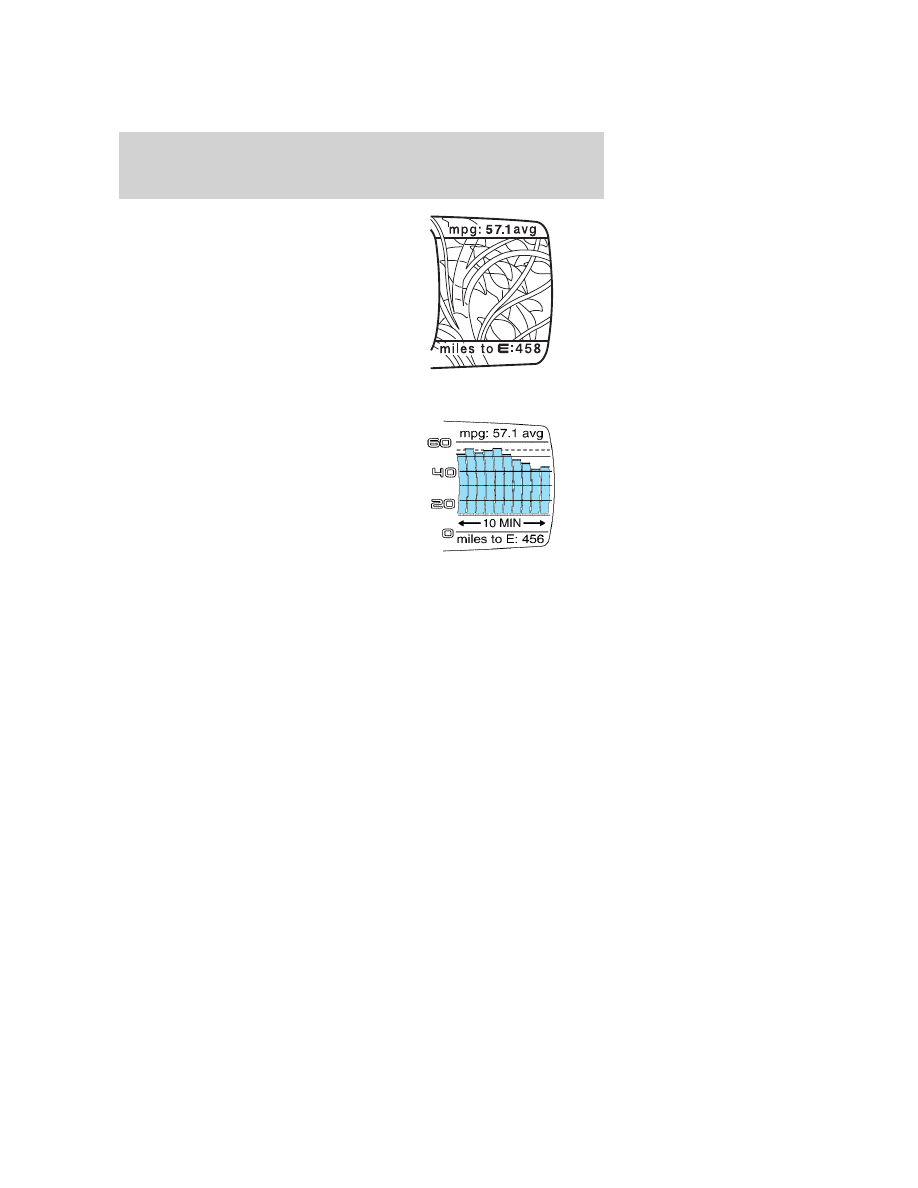

Efficiency leaves: Indicates short
term driving efficiency, measured
over the last few minutes. The more
leaves and vines that are displayed,
the more efficiently you’re driving.
Leaves and vines will occasionally
appear and disappear to indicate a
change in driving efficiency.

Note: The efficiency display can be
impacted by your use of brakes,
accelerator and accessories as well
as environmental conditions such as terrain and weather.

History graph: Indicates average
fuel economy in 10, 20, or
60 minute intervals. You can choose
the interval using the message
center. The graph is updated each
minute with the fuel economy that
was achieved during the prior 1, 2,
or 6 minutes of driving, respectively.
Each new average will be added to
the left side of the graph, shifting
the past data to the right. When the
graph area is full, the right most point will be deleted, keeping a running
scroll with the bar on the left being the most recent. Note that previous
values will remain when the vehicle is shut off and restarted, but values
from a previous drive cycle will be grayed out. The average fuel economy
since the last reset, or last 2,000 miles (3,200 km) of driving, is shown as
a horizontal line across the bar graph.
Refer to Message center in this chapter for more information on the
history graph display mode.

No efficiency information: If you choose, you may turn off both the
Efficiency leaves and History Graph using the message center. In this
case, the portion of your instrument cluster devoted to this information
will be blank.
Refer to Message center in this chapter for more information on
choosing no efficiency information.

Average fuel economy: Your average fuel economy in miles/gallon will
be displayed at the top right of your vehicle’s instrument cluster or in
liters/100 km at the lower right along with the efficiency leaves, history
graph or no display (shown previously with history graph). You may

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

reset this average at any time. Refer to Message center in this chapter
for more information on the average fuel economy display mode.

If you calculate your average fuel economy by dividing distance traveled
by amount of fuel used, your figure may be different than displayed for
the following reasons:
• Your vehicle was not perfectly level during fill-up
• Differences in the automatic shut-off points on the fuel pumps at

service stations

• Variations in top-off procedure from one fill-up to another
• Rounding of the displayed values to the nearest 0.1 gallon (liter)
To determine your average highway fuel economy, do the following:

1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press the RESET button to reset the function after
setting the speed control to get accurate highway fuel economy readings.

For more information refer to Essentials of good fuel economy in the
Maintenance and Specifications chapter.

Distance to empty (DTE): Distance to Empty is displayed in the lower
right for miles or on the top right for kilometers of your vehicle’s
instrument cluster along with the efficiency, history graph or no display
(shown previously with history graph). This function will give you an
estimate of how far you can drive with the fuel remaining in your tank
under normal driving conditions. Distance to empty will vary according
to your driving habits.

DTE is calculated using a running average fuel economy, which is based
on your recent driving history of 500 miles (800 km). This value is not
the same as the average fuel economy display. The running average fuel
economy is re-initialized to a factory default value if the battery is
disconnected.

Turn your vehicle off when refuelling to correctly detect the amount fuel
being added and allow this feature to work correctly.

Refer to Message center in this chapter for more information on the
distance to empty display mode.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Tachometer and EV mode gauge
(Enlighten instrument cluster
level only): When the gasoline
engine is running, this gauge
displays the engine speed in
revolutions per minute (RPM).
When the hybrid system is operating
in electric vehicle mode (without
the gasoline engine), EV is
displayed. See EV mode only next.

EV mode only (Enlighten
instrument cluster level only):
When the hybrid system is operating
in electric vehicle mode only, EV is
displayed.

Split power gauge (Engage
instrument cluster level only):
This gauge indicates the power
being supplied by the vehicle’s two
power sources: the high voltage
battery and the gasoline engine.
When the hybrid system is operating
in electric vehicle mode (without
the gasoline engine), “EV” is
displayed.

Maximum displayed gasoline engine
power is greater than the maximum displayed battery power.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Accessory power gauge
(Empower instrument cluster
level only): This gauge indicates
electrical power demands from your
vehicle’s accessory systems.
Accessories such as air conditioning,
headlights, and radio use power but
do not contribute to propelling the
vehicle. The higher the level
indication on this gauge, the more
accessory power is being used. You
can see the level of this gauge change by turning accessories on and off.

Vehicle power gauge (Empower
instrument cluster only): When
the transmission is in drive gear
only, this gauge shows you vehicle
power demand and gasoline engine
on/off threshold. It is designed to
show you how close you are to the
gasoline engine on/off threshold and
how much power you are requesting
by how much you press on the
accelerator pedal.

The red level indicator shows vehicle power demand. The more you
press on the accelerator pedal, the more power you demand of the
vehicle. The green box shows the gasoline engine on/off threshold. If
vehicle power demand is reduced, the gasoline engine will turn off when
the red level indicator moves below the green box. In this case, the
hybrid system is operating in electric vehicle mode and

⬙EV⬙ is displayed

at the bottom of the gauge. When the red level indicator exceeds the
threshold, the system commands the gasoline engine on (and the

⬙EV⬙

disappears).

When the gasoline engine is on for reasons outside of your control (such
as warming up the system or charging a low battery), the gasoline engine
on/off threshold (green box) disappears. When the on/off threshold box
is not displayed the gasoline engine will not turn off regardless of how
little power you demand (even lifting your foot off the accelerator).

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Odometer: Registers the total miles
(kilometers) of the vehicle.

Refer to Message center in this
chapter on how to switch the
display from Metric to English.

Trip odometer: Registers the miles
(kilometers) of individual journeys.
Press and release the message
center INFO button until TRIP A
mode appears in the display. Press
the button again to select the TRIP
B feature. Press the RESET button
to reset.

Trip summary: When the ignition key is turned to the off position, the
instrument cluster will transition to a trip summary screen which
displays the following information for your most recent drive:
• Distance
• Fuel economy
• Fuel used
• Trip efficiency (this is displayed via the efficiency leaves graphic).
Long term fuel economy is also displayed, showing the vehicle’s fuel
economy since the last customer reset. To reset long term fuel economy,
see Resets in the Message center section in this chapter.

MESSAGE CENTER

With the ignition in the on position, the message center, located on your
instrument cluster, displays important vehicle information through a
constant monitor of vehicle systems. You may select display features
on the message center for a display of status. The system will also notify
you of potential vehicle problems with a display of system warnings
followed by a long indicator chime.

2010 Milan Hybrid (hmv)
Owners Guide, 1st Printing
USA (fus)

Instrument Cluster

Mercury Milan Hybrid (2010 year). Manual - part 2
