Protected components

Fuse amp rating

Fuse or relay number

Not used (spare)

10A

2

8

Not used (spare)

10A

2

9

Keypad

5A

2

10

Not used

5A

2

11

Climate control, Gear shift

7.5A

2

12

Steering wheel column, Cluster, Datalink
logic

7.5A

2

13

Not used

10A

2

14

Datalink/Gateway module

10A

2

15

Not used (spare)

15A

1

16

Not used (spare)

5A

2

17

Ignition, Push button stop/start

5A

2

18

Passenger airbag disabled indicator,
Transmission range

5A

2

19

Not used (spare)

5A

2

20

Humidity and in–car temperature

5A

2

21

Occupant classification sensor

5A

2

22

Delayed accessory (Power inverter logic,
Moonroof logic)

10A

1

23

Central lock/unlock

30A

1

24

Driver door (window, mirror)

30A

1

25

Front passenger door (window, mirror)

30A

1

26

Moonroof

30A

1

27

Sony amplifier

20A

1

28

231

Fuses

Protected components

Fuse amp rating

Fuse or relay number

Rear driver side door (window)

30A

1

29

Rear passenger side door (window)

30A

1

30

Not used (spare)

15A

1

31

GPS, Voice control, Display, Adaptive cruise
control, Radio frequency receiver

10A

1

32

Radio, Active noise control

20A

1

33

Run/start bus (fuse #19, 20, 21, 22, 35, 36,
37, circuit breaker)

30A

1

34

Restraints control module

5A

1

35

Auto-dimming rear view mirror

15A

1

36

All-wheel drive module, Heated steering
wheel module

15A

1

37

Not used (spare)

30A

38

1

Micro fuse

2

Dual micro fuse

232

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of Ford
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

To help you service your vehicle, we
provide scheduled maintenance
information which makes tracking routine
service easy.  See Scheduled
Maintenance (page 426).

If your vehicle requires professional service,
your authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.

Working with the Engine Off

1.

Set the parking brake and shift to P
(Park).

2. Turn off the engine and remove the key

(if equipped).

3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

1.

Set the parking brake and shift to P
(Park).

2. Block the wheels

OPENING AND CLOSING THE
HOOD

E142457

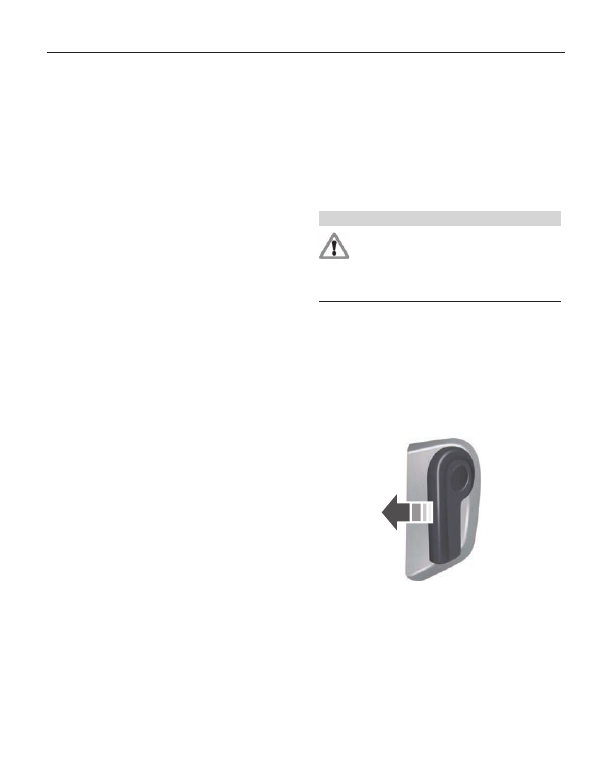

1.

To open the hood, go inside the vehicle
and pull the hood release handle
located under the left hand side of the
instrument panel.

233

Maintenance

2. Go to the front of the vehicle and

locate the secondary release lever,
which is located under the front of the
hood, to your right of the center of the
vehicle (driver's side), near the
headlight.

3. Release the hood latch by pushing the

yellow secondary release lever to your
left, toward the center of the vehicle.

E169261

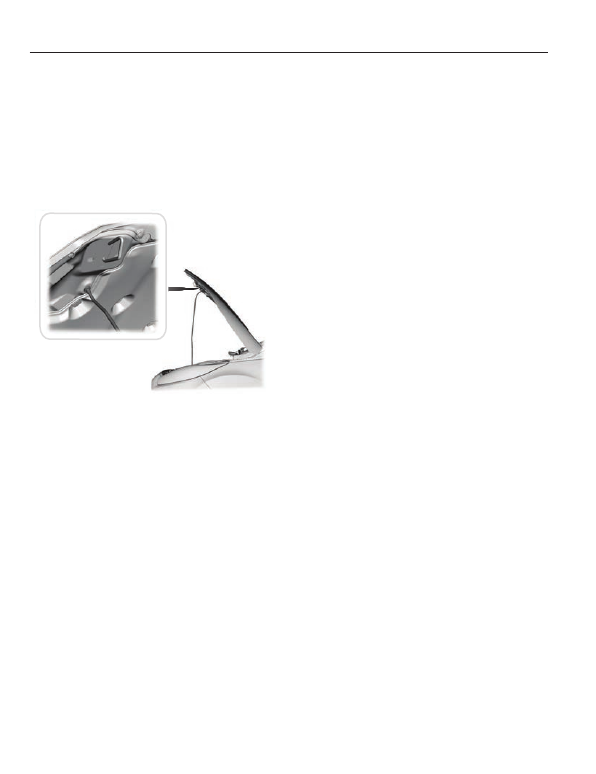

4. Raise the hood and support it with the

prop rod.

5. To close the hood, lower and secure

the prop rod in the clip.

6. Lower the hood and allow it to drop the

last 10-12 inches (25 to 30
centimeters).

Note: Make sure that the hood is closed
properly and fully latched on both sides of
the hood.
