Protected components

Fuse amp rating

Fuse or relay number

Not used

—

54

Not used

—

55

1

Micro fuse

2

Dual micro fuse

3

M-type fuse

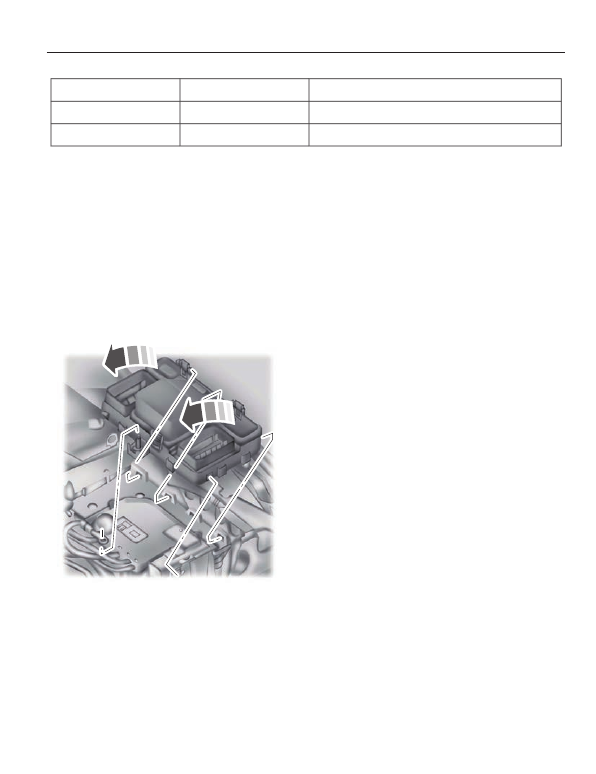

Power Distribution Box - Bottom

There are fuses located on the bottom of
the fuse box. To access the bottom of the
fuse box, do the following:

E145983

1.

Release the two latches, located on
both sides of the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center

of the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.

227

Fuses

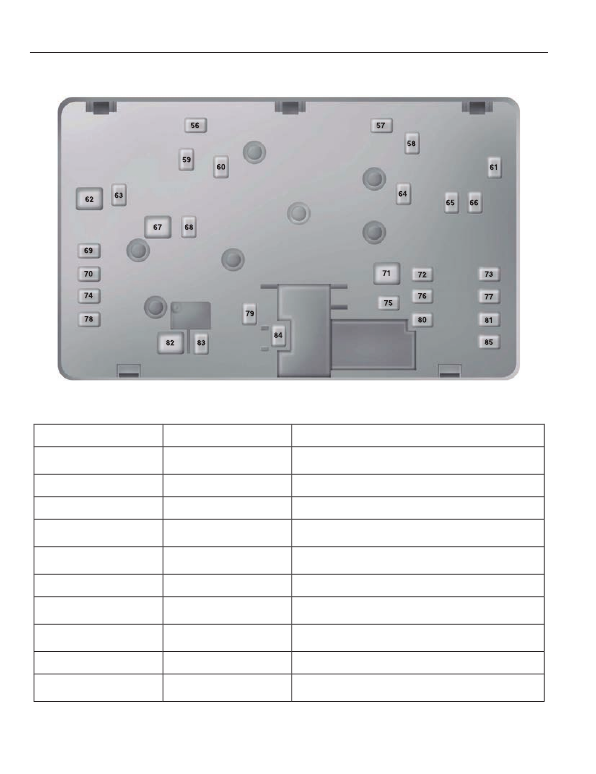

E144949

Protected components

Fuse amp rating

Fuse or relay number

Fuel pump feed

30A

1

56

Not used

—

57

Not used

—

58

500W Electronic fan 3

30A

1

59

500W Electronic fan 1

30A

1

60

Not used

—

61

Body control module 1

50A

2

62

500W Electronic fan 2

20A

1

63

Not used

—

64

Front heated seat

20A

1

65

228

Fuses

Protected components

Fuse amp rating

Fuse or relay number

Not used

—

66

Body control module 2

50A

2

67

Heated rear window

40A

1

68

Anti-lock brake system valves

30A

1

69

Passenger seat

30A

1

70

Not used

—

71

Not used (spare)

30A

1

72

Not used (spare)

20A

1

73

Driver seat module

30A

1

74

Not used

—

75

Transmission oil pump #2 stop/start

20A

1

76

Not used (spare)

30A

1

77

Not used

—

78

Blower motor

40A

1

79

Not used (spare)

30A

1

80

110 volt inverter

40A

1

81

Anti-lock brake system pump

60A

2

82

Wiper motor #1

25A

1

83

Starter solenoid

30A

1

84

Not used (spare)

30A

1

85

1

 M-type fuse

2

J-type fuse

229

Fuses

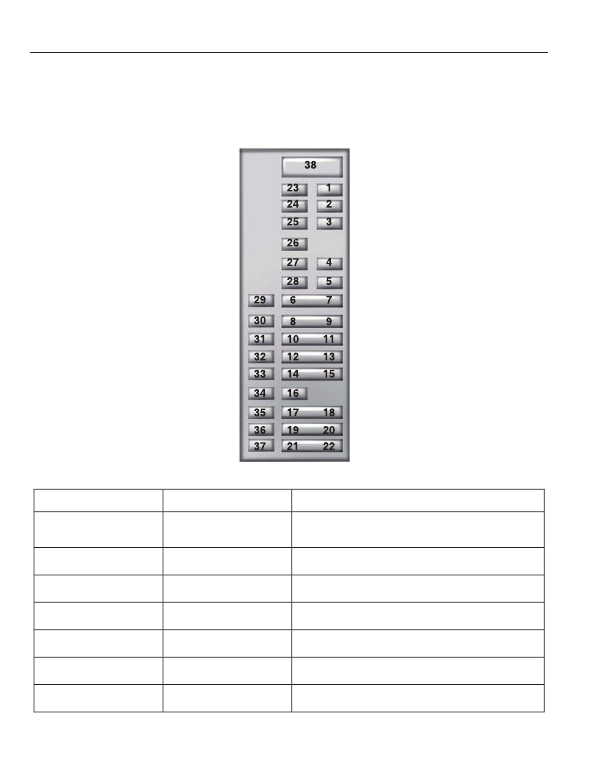

Passenger Compartment Fuse
Panel

The fuse panel is located under the

instrument panel to the left of the steering
column.

Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

E145984

Protected components

Fuse amp rating

Fuse or relay number

Lighting (ambient, glove box, vanity, dome,
trunk)

10A

1

1

Memory seats, Lumbar, Power mirror

7.5A

1

2

Driver door unlock

20A

1

3

Not used (spare)

5A

1

4

Subwoofer amplifier

20A

1

5

Not used (spare)

10A

2

6

Not used (spare)

10A

2

7
