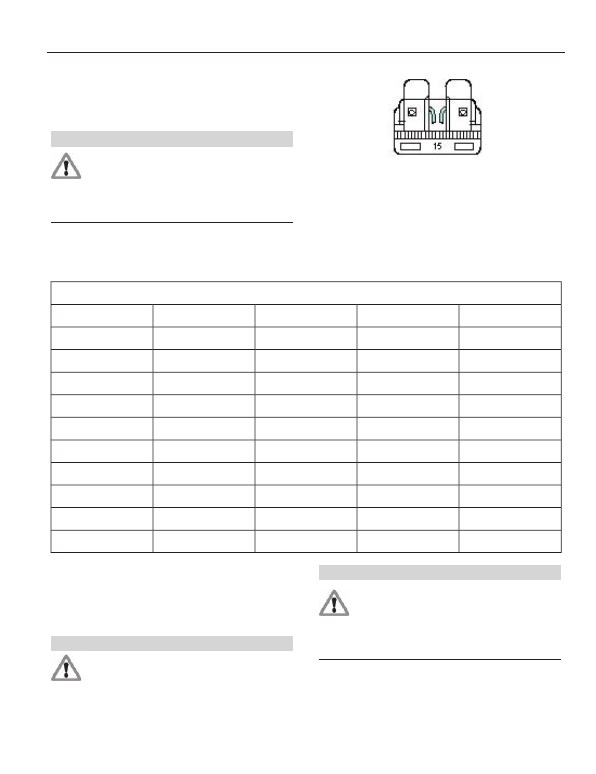

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E142430

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

Standard Fuse Amperage Rating and Color

Color

J-type fuses

M-type fuses

Dual micro fuses

Micro fuses

Fuse rating

-

-

Tan

Tan

5A

-

-

Brown

Brown

7.5A

-

-

Red

Red

10A

-

Grey

Blue

Blue

15A

Blue

Light Blue

-

Yellow

20A

White

White

-

White

25A

Pink

Pink

-

Green

30A

Green

Green

-

-

40A

Red

-

-

-

50A

Yellow

-

-

-

60A

FUSE SPECIFICATION CHART

Power Distribution Box

WARNINGS

Always disconnect the battery before
servicing high-current fuses.

WARNINGS

To reduce risk of electrical shock,
always replace the cover to the
power distribution box before

reconnecting the battery or refilling fluid
reservoirs.

223

Fuses

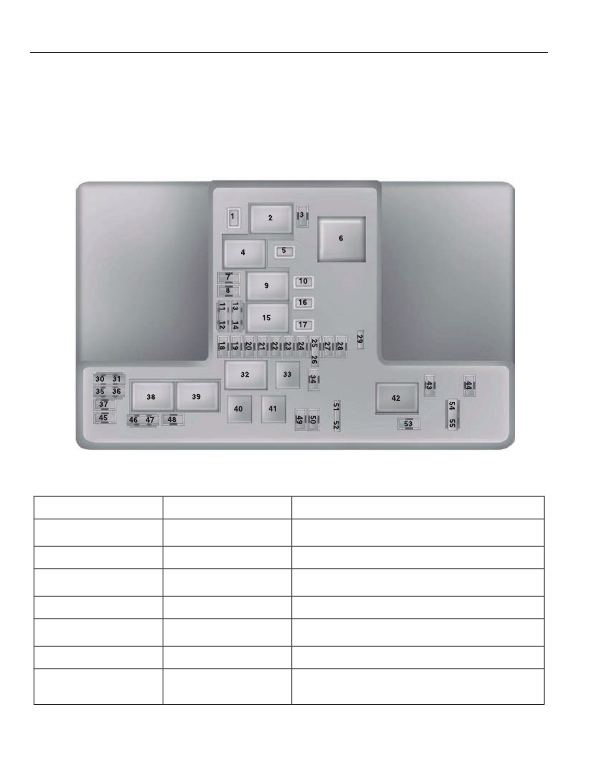

The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.

If the battery has been disconnected and
reconnected, some features will need to
be reset.  See Changing the 12V Battery
(page 242).

E144783

Protected components

Fuse amp rating

Fuse or relay number

Wiper motor #2

25A

3

1

Starter relay

—

2

Autowipers

15A

1

3

Blower motor relay

—

4

Power point 3 - Back of console

20A

3

5

Not used

—

6

Powertrain control module - vehicle power
1

20A

1

7

224

Fuses

Protected components

Fuse amp rating

Fuse or relay number

Powertrain control module - vehicle power
2

20A

1

8

Powertrain control module relay

—

9

Power point 1 - driver front

20A

3

10

Powertrain control module - vehicle power
4

15A

2

11

Powertrain control module - vehicle power
3

15A

2

12

Powertrain control module - vehicle power
5

10A

2

13

Powertrain control module - vehicle power
6

10A

2

14

Run/start relay

—

15

Power point 2 - console

20A

3

16

Not used

—

17

Powertrain control module - keep alive
power

10A

1

18

Run/start electronic power assist steering

10A

1

19

Run/start lighting

10A

1

20

Run/start transmission control, Transmis-
sion oil pump start/stop

15A

1

21

Air conditioner clutch solenoid

10A

1

22

Run/start: blind spot information system,
Rear view camera, Adaptive cruise control,
Heads-up display

15A

1

23

Not used

—

24

Run/start anti-lock brake system

10A

2

25

Run/start powertrain control module

10A

2

26

Not used (spare)

10A

1

27

225

Fuses

Protected components

Fuse amp rating

Fuse or relay number

Not used

—

28

Not used

—

29

Not used

—

30

Not used

—

31

Electronic fan #1 relay

—

32

Air conditioner clutch relay

—

33

Not used

—

34

Not used

—

35

Not used

—

36

Not used

—

37

Electronic fan #2 relay

—

38

Electronic fan #3 relay

—

39

Fuel pump relay

—

40

Horn relay

—

41

Not used

—

42

Not used

—

43

Not used

—

44

Not used

—

45

Alternator

10A

2

46

Brake on/off switch

10A

2

47

Horn

20A

1

48

Mass air flow monitor

5A

1

49

Not used

—

50

Not used

—

51

Not used

—

52

Power seats

10A

1

53
