Ford F150 Pickup. Instruction - part 684

Fig. 7: Removing Battery Hold-Down Bolt And Hold-Down Clamp
Courtesy of FORD MOTOR CO.

WARNING:

When lifting a battery, excessive pressure on the end walls could
cause acid to leak out through the vent caps, resulting in personal
injury, damage to the vehicle or battery. Lift with battery carrier.



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup

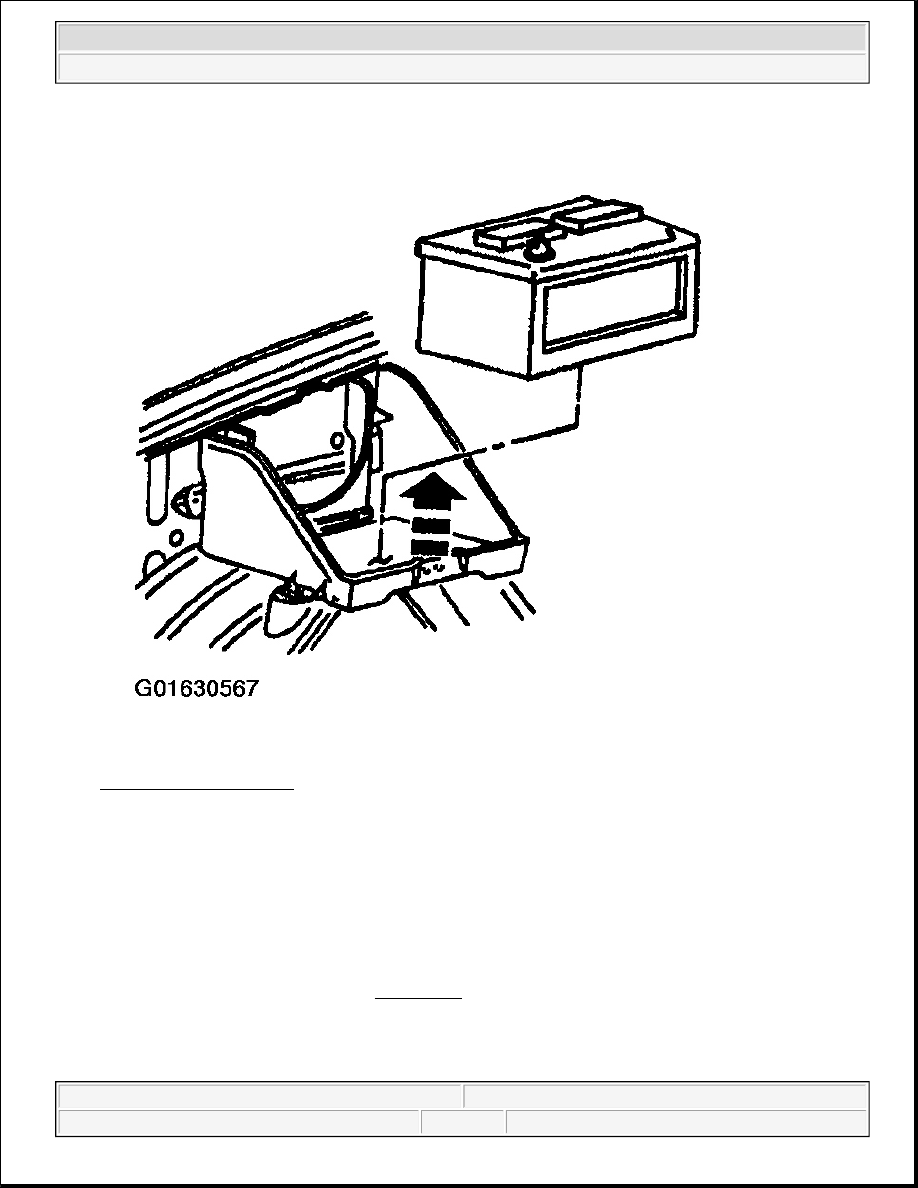

Fig. 8: Removing Battery
Courtesy of FORD MOTOR CO.

4. Remove the battery (10655).

5. To install, reverse the removal procedure.

BATTERY TRAY

Removal and Installation

1. Remove the battery (10655). Refer to BATTERY .

2. Remove the lower battery heat shield (10A682).



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup



Fig. 9: Removing Lower Battery Heat Shield
Courtesy of FORD MOTOR CO.

3. Remove the battery tray (10732).

1. Remove the bolts.

2. Remove the battery tray.



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup



Fig. 10: Removing Battery Tray
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.

BATTERY CABLES

Removal and Installation

1. Disconnect the battery. Refer to BATTERY DISCONNECT .

2. Remove the junction block splash shield.



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup
