Ford F150 Pickup. Instruction - part 682



2003 Ford Pickup F150

2003 ELECTRICAL Fuses & Circuit Breakers - F150 Pickup

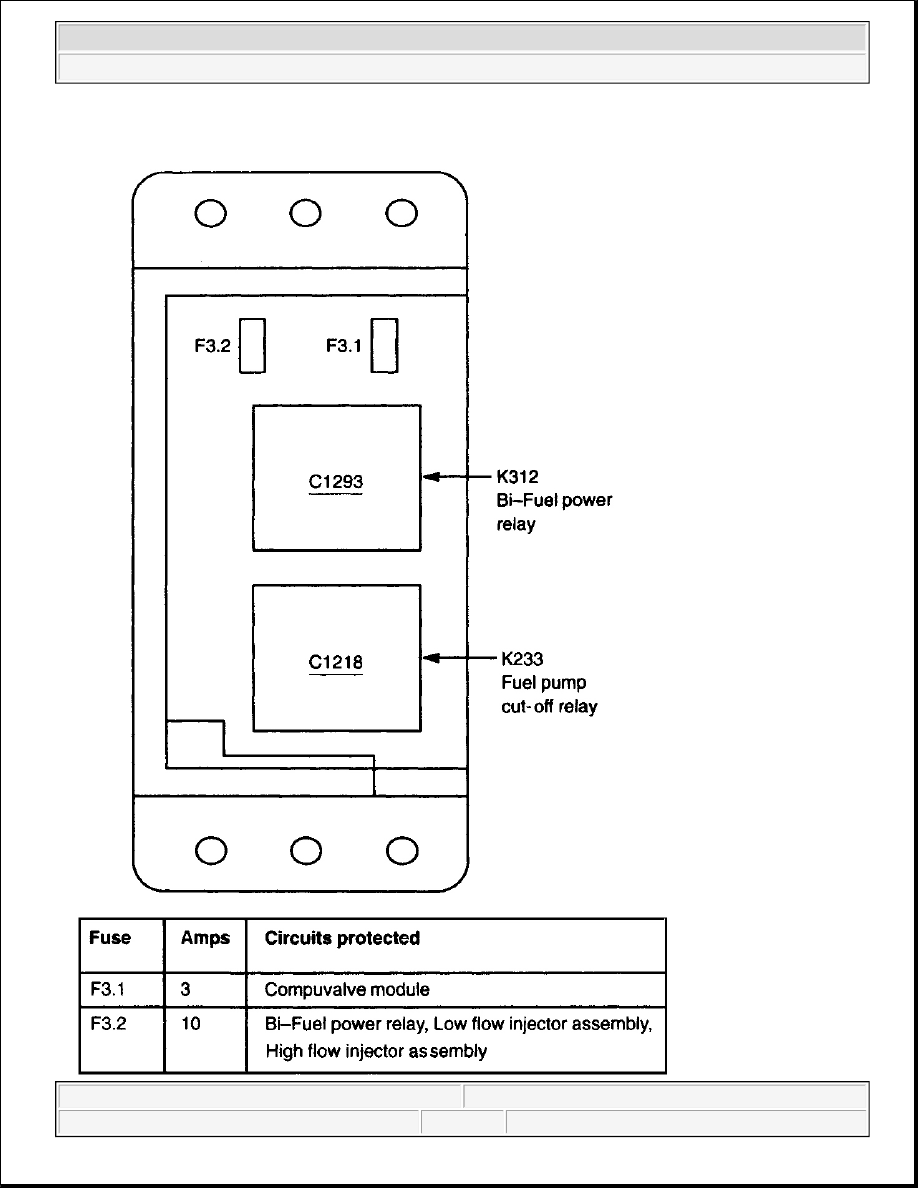

Fig. 15: Identifying Bi-Fuel Relay Module Components
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ELECTRICAL Fuses & Circuit Breakers - F150 Pickup



2003 ELECTRICAL

Battery, Mounting and Cables - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

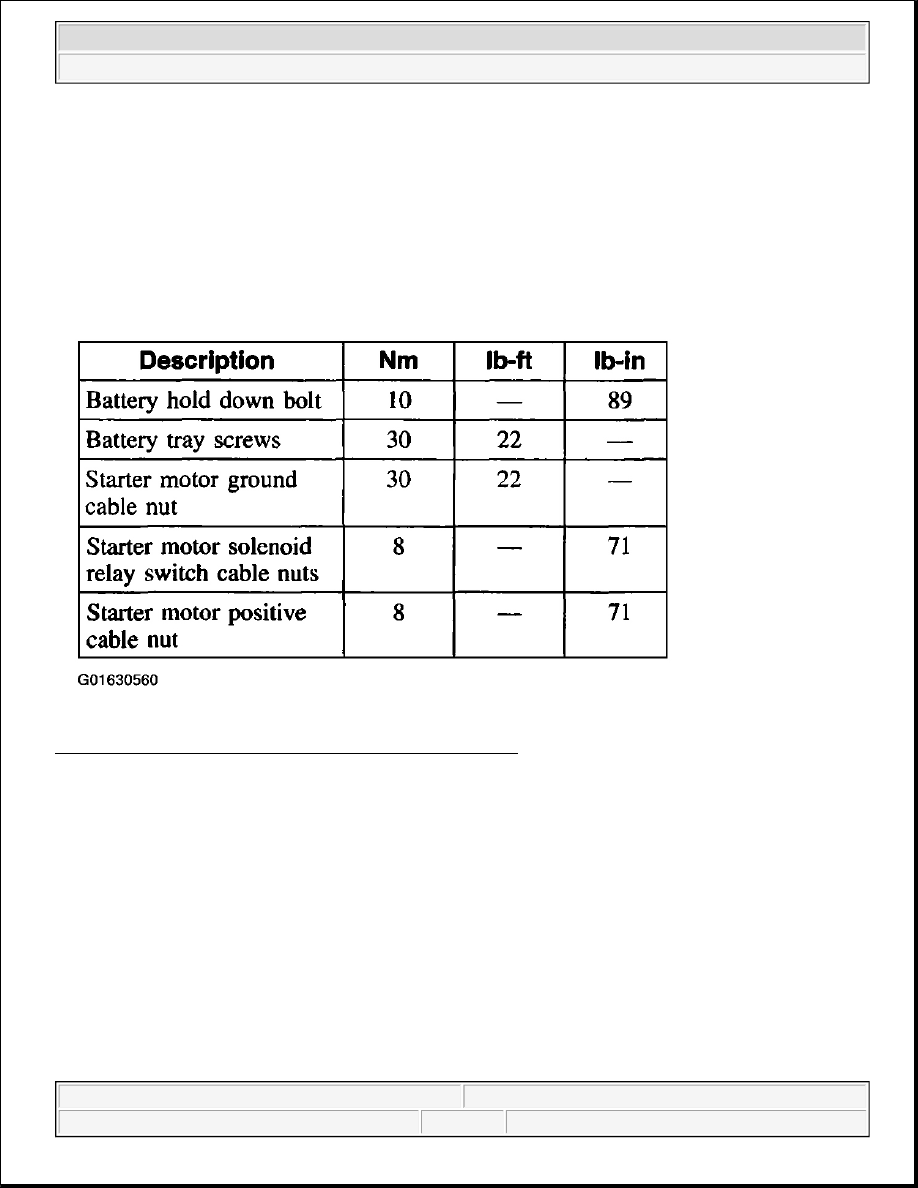

Fig. 1: Battery, Mounting And Cables Torque Specifications
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

BATTERY AND CABLES

Vehicles are equipped with a 12 volt maintenance-free battery.

The battery and cable system consists of the following components:

z

battery

z

battery cable assembly

z

battery tray

Ford Motor Company strongly recommends that lead-acid batteries be returned to an authorized recycling



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup





2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup



facility for disposal.

Fig. 2: Identifying Battery Recycling Process
Courtesy of FORD MOTOR CO.

DIAGNOSIS AND TESTING

BATTERY

Special Tool(s)



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup
