Fig. 8: Locating Auxiliary Relay Box 2 & 3
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ELECTRICAL Fuses & Circuit Breakers - F150 Pickup

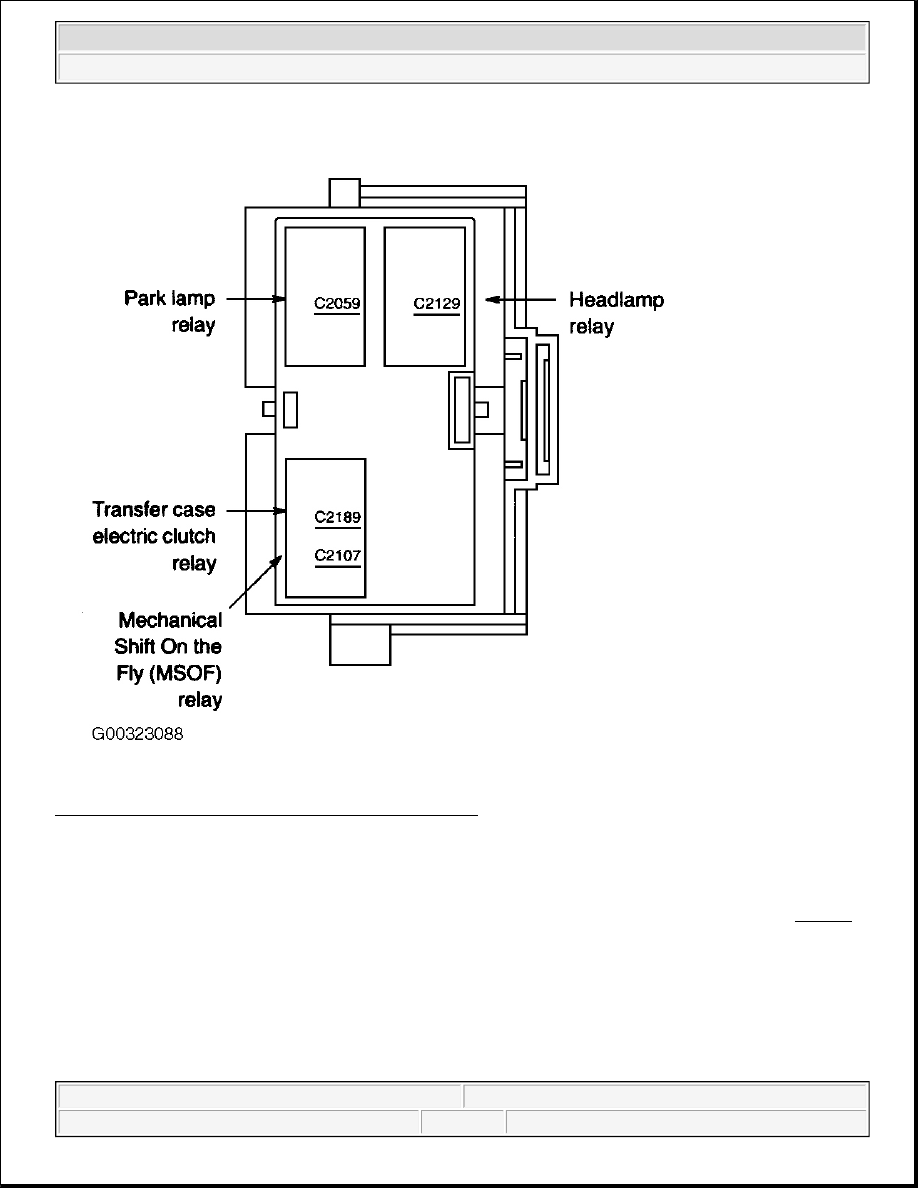

Fig. 9: Identifying Auxiliary Relay Box 2 Components
Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 3

NOTE:

Auxiliary relay box 3 is located behind right side of instrument panel. See Fig.
8 .



2003 Ford Pickup F150

2003 ELECTRICAL Fuses & Circuit Breakers - F150 Pickup



Fig. 10: Identifying Auxiliary Relay Box 3 Components
Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 4

NOTE:

Auxiliary relay box 4 is located behind left side of instrument panel. See Fig. 11 .



2003 Ford Pickup F150

2003 ELECTRICAL Fuses & Circuit Breakers - F150 Pickup



Fig. 11: Locating Auxiliary Relay Box 4
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ELECTRICAL Fuses & Circuit Breakers - F150 Pickup
