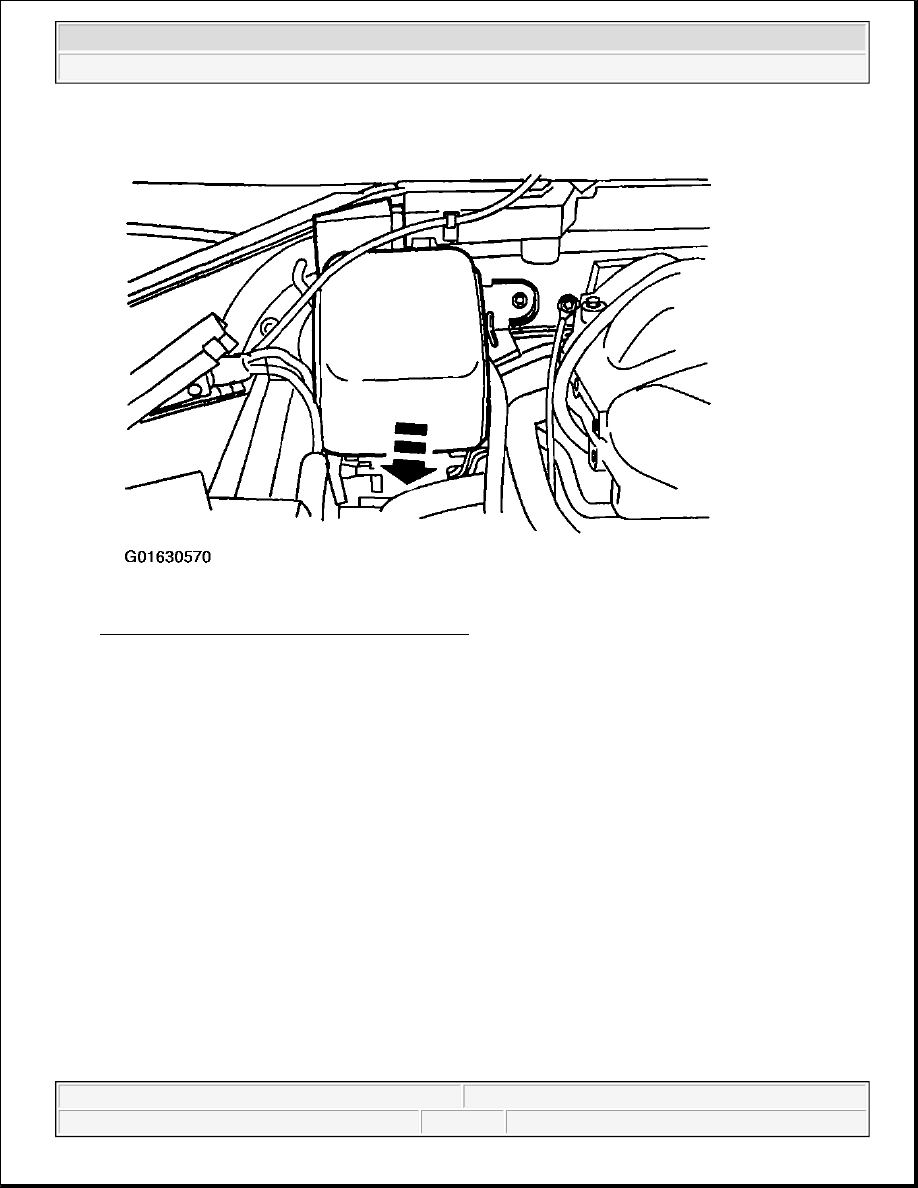

Fig. 11: Removing Junction Block Splash Shield
Courtesy of FORD MOTOR CO.

3. Disconnect the cable.

1. Remove the relay nuts.

2. Remove the ground bolt.



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup



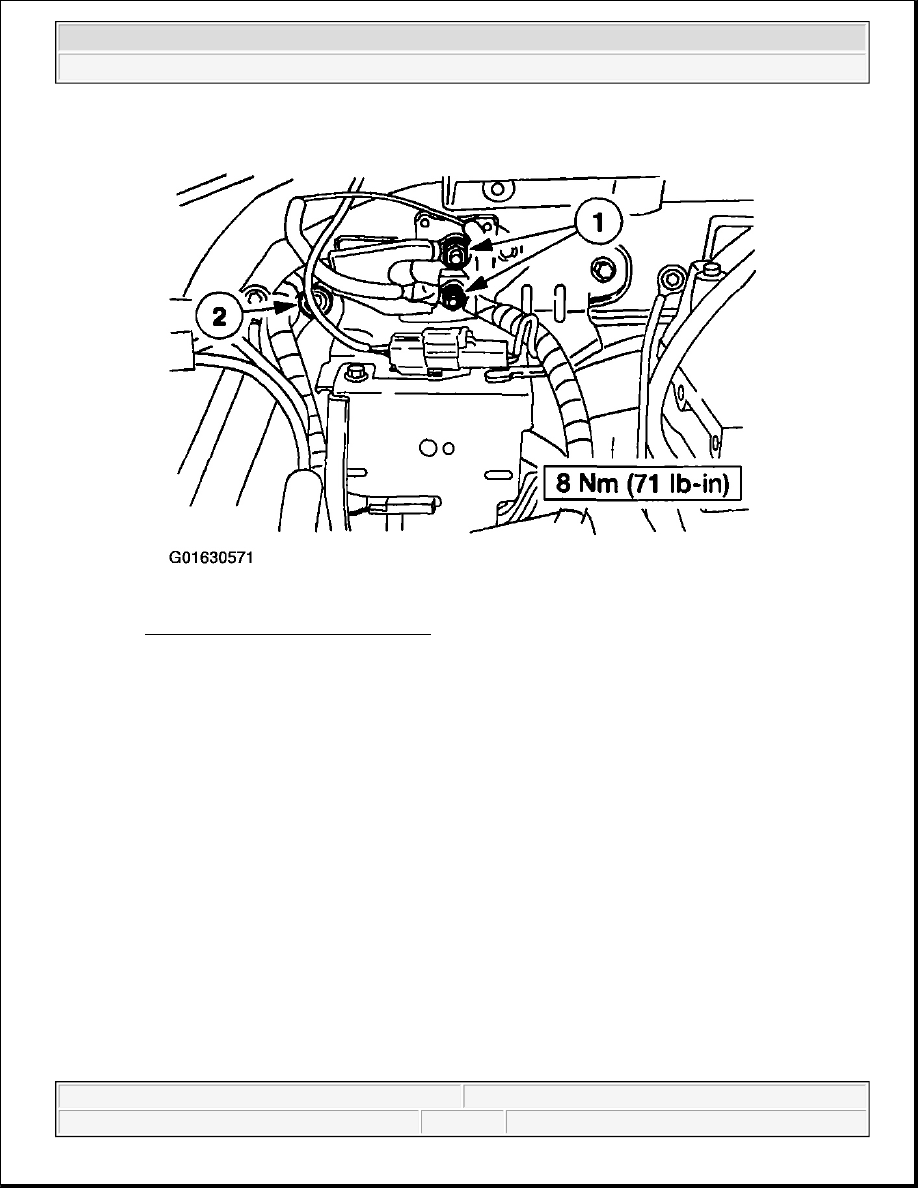

Fig. 12: Disconnecting Ground Cable
Courtesy of FORD MOTOR CO.

4. Remove the bolt.



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup



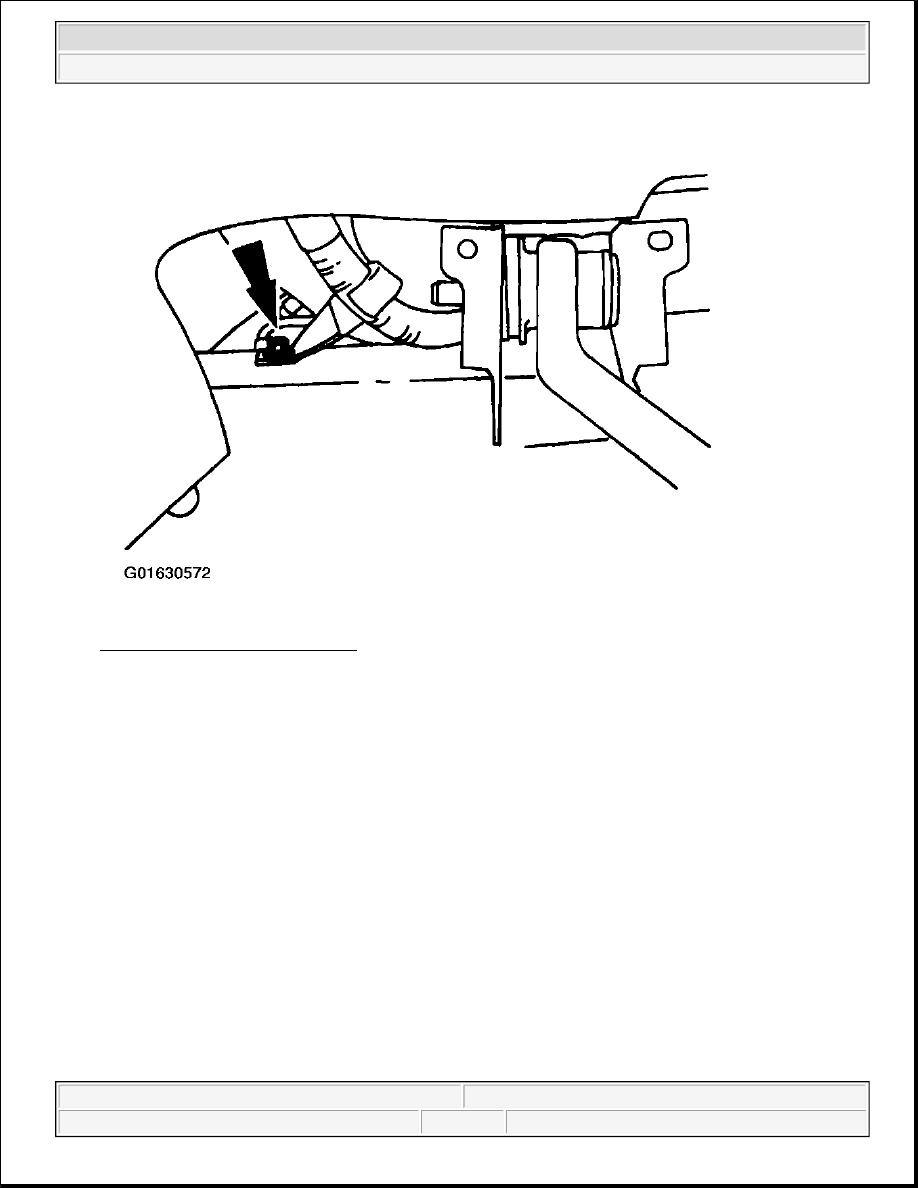

Fig. 13: Removing Hose Clip Bolt
Courtesy of FORD MOTOR CO.

5. Remove the starter motor solenoid terminal cover.



2003 Ford Pickup F150

2003 ELECTRICAL Battery, Mounting and Cables - F150 Pickup



Fig. 14: Removing Starter Motor Solenoid Terminal Cover
Courtesy of FORD MOTOR CO.

6. Disconnect the starter motor connections.

1. Remove the starter motor ground cable nut and disconnect the starter motor ground cable.

2. Remove the solenoid cable nut and disconnect the solenoid cable.

3. Remove the starter motor positive cable nut and disconnect the starter motor positive cable.
