Ford F150 Pickup. Instruction - part 580





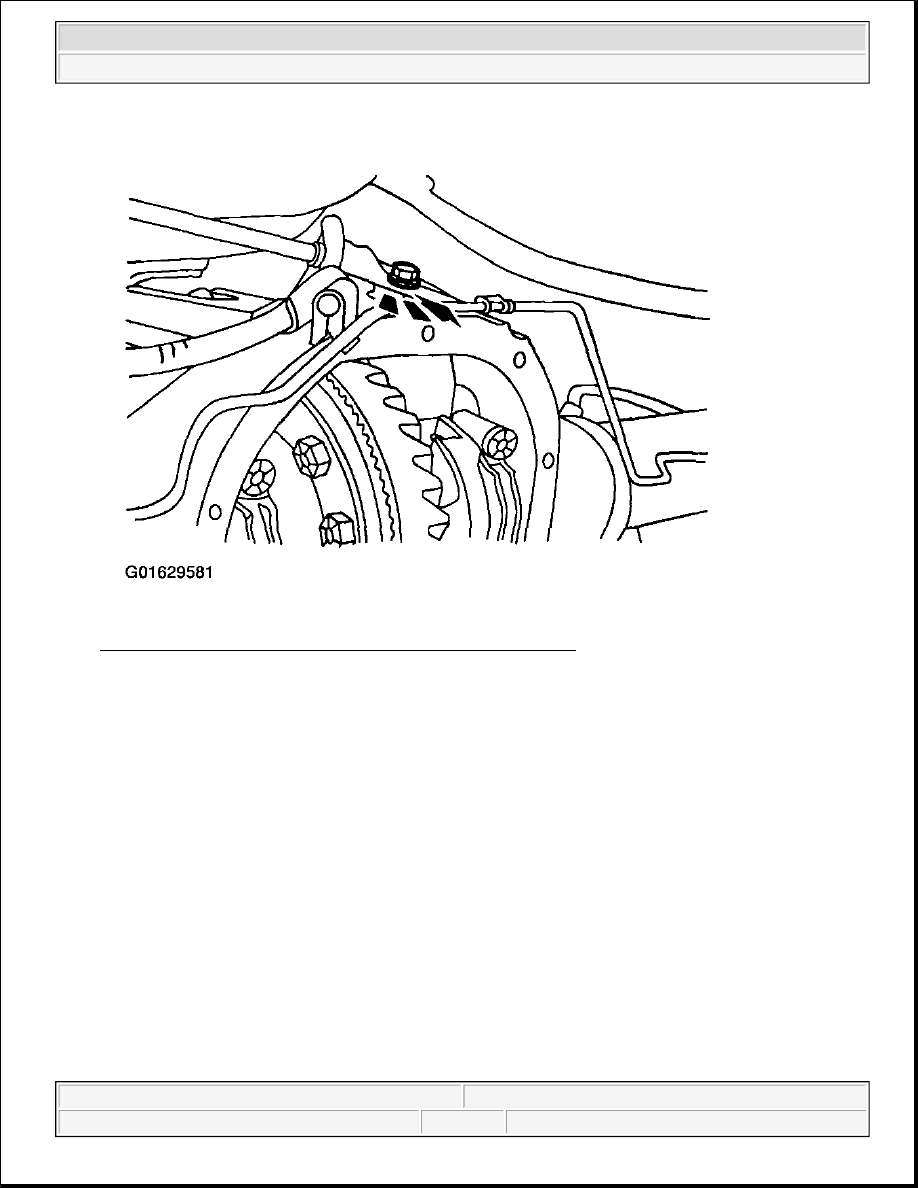

Fig. 117: Removing Brake Hose Junction Block Bolt
Courtesy of FORD MOTOR CO.

10. Separate the parking brake cables from the rear axle housing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



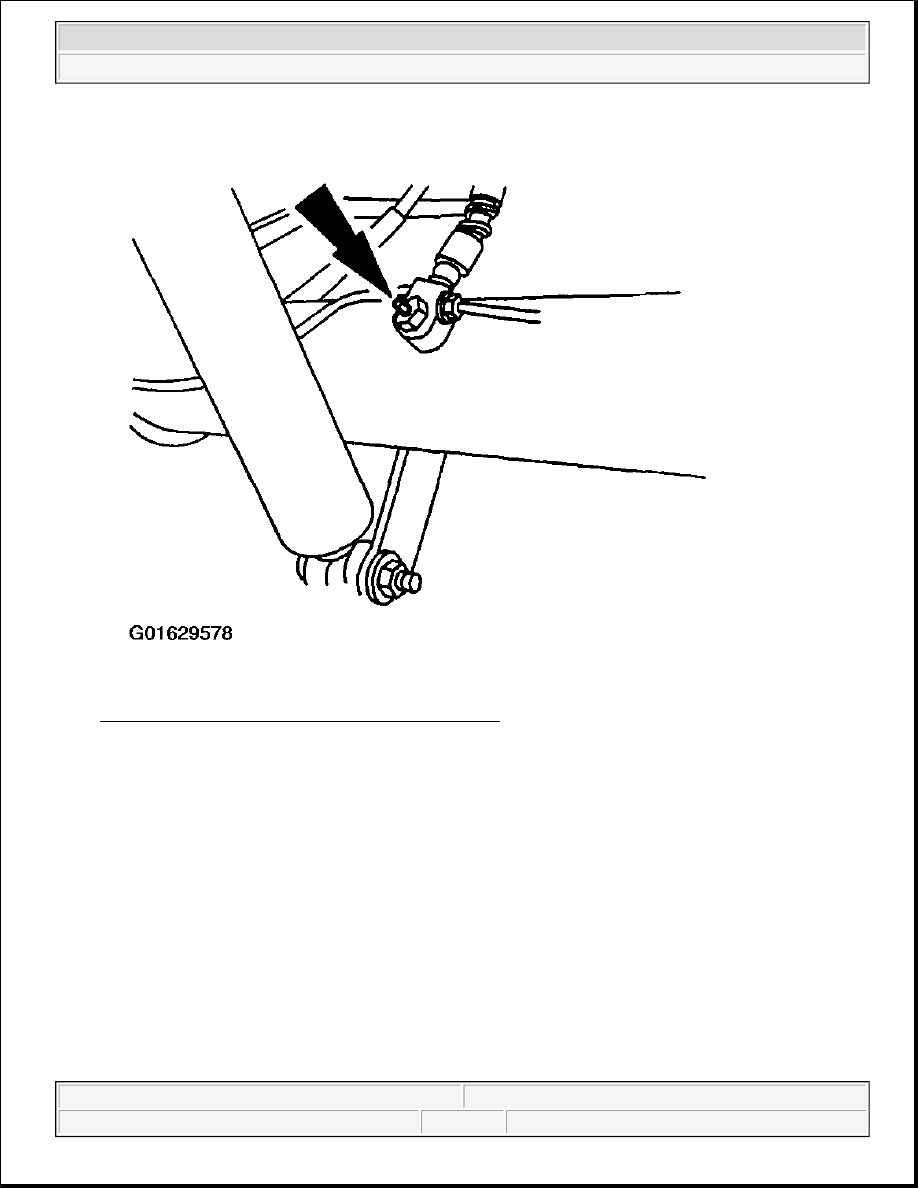

Fig. 118: Disconnecting Parking Brake Cables From Rear Axle Housing
Courtesy of FORD MOTOR CO.

11. Remove the brake line from the break line retaining clips.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



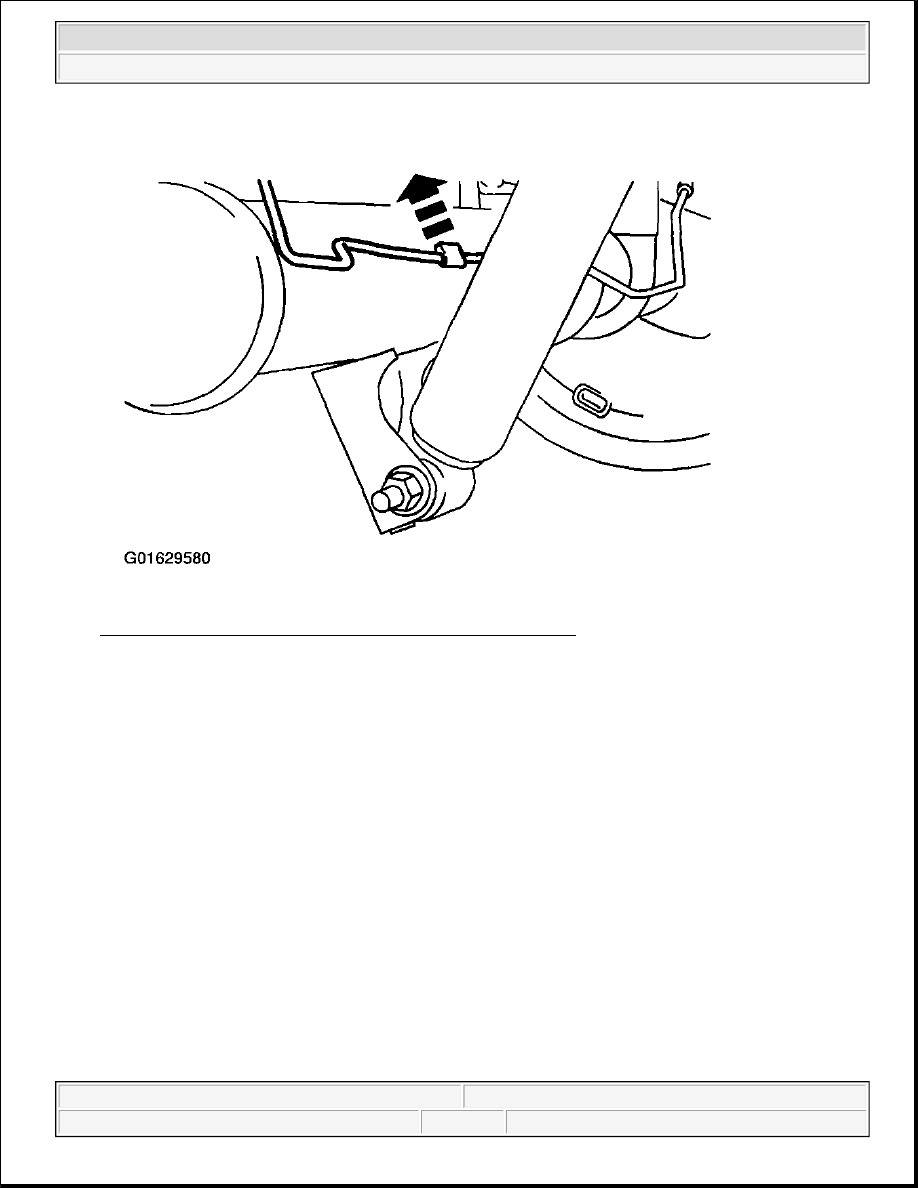

Fig. 119: Removing Brake Line From Retaining Clips (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



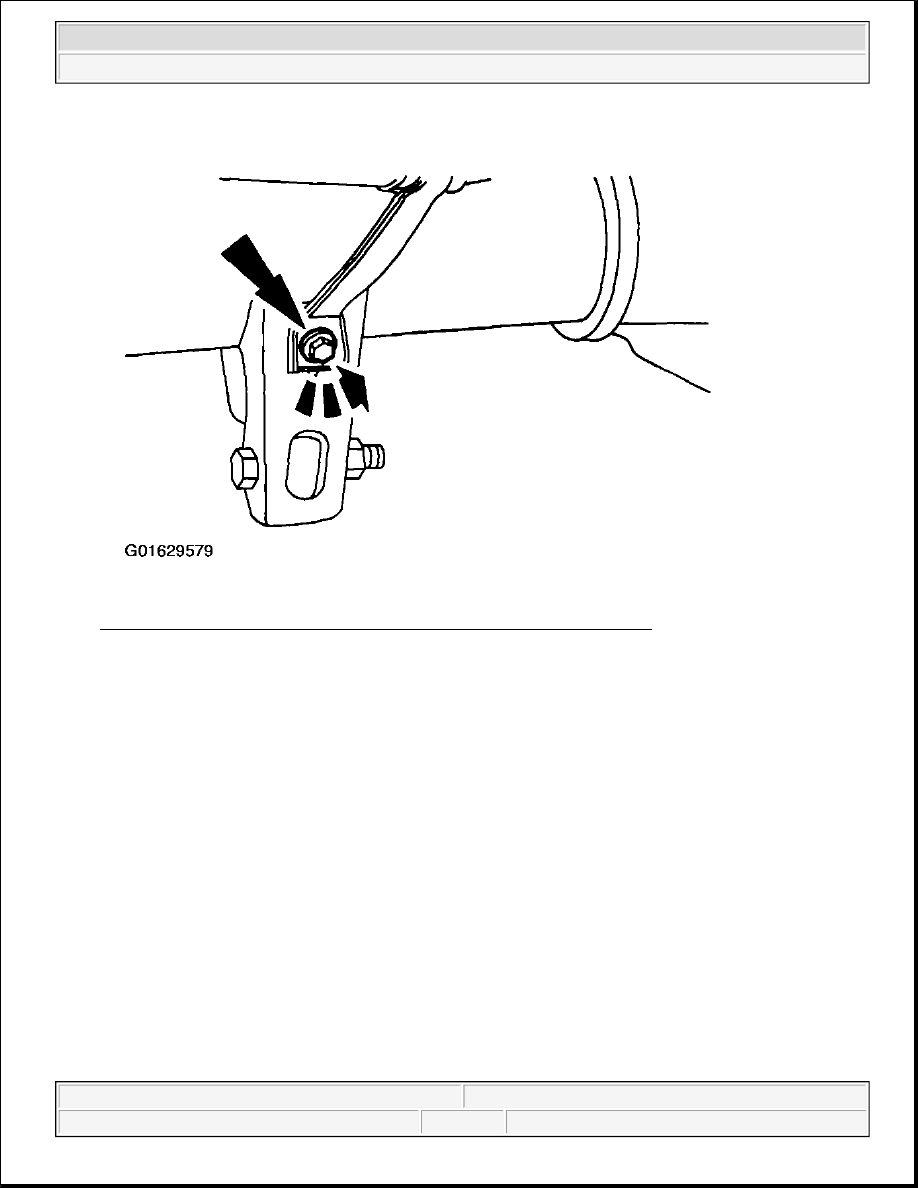

Fig. 120: Removing Brake Line From Retaining Clips (2 Of 2)
Courtesy of FORD MOTOR CO.

12. Support the rear axle with a suitable transmission jack.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup
