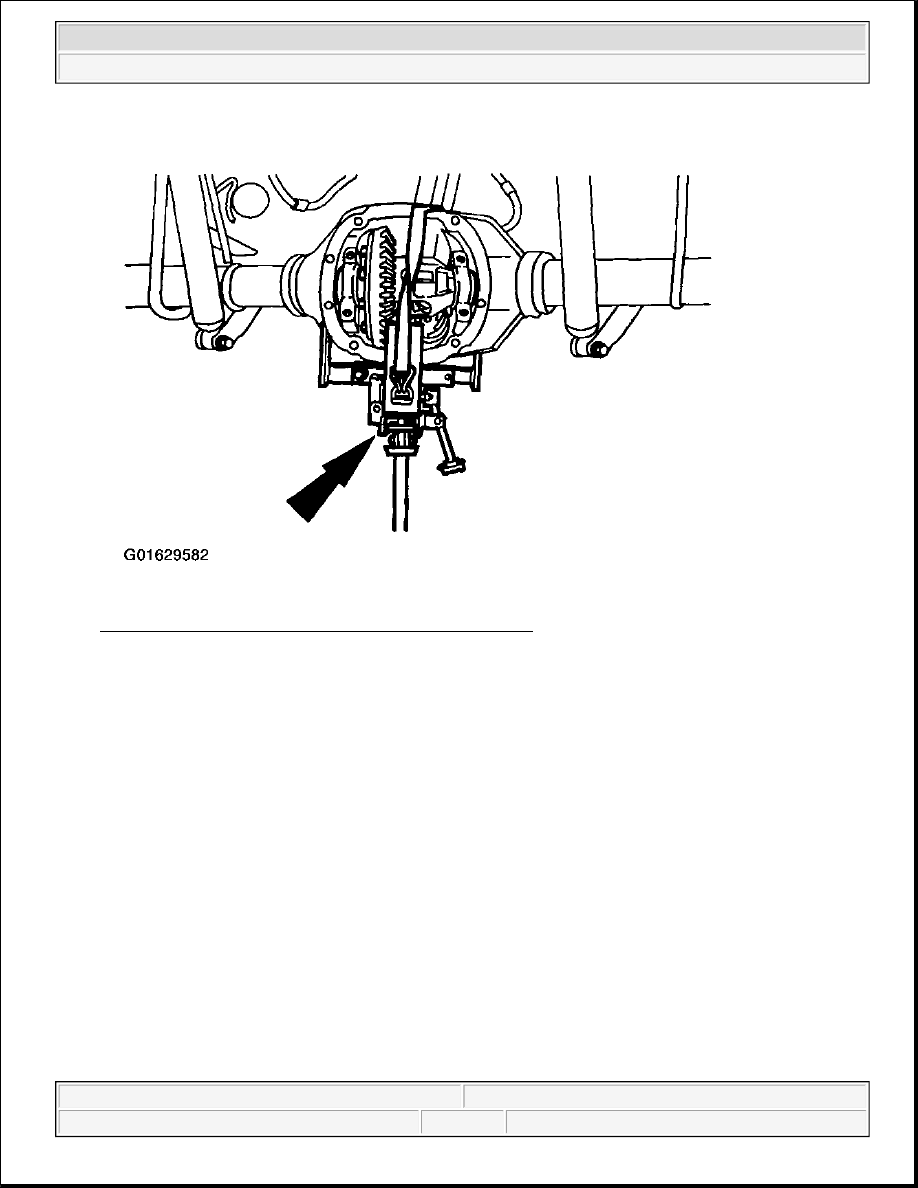

Fig. 121: Supporting Rear Axle With Transmission Jack
Courtesy of FORD MOTOR CO.

13. Remove the lower shock absorber nuts and bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

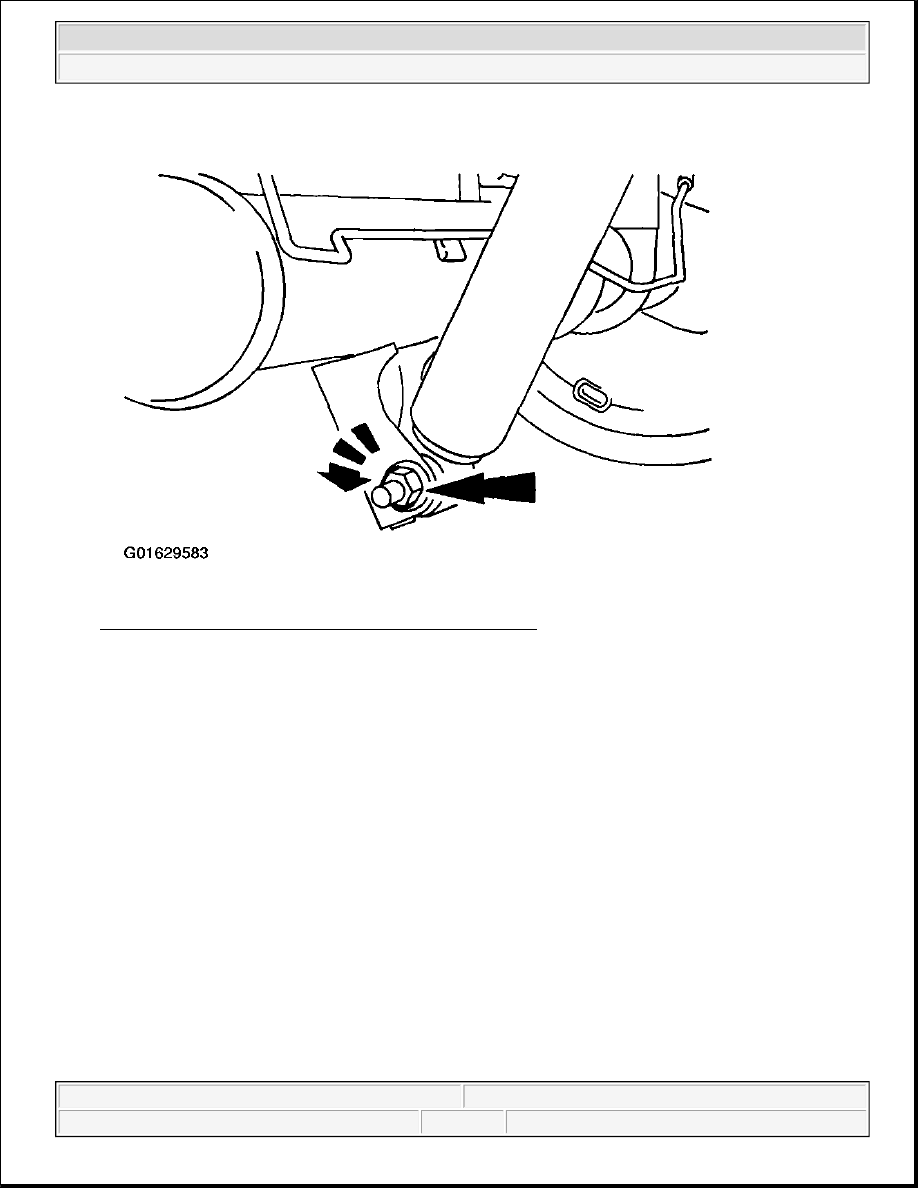

Fig. 122: Removing Lower Shock Absorber Nuts & Bolts
Courtesy of FORD MOTOR CO.

14. Remove the rear axle U-bolt assembly.

1. Remove the rear spring plate nuts.

2. Remove the two rear spring plate U-bolts.

3. Remove the rear spring plate.

4. Repeat the procedure for the other side.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

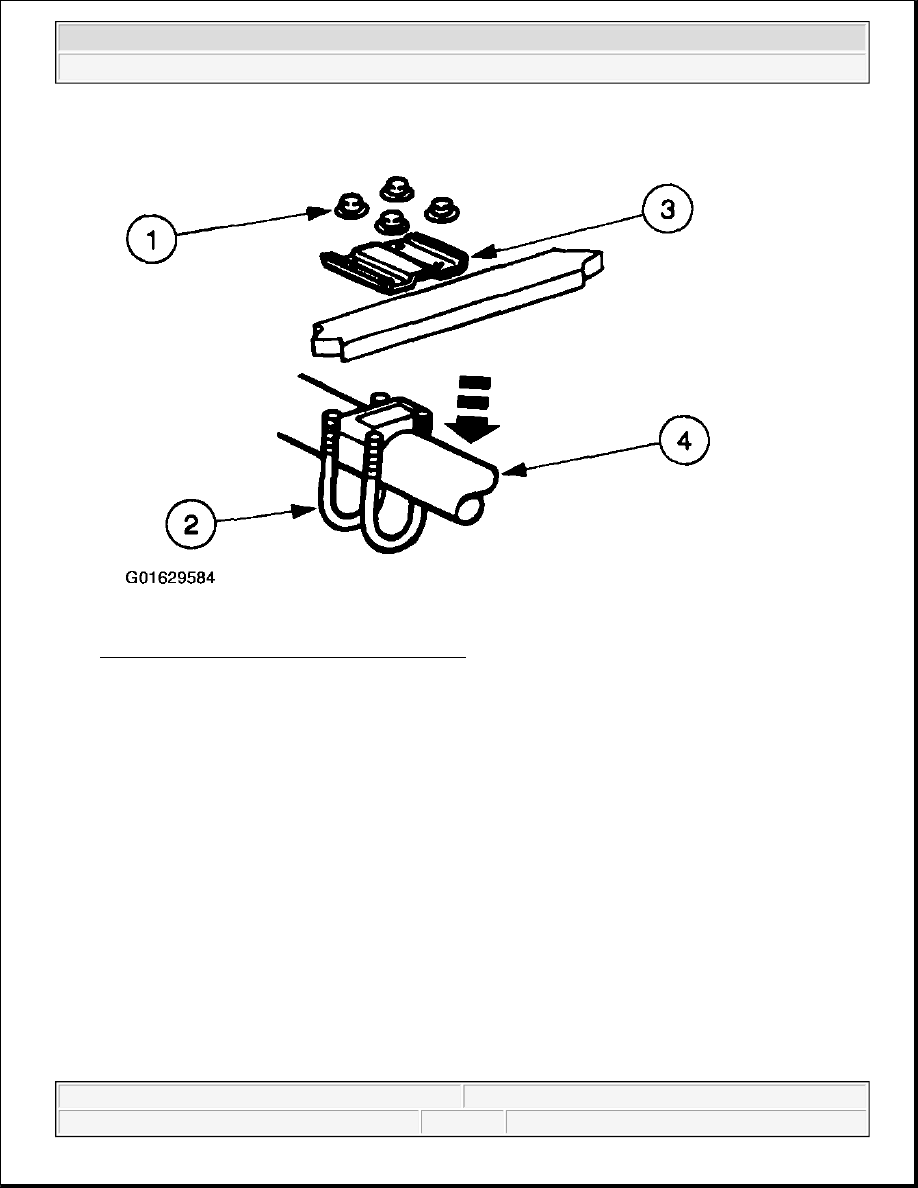

Fig. 123: Removing Rear Axle U-Bolt Assembly
Courtesy of FORD MOTOR CO.

15. Lower the axle from the vehicle.

Installation

CAUTION: The driveshaft centering socket yoke fits rightly on the rear axle

pinion flange pilot. To make sure that the yoke seats squarely on the
flange, tighten the bolts evenly in a cross pattern as shown.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

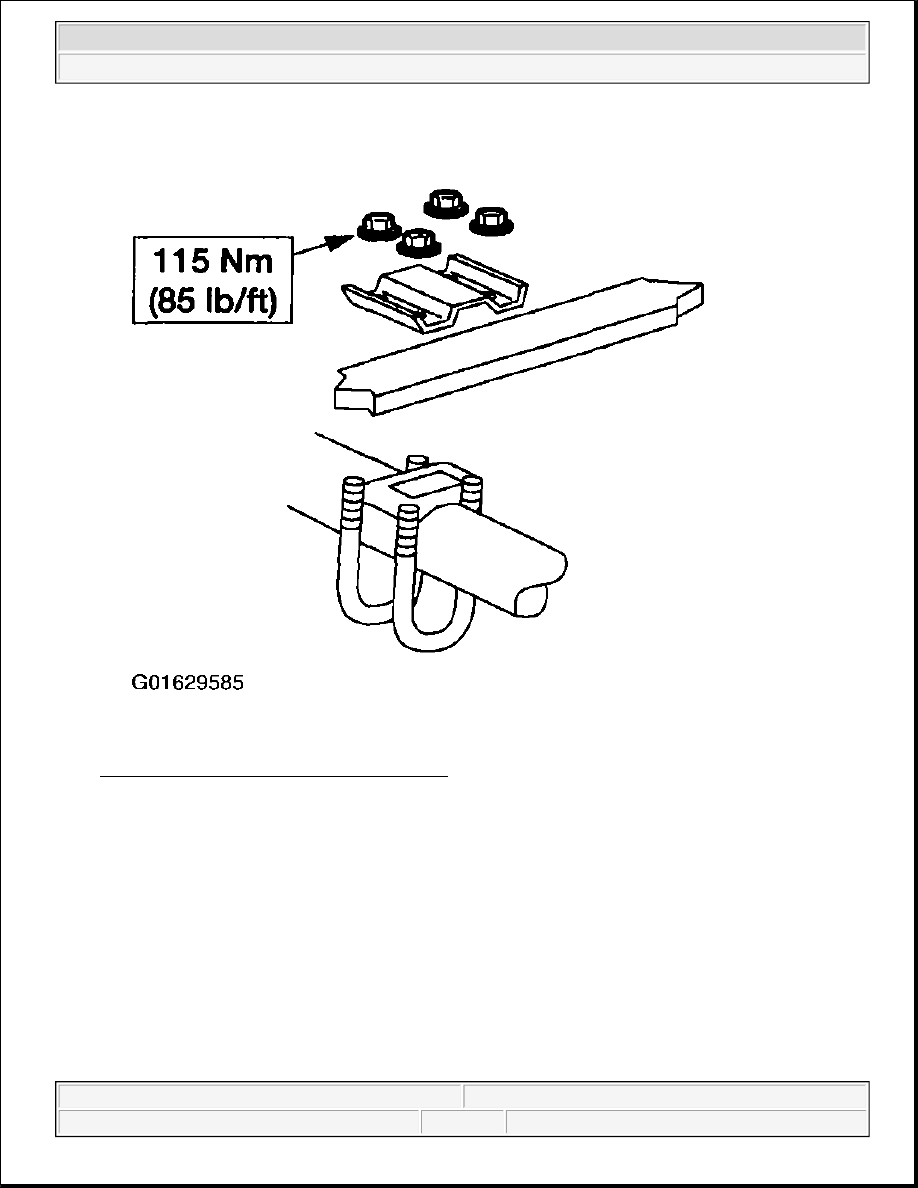

Fig. 124: U-Bolt Nut Tightening Specification
Courtesy of FORD MOTOR CO.
