Ford F150 Pickup. Instruction - part 469

3. Tighten the Drawbolt to remove the carrier bushing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup





2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 54: Removing Carrier Bushing
Courtesy of FORD MOTOR CO.

Installation

1. Position the carrier bushing and the carrier bushing installation tools.

1. Position the Gauge Ring on the outer face of the bushing flange.

2. Position the Bushing Collect Replacer over the Gauge Ring and the bushing flange.

3. Slide the Bushing Cup Remover/Replacer over the Bushing Collect Replacer.

4. Insert the Drawbolt.

5. Thread the Bushing Replacer on the Drawbolt.

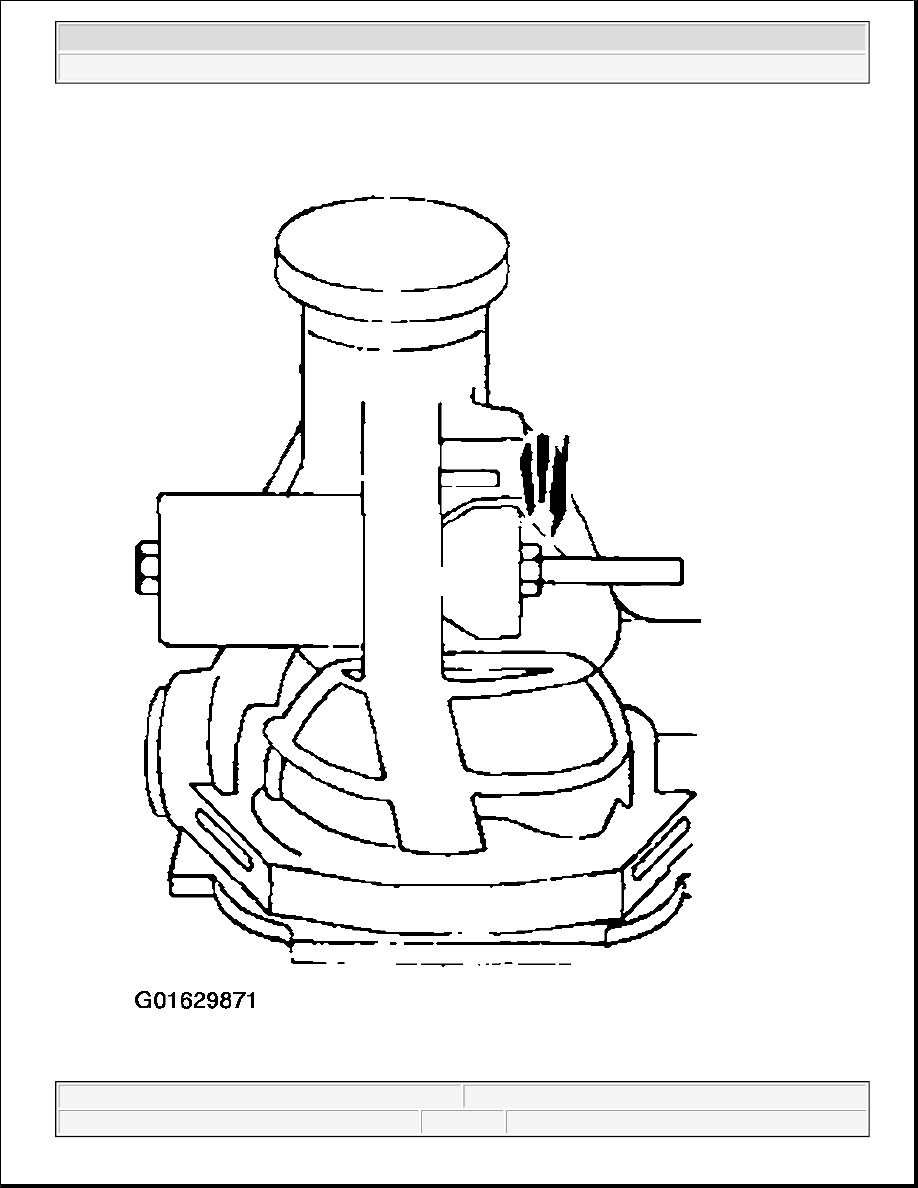

Fig. 55: Positioning Carrier Bushing & Carrier Bushing Installation Tools
Courtesy of FORD MOTOR CO.

2. Tighten the Drawbolt until the Bushing Collect Replacer contacts the carrier.

z

Remove the tools.

NOTE:

The gauge ring will correctly locate the carrier bushing when the Bushing
Collect Replacer bottoms out on the carrier.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

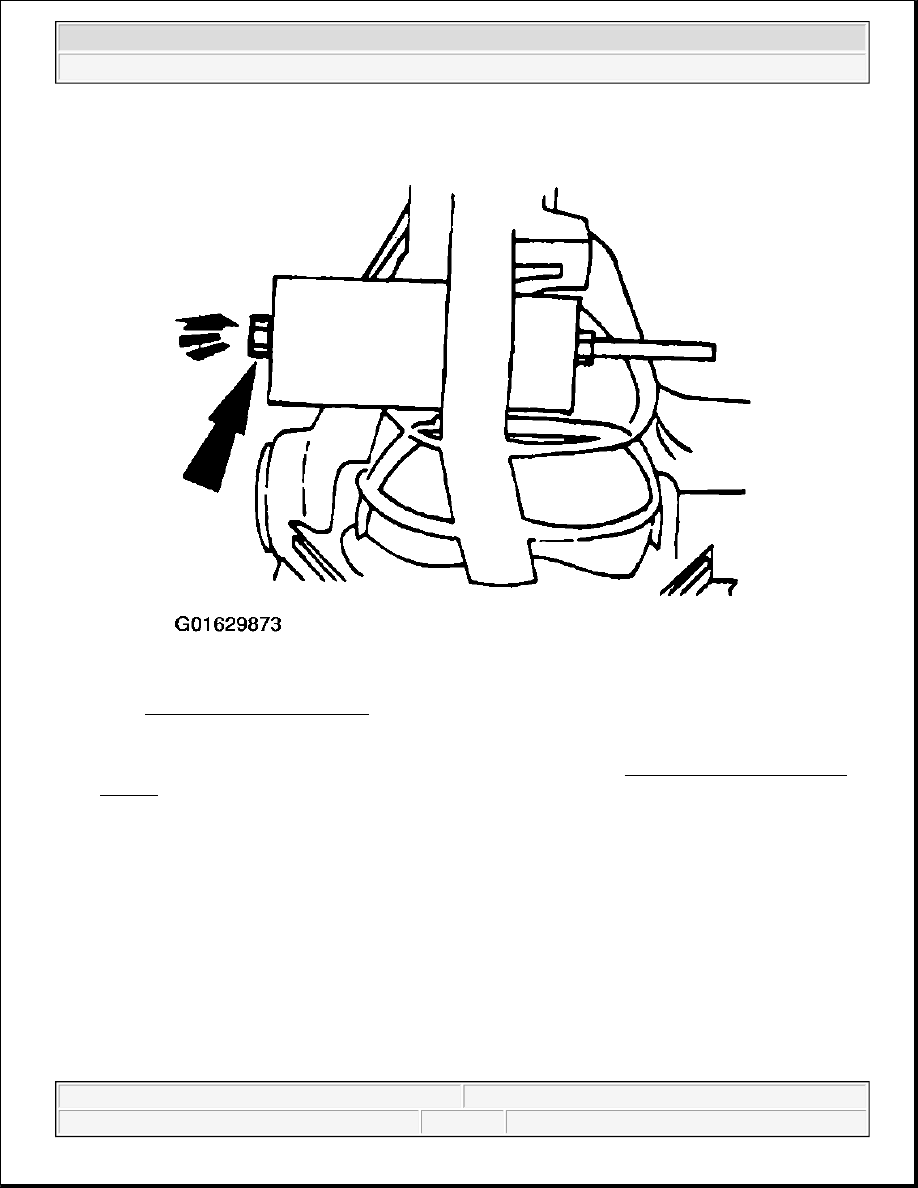

Fig. 56: Tightening Drawbolt
Courtesy of FORD MOTOR CO.

3. Install the front drive axle assembly. For additional information, refer to AXLE ASSEMBLY-FRONT

DRIVE .

BUSHING - COVER

Special Tool(s)



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup
