Ford F150 Pickup. Instruction - part 468

Fig. 49: Identifying Tightening Torque Of Control Arm-To-Differential Carrier Nut
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 50: Identifying Tightening Torque Of Control Arm-To-Differential Carrier Bolt
Courtesy of FORD MOTOR CO.

Fig. 51: Identifying Tightening Torque Front Differential Support Bolts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



BUSHING - CARRIER

Special Tool(s)



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 52: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Removal

1. Remove the front drive axle assembly. For additional information, refer to AXLE ASSEMBLY-FRONT

DRIVE .

2. Position the carrier bushing removal tools.

1. Position the Bushing Cup Remover/Replacer.

2. Position the Drawbolt through Bushing Cup Remover/Replacer and the bushing.

3. Thread the Bushing Remover on the Drawbolt.

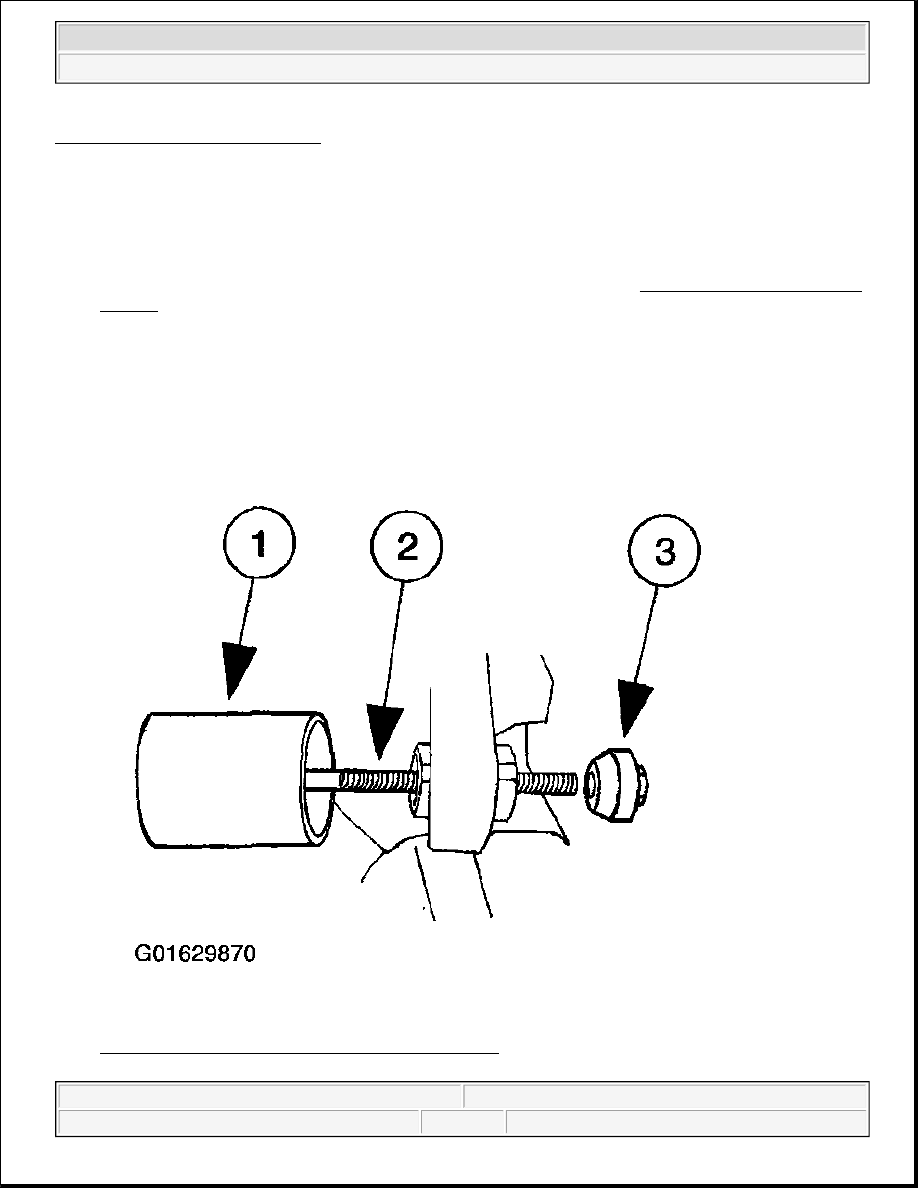

Fig. 53: Positioning Carrier Bushing Removal Tools
Courtesy of FORD MOTOR CO.

NOTE:

It is not necessary to remove the axle assembly from the jack.
