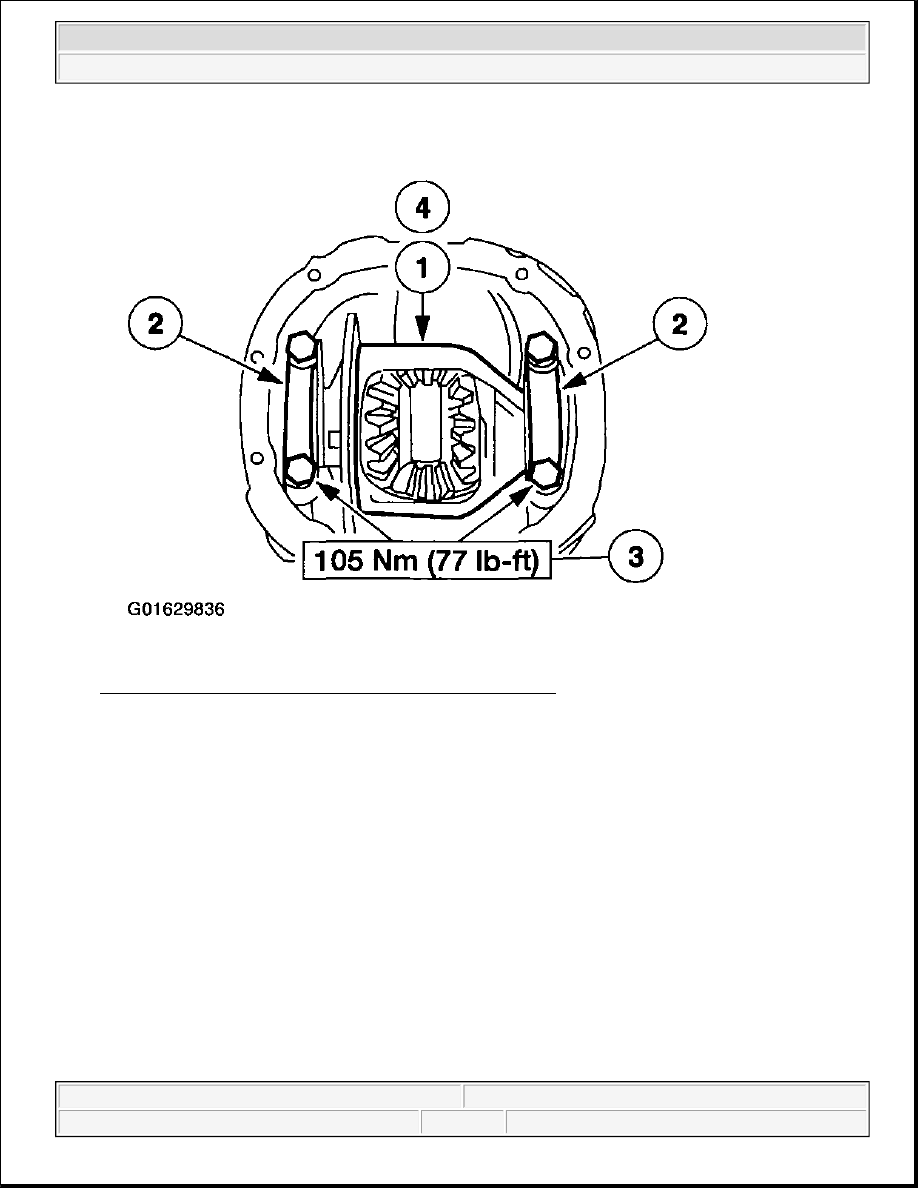

Fig. 19: Installing Differential Case, Bearing Cups & Shims
Courtesy of FORD MOTOR CO.

13. Install the differential case with the bearing cups and the shims in the housing.

1. Position the differential case with the bearing cups and shims.

2. Install the bearing caps.

3. Install the bolts.

4. Rotate the differential case to make sure the bearings have seated correctly.

14. Install the special tool.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 20: Installing Special Tool
Courtesy of FORD MOTOR CO.

NOTE:

If the runout is still excessive, install a new differential case.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 21: Checking Runout
Courtesy of FORD MOTOR CO.

15. Check the runout with the new differential bearings. If the runout does not exceed the specification, use

the new differential bearings for assembly.

16. Remove the bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 22: Removing Bolts
Courtesy of FORD MOTOR CO.

17. Remove the differential case with the bearing cups and the shims from the housing.

1. Remove the bearing caps.

2. Remove the differential case with the bearing cups and the shims from the housing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup
