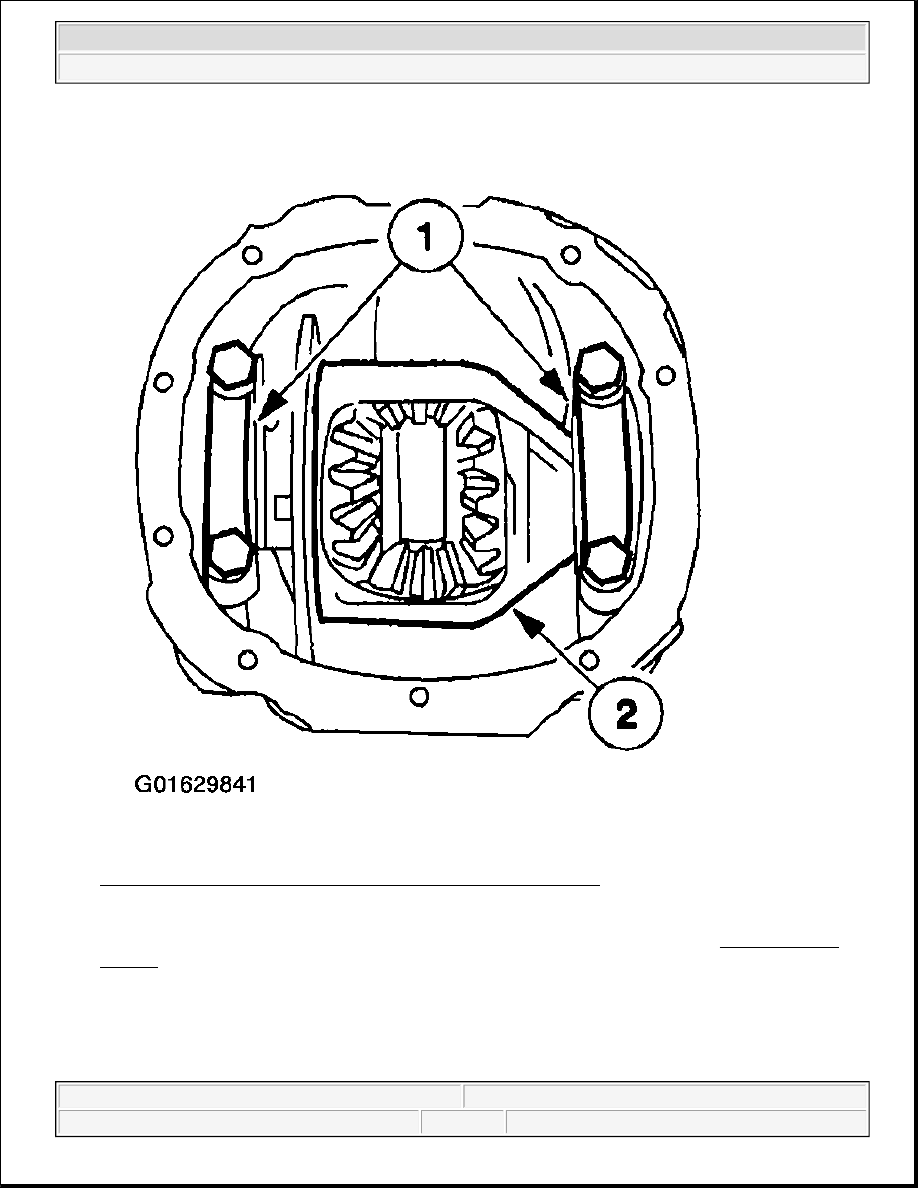

Fig. 23: Removing Differential Case With Bearing Cups & Shims
Courtesy of FORD MOTOR CO.

18. Install the ring gear and the differential assembly. For additional information, refer to AXLE-FRONT

DRIVE .

IN-VEHICLE REPAIR

DRIVE PINION SEAL



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Special Tool(s)

Fig. 24: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Removal

1. Remove the front axle universal joint flange. For additional information, refer to UNIVERSAL JOINT

FLANGE - FRONT .

CAUTION: Do not damage the front axle housing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 25: Removing Pinion Seal
Courtesy of FORD MOTOR CO.

2. Remove the pinion seal.

Installation

1. Clean the pinion seal bore, and use the Pinion Seal Replacer to install the pinion seal.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 26: Installing Pinion Seal
Courtesy of FORD MOTOR CO.

2. Install the front axle universal joint flange. For additional information, refer to UNIVERSAL JOINT

FLANGE - FRONT .

UNIVERSAL JOINT FLANGE - FRONT

Special Tool(s)
