Fig. 11: Removing Bearing Caps
Courtesy of FORD MOTOR CO.

5. Remove the differential case with the bearing cups and the shims from the housing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 12: Removing Differential Case With Bearing Cups
Courtesy of FORD MOTOR CO.

6. Remove the ring gear.

z

Remove the ten bolts.

z

Use a drift punch to separate the ring gear from the differential case.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



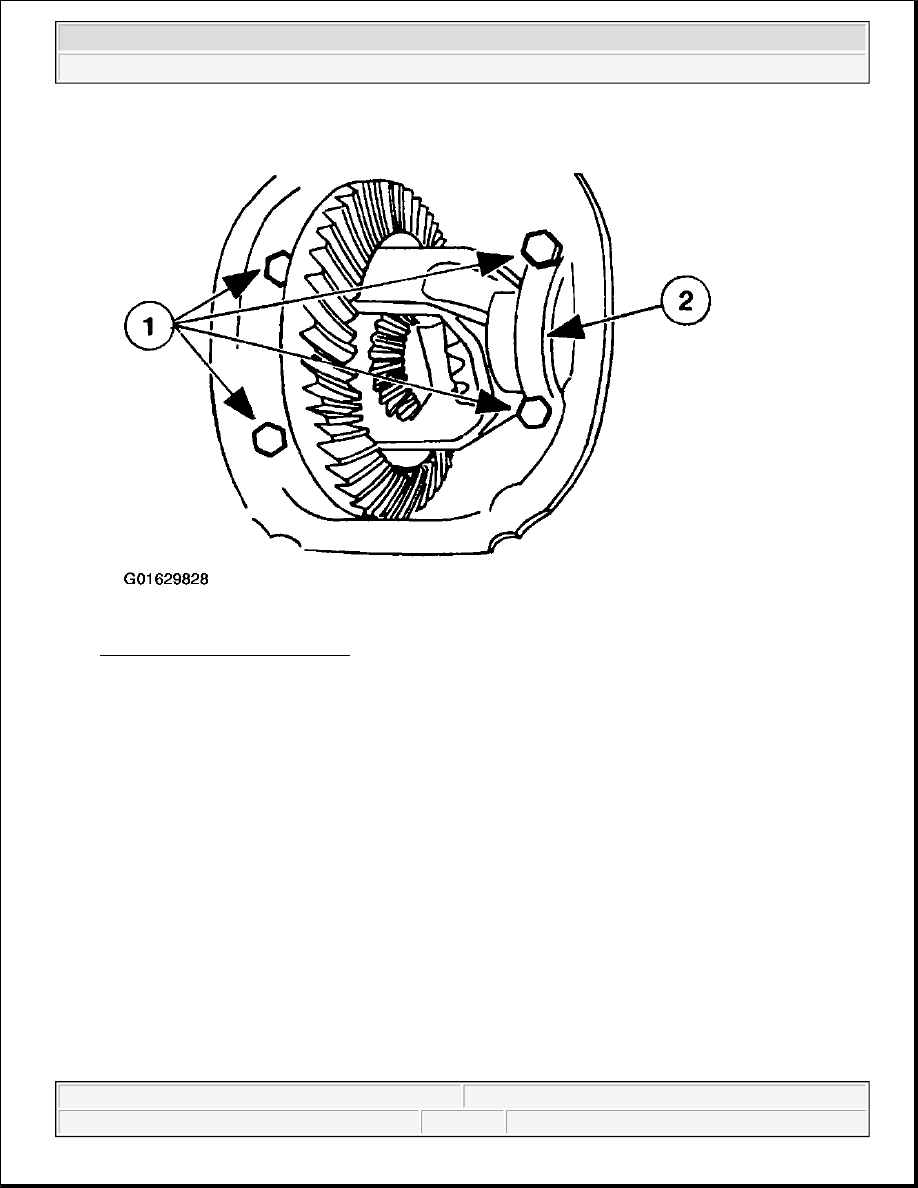

Fig. 13: Removing Ring Gear Bolts
Courtesy of FORD MOTOR CO.

NOTE:

It may be necessary to use the Differential Carrier Spreader to carry out
this step.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

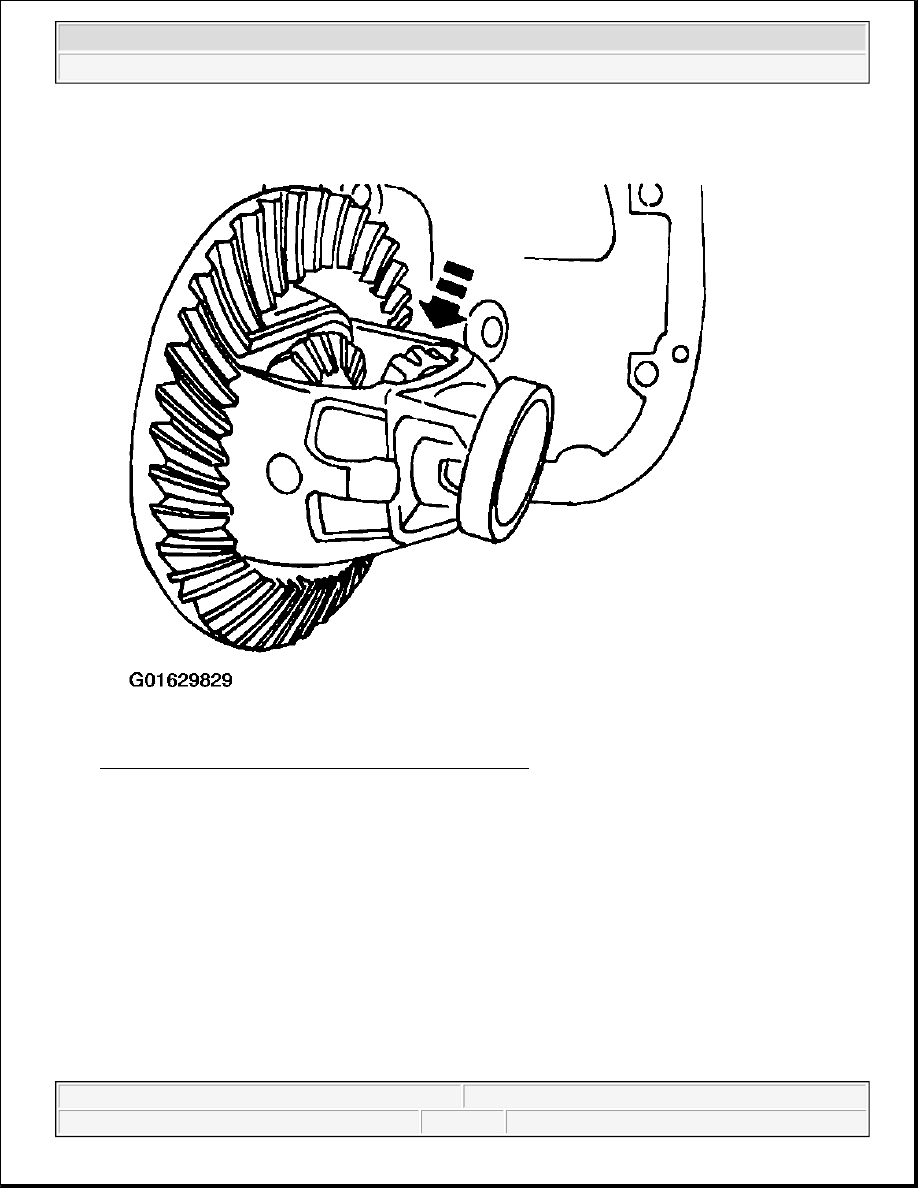

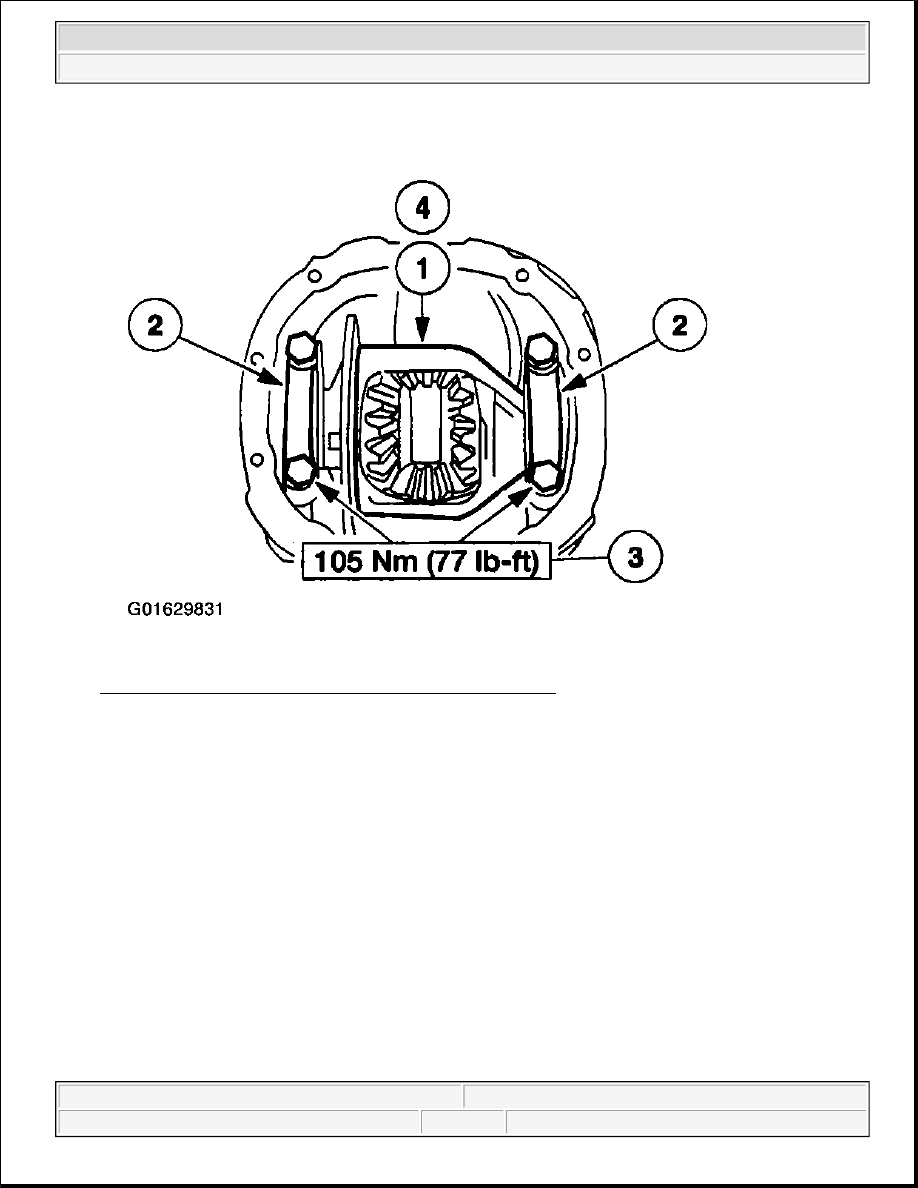

Fig. 14: Installing Differential Case, Bearing Cups & Shims
Courtesy of FORD MOTOR CO.

7. Install the differential case with the bearing cups and the shims in the housing.

1. Position the differential case with the bearing cups and shims.

2. Install the bearing caps.

3. Install the bolts.

4. Rotate the differential case to make sure the bearings have seated correctly.

8. Install the special tool.
