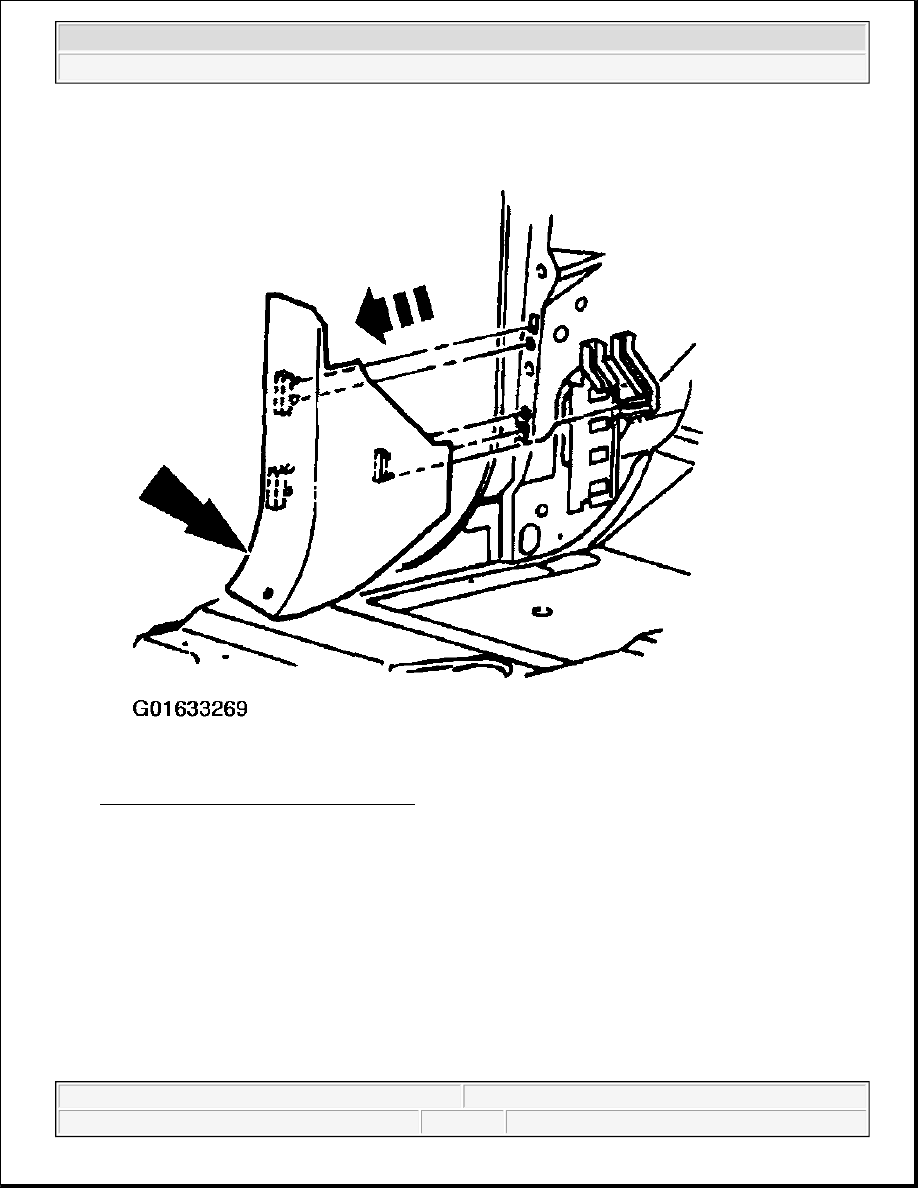

Fig. 18: Removing Cowl Side Trim Panel
Courtesy of FORD MOTOR CO.

5. Disconnect the front parking brake cable and conduit.

1. Compress the connector to release the front parking brake cable.

2. Disconnect the front parking brake cable.

3. Remove the front parking brake cable.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup

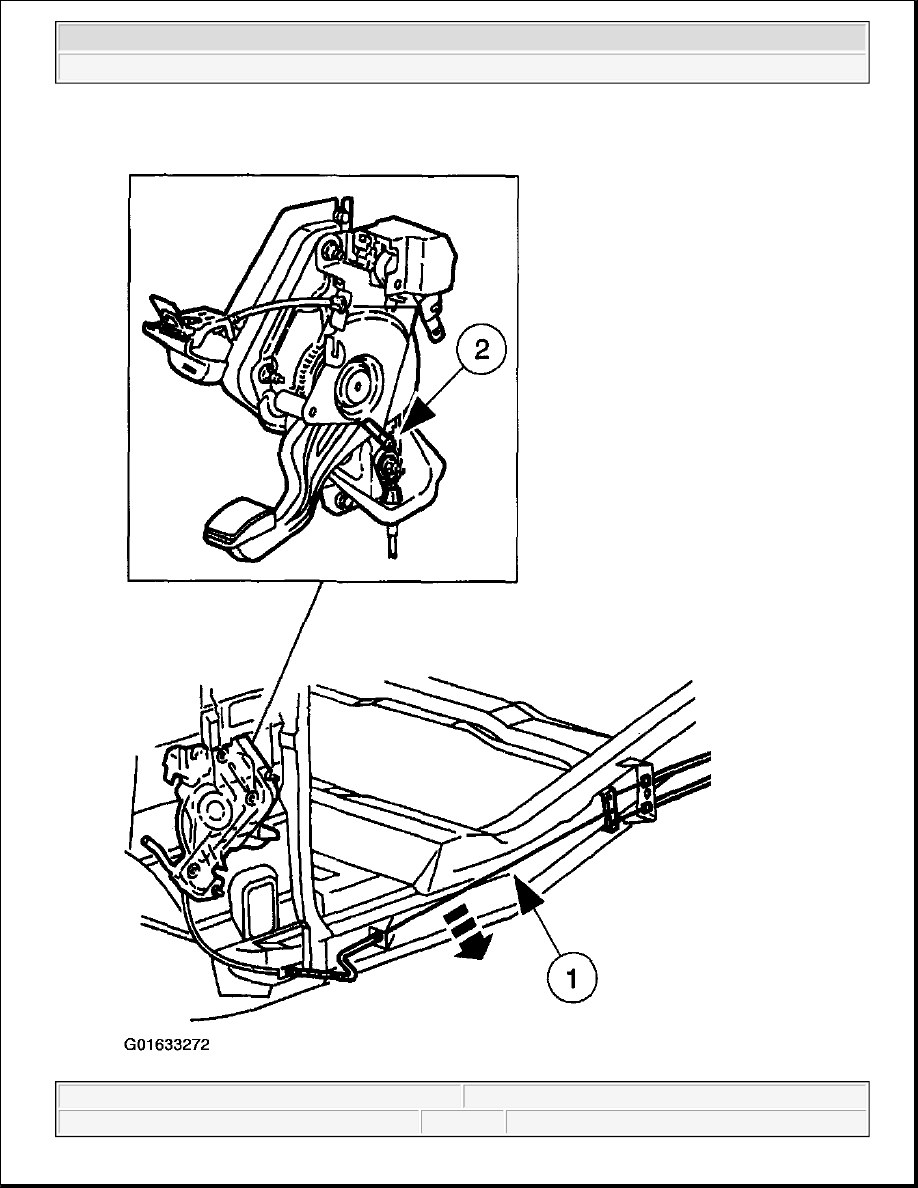

Fig. 19: Disconnecting Front Parking Brake Cable
Courtesy of FORD MOTOR CO.

6. Remove the front parking brake cable and conduit.

1. Pry the rubber seal from the front floor pan.

2. Unclip the front parking brake cable and conduit from the front parking brake cable clip.

3. Compress the retainer and release the front parking brake cable and conduit from the bracket.

4. Remove the front parking brake cable and conduit.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



Fig. 20: Removing Front Parking Brake Cable & Conduit
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

CABLE & CONDUIT - REAR

Removal & Installation

NOTE:

Make sure the parking brake control (2780) is fully released.
