Fig. 10: Disconnecting Release Handle From Release Cable
Courtesy of FORD MOTOR CO.

6. Separate the parking brake control from the mounting bracket.

1. Disconnect the parking brake signal switch electrical connector.

2. Remove the parking brake control nuts.

3. Separate the parking brake control from the mounting bracket.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



Fig. 11: Separating Parking Brake Control From Mounting Bracket
Courtesy of FORD MOTOR CO.

7. Remove the parking brake control.

1. Compress the connector to release the front parking brake cable and conduit.

2. Remove the front parking brake cable and conduit.

3. Remove the parking brake control.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup

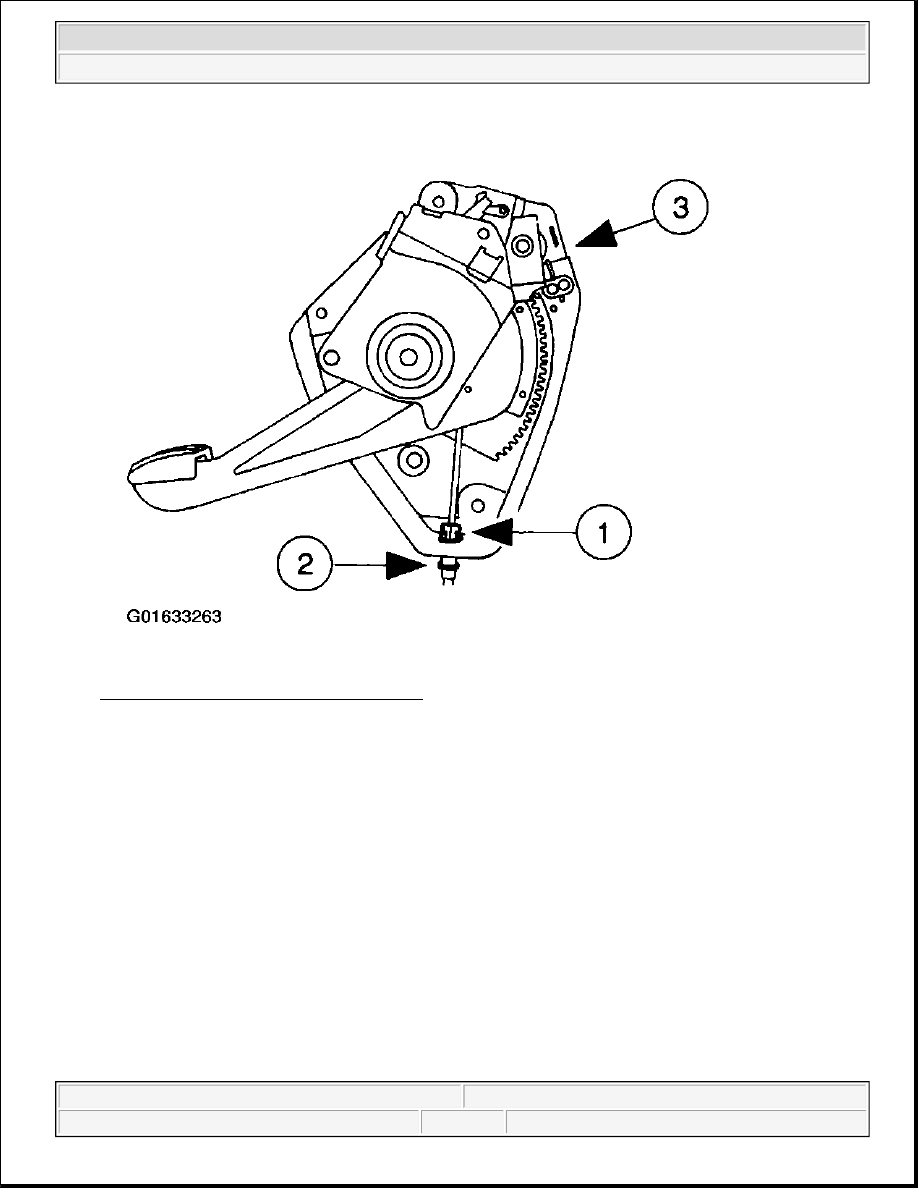

Fig. 12: Removing Parking Brake Control
Courtesy of FORD MOTOR CO.

8. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



Fig. 13: Installing Parking Brake Control On Mounting Bracket
Courtesy of FORD MOTOR CO.
