Fig. 14: Installing Release Handle
Courtesy of FORD MOTOR CO.

CABLE & CONDUIT - FRONT

Removal & Installation

NOTE:

Make sure the parking brake control (2780) is fully released.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup





2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



Fig. 15: Relieving Tension On Parking Brake System
Courtesy of FORD MOTOR CO.

1. Relieve the tension on the parking brake system.

1. Pull the front parking brake cable (2853) down.

2. Insert a suitable retainer.

2. Disconnect the front parking brake cable and conduit from the RH parking brake rear cable and conduit

(2A635).

z

Pull the front parking brake cable and conduit rearward to unclip it from the RH parking brake rear
cable and conduit.

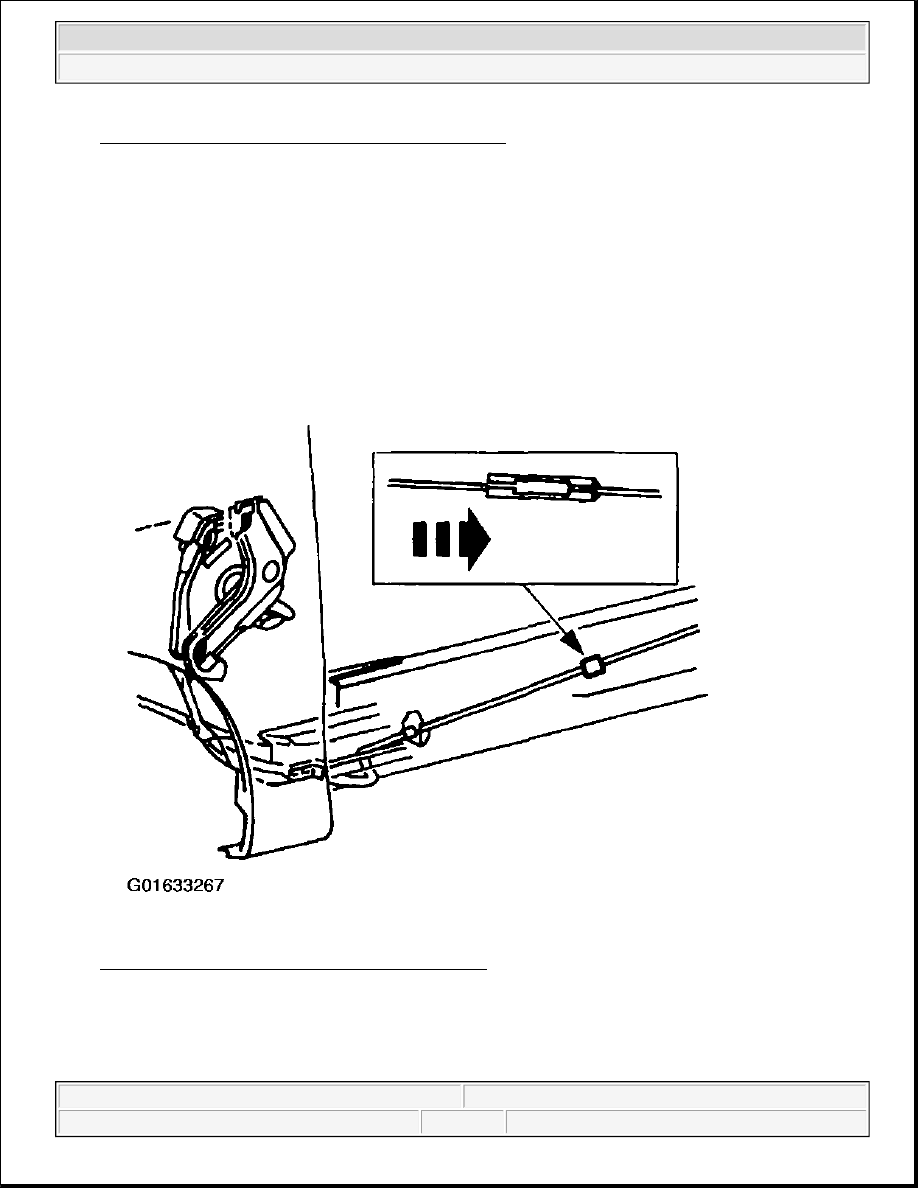

Fig. 16: Disconnecting Front Parking Brake Cable
Courtesy of FORD MOTOR CO.

3. Remove the front door scuff plate (13208).



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup

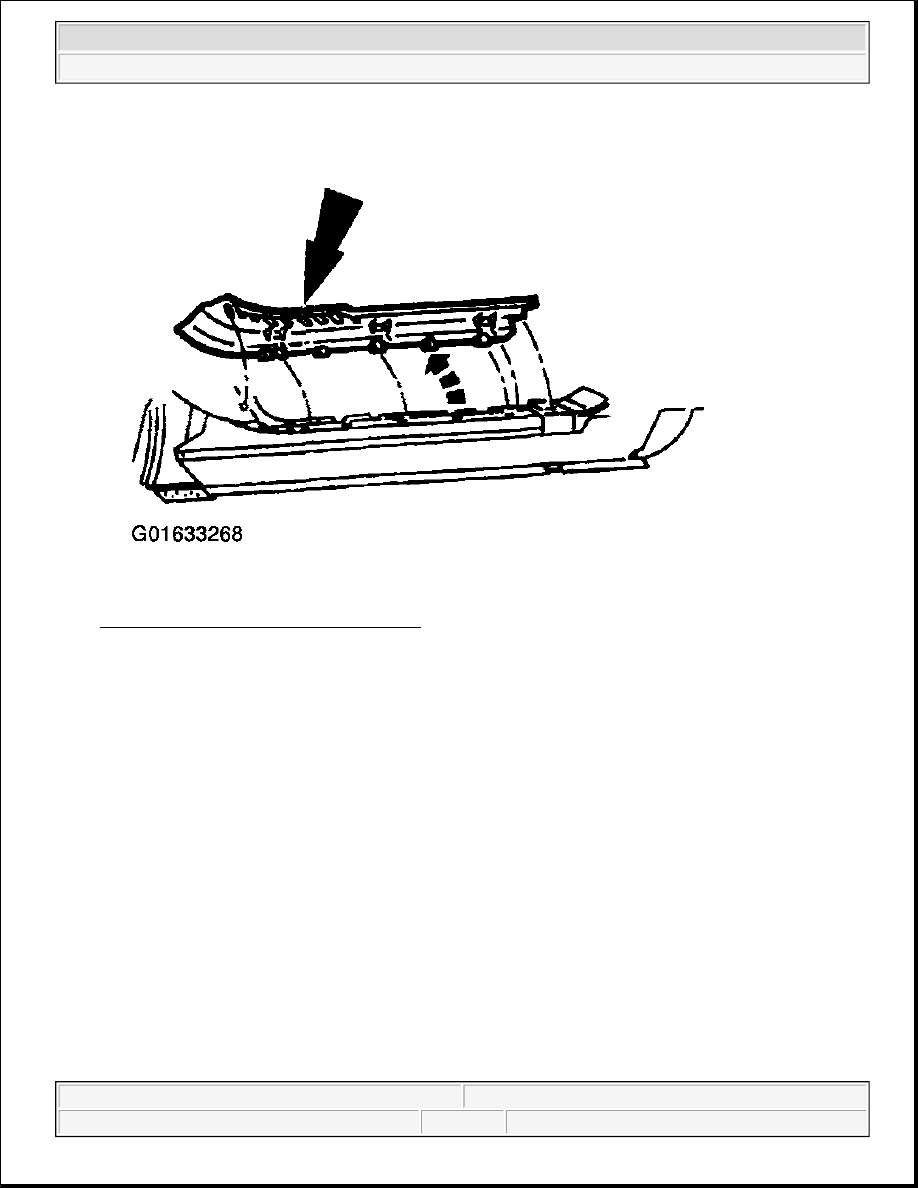

Fig. 17: Removing Front Door Scuff Plate
Courtesy of FORD MOTOR CO.

4. Remove the cowl side trim panel (02345).
