Ford F150 Pickup. Instruction - part 422

MOUNTING AND CABLES .

2. Remove the instrument panel opening cover (04459). For additional information, refer to

INSTRUMENT PANEL AND CONSOLE .

3. Remove the stoplight switch hairpin clip.

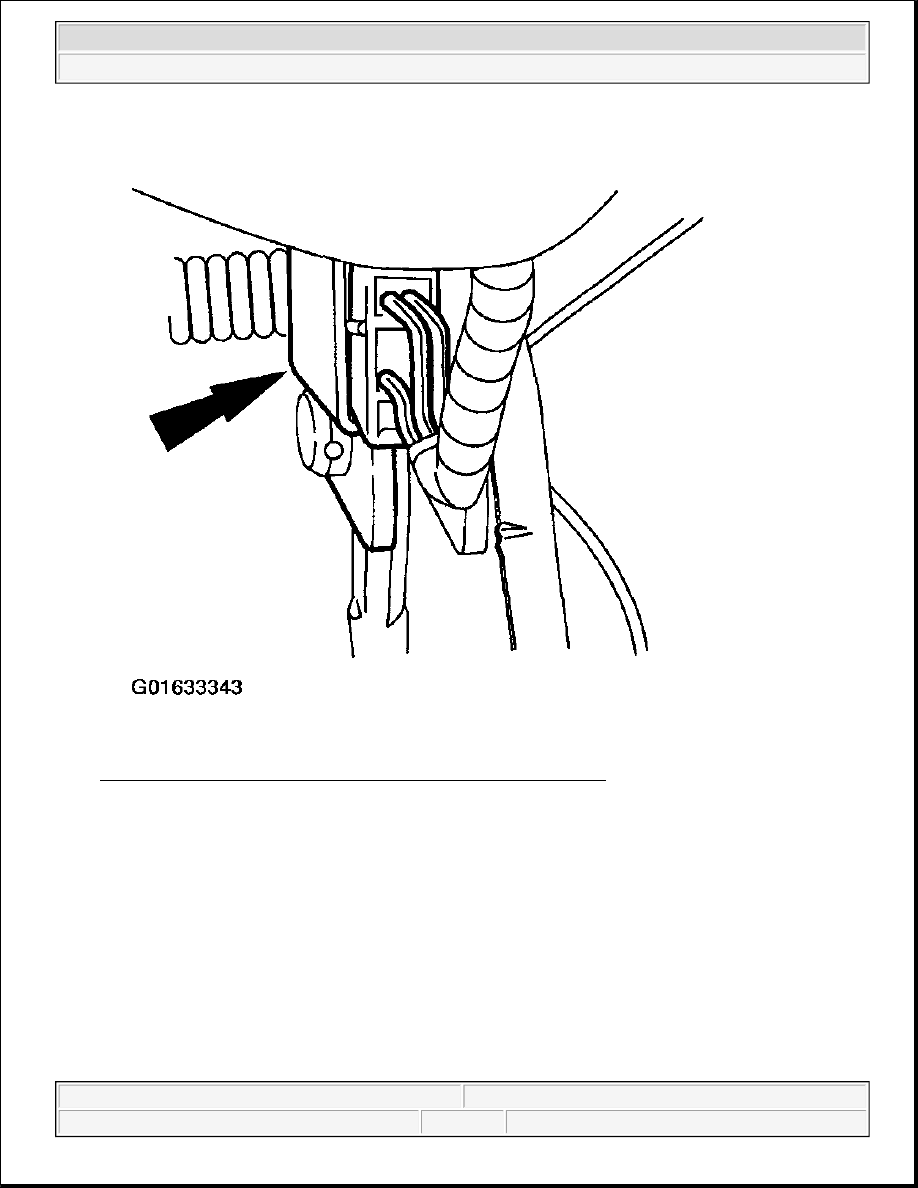

Fig. 46: Removing Stoplight Switch Hairpin Clip
Courtesy of FORD MOTOR CO.

4. Slide the stoplight switch (13480), booster push rod (2005) and the bushing (2471) off the brake pedal

pin.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 47: Removing Stoplight Switch, Booster Push Rod & Bushing
Courtesy of FORD MOTOR CO.

5. Remove the brake pedal-to-accelerator pedal cable (2C430) from the accelerator pedal.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 48: Removing Brake Pedal-To-Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.

6. Disconnect the brake pedal motor electrical connector.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

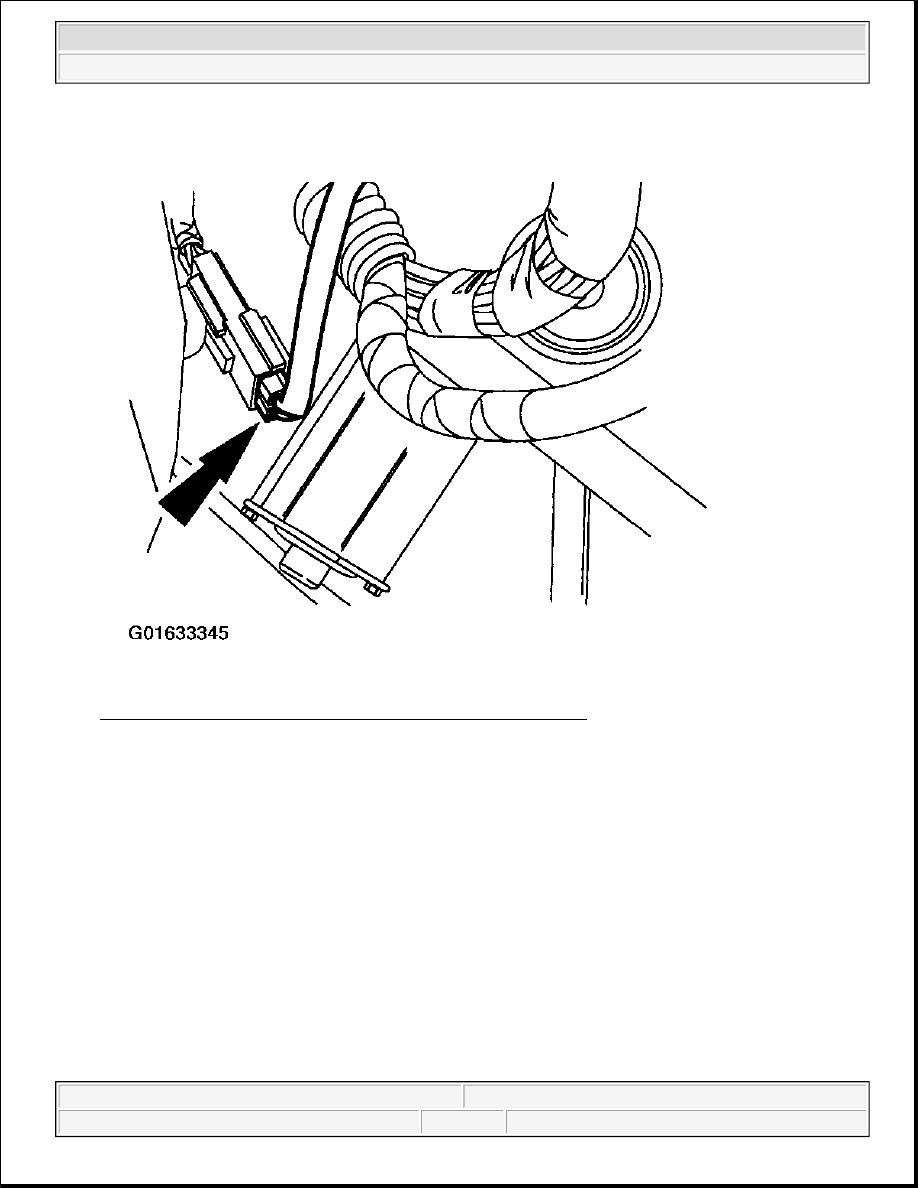

Fig. 49: Disconnecting Brake Pedal Motor Electrical Connector
Courtesy of FORD MOTOR CO.

7. Unload the pedal spring (2N042).



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup
