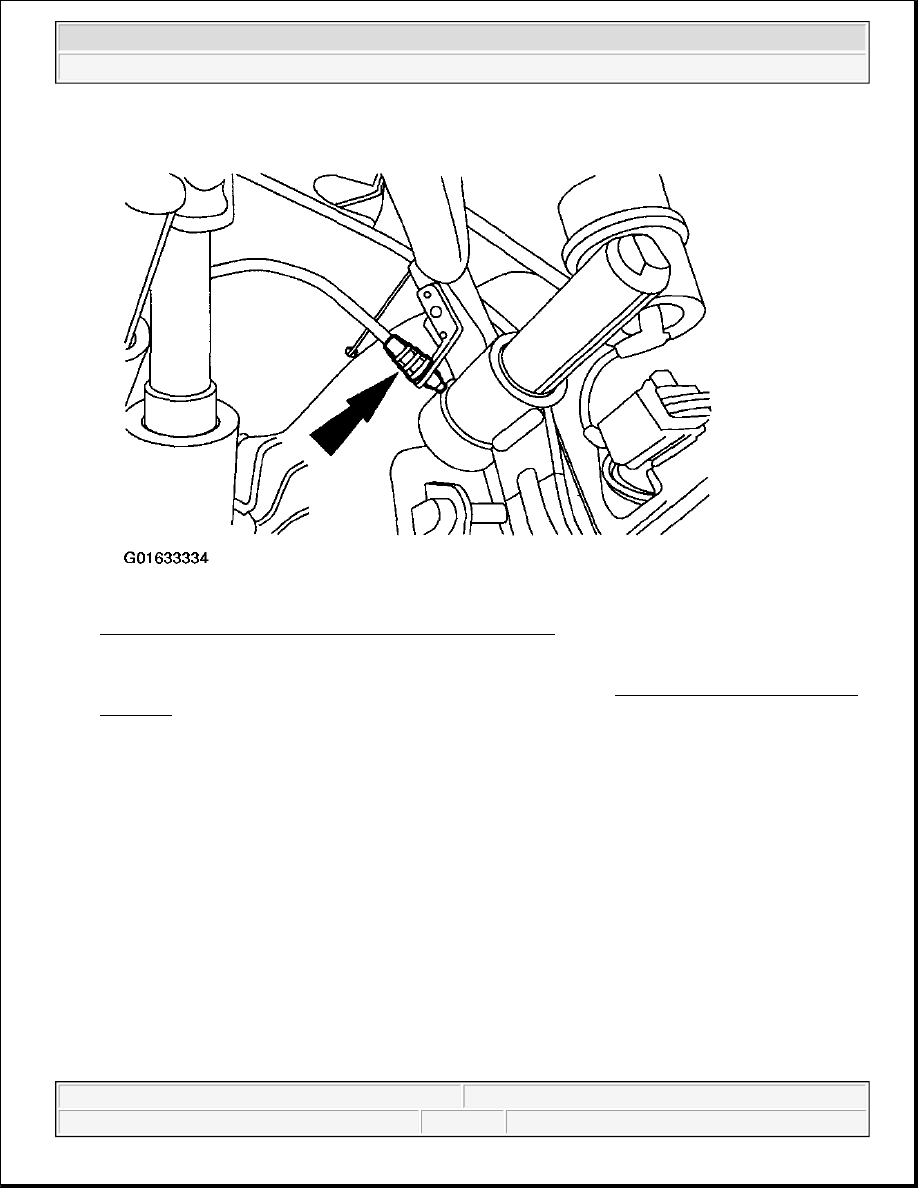

Fig. 38: Installing Brake Pedal-To-Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.

7. Connect the battery negative cable. For additional information, refer to BATTERY, MOUNTING AND

CABLES .

CAUTION: When installing the brake pedal-to-accelerator pedal cable, the brake

pedal and the accelerator pedal must be in the same position, all the
way forward or all the way rearward.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 39: Positioning Accelerator Pedal Using Brake Pedal Motor (Forward)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



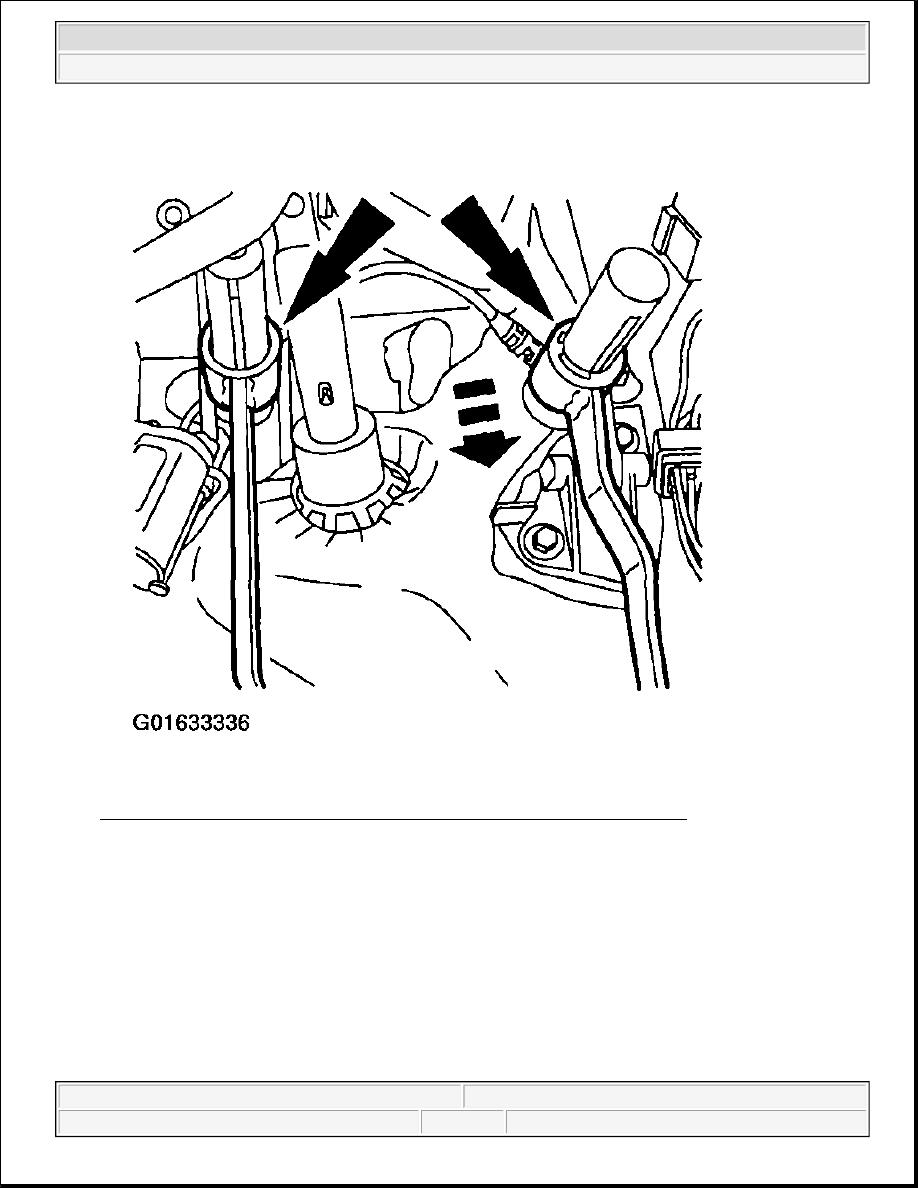

Fig. 40: Positioning Accelerator Pedal Using Brake Pedal Motor (Backward)
Courtesy of FORD MOTOR CO.

8. Position the accelerator pedal using the brake pedal motor, all the way forward or backward, depending

on the position of the new brake pedal.

9. Remove the brake pedal-to-accelerator pedal cable from the accelerator pedal by pulling on the cable

retainer.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

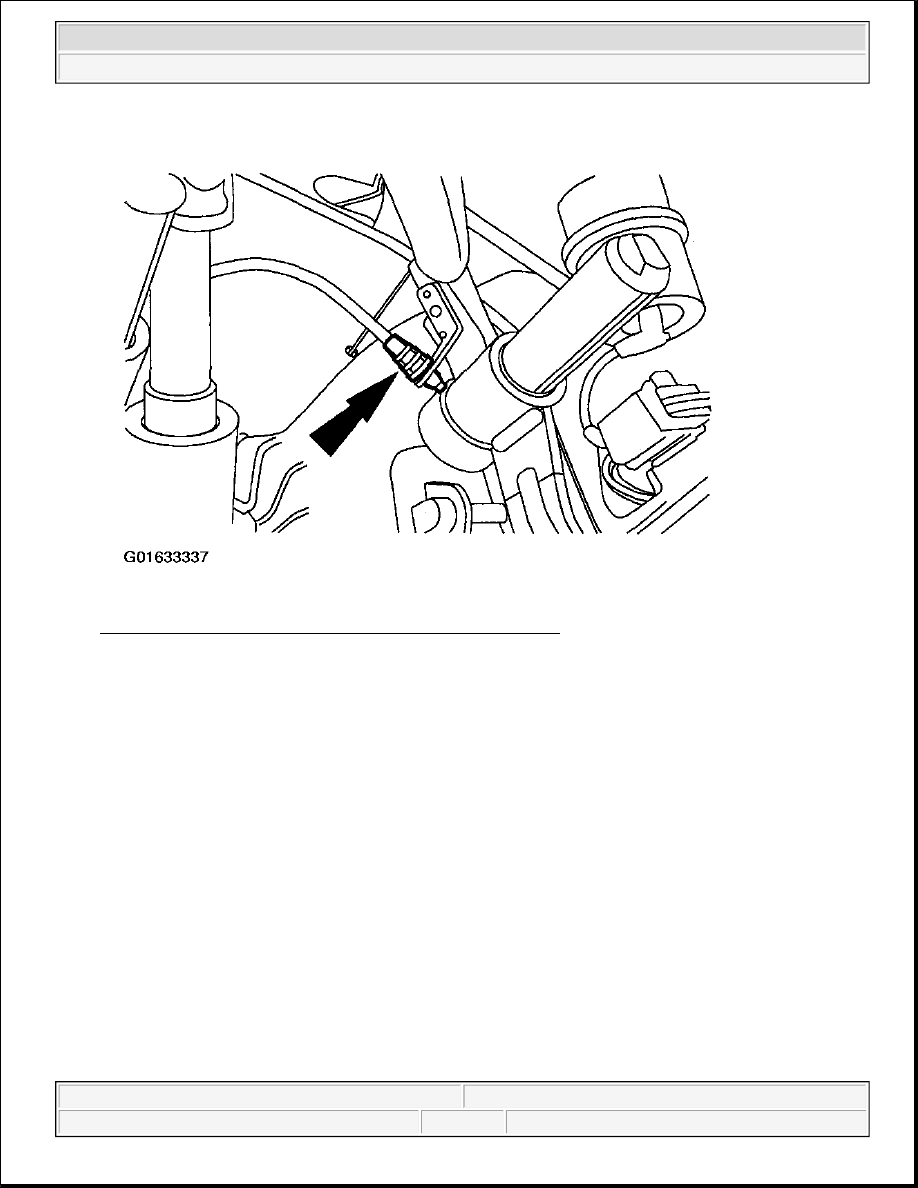

Fig. 41: Removing Brake Pedal-To-Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.

10. Position the brake pedal in the same position as the accelerator pedal, using the brake pedal motor.

11. Install the brake pedal-to-accelerator pedal cable in the accelerator pedal.
