Ford F150 Pickup. Instruction - part 391

brake master cylinder and power brake booster in the engine compartment.

6. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE

SPECIFICATIONS . Bleed brakes. See BLEEDING BRAKE SYSTEM .

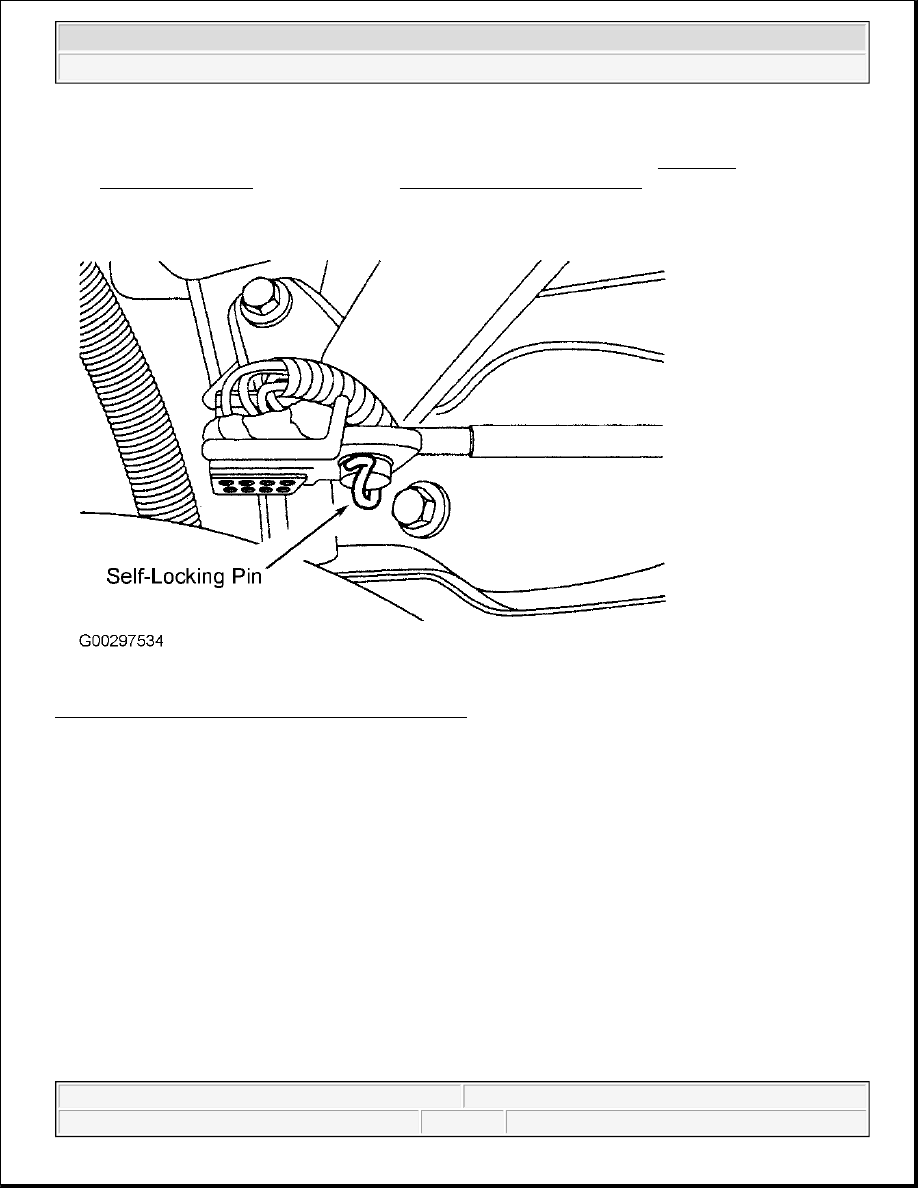

Fig. 30: Identifying Stoplight Switch Self-Locking Pin
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 31: Removing Stoplight Switch
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 32: Identifying Bulkhead Sound Insulator & Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 33: Identifying Brake Pedal Bracket Bolts
Courtesy of FORD MOTOR CO.

Removal & Installation (Fixed Pedals With M/T)

1. Disconnect the clutch master cylinder push rod. See Fig. 34 .

2. Disconnect the Clutch Pedal Position (CPP) switch. See Fig. 35 .

3. Remove the clutch master cylinder by rotating the clutch master cylinder 45 degrees clockwise. See Fig.

36 .

4. Remove the stoplight switch self-locking pin. See Fig. 30 .

5. Slide the stoplight switch and the booster push rod off the brake pedal pin. See Fig. 31 .

6. Remove the bulkhead sound insulator. See Fig. 33 .

7. Remove the two brake pedal bracket bolts. See Fig. 37 .

8. Remove the brake pedal bracket/power booster nuts. See Fig. 32 .

9. To install, reverse removal procedure. Ensure the bulkhead sound insulator is not between the brake pedal

and bracket and the bulkhead. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
