Ford F150 Pickup. Instruction - part 389

Fig. 22: Removing "U" Washer
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 23: Removing Axle Shaft
Courtesy of FORD MOTOR CO.

Fig. 24: Identifying Parking Brake Cable Retainer
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



Fig. 25: Identifying Backing Plate-To-Axle Flange Bolt
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



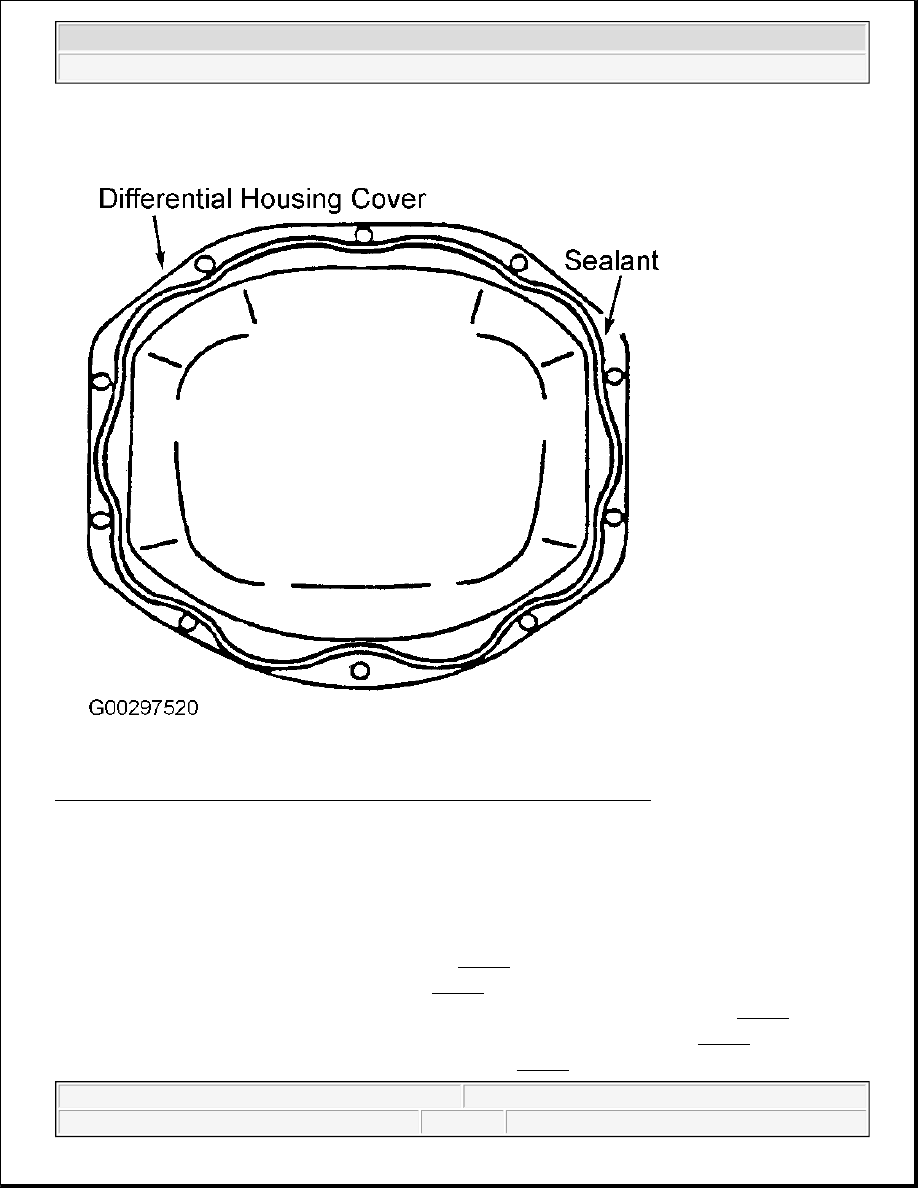

Fig. 26: Applying Continuous Bead Of Sealant To Differential Housing Cover
Courtesy of FORD MOTOR CO.

BRAKE PEDAL

Removal & Installation

1. Disconnect the battery ground cable

2. Remove the instrument panel opening cover. See Fig. 62 .

3. Remove the stoplight switch hairpin clip. See Fig. 30 .

4. Slide the stoplight switch, booster push rod and the bushing off the brake pedal pin. See Fig. 31 .

5. Remove the brake pedal-to-accelerator pedal cable from the accelerator pedal. See Fig. 39 .

6. Disconnect the brake pedal motor harness connector. See Fig. 40 .



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup
