Ford F150 Pickup. Instruction - part 299

Fig. 118: Disconnecting Rear Door Window Regulator Motor Electrical Connector
Courtesy of FORD MOTOR CO.

8. Remove the window regulator equalizer nuts.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

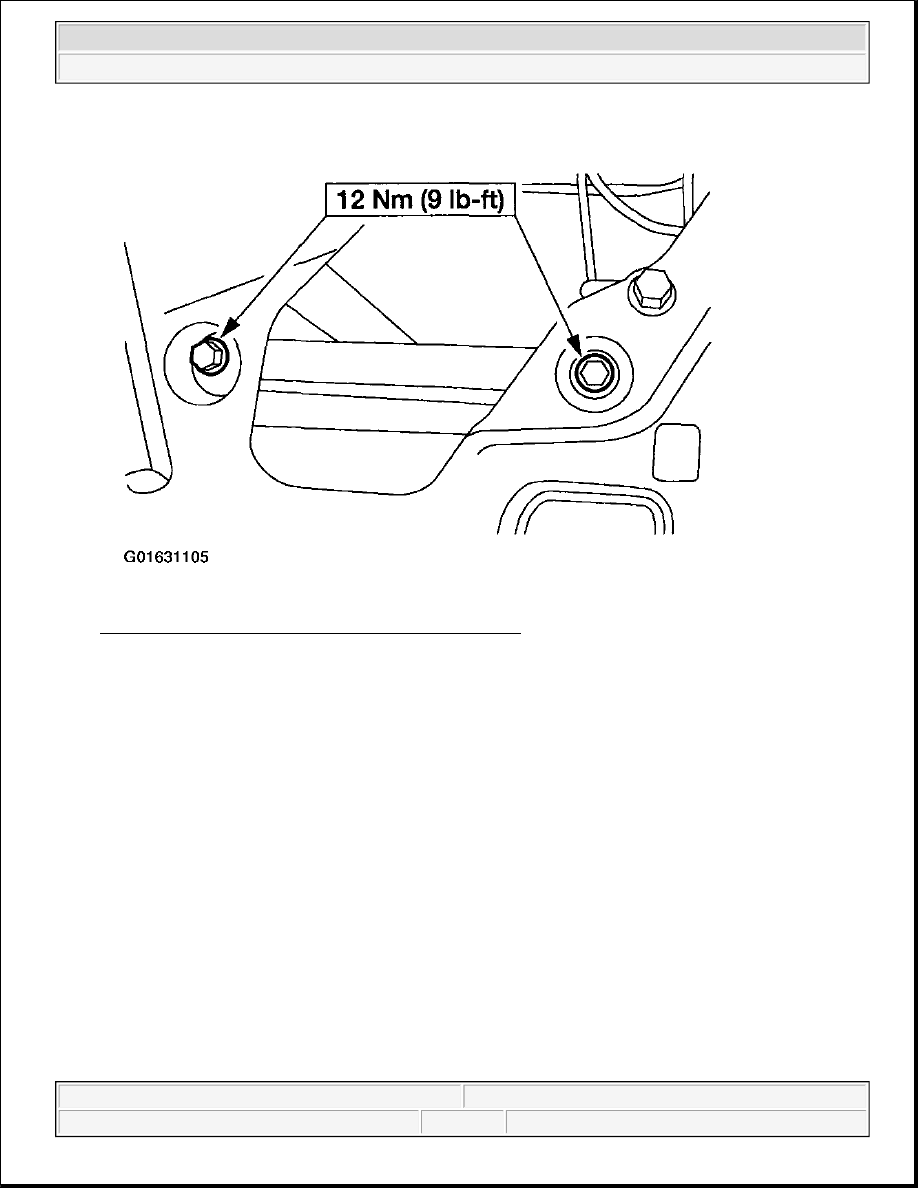

Fig. 119: Removing Window Regulator Equalizer Nuts
Courtesy of FORD MOTOR CO.

9. Drill out the rivets and remove the rear door window regulator.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

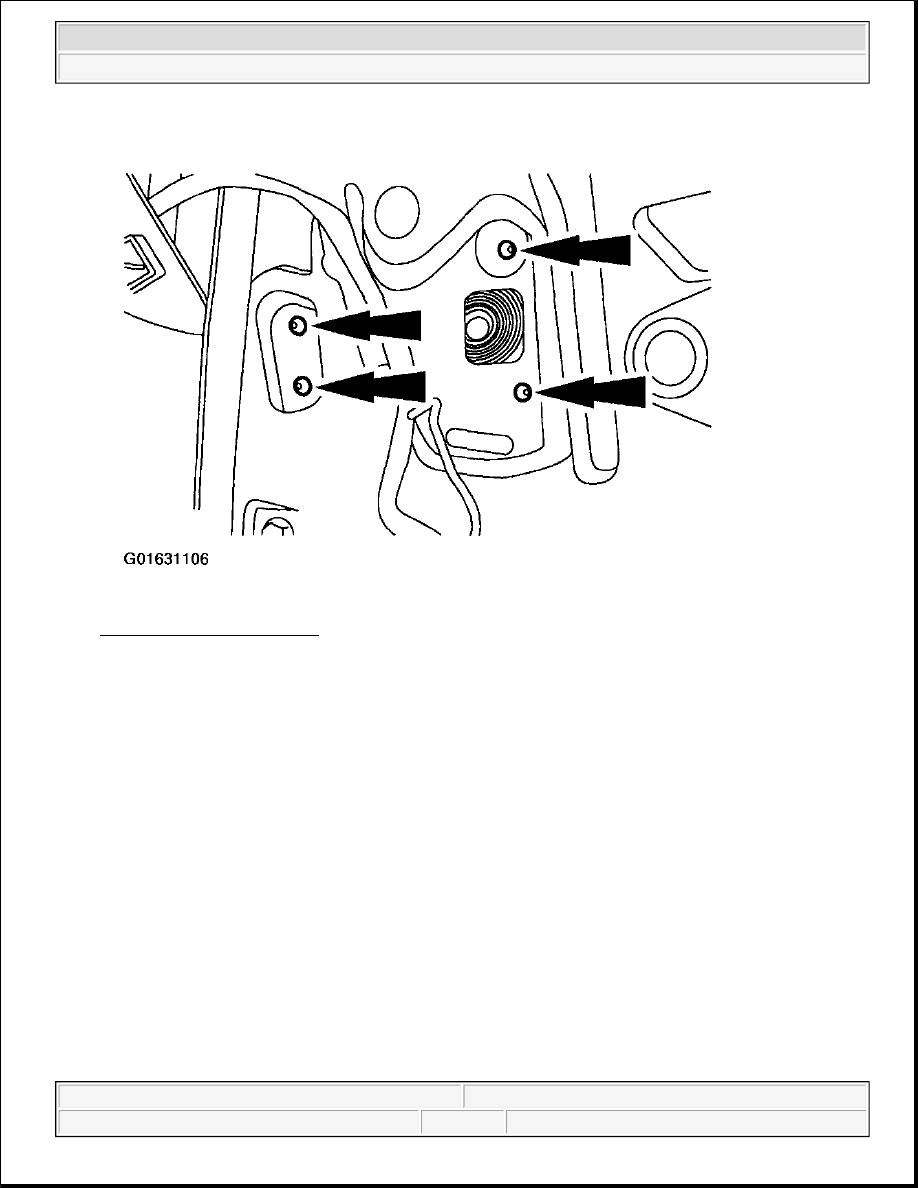

Fig. 120: Drilling Out Rivets
Courtesy of FORD MOTOR CO.

CAUTION: Prior to motor removal, make sure the regulator arms are in a fixed

position to prevent counterbalance spring unwind.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 121: Removing Bolts And Rear Door Window Regulator Motor
Courtesy of FORD MOTOR CO.

10. Remove the bolts and the rear door window regulator motor.

11. To install, reverse the removal procedure.

z

Cycle the window glass to make sure the gears engage.

WINDSHIELD GLASS

Special Tool(s)

NOTE:

Use the special tool to install rivets.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup
