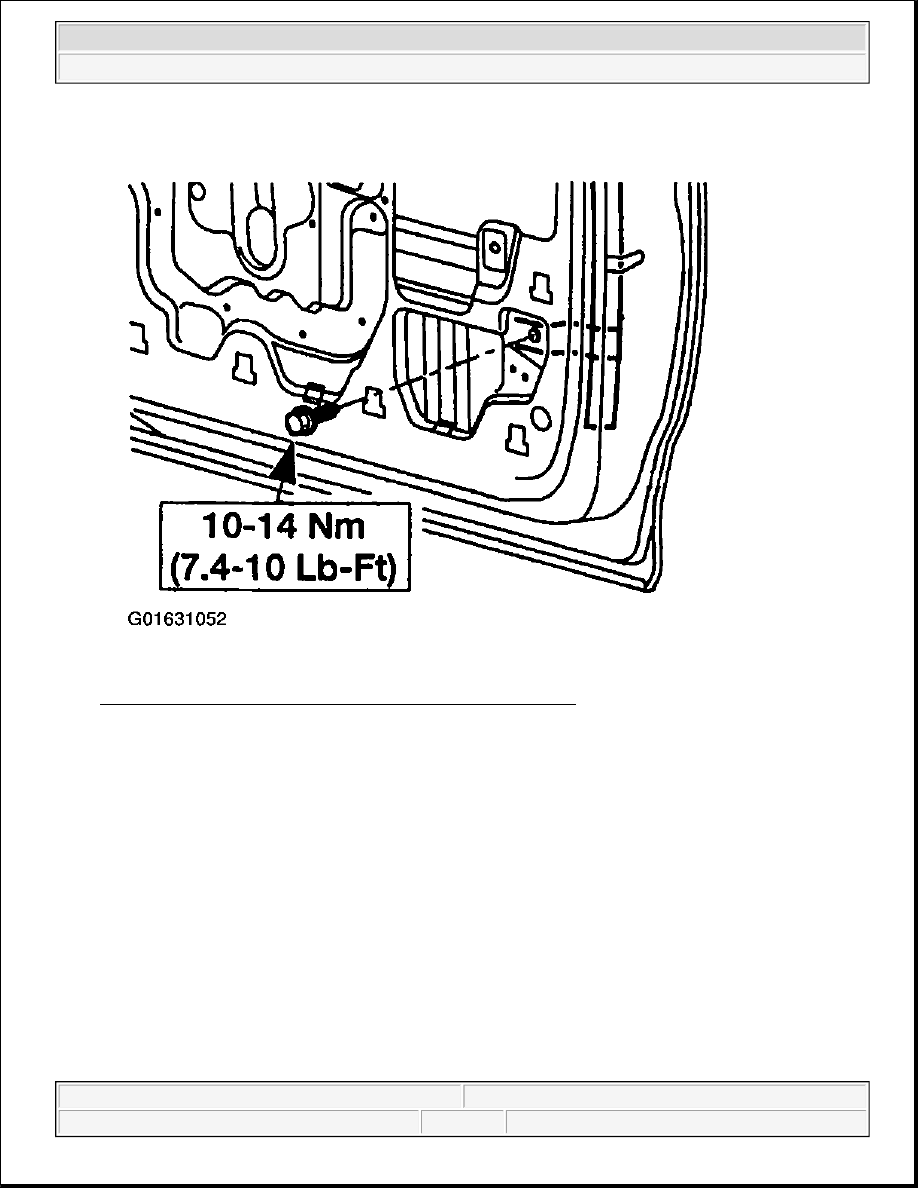

Fig. 66: Removing Rear Glass Channel Bolt And Lift Channel
Courtesy of FORD MOTOR CO.

7. Remove the window glass to regulator nuts.

z

Slide the glass channel rearward until the rear window glass to regulator stud lines up with the hole
in the glass channel.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 67: Removing Window Glass To Regulator Nuts
Courtesy of FORD MOTOR CO.

8. Remove the front door window glass.

9. To install, reverse the removal procedure.

REAR DOOR WINDOW GLASS - SUPERCREW

Removal and Installation

1. Remove the rear door window regulator motor. Refer to REAR DOOR WINDOW REGULATOR

MOTOR-SUPERCREW .

2. Remove the bolt and lower window run.

NOTE:

Slide the glass through the outboard side of the door.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 68: Removing Bolt And Lower Window Run
Courtesy of FORD MOTOR CO.

3. Remove the upper window run retaining bolt.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 69: Removing Upper Window Run Retaining Bolt
Courtesy of FORD MOTOR CO.

4. Remove the inside glass weatherstrip.
