Ford F150 Pickup. Instruction - part 244

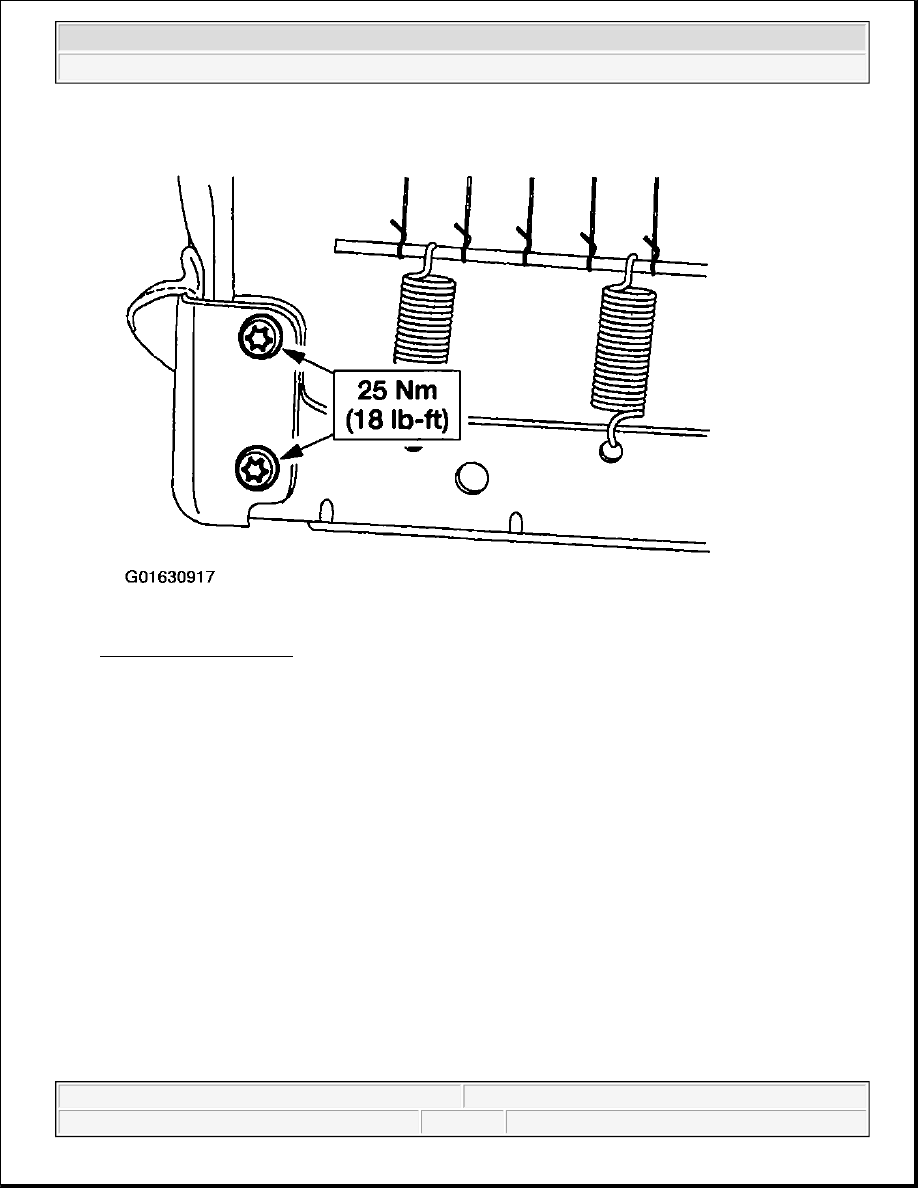

Fig. 313: Removing Bolts
Courtesy of FORD MOTOR CO.

11. Remove the pushpins.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

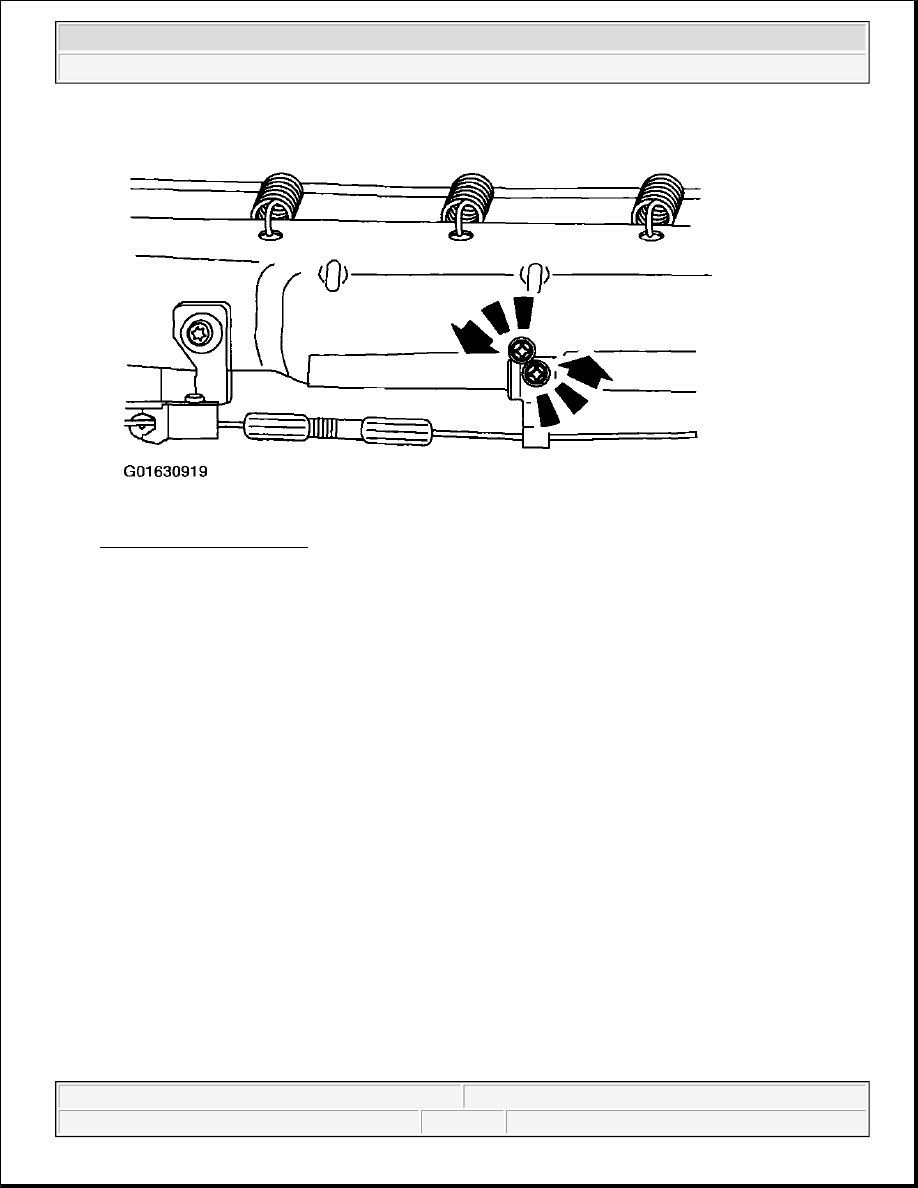

Fig. 314: Removing Pushpins
Courtesy of FORD MOTOR CO.

12. Remove the screws.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

Fig. 315: Removing Screws
Courtesy of FORD MOTOR CO.

13. Remove the clip.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

Fig. 316: Removing Clip
Courtesy of FORD MOTOR CO.

14. Remove the bolt and the retractor.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
