Ford F150 Pickup. Instruction - part 232

Fig. 266: Disconnecting Front Seat Back Recliner From Front Seat Cushion Frame
Courtesy of FORD MOTOR CO.

7. Pull the front seat back frame away from the inboard front seat hinge.

z

If equipped, feed the lumbar support cable through the seat cushion opening while removing the
front seat back.

NOTE:

Do not damage the plastic pivot bushing when removing the seat back
frame.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



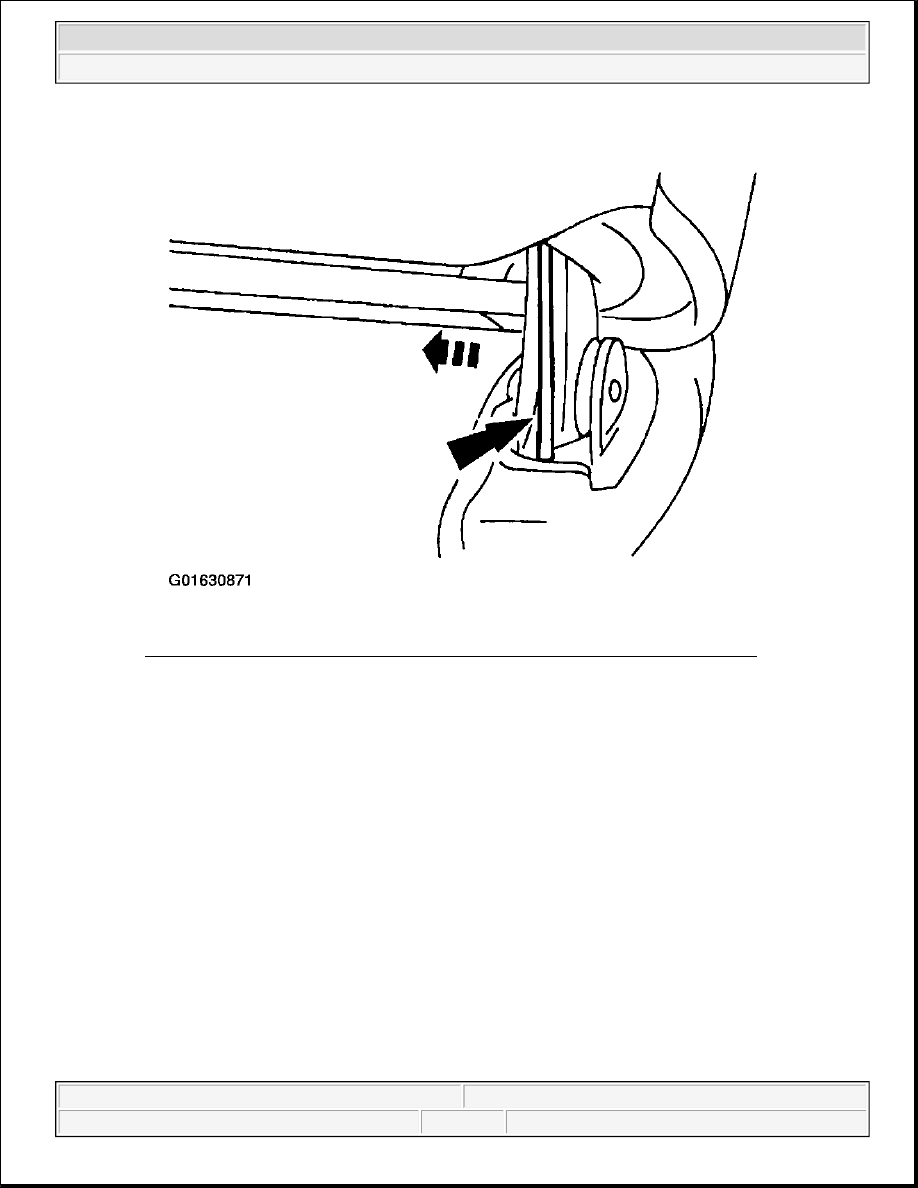

Fig. 267: Pulling Front Seat Back Frame Away From Inboard Front Seat Hinge
Courtesy of FORD MOTOR CO.

Assembly

1. Push the seat back frame onto the front seat hinge.

z

If equipped, feed the lumbar support adjuster cable through the seat cushion.

NOTE:

Inspect the seat back pivot bushing and replace if damaged.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 268: Pushing Seat Back Frame Onto Front Seat Hinge
Courtesy of FORD MOTOR CO.

2. Connect the front seat back recliner to the front seat cushion frame.

1. Position the front seat back recliner.

2. Install the bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 269: Connecting Front Seat Back Recliner To Front Seat Cushion Frame
Courtesy of FORD MOTOR CO.

3. Connect the lumbar support adjuster to the adjuster cable.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
