Ford F150 Pickup. Instruction - part 230

9. Install the front seat back frame.

1. Position the front seat back frame.

2. Install the bolts.

Fig. 258: Installing Front Seat Back Frame
Courtesy of FORD MOTOR CO.

10. Install the front seat track shield.

1. Connect the electrical connectors (if equipped) and position the front seat track shield.

2. Install the pin-type retainer.

3. Install the screws.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

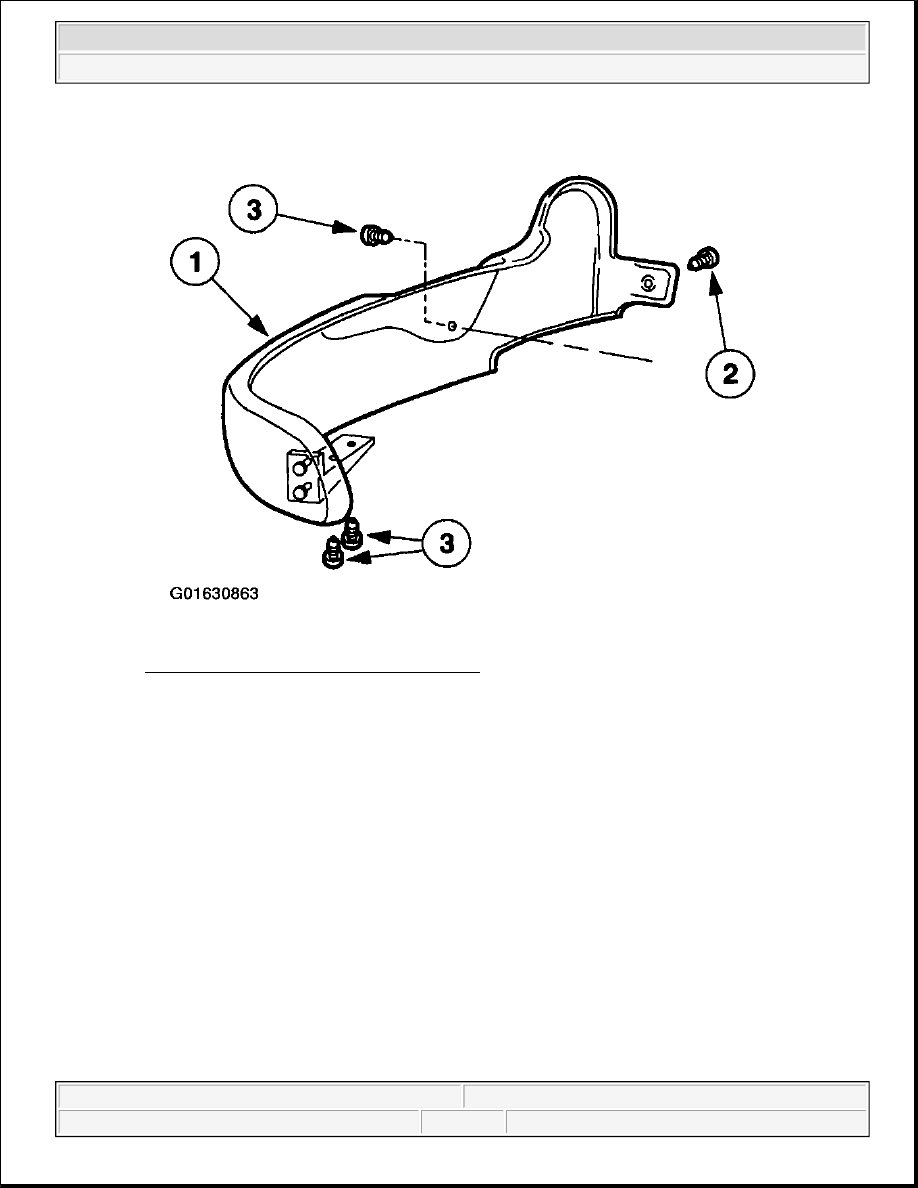

Fig. 259: Installing Front Seat Track Shield
Courtesy of FORD MOTOR CO.

11. Install the front seat back adjust handle.

1. Position the front seat back adjust handle.

2. Install the screw.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

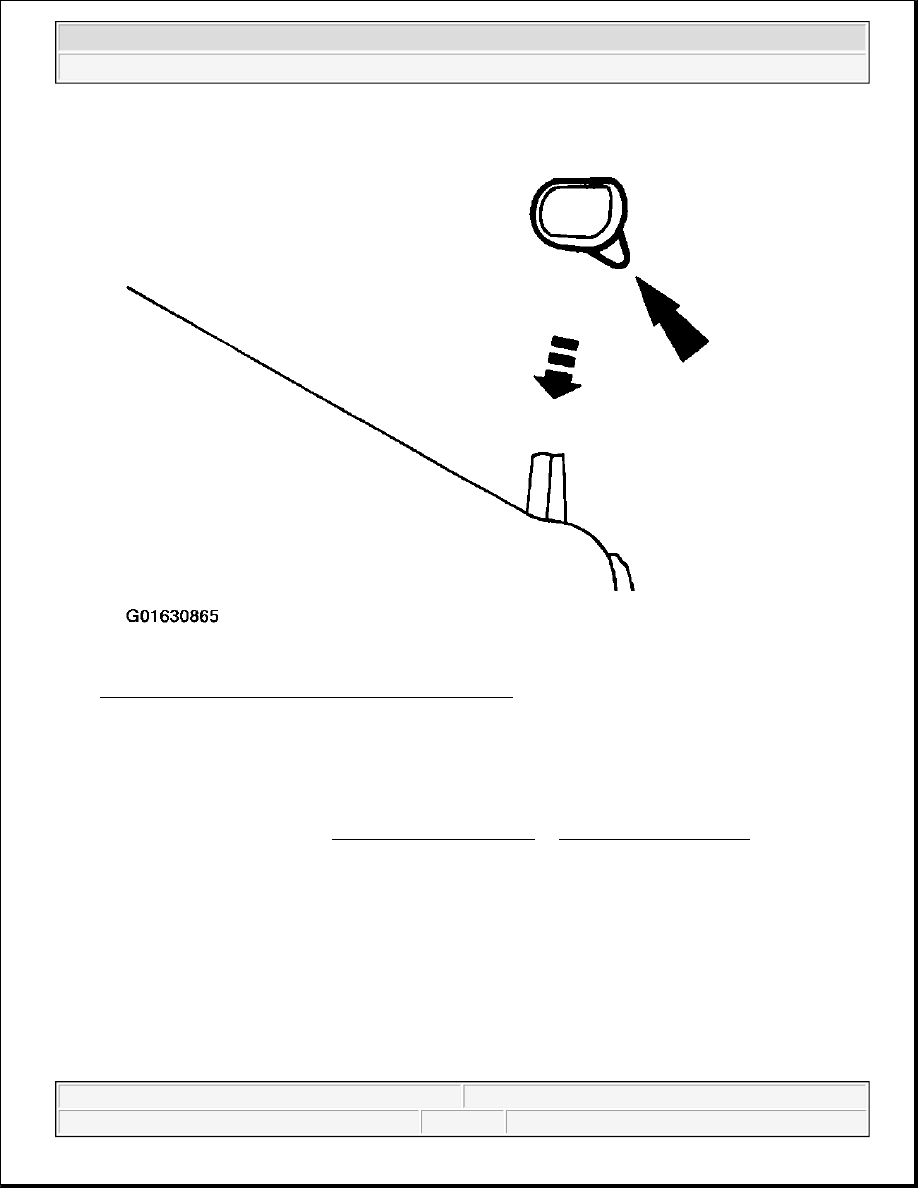

Fig. 260: Installing Front Seat Back Adjust Handle
Courtesy of FORD MOTOR CO.

12. Install the front seat recliner dump handle.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 261: Installing Front Seat Recliner Dump Handle
Courtesy of FORD MOTOR CO.

SEAT - 40 PERCENT AND CAPTAIN'S CHAIR

Disassembly

1. Remove the seat track. Refer to SEAT TRACK-MANUAL or SEAT TRACK-POWER .

2. Remove the safety belt buckle.

1. Disconnect the safety belt warning indicator switch electrical connector.

2. Remove the fastener.

3. Remove the safety belt buckle (61203).

NOTE:

Instruction seat is shown, power seat is similar.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
