Ford F150 Pickup. Instruction - part 229

Fig. 254: Installing Front Seat Center Armrest Bracket Bolt
Courtesy of FORD MOTOR CO.

5. Install the pivot side inner cover.

6. Install the outboard front seat armrest shield.

1. Position the outboard front seat armrest shield.

2. Install the screws.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



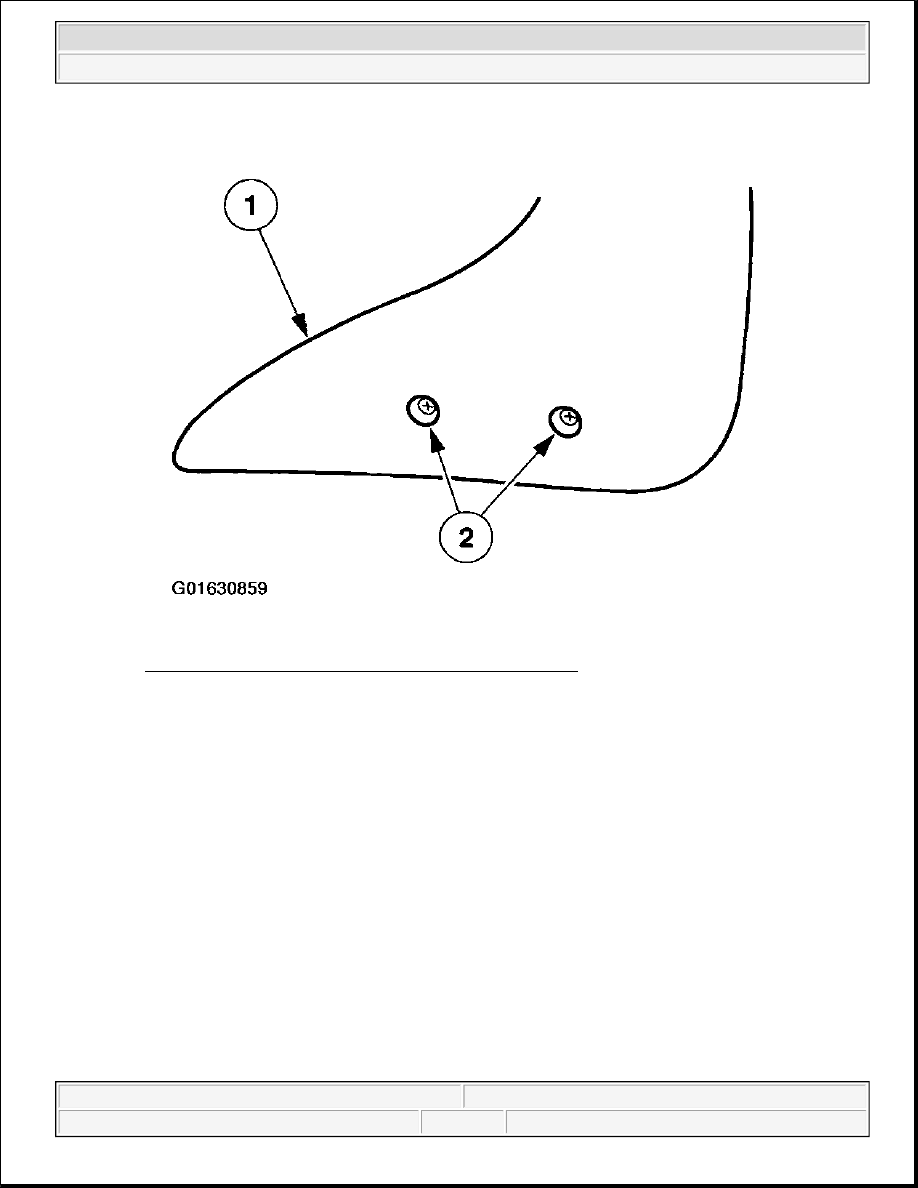

Fig. 255: Installing Outboard Front Seat Armrest Shield
Courtesy of FORD MOTOR CO.

7. Install the front seat center armrest bracket lower cover.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 256: Installing Front Seat Center Armrest Bracket Lower Cover
Courtesy of FORD MOTOR CO.

8. Install the front seat center armrest bracket cover.

1. Position the front seat center armrest bracket cover.

2. Install the screw.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 257: Installing Front Seat Center Armrest Bracket Cover
Courtesy of FORD MOTOR CO.

NOTE:

Inspect the seat back pivot bushing and replace it if it is damaged.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
