Ford F150 Pickup. Instruction - part 227

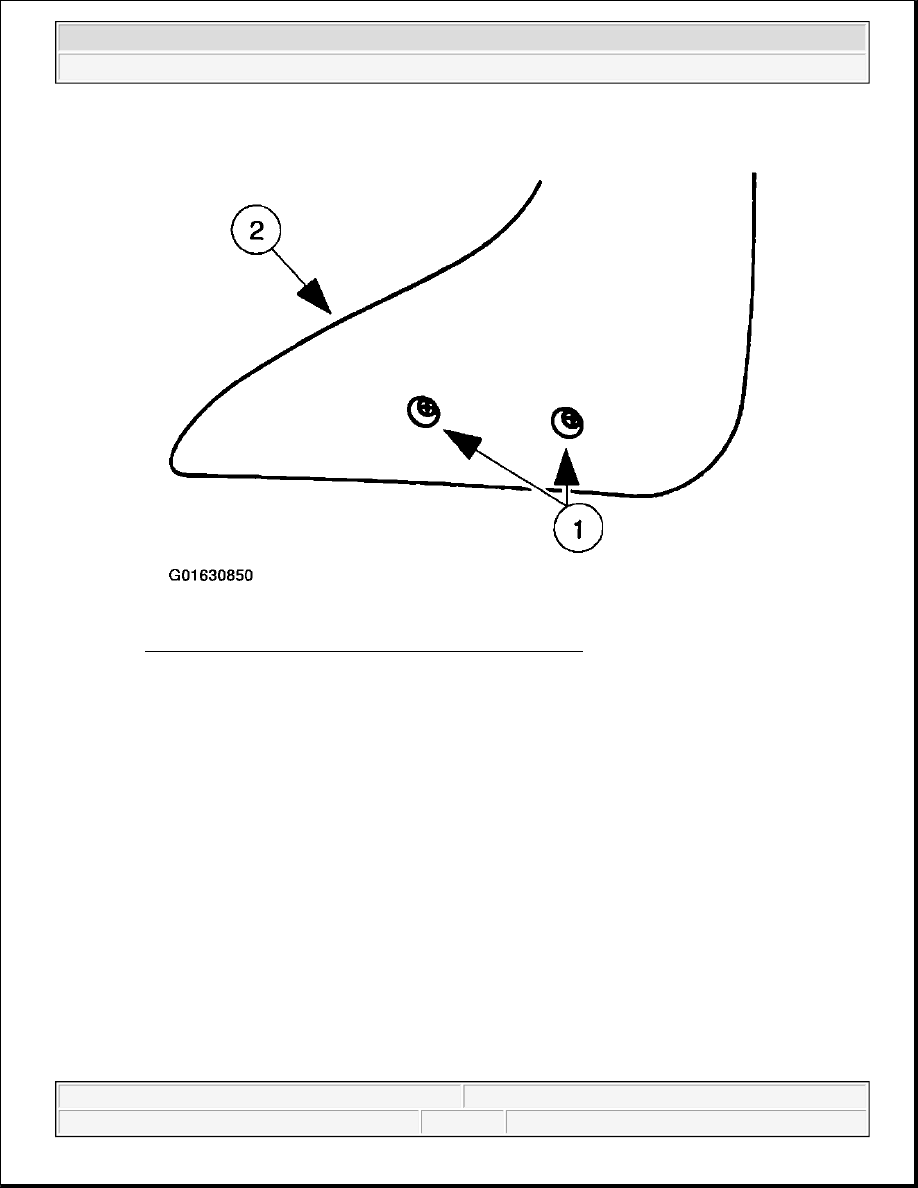

Fig. 246: Removing Outboard Front Seat Armrest Shield
Courtesy of FORD MOTOR CO.

9. Remove the pivot side inner cover.

10. Remove the front seat center armrest bracket bolt.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

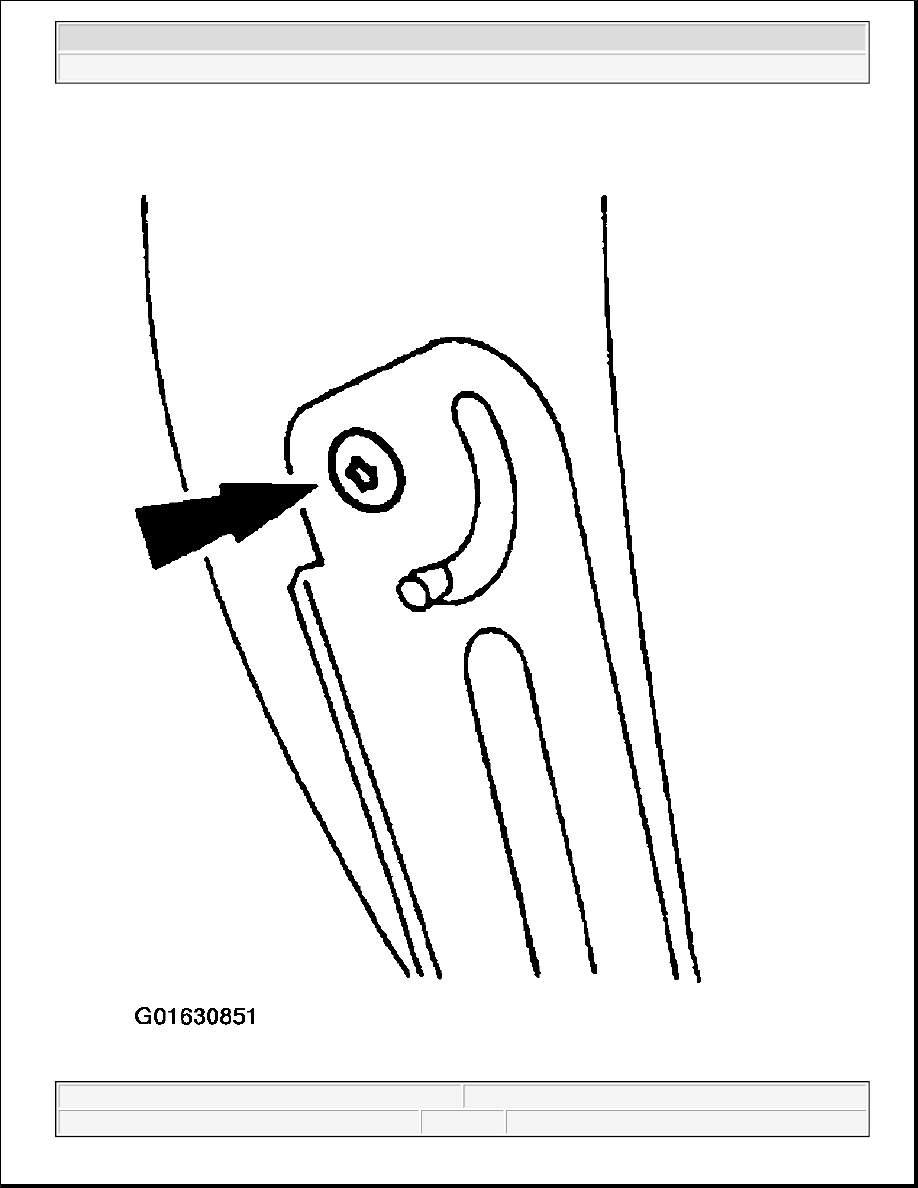

Fig. 247: Removing Front Seat Center Armrest Bracket Bolt
Courtesy of FORD MOTOR CO.

11. Remove the front seat center armrest.

1. Remove the bolts.

2. Remove the front seat center armrest.

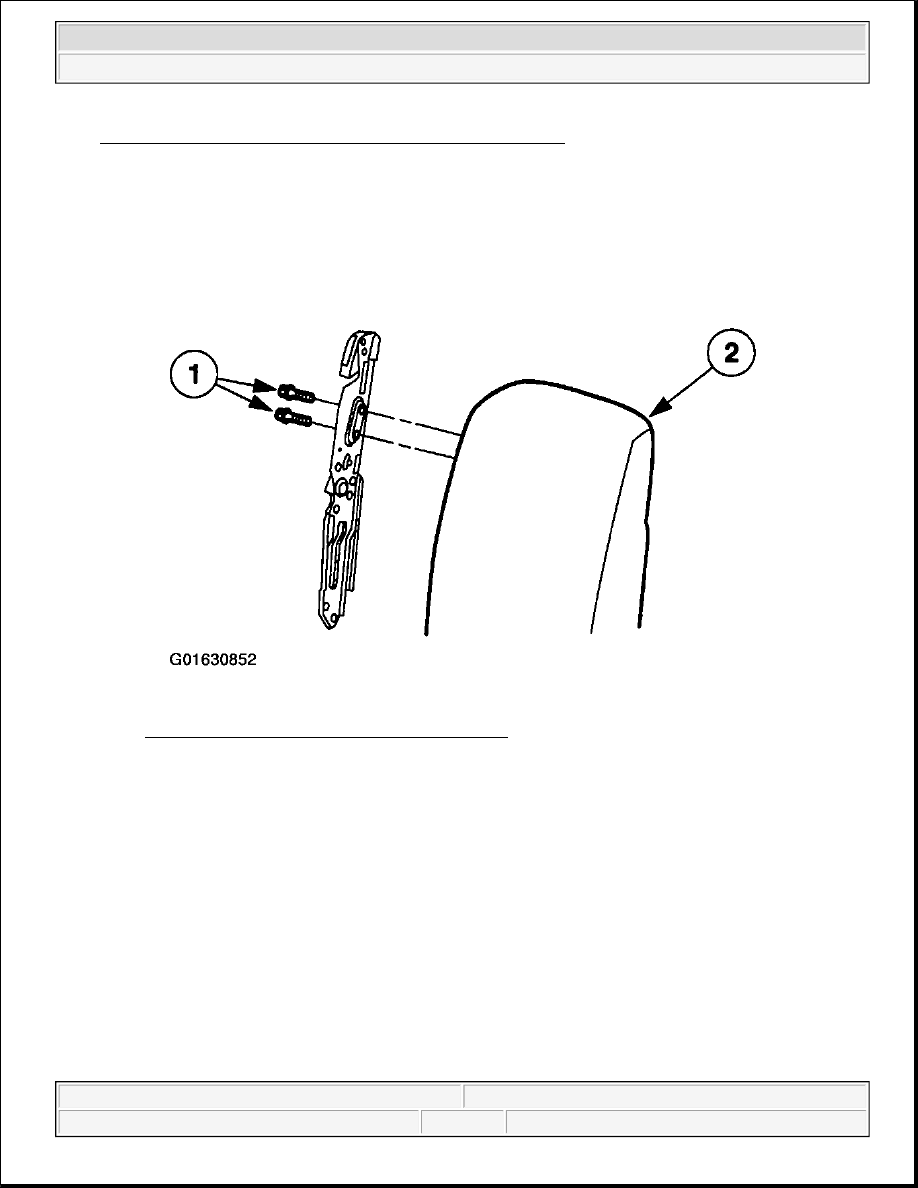

Fig. 248: Removing Front Seat Center Armrest
Courtesy of FORD MOTOR CO.

12. Remove the front seat center armrest mounting bracket.

1. Remove the bolts.

2. Remove the front seat center armrest mounting bracket.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

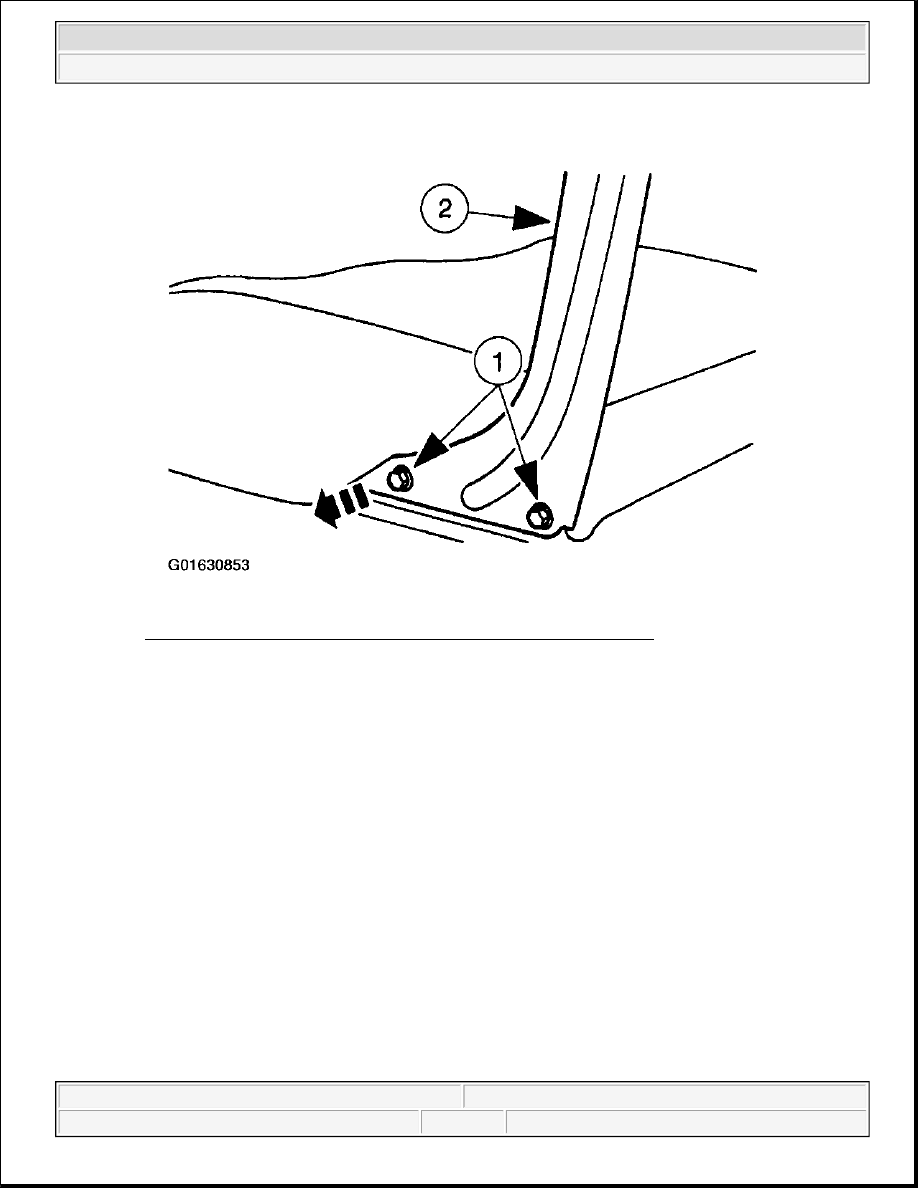

Fig. 249: Removing Front Seat Center Armrest Mounting Bracket
Courtesy of FORD MOTOR CO.

13. Remove the front seat center armrest latch.

1. Remove the bolts.

2. Remove the front seat center armrest latch.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
