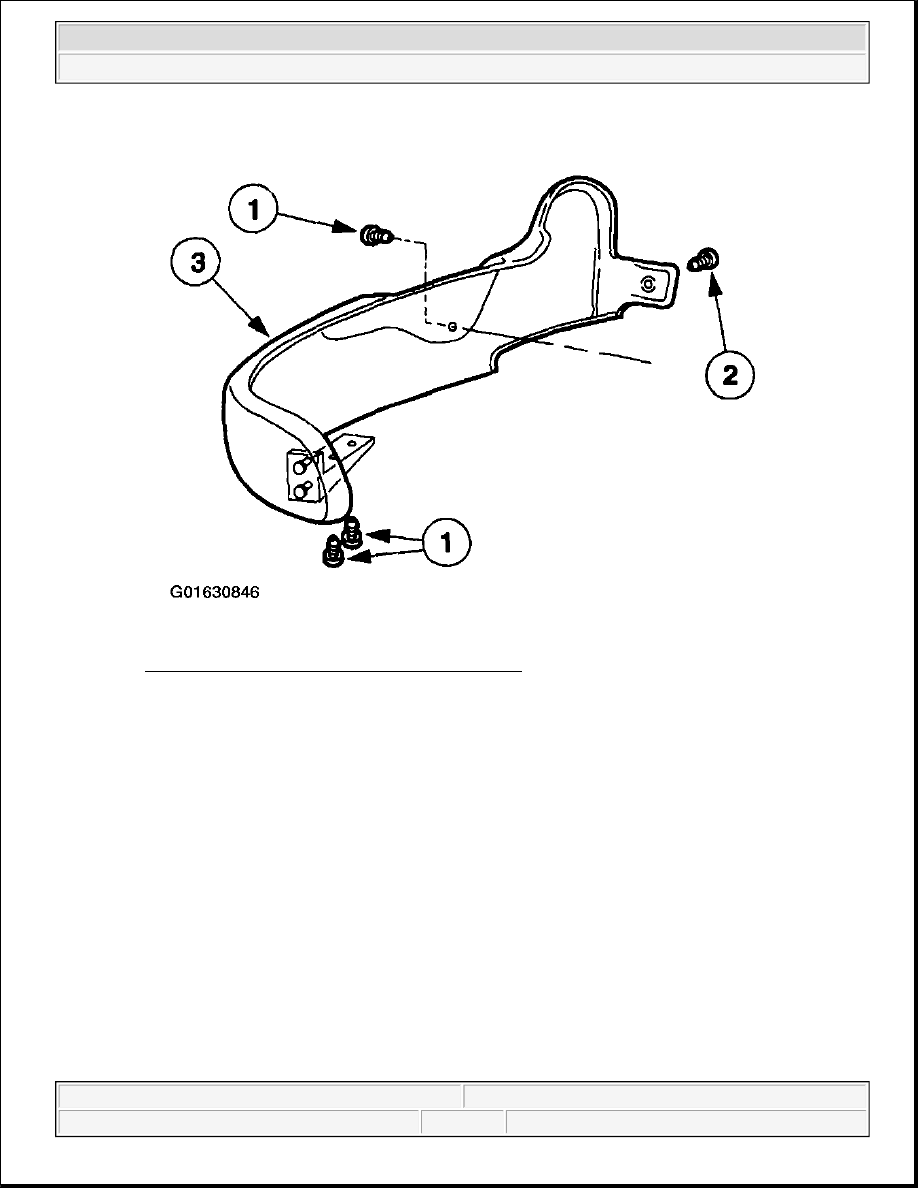

Fig. 242: Removing Front Seat Track Side Shield
Courtesy of FORD MOTOR CO.

5. Remove the front seat back frame.

1. Remove the bolts.

2. Pull the front seat back frame away from the inboard front seat hinge and remove the front seat

back frame.

NOTE:

Do not damage the plastic pivot bushing when removing the front seat
back frame.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 243: Removing Front Seat Back Frame
Courtesy of FORD MOTOR CO.

6. Remove the front seat center armrest bracket cover.

1. Remove the screw.

2. Remove the front seat center armrest bracket cover.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 244: Removing Front Seat Center Armrest Bracket Cover
Courtesy of FORD MOTOR CO.

7. Remove the front seat center armrest bracket lower cover.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 245: Removing Front Seat Center Armrest Bracket Lower Cover
Courtesy of FORD MOTOR CO.

8. Remove the outboard front seat armrest shield.

1. Remove the screws.

2. Remove the outboard front seat armrest shield.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
