Fig. 234: Removing Clip
Courtesy of FORD MOTOR CO.

4. Release the latch spring tension then remove the latch cable.

5. Remove the bolt and the retractor.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

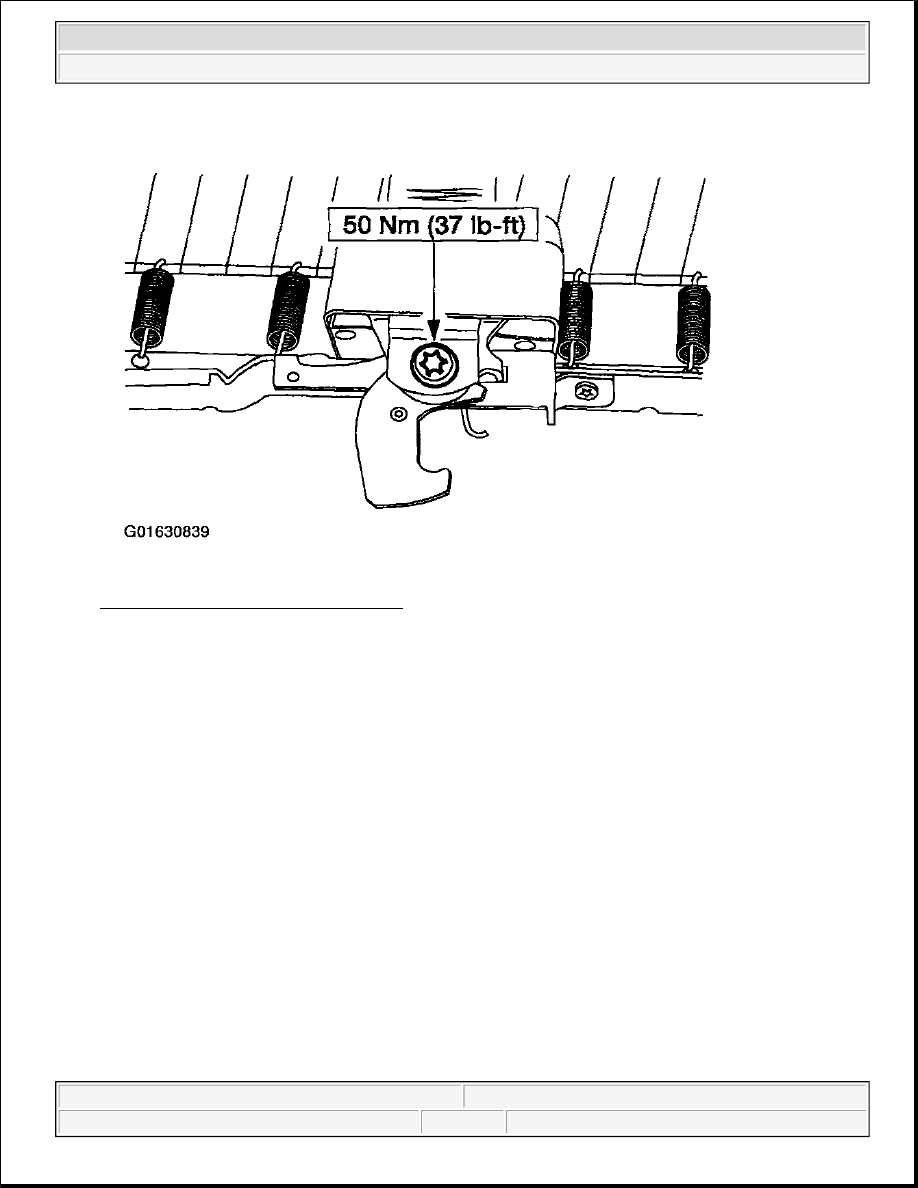

Fig. 235: Removing Bolt And Retractor
Courtesy of FORD MOTOR CO.

6. Remove the bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 236: Removing Bolts
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 237: Identifying Seat Front Bench
Courtesy of FORD MOTOR CO.

DISASSEMBLY AND ASSEMBLY

SEAT - FRONT BENCH

Disassembly and Assembly

1. Remove the seat track. Refer to SEAT TRACK-MANUAL .

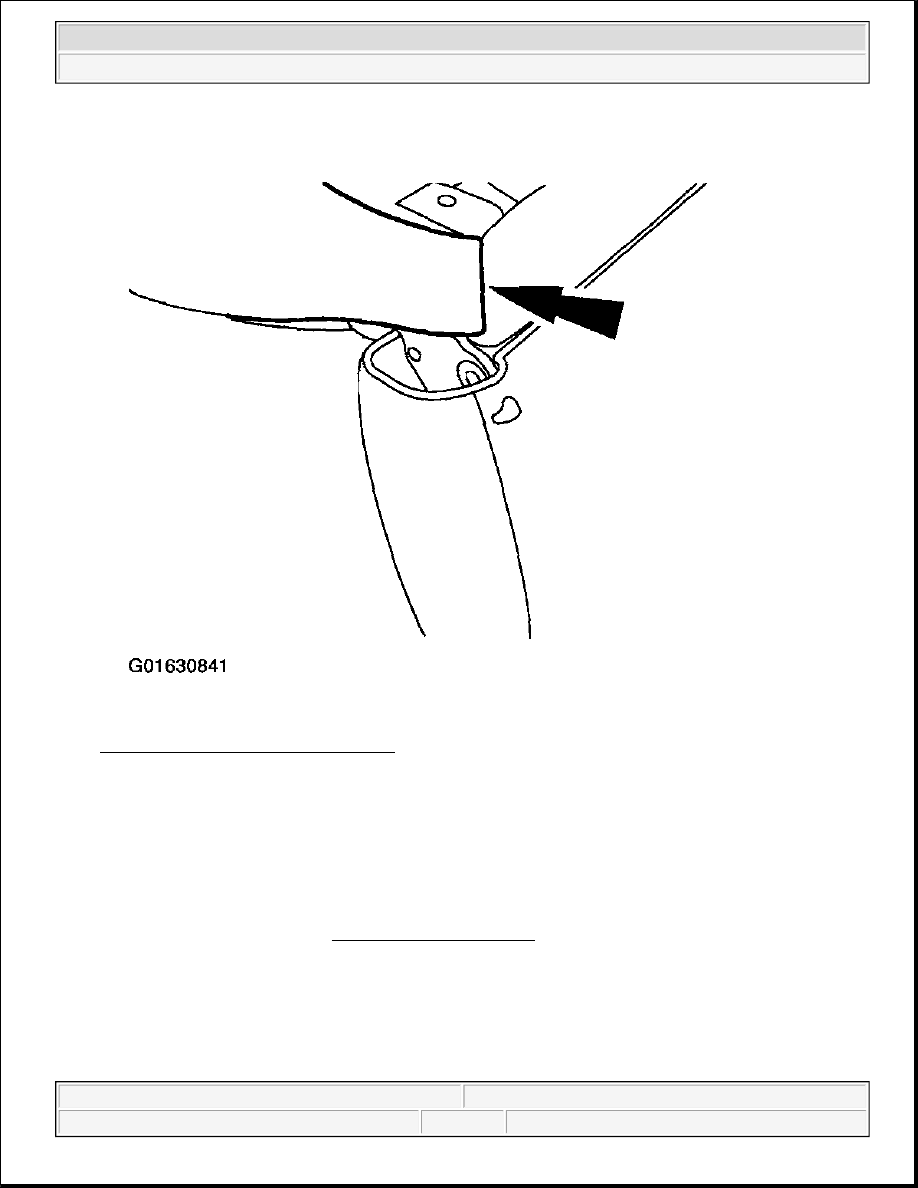

2. Unclip the seat cushion trim cover hinge cover flaps.

3. Remove the seat back.

1. Remove the bolts.

2. Remove the seat back.
