Ford F150 Pickup. Instruction - part 222

Fig. 226: Disconnecting Heated Seat Module Electrical Connector
Courtesy of FORD MOTOR CO.

5. Insert a flat-bladed screwdriver into the heated seat module bracket and release the locking tab.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



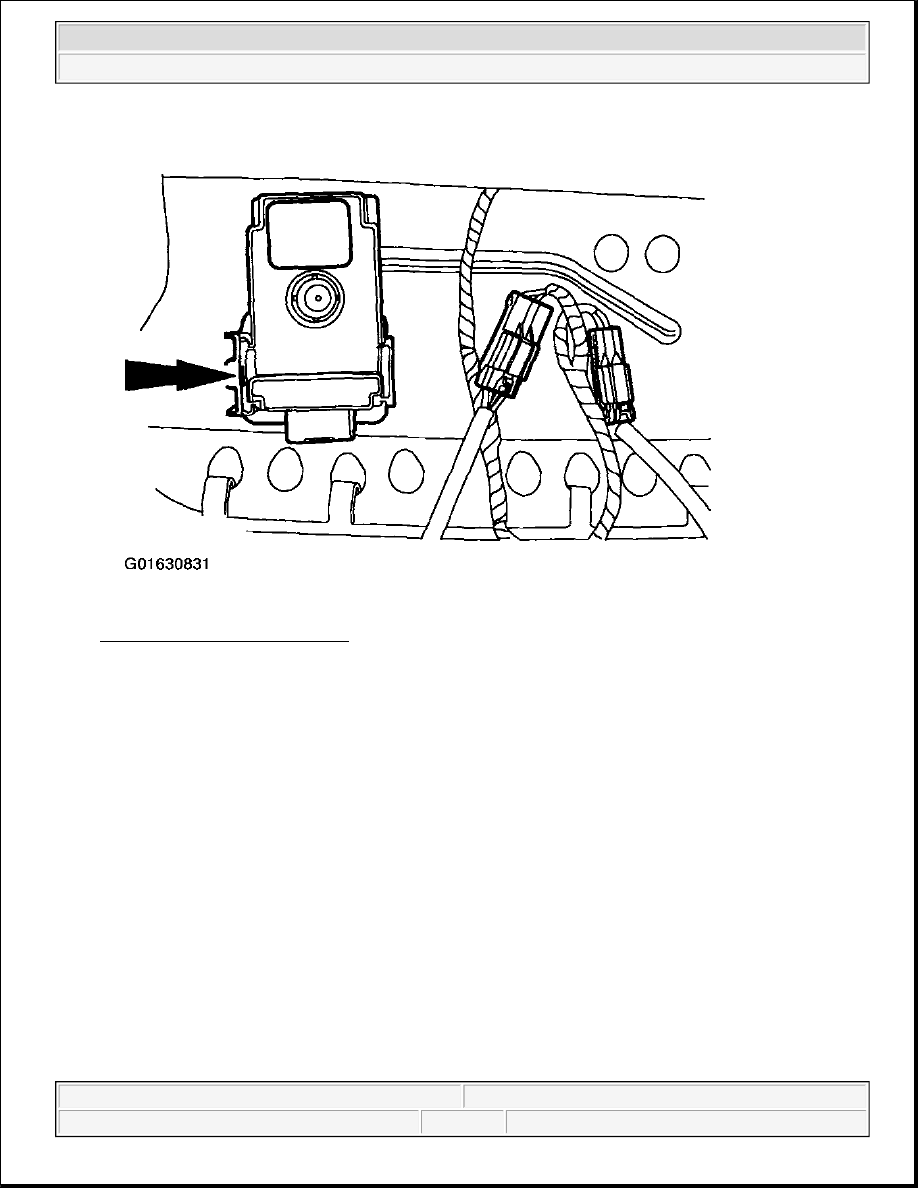

Fig. 227: Releasing Locking Tab
Courtesy of FORD MOTOR CO.

6. Remove heated seat module.

Installation

1. Install the heated seat module in the mounting bracket. Verify that the locking tab is correctly seated.

WARNING:

To reduce the risk of serious injury, read and follow all warnings,
cautions and notes at the beginning of the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 228: Installing Heated Seat Module In Mounting Bracket
Courtesy of FORD MOTOR CO.

2. Connect the heated seat module electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 229: Connecting Heated Seat Module Electrical Connector
Courtesy of FORD MOTOR CO.

3. Install the front seat. Refer to FRONT SEAT-WITH SEAT INTEGRATED RESTRAINTS (SIR) .

4. Reactivate the supplemental restraint system (SRS) deactivation/reactivation procedure. Refer to

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the front seat removal
and installation procedure.

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the supplemental
restraint system (SRS) deactivation/reactivation procedure.

WARNING:

The restraint system diagnostic tool is for restraint system service
only. Remove from the vehicle prior to road use. Failure to remove
could result in injury and possible violation of vehicle safety
standards.
