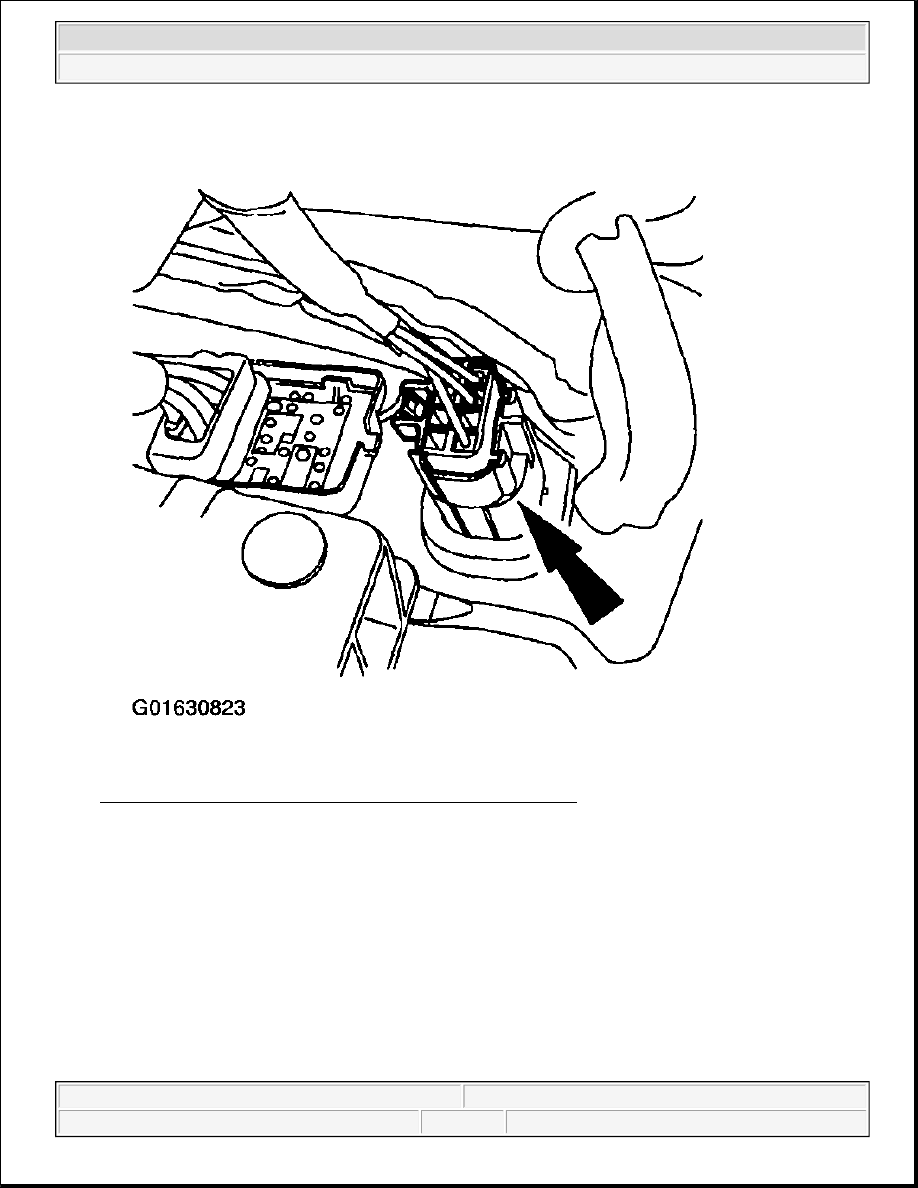

Fig. 219: Connecting Heated Seat Switch Electrical Connector
Courtesy of FORD MOTOR CO.

Power seats

8. Position the seat control switch on the side trim panel. Install the two screws.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 220: Installing Two Screws
Courtesy of FORD MOTOR CO.

All seats

9. Install the side shield rear retainer.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

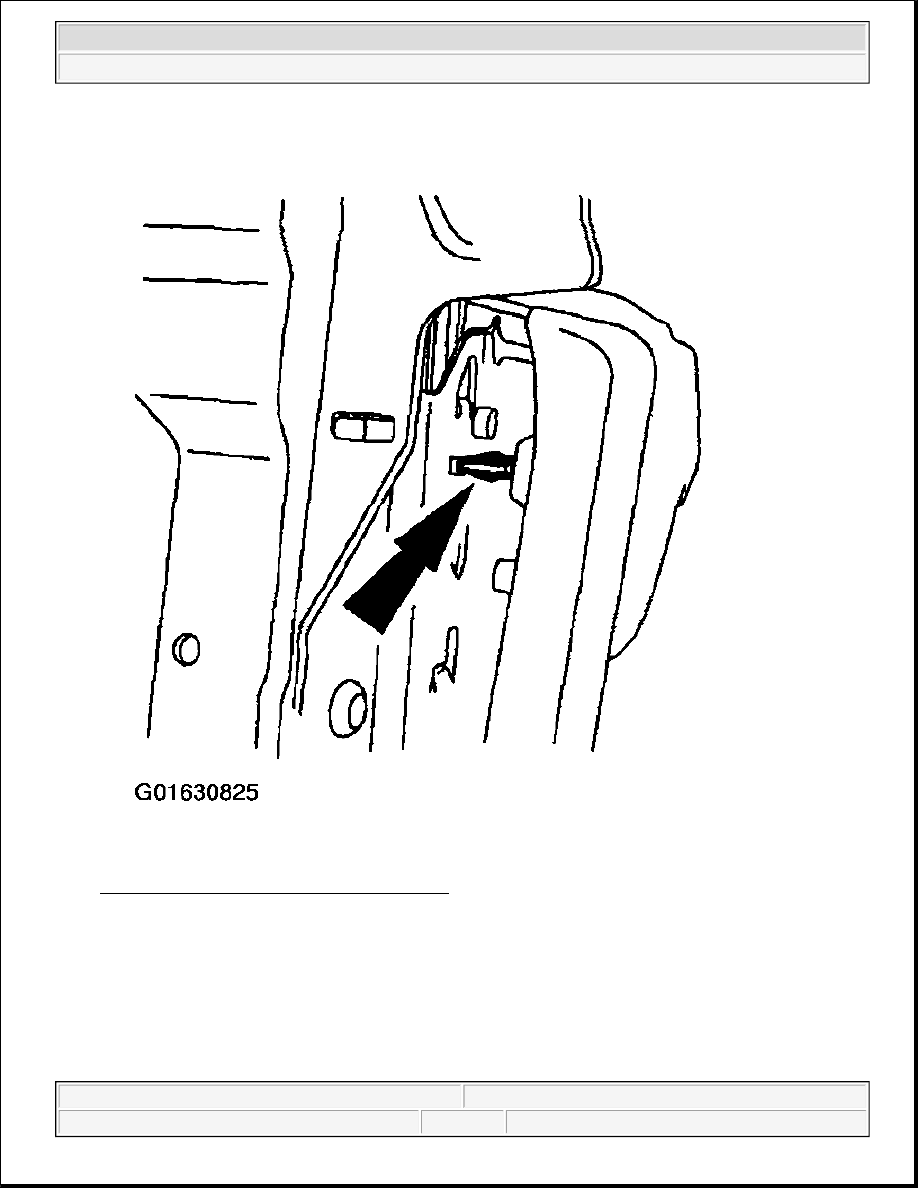

Fig. 221: Installing Side Shield Rear Retainer
Courtesy of FORD MOTOR CO.

10. Position the lumbar adjuster control. Install the two mounting screws.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

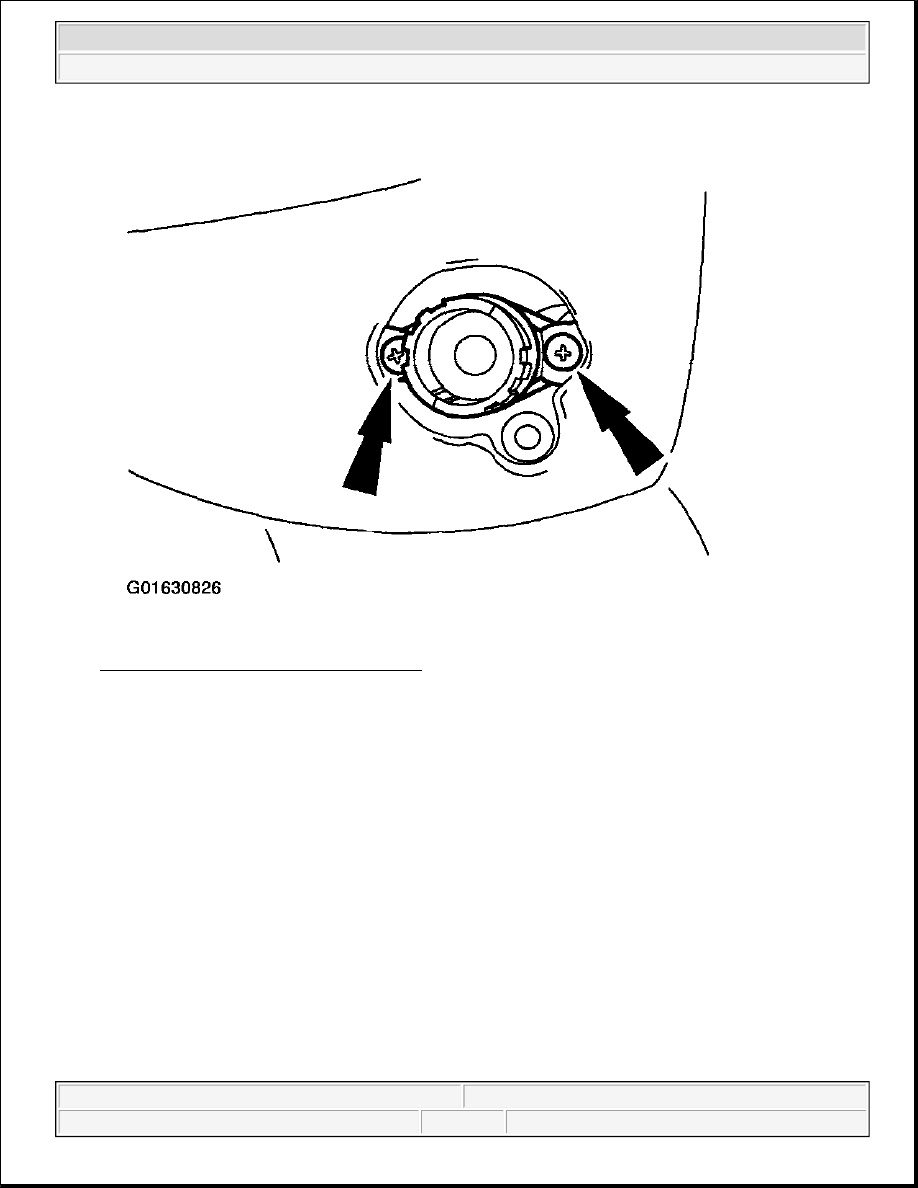

Fig. 222: Installing Two Mounting Screws
Courtesy of FORD MOTOR CO.

11. Install the seat adjuster control knobs, covers and the seat side trim panel screws.

1. Install the three seat side trim panel attachment screws.

2. Install the lumbar control knob.

3. Install the seat recliner handle and the handle screw.
