Ford F150 Pickup. Instruction - part 218

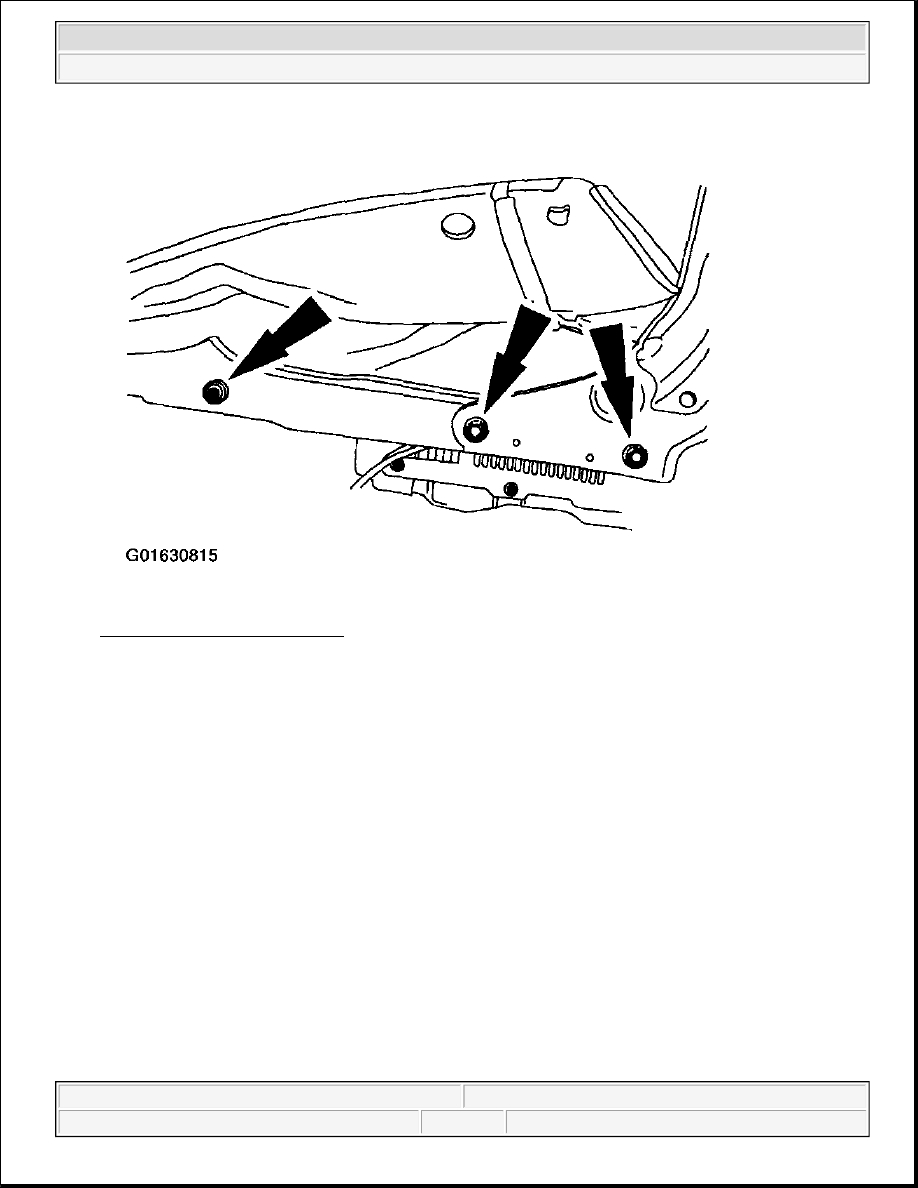

Fig. 211: Removing Three Bolts
Courtesy of FORD MOTOR CO.

16. Remove the four seat cushion pan attachment bolts. Lift off the seat cushion assembly.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

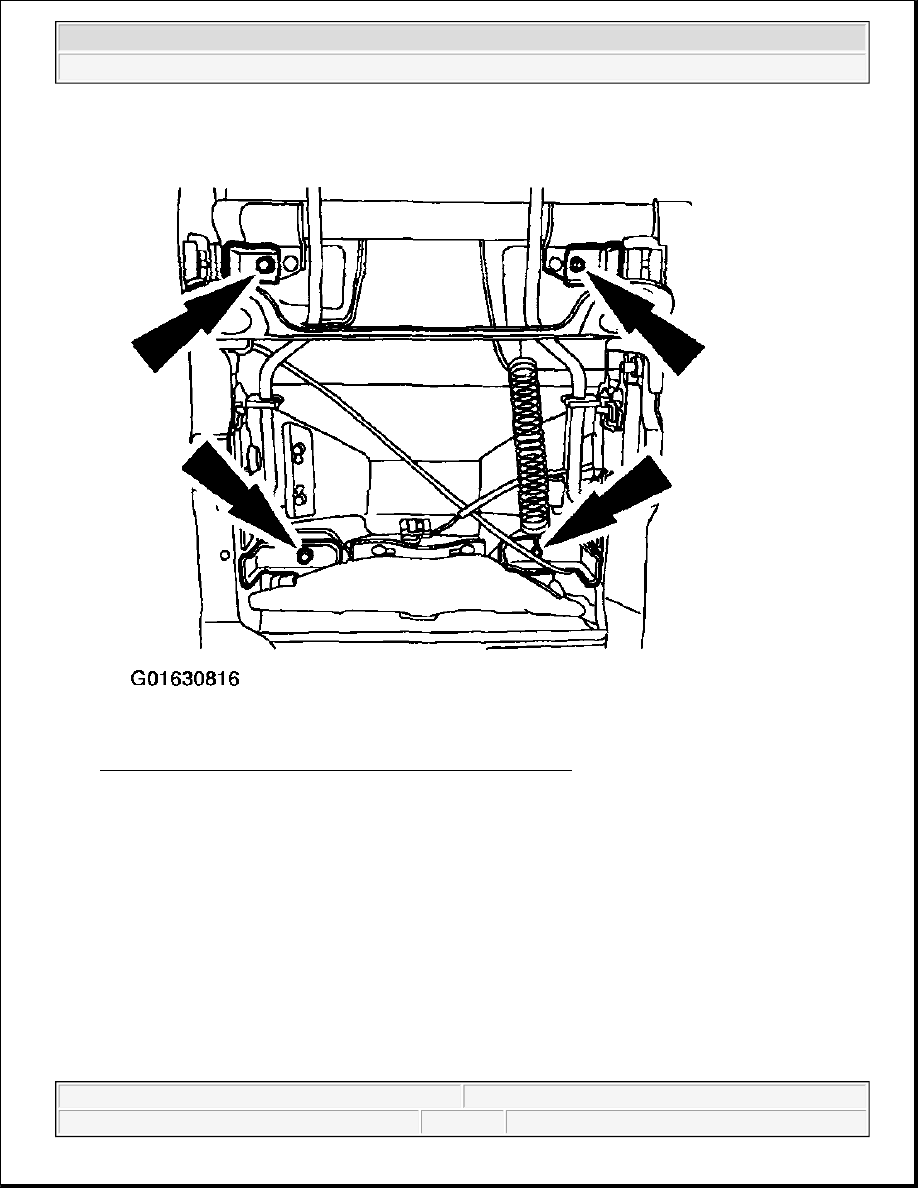

Fig. 212: Removing Four Seat Cushion Pan Attachment Bolts
Courtesy of FORD MOTOR CO.

Installation

60 percent seat

1. Position the seat cushion and install the four seat cushion bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 213: Installing Four Seat Cushion Bolts
Courtesy of FORD MOTOR CO.

2. Install the three bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 214: Installing Three Bolts
Courtesy of FORD MOTOR CO.

3. Attach the three J-clips (two shown).



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
