Ford F150 Pickup. Instruction - part 214

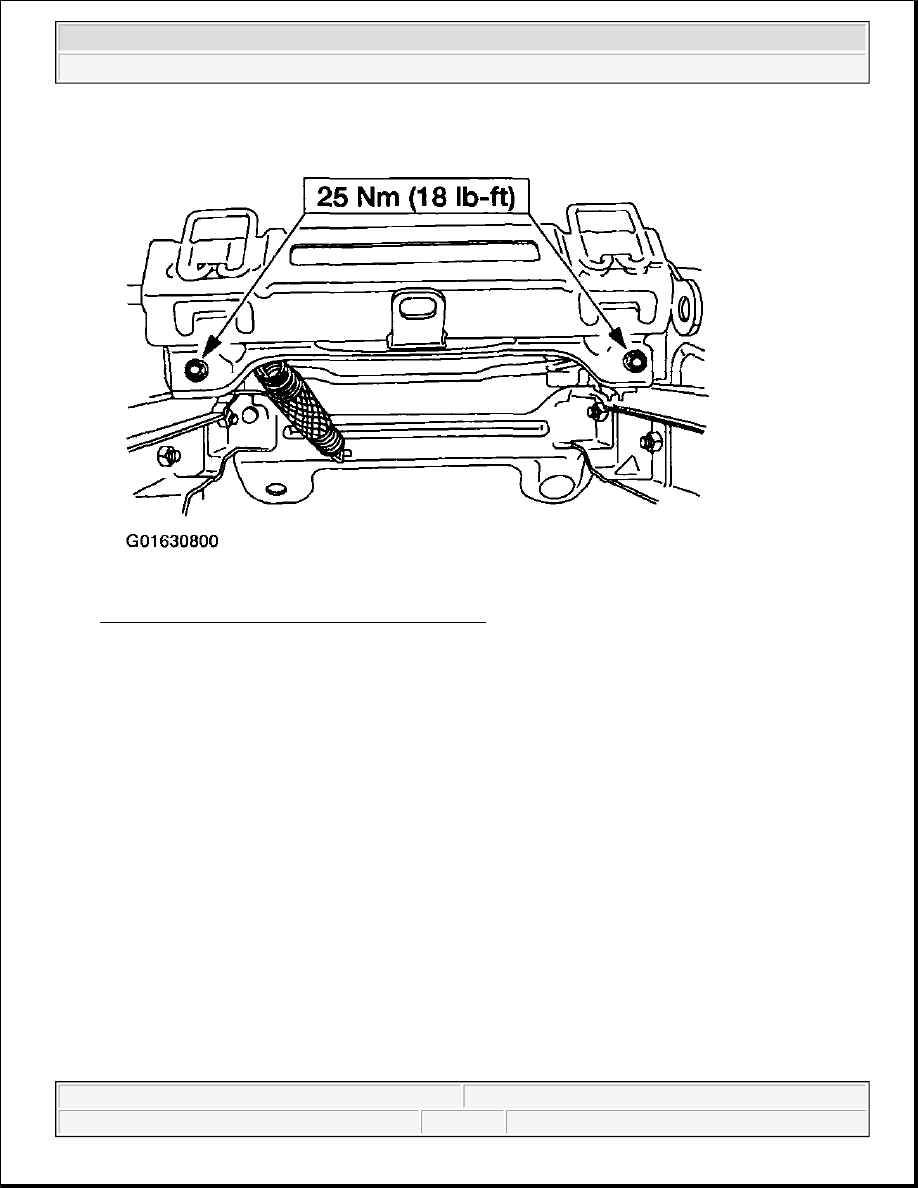

Fig. 196: Installing Two Rear Bolts For The Latch
Courtesy of FORD MOTOR CO.

5. Install the bolt from the inboard side of the frame.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 197: Installing Bolt From Inboard Side Of Frame
Courtesy of FORD MOTOR CO.

6. Install the two lower armrest bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

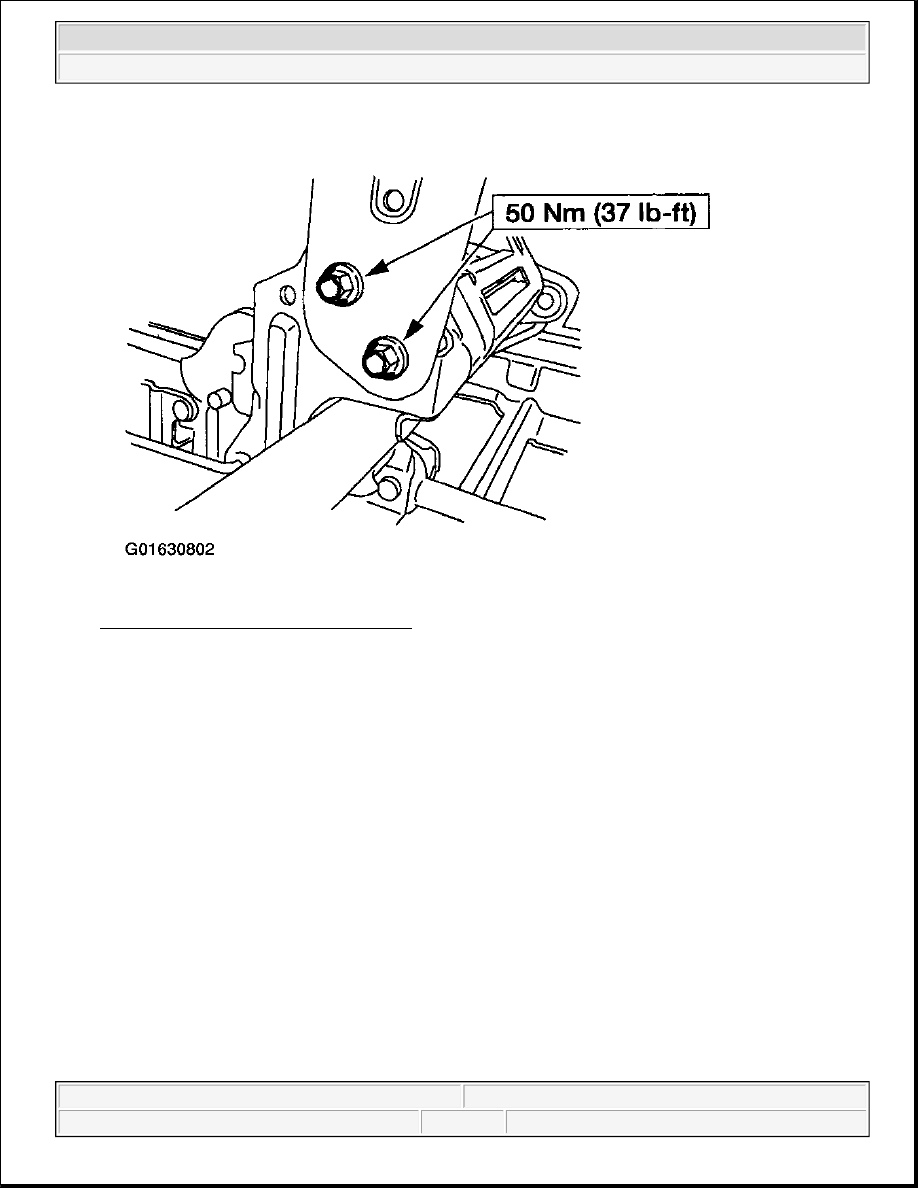

Fig. 198: Installing Lower Armrest Bolts
Courtesy of FORD MOTOR CO.

7. Install the front seat center armrest bracket lower cover.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 199: Installing Front Seat Center Armrest Bracket Lower Cover
Courtesy of FORD MOTOR CO.

Instruction seats

8. Attach the fore/aft adjuster bar and install new pin-type retainers on each side. Attach the seat assist



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
