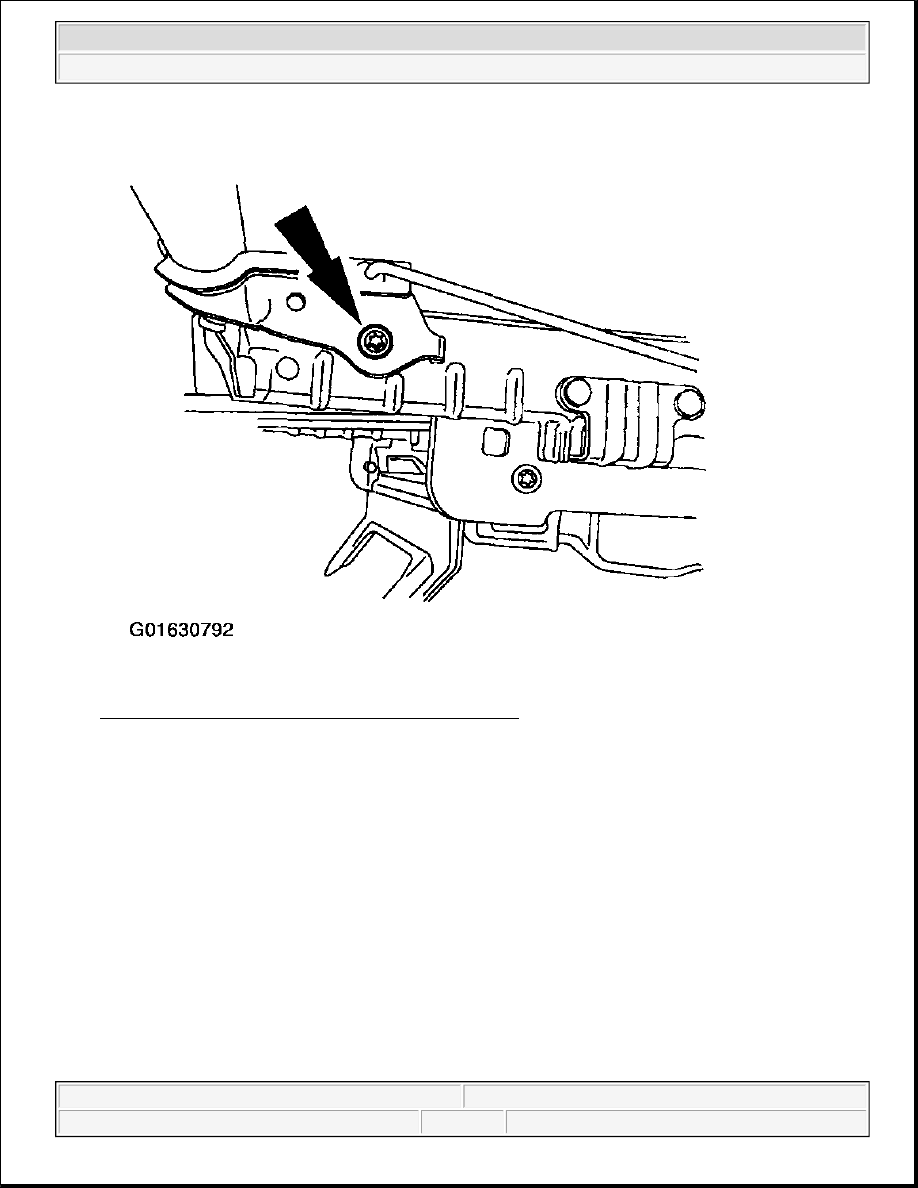

Fig. 188: Removing Bolt From Inboard Side Of Frame
Courtesy of FORD MOTOR CO.

9. Remove the two rear bolts for the lower anchors and tethers for children (LATCH).



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 189: Removing Two Rear Bolts For Lower Anchors And Tethers For Children
Courtesy of FORD MOTOR CO.

10. Remove the tube frame from the seat track.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

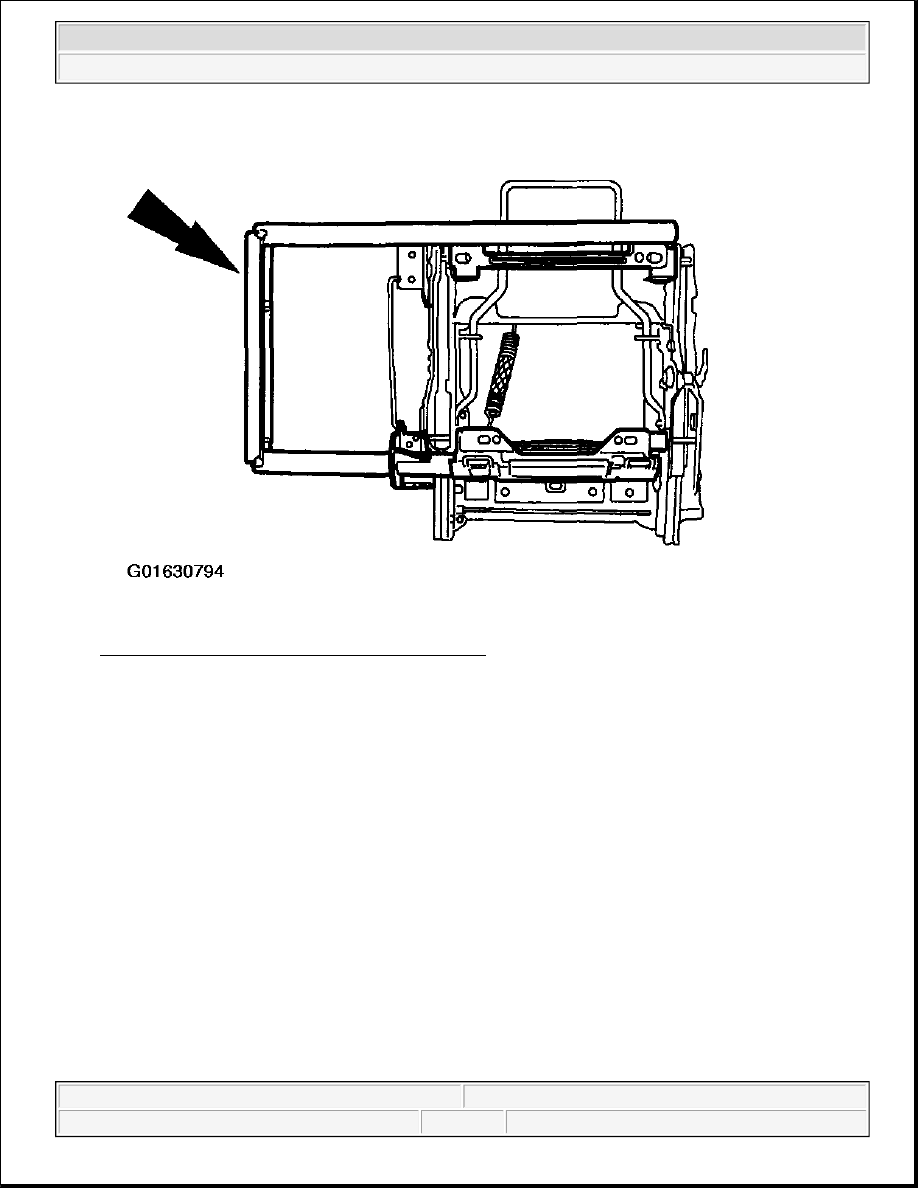

Fig. 190: Removing Tube Frame From Seat Track
Courtesy of FORD MOTOR CO.

Power seats

11. Disconnect the seat actuator motor electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 191: Disconnecting Seat Actuator Motor Electrical Connector
Courtesy of FORD MOTOR CO.

All seats

12. Remove the seven screws (four outboard side, three inboard side) securing the seat adjuster tracks to the

seat pedestal frame.
