Fig. 181: Tightening Seat Track Rear Bolts
Courtesy of FORD MOTOR CO.

4. Install the front seat. Refer to FRONT SEAT-40 PERCENT AND CAPTAIN'S CHAIR , FRONT

SEAT-60 PERCENT , or FRONT SEAT-FULL BENCH .

SEAT TRACK - POWER

Removal and Installation

1. Remove the captains chair. Refer to FRONT SEAT-40 PERCENT AND CAPTAIN'S CHAIR .

2. Disconnect the seat control switch electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 182: Disconnecting Seat Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.

3. Remove the power seat track (61711).

1. Remove the bolts.

2. Remove the seat track.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

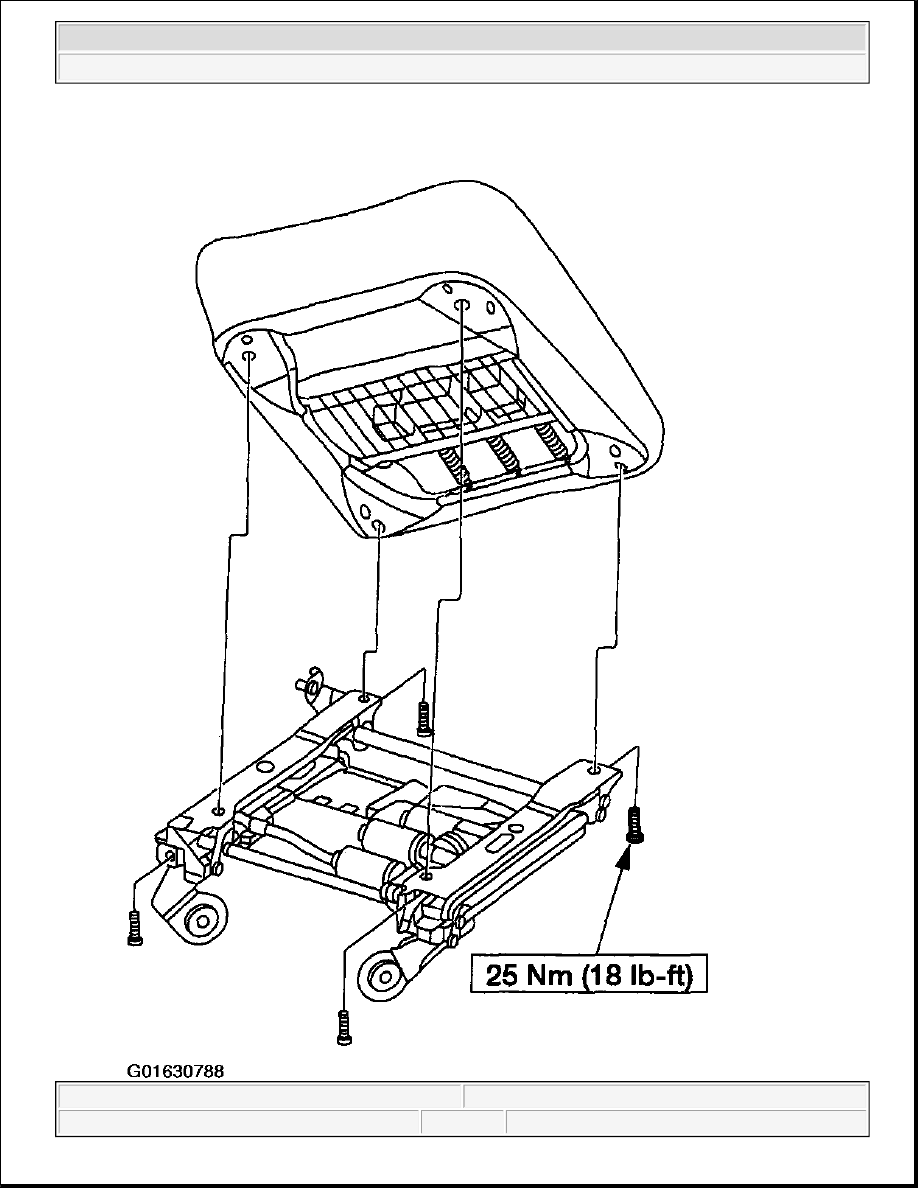

Fig. 183: Removing Power Seat Track
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.
