Fig. 173: Removing Staples
Courtesy of FORD MOTOR CO.

4. Invert the trim cover enough to access the side trim apron upper pin-type retainers.

z

Separate the hook and loop fastener.

CAUTION: Use care when separating the seat trim cover from the foam pad

hook and loop strip. The hook and loop strip can be torn from the
foam pad.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 174: Separating Hook And Loop Fastener
Courtesy of FORD MOTOR CO.

5. Remove the inboard and outboard trim apron upper pin-type retainers (one shown).

z

To aid installation, identify the trim aprons as inboard and outboard before removal.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

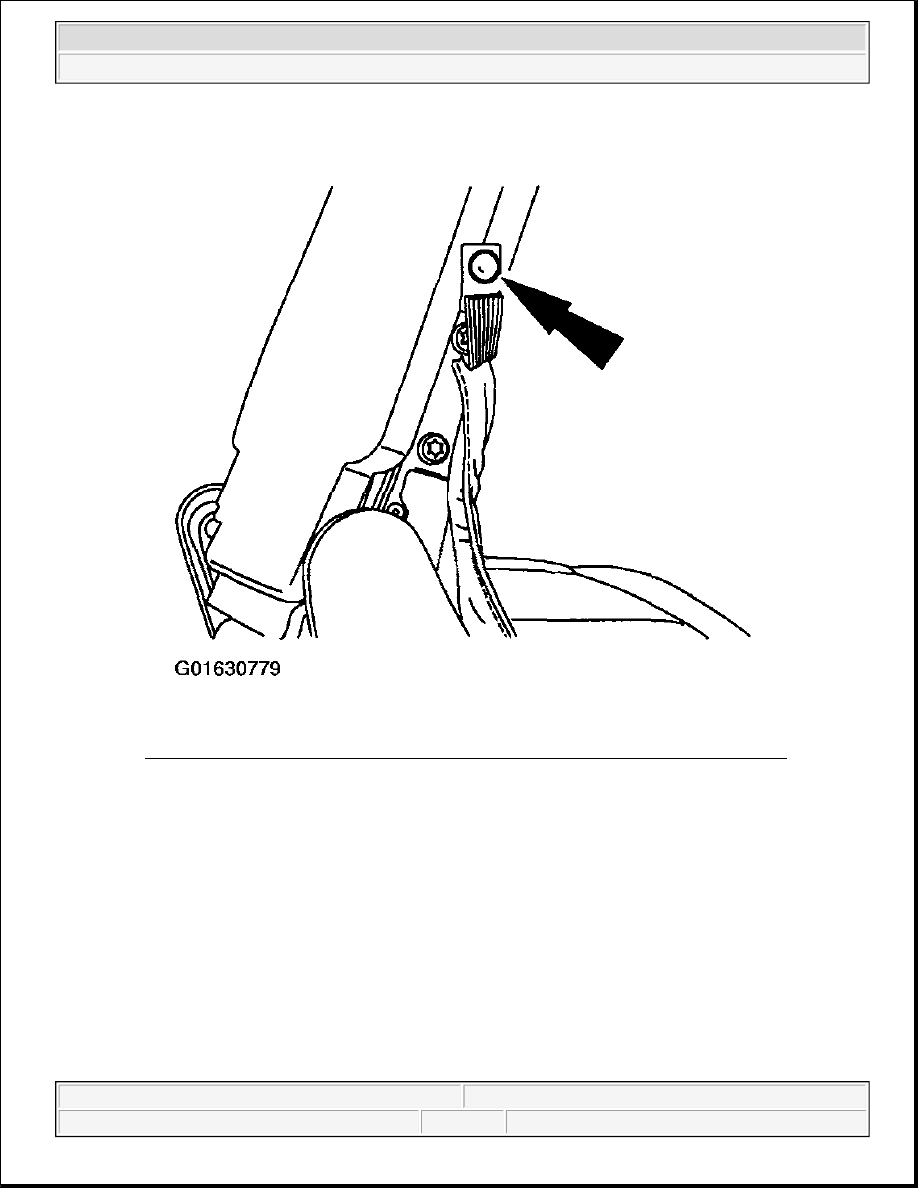

Fig. 175: Removing Inboard And Outboard Trim Apron Upper Pin-Type Retainers
Courtesy of FORD MOTOR CO.

6. Remove the four backrest bolts (two shown).



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 176: Removing Four Backrest Bolts
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

SEAT TRACK - MANUAL

Removal

1. Remove the front seat. Refer to FRONT SEAT-40 PERCENT AND CAPTAIN'S CHAIR , FRONT

SEAT-60 PERCENT or FRONT SEAT-FULL BENCH .

2. Remove the seat track to seat cushion front bolts.

1. Position the seat track rearward.

2. Remove the seat track to seat cushion front bolts.
