Fig. 151: Positioning Suitable Jack Stand Under Extension Housing
Courtesy of FORD MOTOR CO.

24. Remove the six transfer case-to-transmission bolts and separate the transfer case from the transmission.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

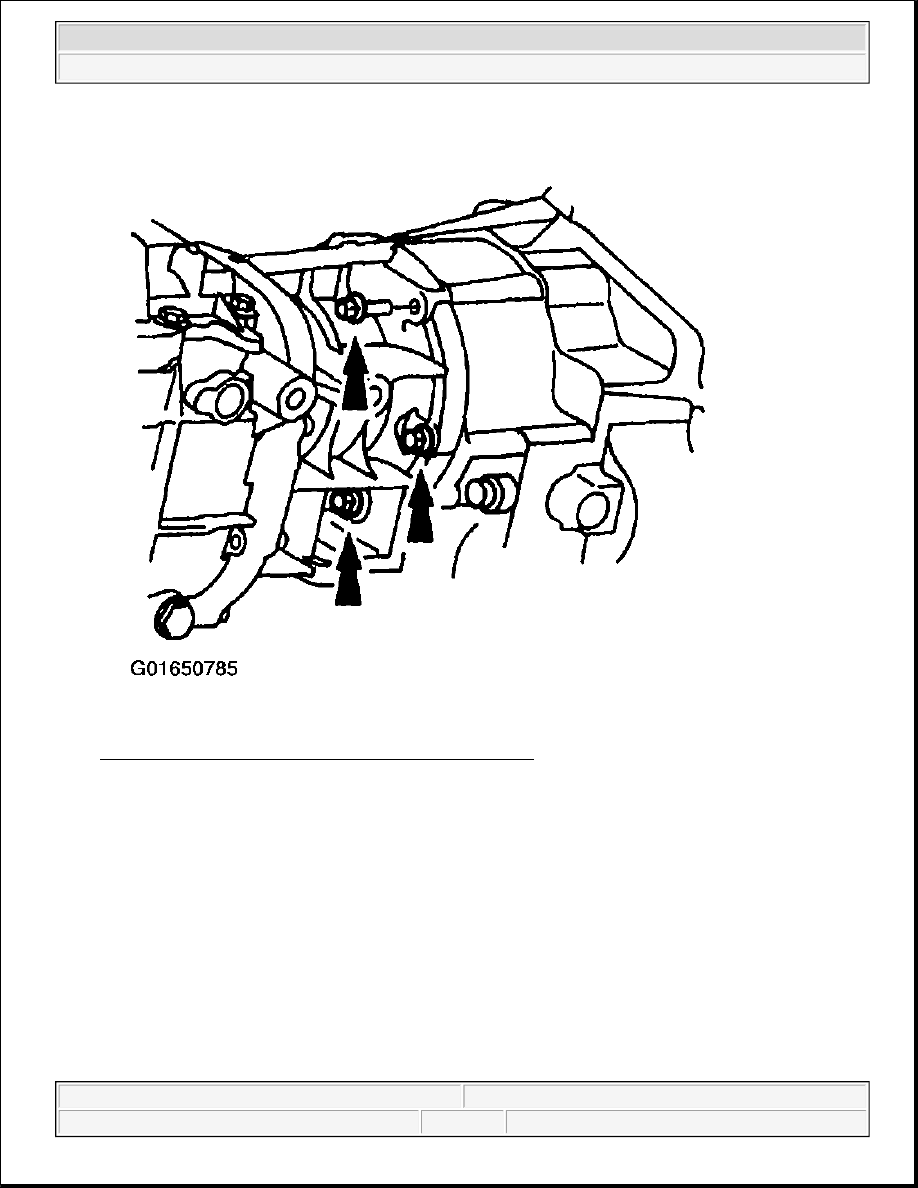

Fig. 152: Locating Transfer Case-To-Transmission Bolts
Courtesy of FORD MOTOR CO.

25. Lower the transfer case from the vehicle.

26. Remove the transfer case-to-transmission gasket and clean the mounting surfaces.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 153: Identifying Transfer Case-To-Transmission Gasket Mounting Surfaces
Courtesy of FORD MOTOR CO.

INSTALLATION

TRANSFER CASE

Installation

1. To install, reverse the removal procedure.

z

Install a new transfer case-to-transmission mounting gasket.

z

Fill the transfer case. For additional information, refer to TRANSFER CASE DRAINING AND
FILLING and to SPECIFICATIONS for the correct type and quantity of fluid.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



z

Tighten the transfer case-to-transmission bolts evenly in a star pattern.

z

Make sure the torsion bar adjuster bolt measurement is equal to the measurement taken during
removal.

Fig. 154: Installing Transfer Case-To-Transmission Gasket
Courtesy of FORD MOTOR CO.

2. Check the ride height and adjust as necessary. For additional information, refer to RIDING HEIGHT .

3. Check the wheel alignment and adjust as necessary. For additional information, refer to WHEEL

ALIGNMENT PROCEDURES .
