Ford F150 Pickup. Instruction - part 1996

Fig. 143: Disconnecting Electric Shift Motor Electrical Connector
Courtesy of FORD MOTOR CO.

16. Disconnect the vent hose.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



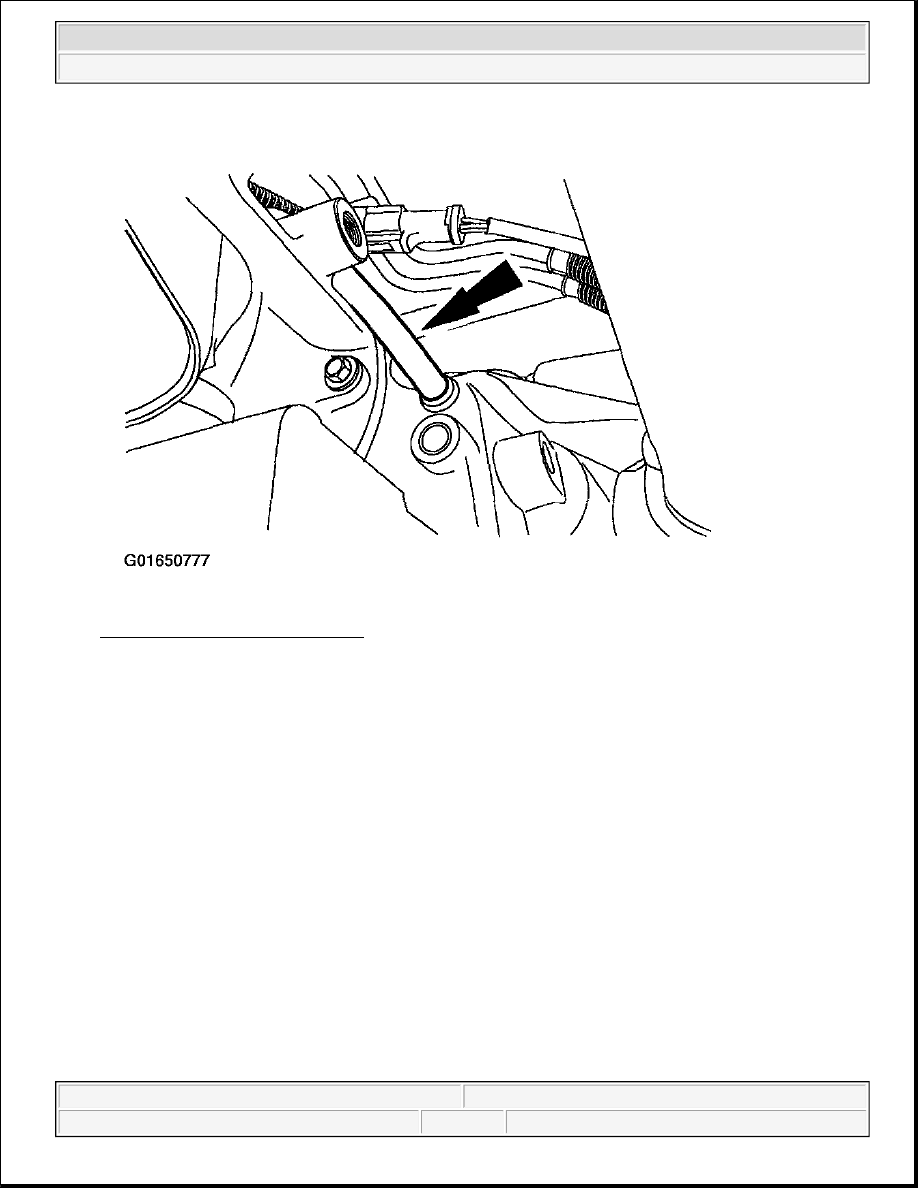

Fig. 144: Disconnecting Vent Hose
Courtesy of FORD MOTOR CO.

17. Using a suitable jack, support the transfer case.

z

Secure the transfer case to the jack with a safety strap.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



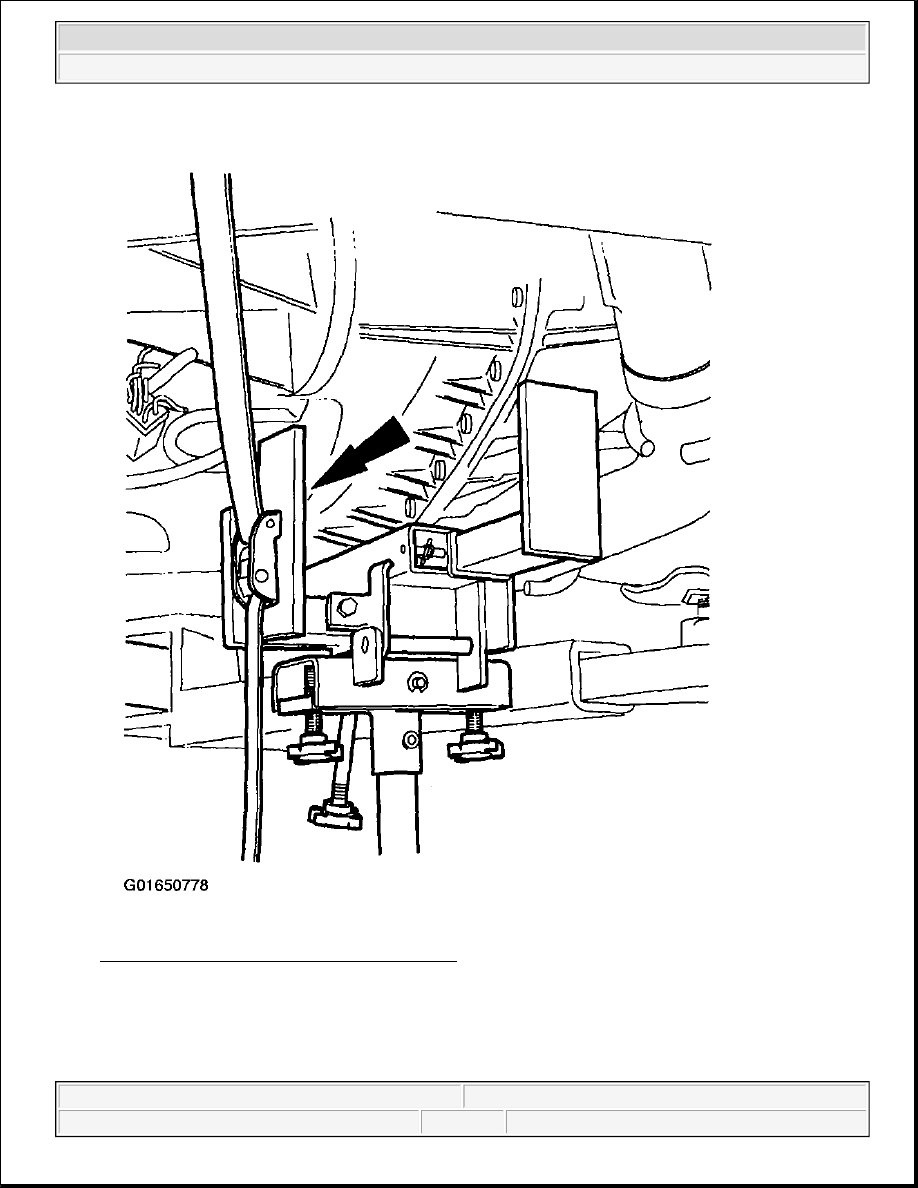

Fig. 145: Supporting Transfer Case With Jack
Courtesy of FORD MOTOR CO.

18. Remove the two exhaust heat shield-to-crossmember bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 146: Removing Heat Shield-To-Crossmember Bolts
Courtesy of FORD MOTOR CO.

19. Loosen, but do not remove, the transmission mount-to-crossmember nuts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
