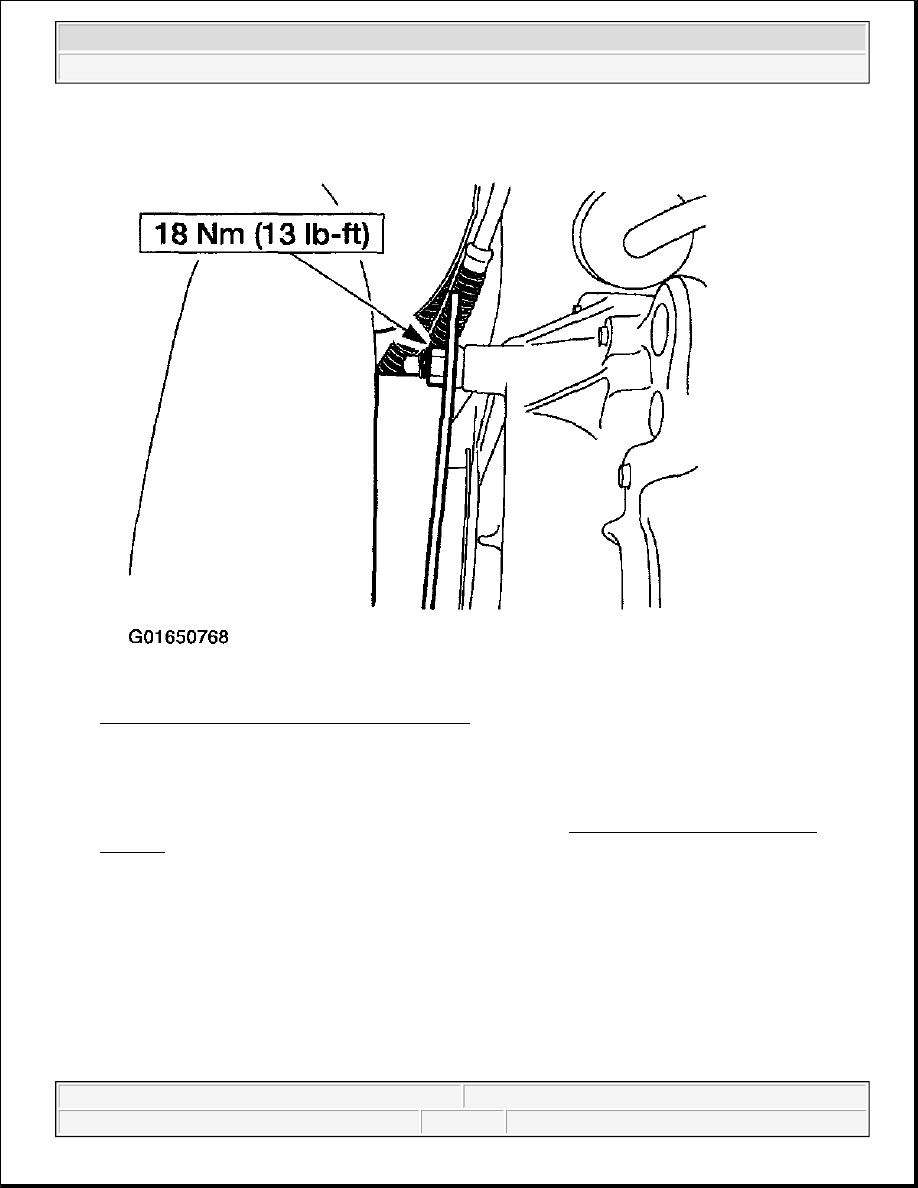

Fig. 135: Removing Front Driveshaft Shield Nut
Courtesy of FORD MOTOR CO.

6. Remove the front driveshaft. For additional information, refer to DRIVESHAFT & UNIVERSAL

JOINTS .

7. Make preliminary adjustment references.

1. Index-mark the torsion bars to the torsion bar crossmember.

2. Measure and record the torsion bar adjuster bolt length.

NOTE:

To maintain initial driveshaft balance, index-mark the front driveshaft.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 136: Identifying Preliminary Adjustment References
Courtesy of FORD MOTOR CO.

8. Remove the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

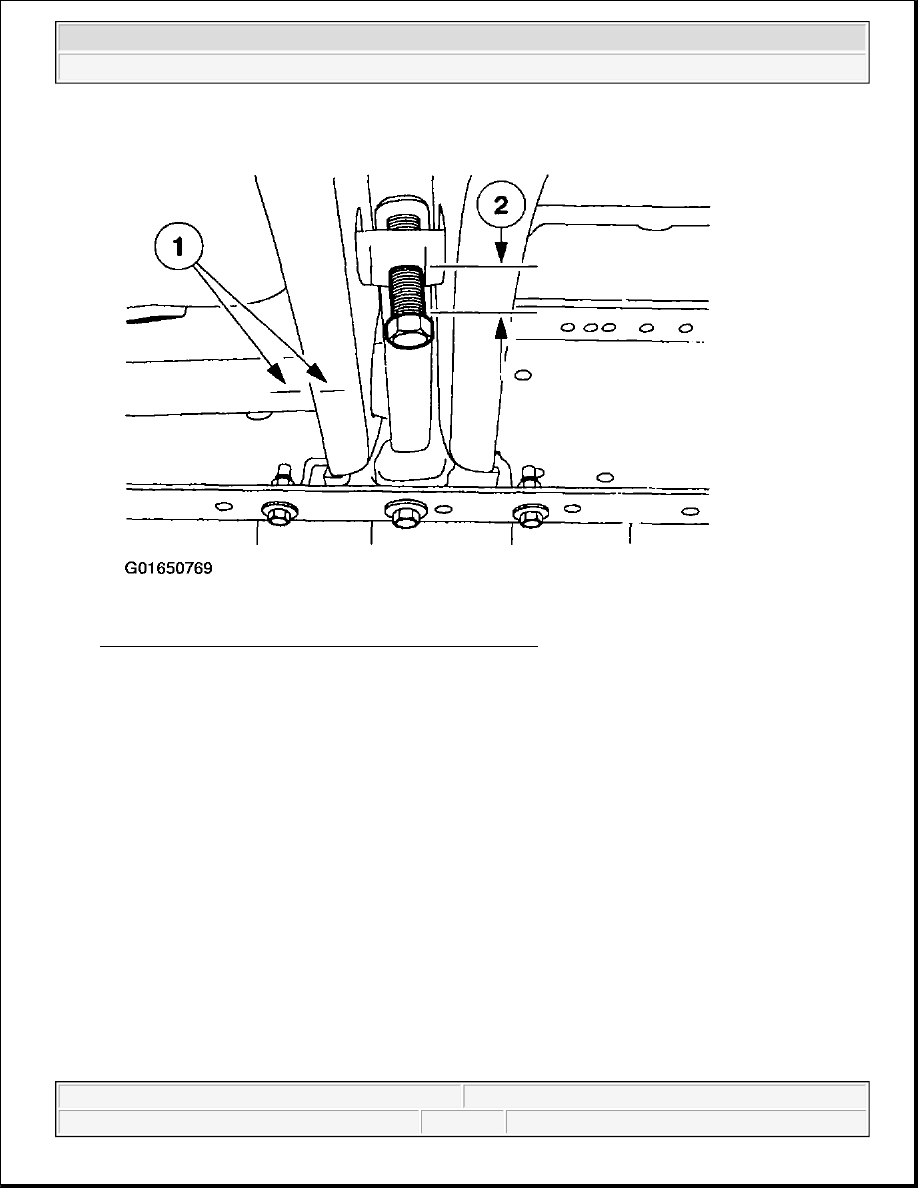

Fig. 137: Removing Torsion Bar Adjuster Bolt
Courtesy of FORD MOTOR CO.

9. Using the special tools, remove the torsion bar adjustment nuts.

z

Tighten the special tool until the torsion bar adjuster lifts off the adjuster nut.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

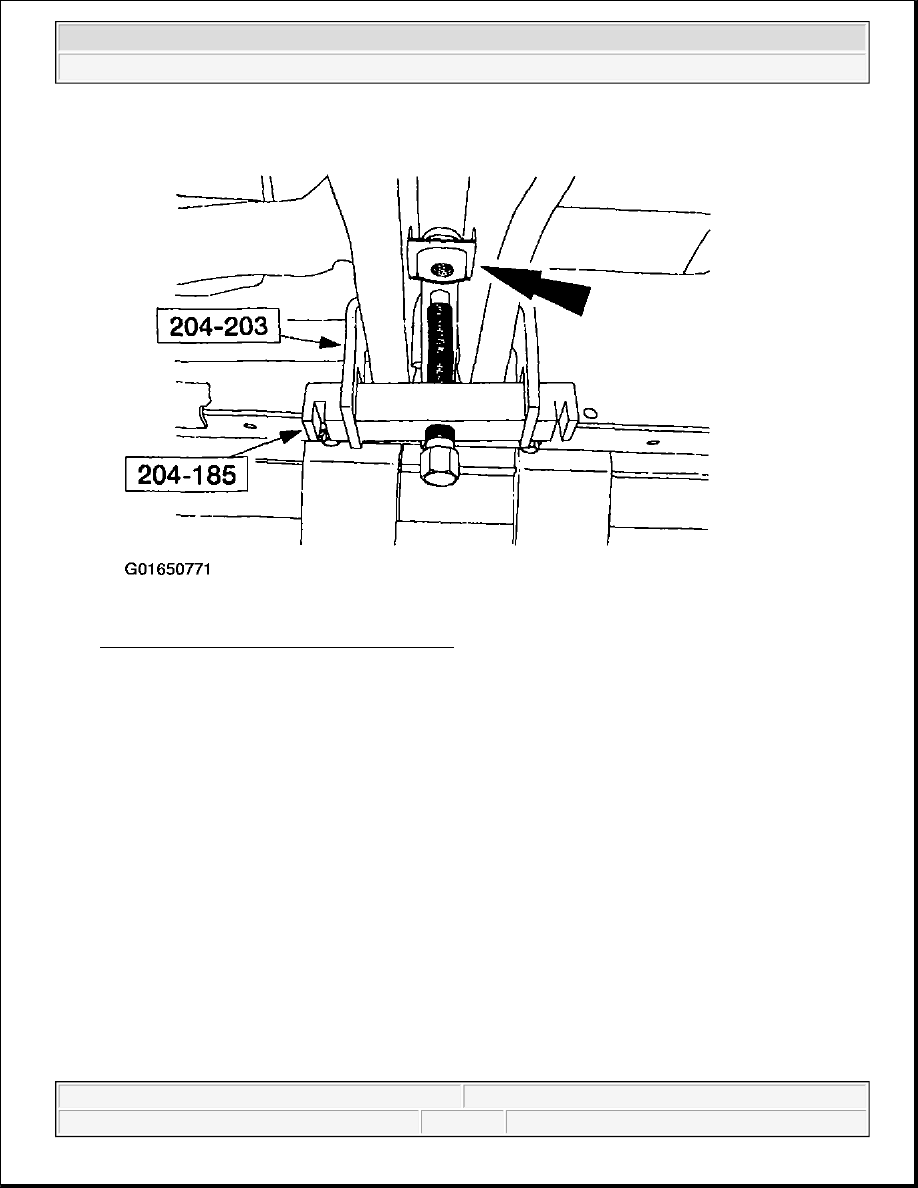

Fig. 138: Removing Torsion Bar Adjuster Nut
Courtesy of FORD MOTOR CO.

10. Remove the six bolts, then remove the torsion bar adjusting brackets.

z

Move the torsion bar crossmember rearward. Place a hand under the torsion bar adjusting bracket.
The bracket will slide off the torsion bar. Do one side at a time. Position the torsion bar
crossmember against the frame support.
