Fig. 59: Disassembling Lockup Hub Assembly
Courtesy of FORD MOTOR CO.

19. Disassemble the lockup hub assembly.

1. Remove the lockup hub snap ring.

2. Separate the lockup collar.

3. Separate the two lockup springs.

4. Separate the lockup hub.

5. Remove the armature.

20. Remove the spacer.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 60: Removing Spacer
Courtesy of FORD MOTOR CO.

21. Remove the drive chain and sprockets as an assembly.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



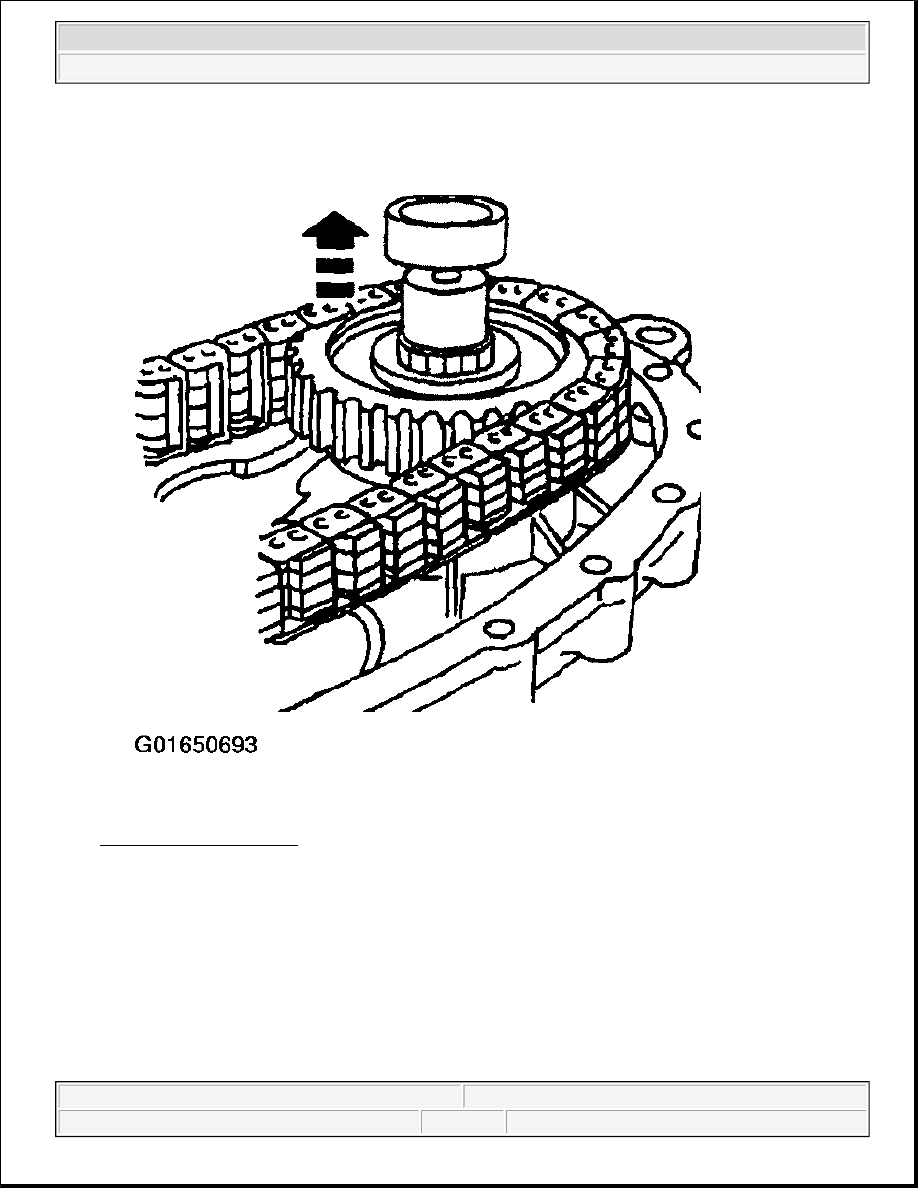

Fig. 61: Removing Drive Chain & Sprockets
Courtesy of FORD MOTOR CO.

22. Remove the magnet from its slot in the case.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



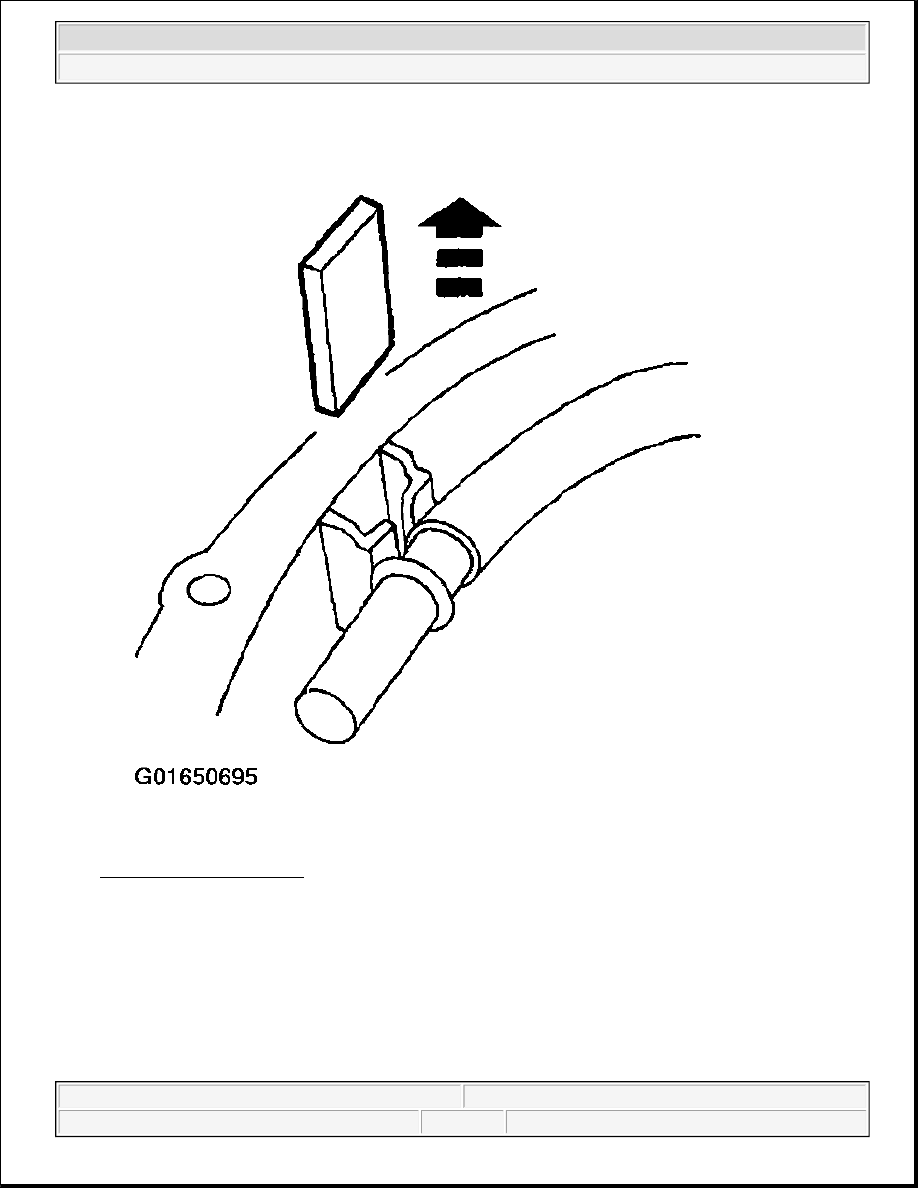

Fig. 62: Removing Magnet
Courtesy of FORD MOTOR CO.

NOTE:

The pump assembly is not repairable.
