Ford F150 Pickup. Instruction - part 1974

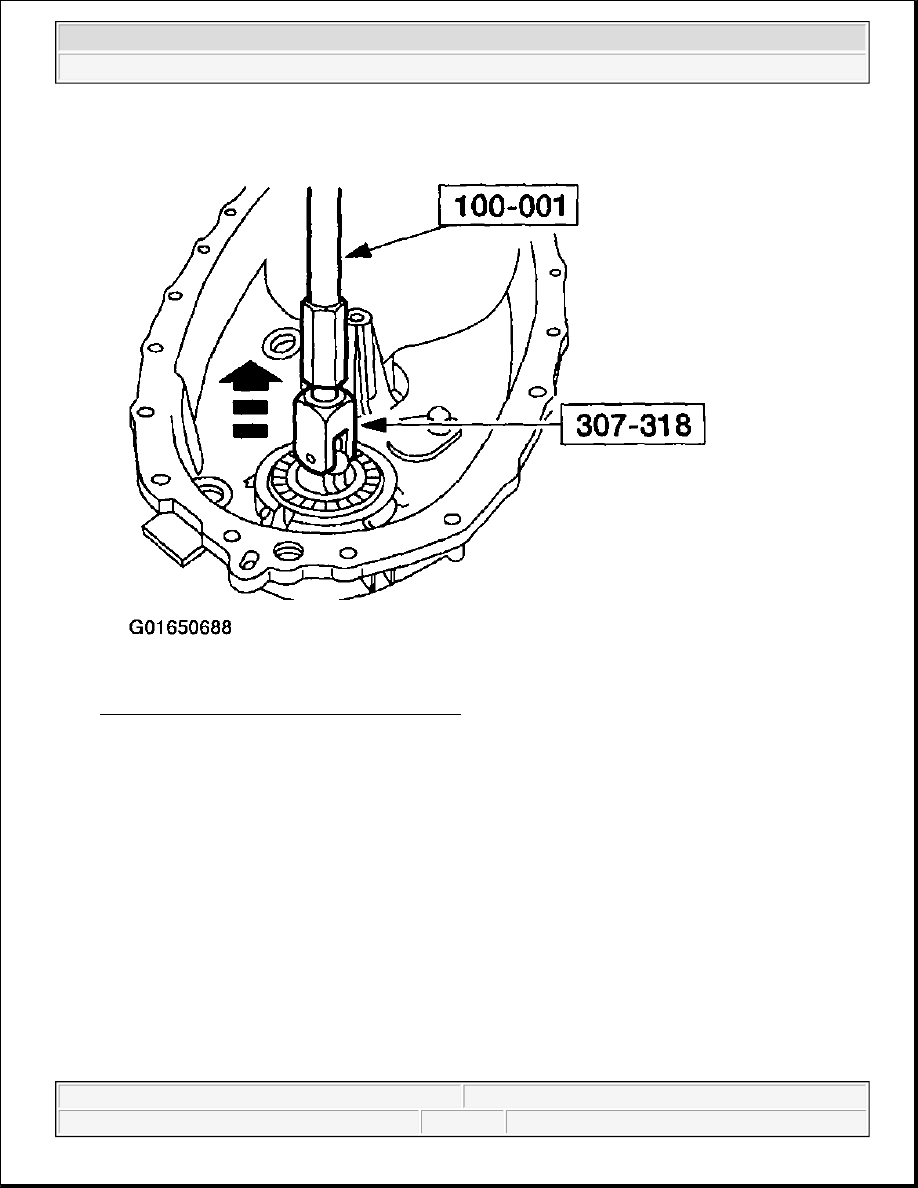

Fig. 55: Removing Front Output Shaft Bearing
Courtesy of FORD MOTOR CO.

16. Remove the shift collar hub snap ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

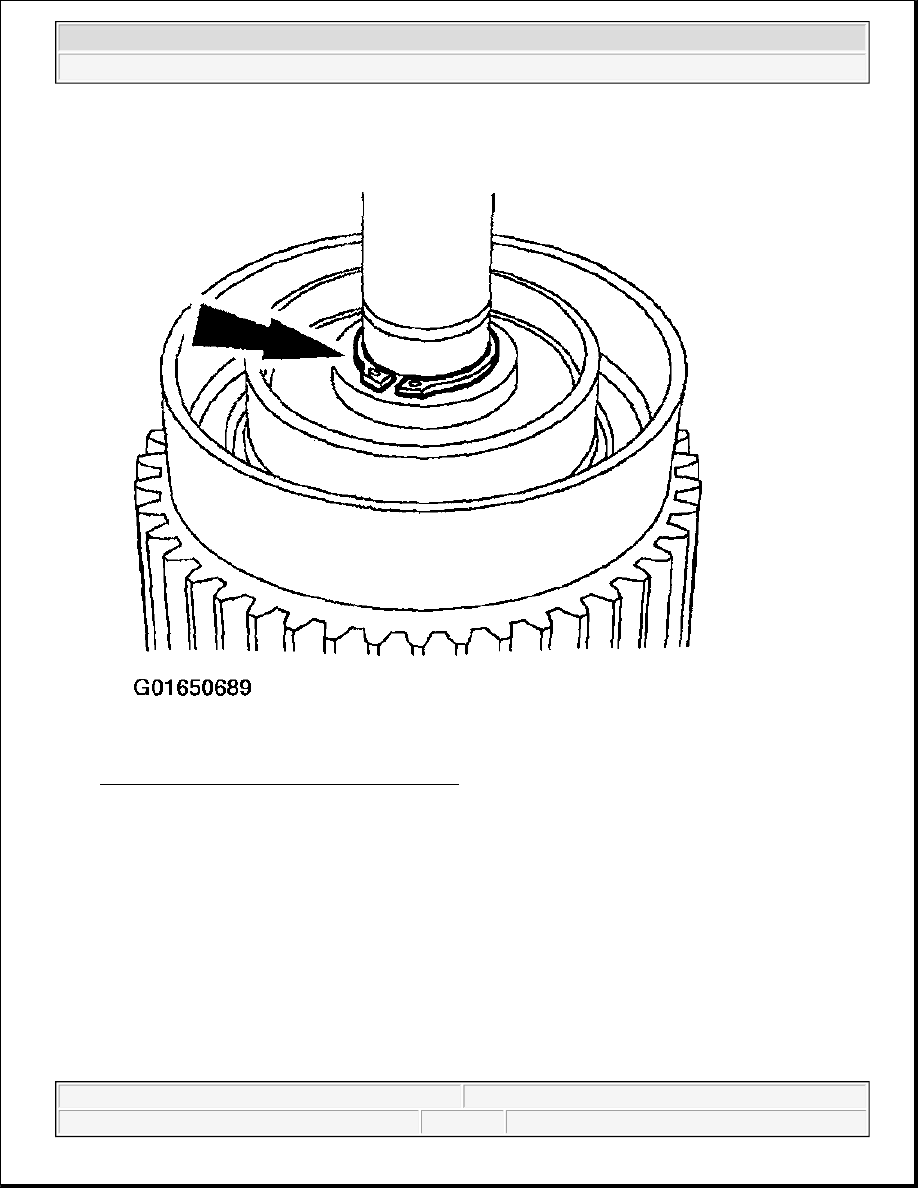

Fig. 56: Removing Shift Collar Hub Snap Ring
Courtesy of FORD MOTOR CO.

17. Remove the coil housing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 57: Removing Coil Housing
Courtesy of FORD MOTOR CO.

18. Remove the shift fork.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



1. Remove the lockup hub.

2. Remove the shift fork and spring.

Fig. 58: Removing Shift Fork
Courtesy of FORD MOTOR CO.

NOTE:

Remove the lockup hub assembly as a single unit. If disassembly is
required, proceed with the following.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
