Fig. 51: Removing Transfer Case Cover Bolts
Courtesy of FORD MOTOR CO.

11. Remove the bolts.

NOTE:

Use pry bosses to separate the cover from the case.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 52: Separating Transfer Case Covers
Courtesy of FORD MOTOR CO.

12. Separate the transfer case covers.

13. Remove the coil.

1. Remove the three coil-to-cover nuts.

2. Remove the coil.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 53: Removing Coil
Courtesy of FORD MOTOR CO.

14. Using the special tools, remove the rear output shaft bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



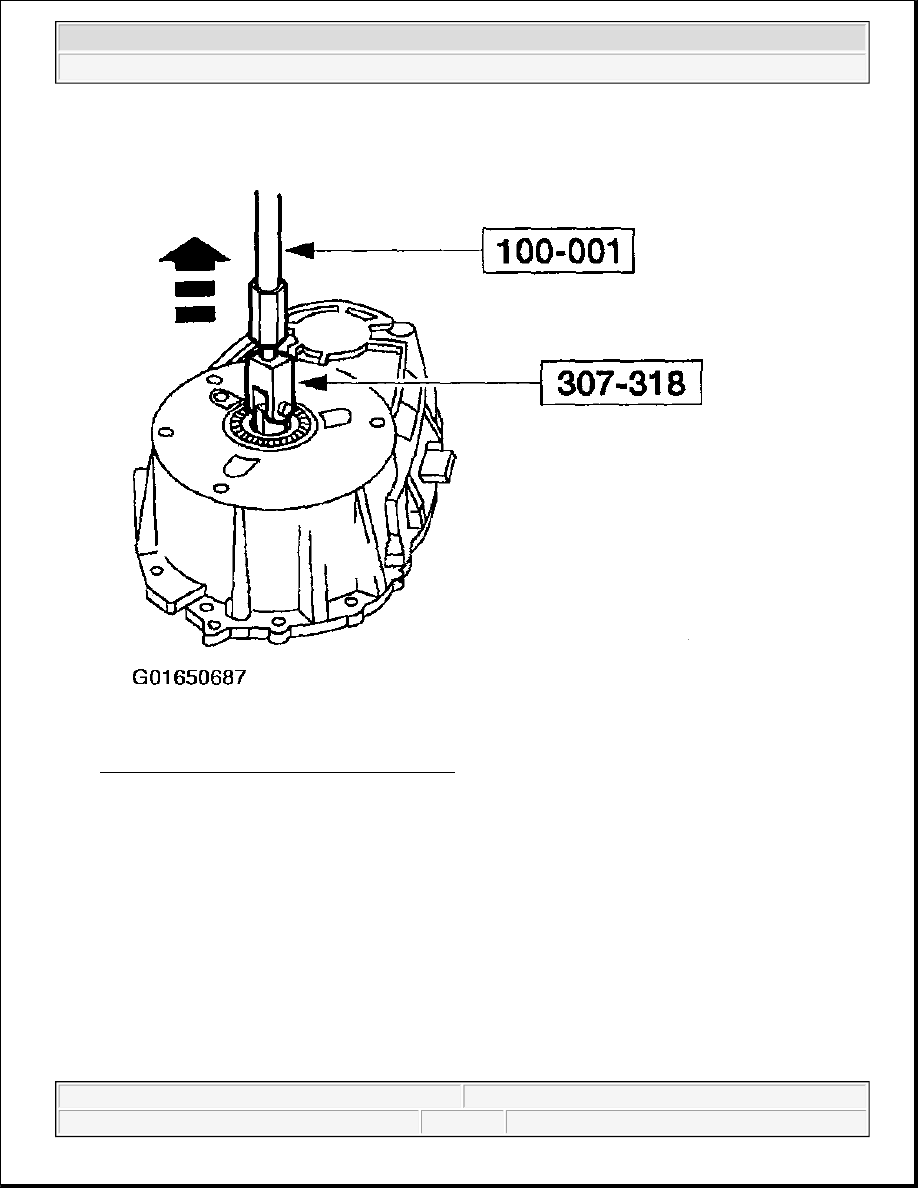

Fig. 54: Removing Rear Output Shaft Bearing
Courtesy of FORD MOTOR CO.

15. Using the special tools, remove the front output shaft bearing.
