Ford F150 Pickup. Instruction - part 1971

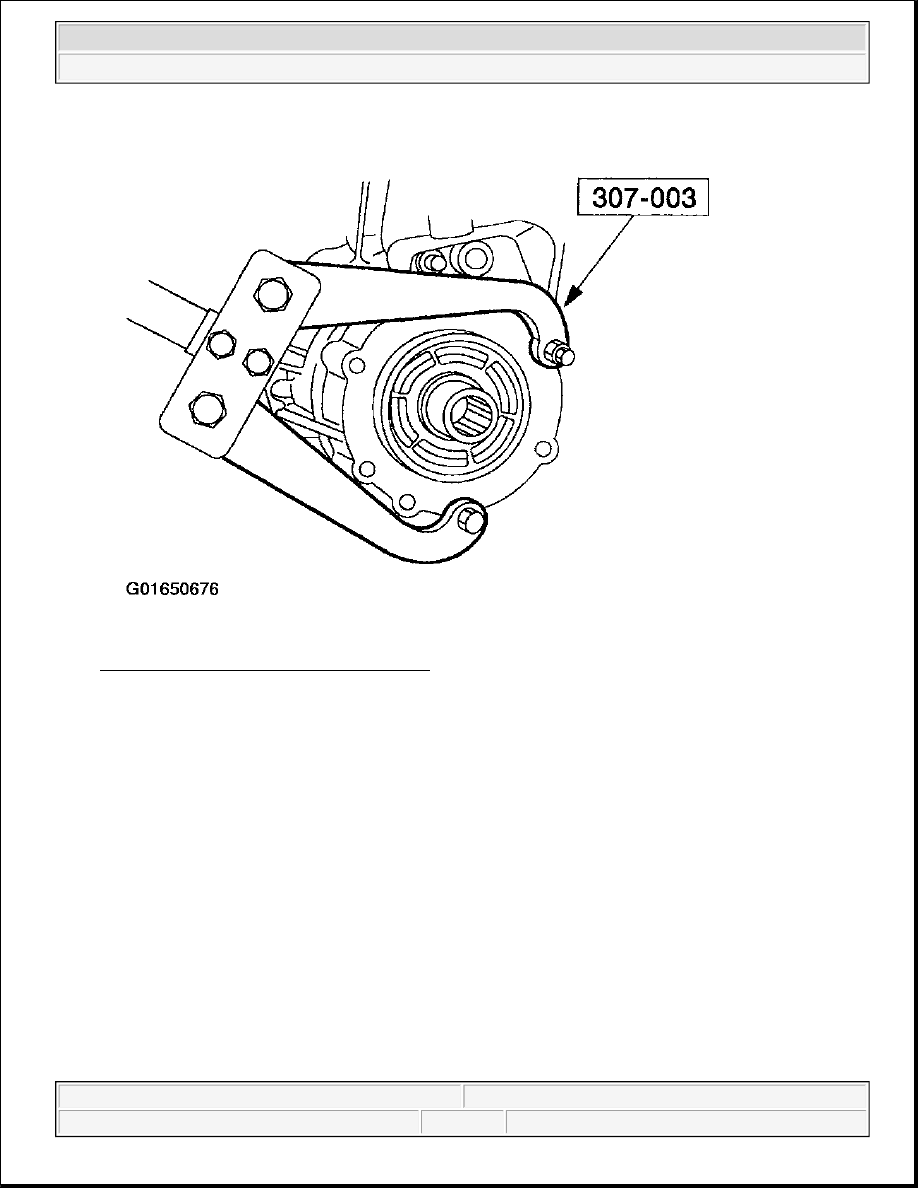

Fig. 43: Securing Transfer Case Using SST
Courtesy of FORD MOTOR CO.

4. Using a suitable tool, remove the oil seal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 44: Removing Oil Seal
Courtesy of FORD MOTOR CO.

5. Remove the coil wire from the electric shift motor electrical connector, if equipped.

1. Remove the wire connector spacer.

2. Remove the coil wire and pin.

z

Use an electrical connector pin extractor tool.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



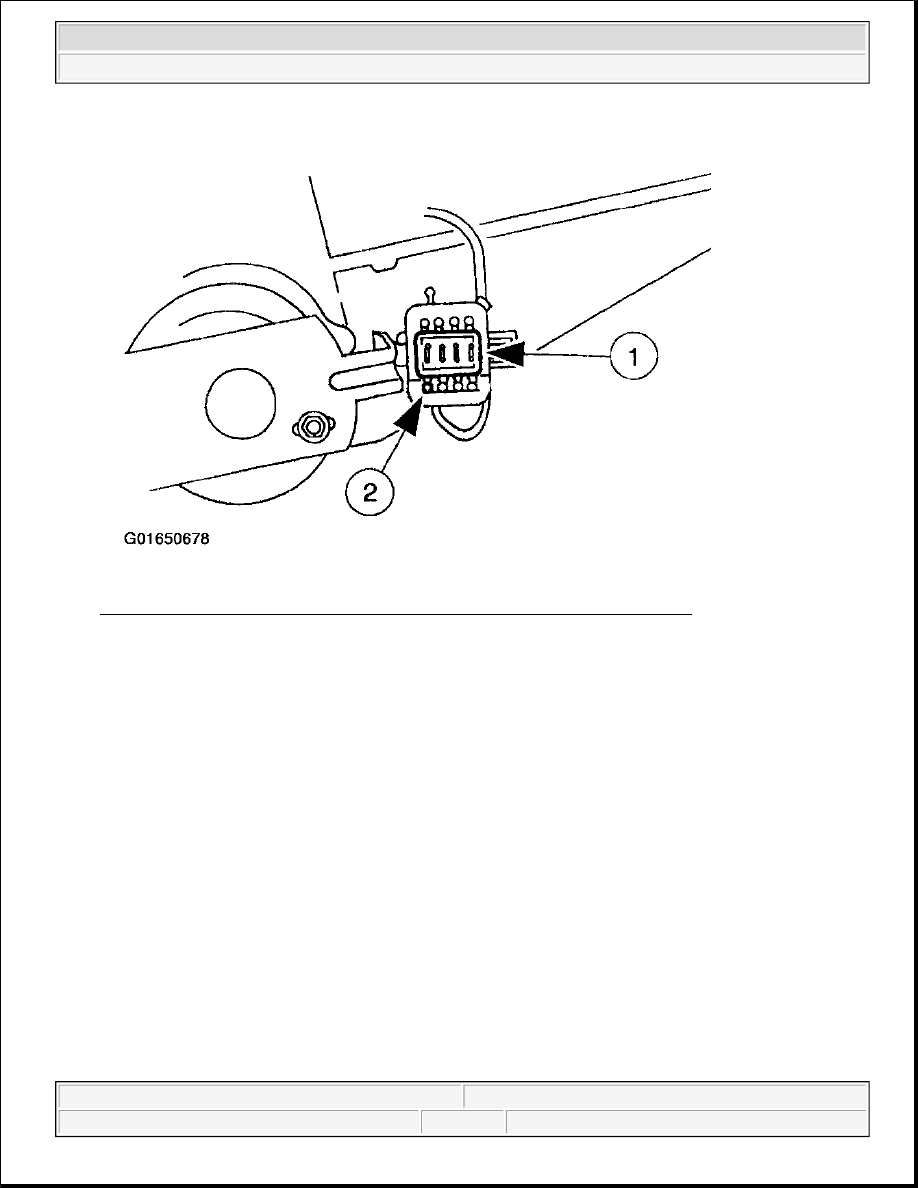

Fig. 45: Removing Coil Wire From Electric Shift Motor Electrical Connector
Courtesy of FORD MOTOR CO.

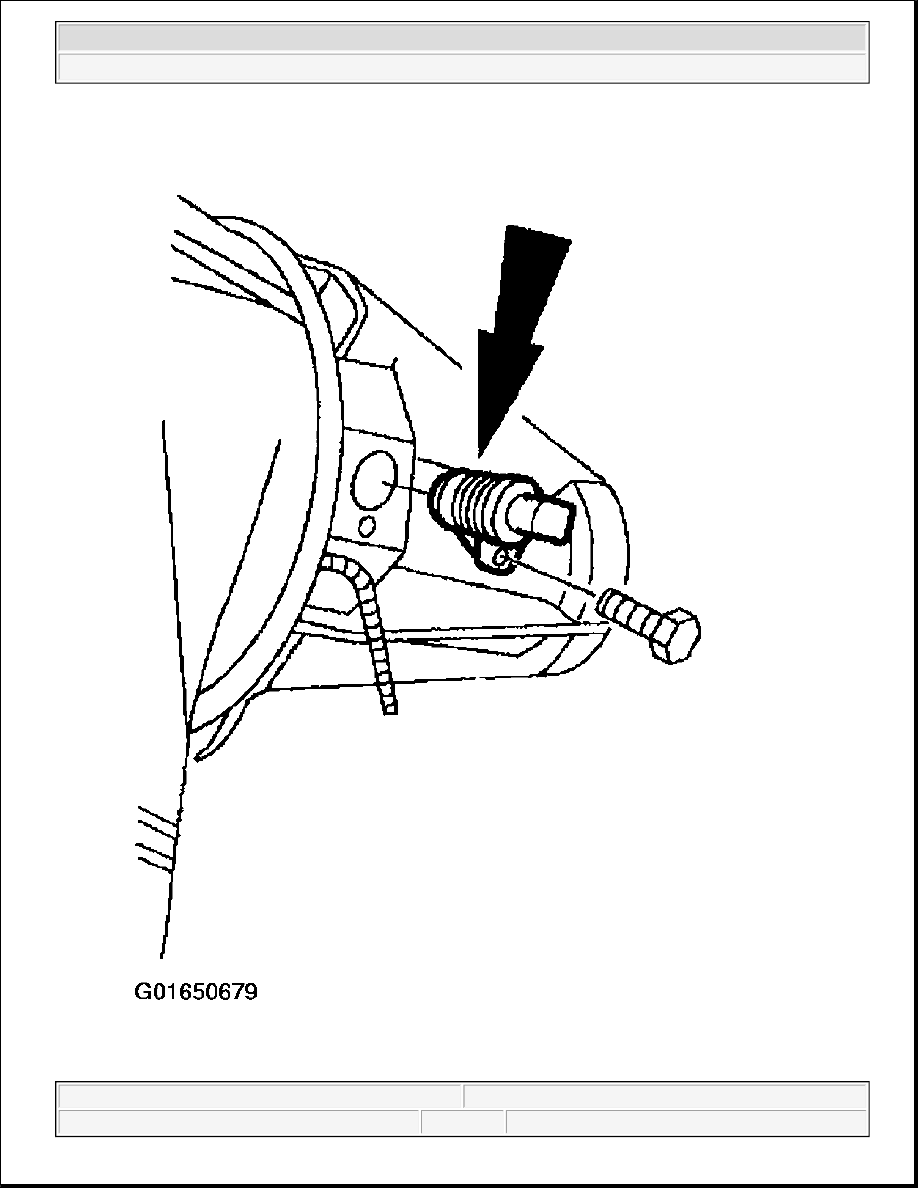

6. Remove the Output Shaft Speed sensor (OSS), if equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup





2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
