Ford F150 Pickup. Instruction - part 1970

Fig. 39: Transfer Case Exploded View - Electric Shift (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



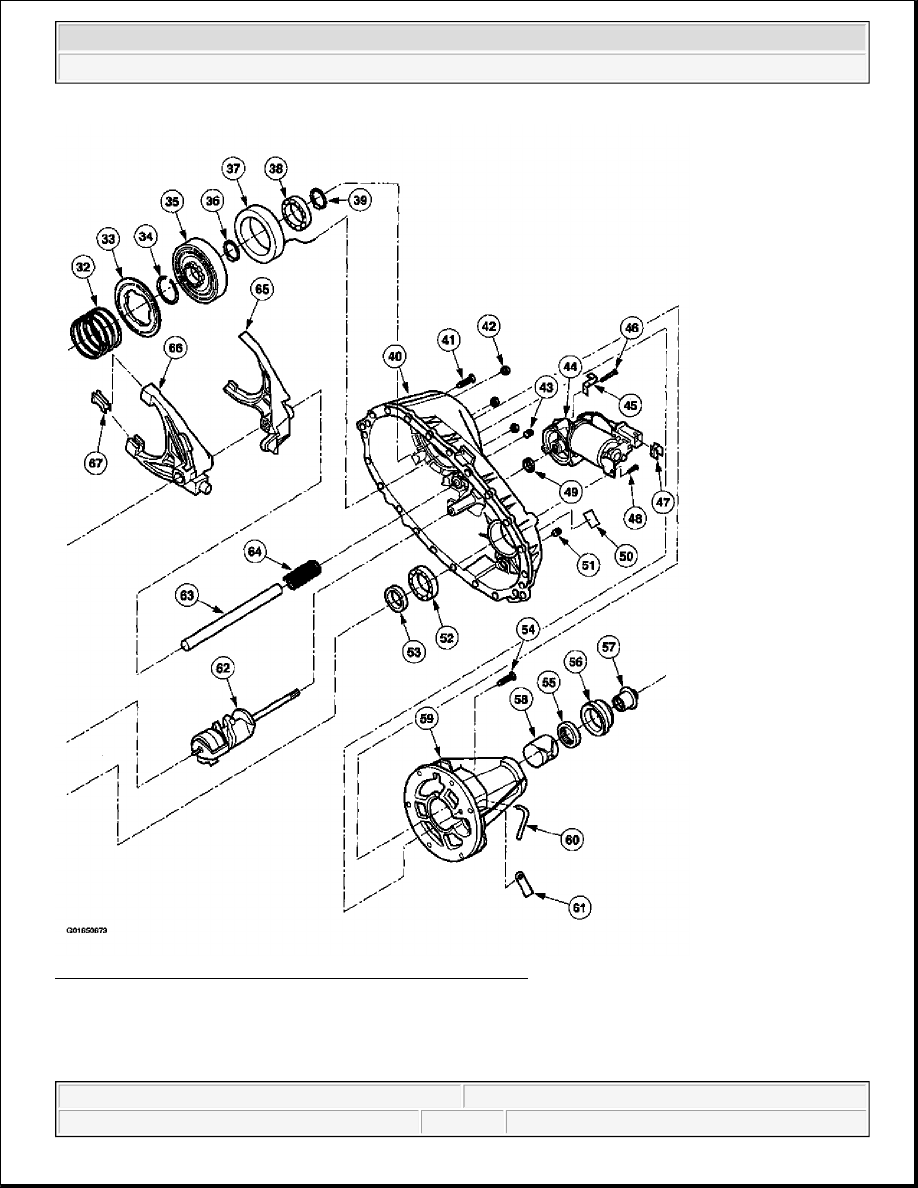

Fig. 40: Transfer Case Exploded View - Electric Shift (2 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 41: Transfer Case - Electric Shift Parts Description
Courtesy of FORD MOTOR CO.

1. Remove the transfer case. Refer to TRANSFER CASE-4R70W TRANSMISSION .

2. Remove the 4WD indicator switch, if equipped.

NOTE:

On the instruction shift transfer case, place the transfer case in the neutral position
for disassembly.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 42: Removing 4WD Indicator Switch
Courtesy of FORD MOTOR CO.

3. Using the special tool, secure the transfer case.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
