Fig. 6: Tightening Drain Plug
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 7: Tightening Filler Plug
Courtesy of FORD MOTOR CO.

2. Remove the fill plug, and fill the transfer case.

z

The fluid must be just below the fill plug hole. Because you can reach the fluid with a finger does
not mean the fluid is at the correct level. Make sure the fluid is level with the filler opening for the
correct fluid level.

CAUTION: Incorrect fluid fill can result in transfer case failure.

NOTE:

The fluid level should be just below the fill plug.

NOTE:

Clean the area around the fill plug.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 8: Identifying Correct Fluid Level
Courtesy of FORD MOTOR CO.

IN-VEHICLE REPAIR

SEAL - OIL

Special Tool(s)



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



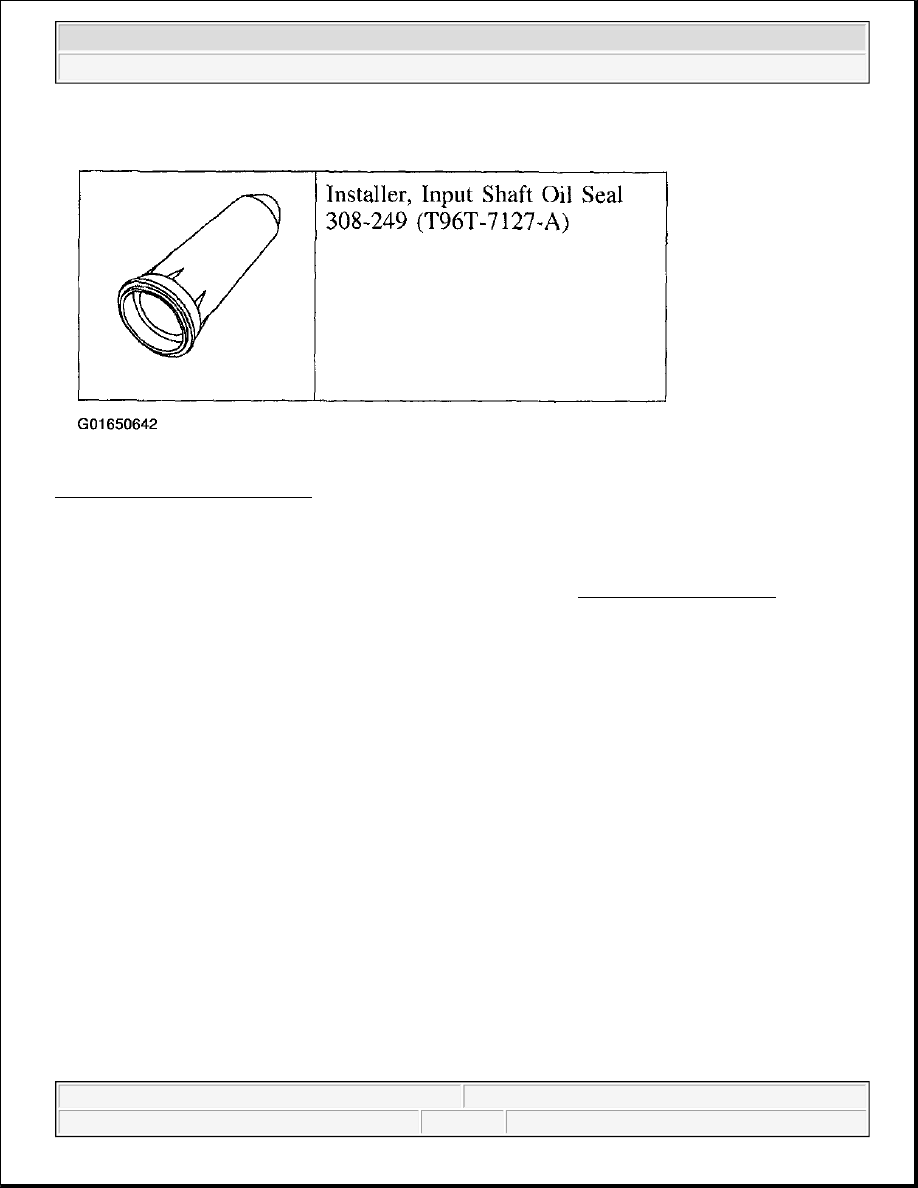

Fig. 9: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Removal

1. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .

NOTE:

Index-mark the rear driveshaft yoke.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
