Ford F150 Pickup. Instruction - part 1938

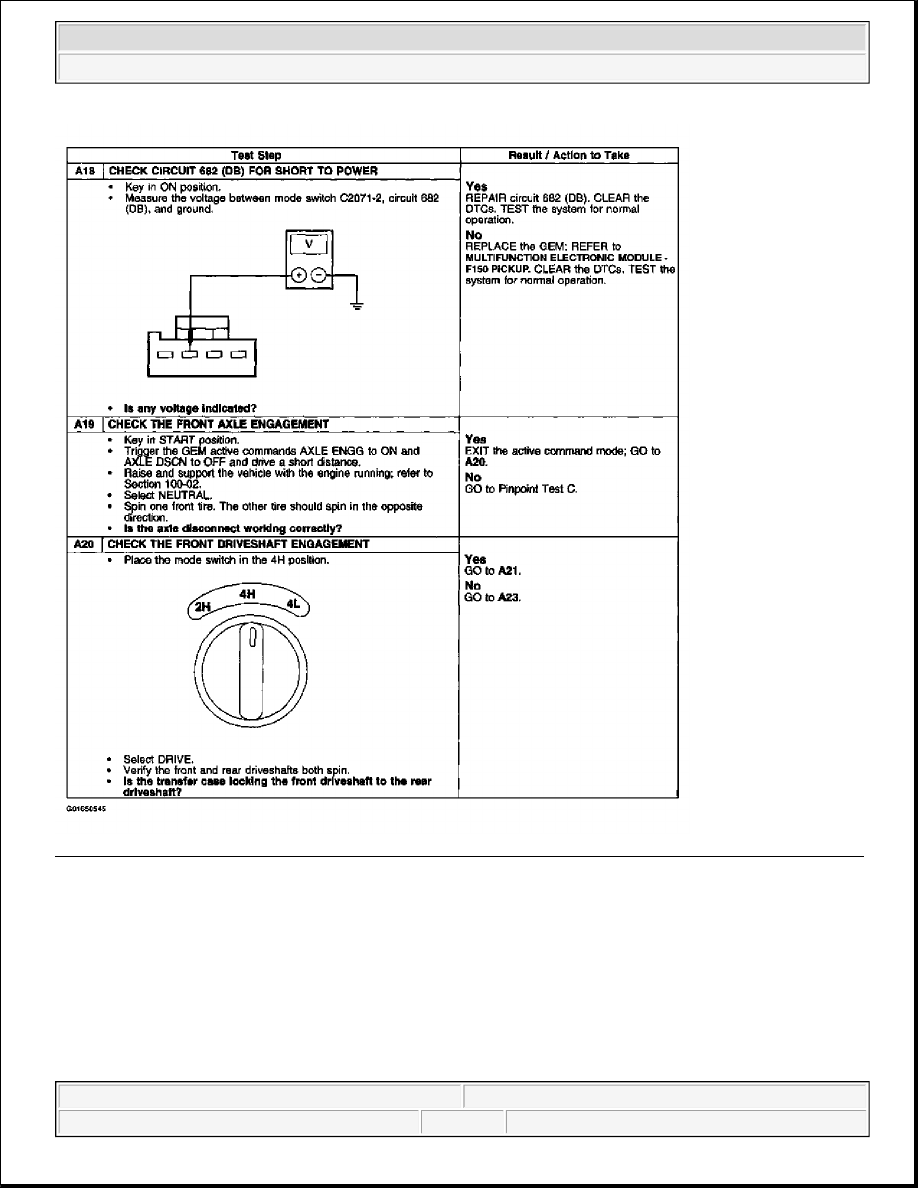

Fig. 18: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A18-A20)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

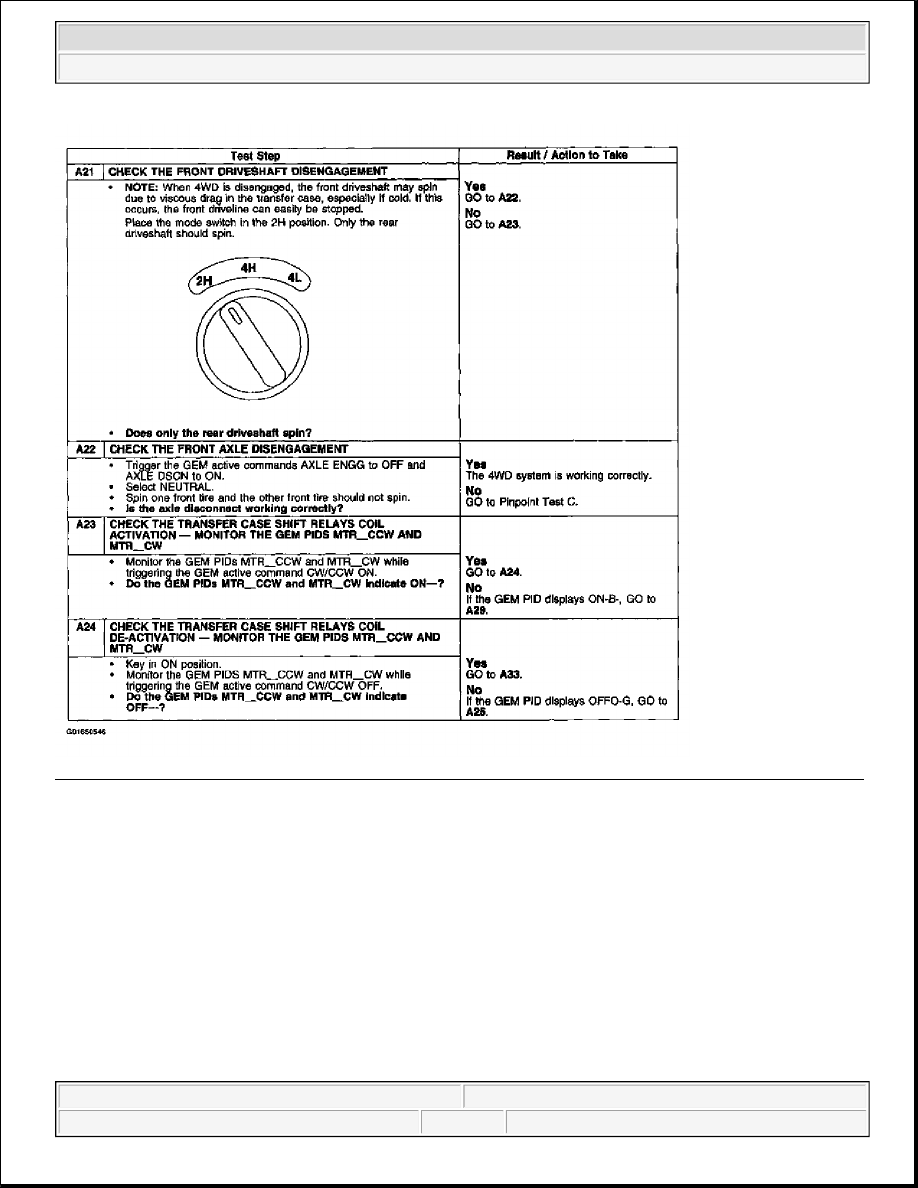

Fig. 19: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A21-A24)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup



Fig. 20: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A25-A26)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

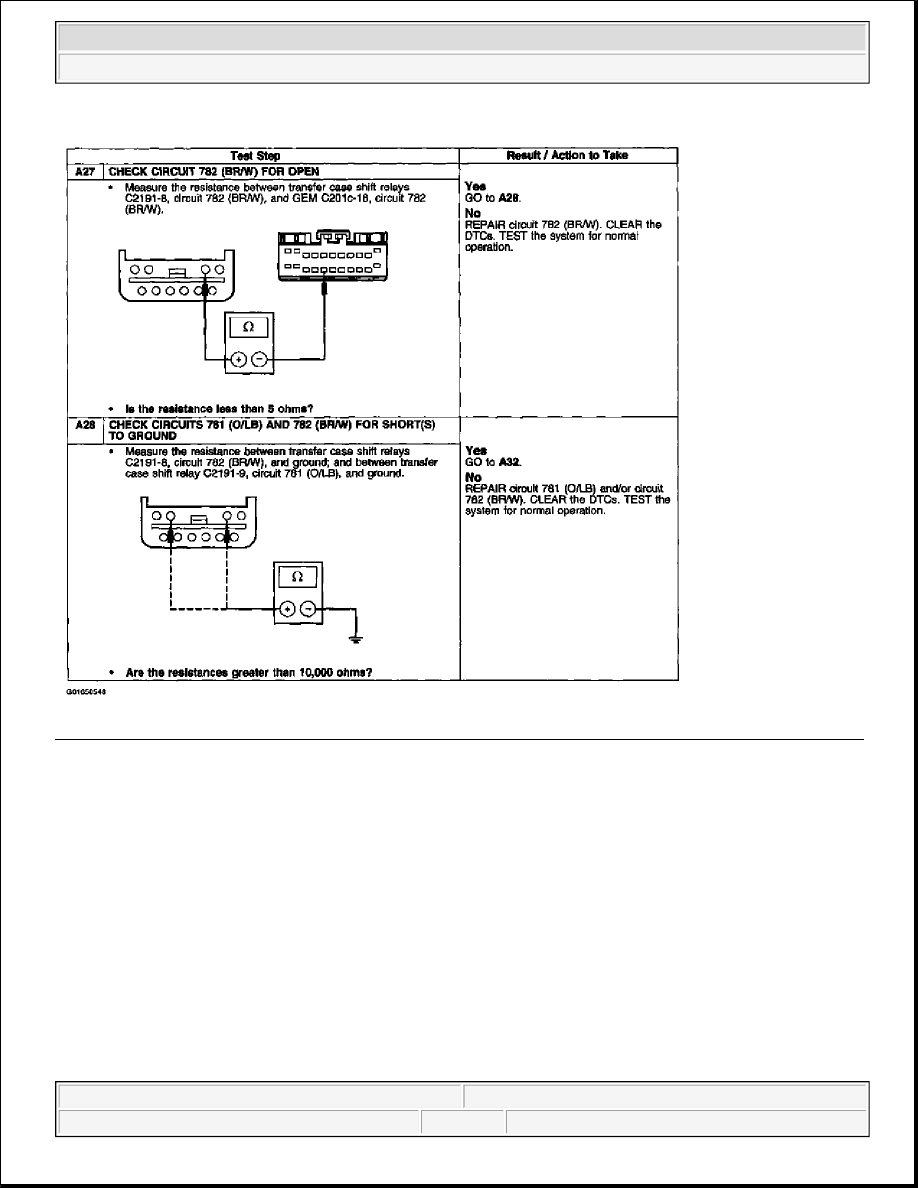

Fig. 21: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A27-A28)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup
