Ford F150 Pickup. Instruction - part 1937

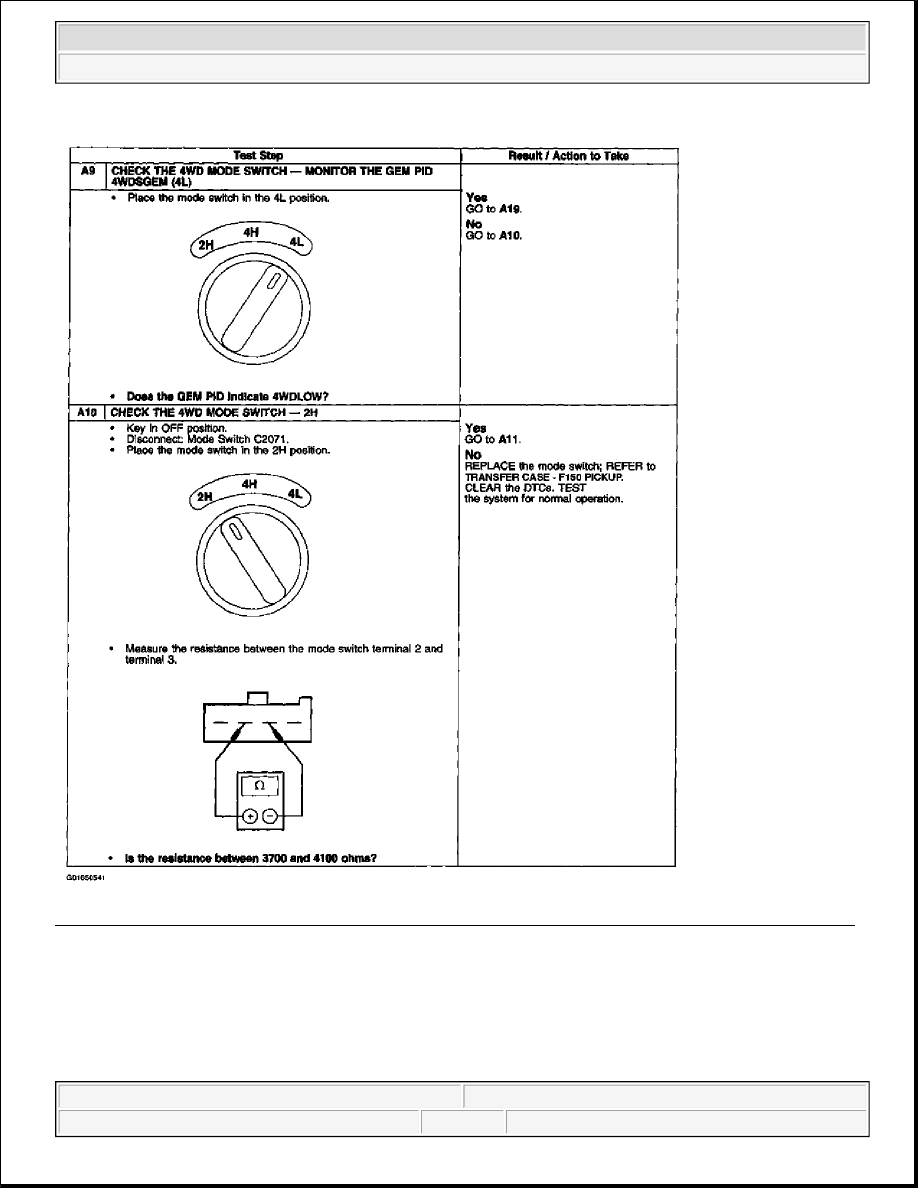

Fig. 14: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A9-A10)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup



Fig. 15: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A11-A12)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup

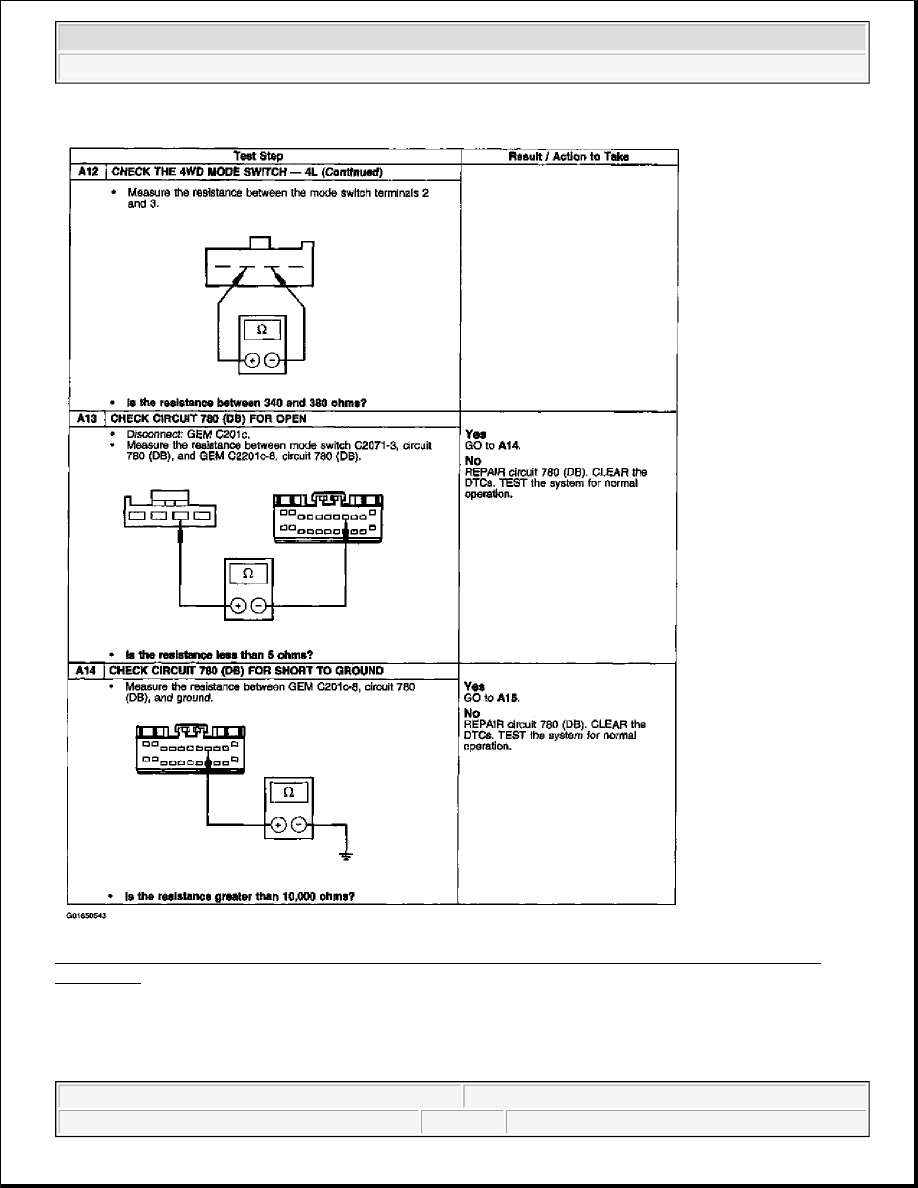

Fig. 16: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A12
Cont.-A14)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup



Fig. 17: Pinpoint Test A: Vehicle Does Not Shift Between 2WD & 4WD Modes Correctly (Steps A15-A17)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - General Information - F150 Pickup
